AE86L-ESMXS (1983)
Toyota Corolla Coupe
Production
May 1983
-
Apr 1987
Engine
4A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )2D

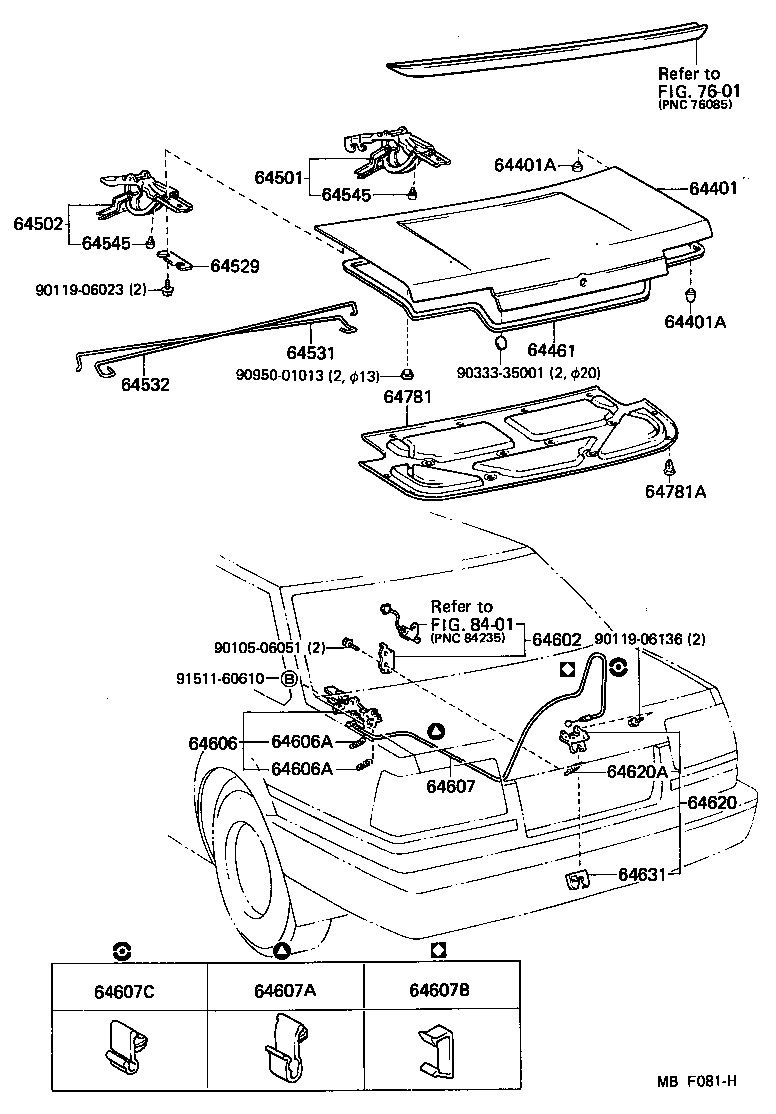

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-12570 |
AE86..2D |
1 | ||
| 64401-1A280 |
AE86..2D |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09035 |
AE86..2D RR |
2 | ||
| 90541-06076 |
AE86..2D FR |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09035 |
AE86..2D RR |
2 | ||
| 90541-06076 |
AE86..2D FR |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-12340 |
AE86..2D |
1 | ||
| 64461-12230 |
AE86..2D |
1 | ||
| 64461-12230 |
AE86..2D |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-12190 |
AE86..2D |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-12180 |
AE86..2D |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-20010 |
AE86..2D |
4 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-12150 |
AE86..2D |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-12140 |
AE86..2D |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AE86..2D |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AE86..2D |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-12060 |
AE86..2D..GEN |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-12070 |
AE86..2D..LHD..GEN |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AE86..2D..GEN |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AE86..2D..GEN |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-12270 |
AE86..2D..LHD..GEN |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90467-12009 |
AE86..2D..GEN |
1 | ||
| 64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 82711-16180 |
AE86..2D..GEN |
1 | ||
| 64607C - CLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AE86..2D..GEN |
2 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-20080 |
AE86..2D |
1 | ||
| 64610-12090 |
AE86..2D |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-08001 |
AE86..2D |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-12010 |
AE86..2D |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06023 | ||||
| 90119-06136 | ||||
| 90333-35001 | ||||
| 90950-01013 | ||||
| 91511-60610 | ||||
| Linked diagrams | ||||
| 7601 | ||||
| 8401 | ||||
