AE86L-ESMXS (1983)
Toyota Corolla Coupe
Production
May 1983
-
Apr 1987
Engine
4A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

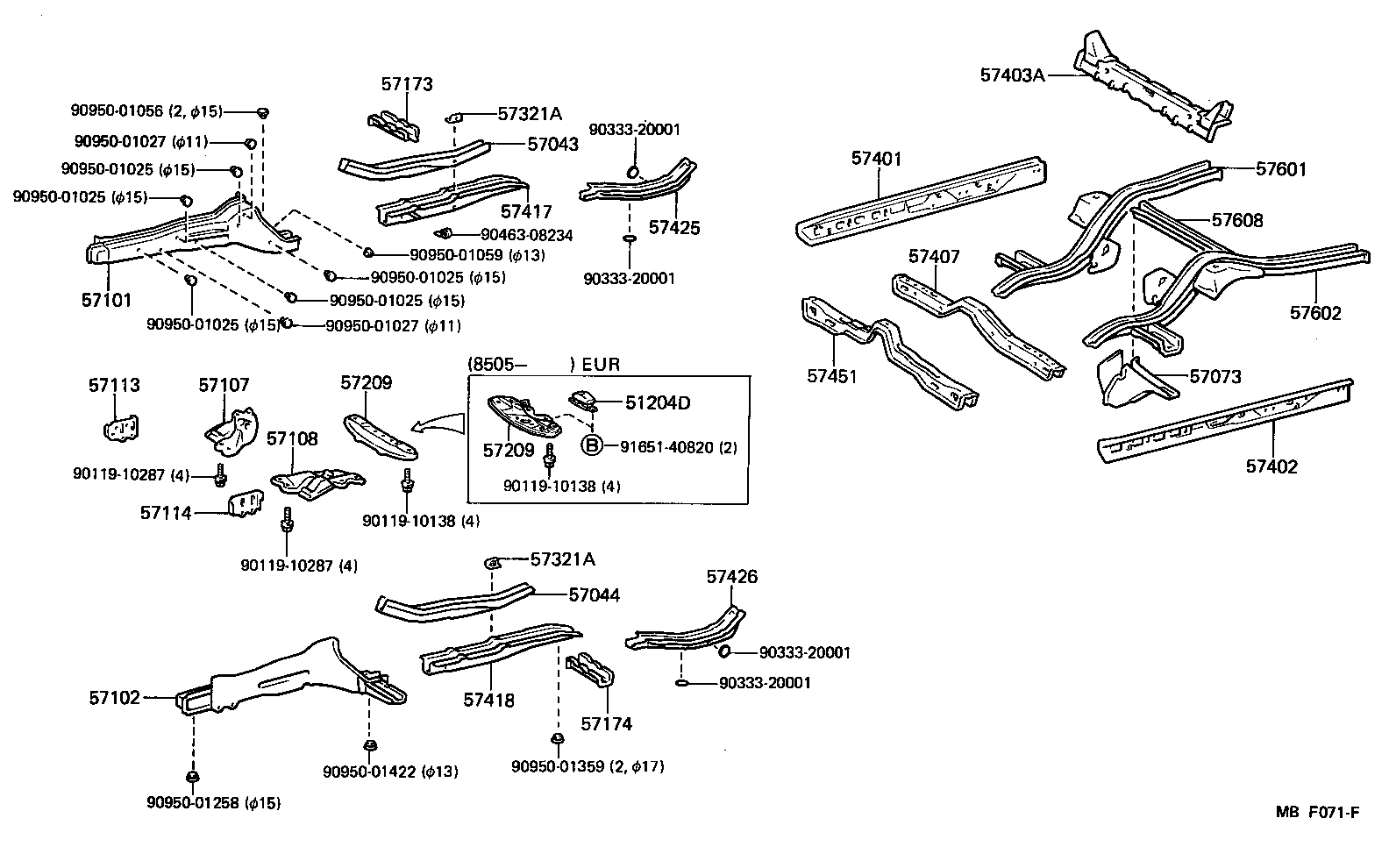

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57073 - BRACKET SUB-ASSY, LATERAL ROD | ||||
| 57073-12030 |
AE86 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12180 |
AE86..ARL,EUR,GEN |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12180 |
AE86..ARL,EUR,GEN |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-12050 |
AE86 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-12040 |
AE86..SR;AE86..RHD..GT..GEN |
1 | ||
| 57108-12050 |
AE86..SR;AE86..GT..GEN W/O OIL COOLER |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12060 |
AE86 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12060 |
AE86 |
1 | ||
| 57173 - BOX, TORQUE, FRONT NO.2 RH | ||||
| 57173-12010 |
AE86 |
1 | ||
| 57174 - BOX, TORQUE, FRONT NO.2 LH | ||||
| 57174-12010 |
AE86 |
1 | ||
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57209-12310 |
AE86..5F |
1 | ||
| 57209-12280 |
AE86..5F |
1 | ||
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57209-12310 |
AE86..5F |
1 | ||
| 57209-12280 |
AE86..5F |
1 | ||
| 57321A - RETAINER, CATALYTIC CONVERTER MOUNTING | ||||
| 57321-12040 |
AE86..ARL,EUR,GEN |
2 | ||
| 57321A - RETAINER, CATALYTIC CONVERTER MOUNTING | ||||
| 57321-12040 |
AE86..ARL,EUR,GEN |
2 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-12160 |
AE86..ARL,GEN,ME |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-12160 |
AE86..ARL,GEN,ME |
1 | ||
| 57403A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3 | ||||
| 57403-12040 |
AE86..2D |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-12010 |
AE86 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-12040 |
AE86..ARL,EUR,GEN |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-12040 |
AE86..ARL,EUR,GEN |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-12030 |
AE86 |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-12030 |
AE86 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-12030 |
AE86 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12910 |
AE86..ARL,EUR,GEN |
1 | ||
| 57601-12913 |
AE86..ARL,EUR,GEN |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12913 |
AE86..ARL,EUR,GEN |
1 | ||
| 57602-12910 |
AE86..ARL,EUR,GEN |
1 | ||
| 57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 57405-12040 |
AE86 |
1 | ||
| Common parts | ||||
| 90119-10138 | ||||
| 90119-10287 | ||||
| 90333-20001 | ||||
| 90463-08234 | ||||
| 90950-01025 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01059 | ||||
| 90950-01258 | ||||
| 90950-01359 | ||||
| 90950-01422 | ||||
| 91651-40820 | ||||
