AE86L-ESMXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )5F

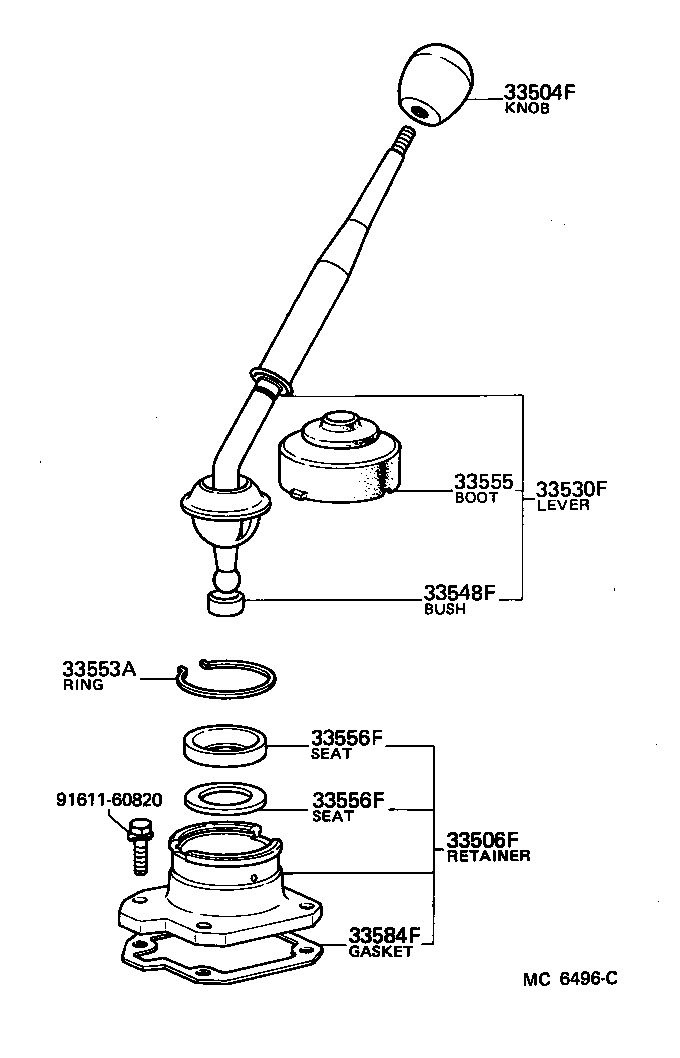

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33548F 33553A 33555 33556F 33556F 33584F 9161160820
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2401001

AE86..5F

BLACK,BLACK,TRIM2#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-14021

AE86..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-12340

AE86..LHD..5F..SR

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-14010

AE86..5F

 1
33553A - RING, SNAP (FOR SHIFT LEVER SPRING SHEET)
90521-49003

AE86..5F

 1
33555 - BOOT, SHIFT LEVER
33555-12090

AE86..5F

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-14020

AE86..5F

T=3.0

 1
33556-14010

AE86..5F

T=13.5

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-14020

AE86..5F

T=3.0

 1
33556-14010

AE86..5F

T=13.5

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-20010

AE86..5F

 1
Common parts
91611-60820
