AE86L-ESMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE 4AGEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GT

Click highlighted areas on diagram

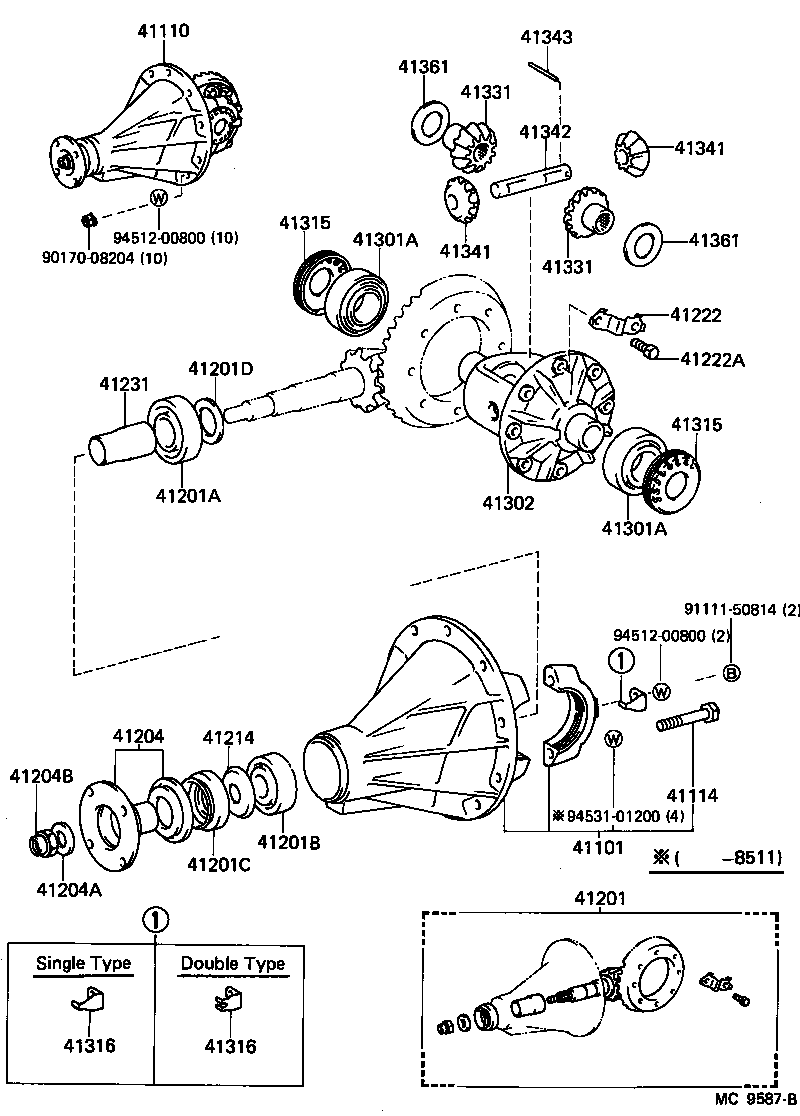

diagram 41101 41110 41114 41201 41201A 41201B 41201C 41201D 41204 41204A 41204B 41214 41222 41222A 41231 41301A 41301A 41302 41315 41315 41316 41316 41331 41331 41341 41341 41342 41343 41361 41361 9017008204 9111150814 9451200800 9451200800 9453101200
Part # Description Qty Price
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-20261

AE86..GT

*AXC=T282,*FGR=43:10

 1
41110-12023

AE86..GT

*AXC=T283,*FGR=43:10

 1
41110-12200

AE86..GT..(EUR,ME)

*AXC=T282,*FGR=43:10

 1
41110-12210

AE86..GT..(EUR,ME)

*AXC=T283,*FGR=43:10,W/LSD

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90101-12371

AE86..GT

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-29207

AE86..GT

*FGR=43:10=4.300

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90368-30002

AE86

 1
41204A - WASHER, PLATE (FOR REAR DRIVE PINION)
90201-18485

AE86

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-18001

AE86

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-20020

AE86

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-30030

AE86..GT

 4
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-22030

AE86..GT

 1
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-22020

AE86..GT

 2
41331-14010

AE86..GT

W/LSD

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-22020

AE86..GT

 2
41331-14010

AE86..GT

W/LSD

 2
41341 - PINION, REAR DIFFERENTIAL
41341-22020

AE86..GT

 2
41341 - PINION, REAR DIFFERENTIAL
41341-22020

AE86..GT

 2
Common parts
90170-08204
91111-50814
94512-00800
94531-01200

(8308- )GT

Click highlighted areas on diagram

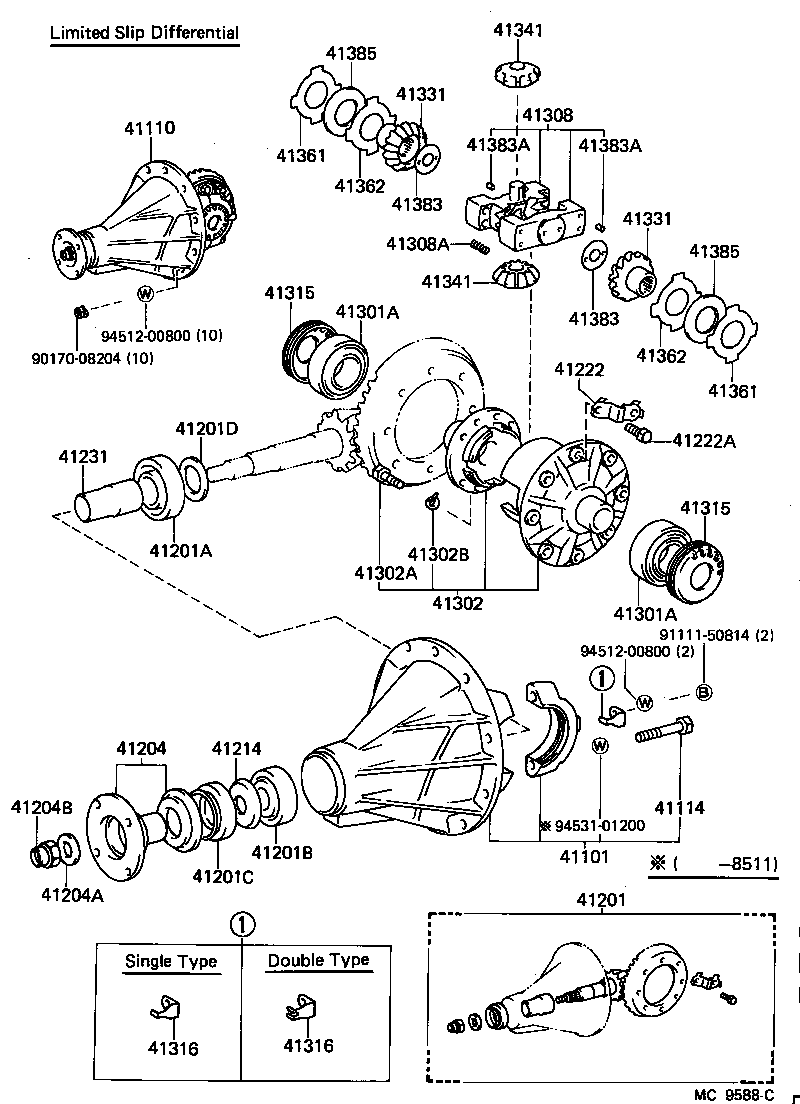

diagram 41101 41110 41114 41201 41201A 41201B 41201C 41201D 41204 41204A 41204B 41214 41222 41222A 41231 41301A 41301A 41302 41302A 41302B 41308 41308A 41315 41315 41316 41316 41331 41331 41341 41341 41361 41361 41362 41362 41383 41383 41383A 41383A 41385 41385 9017008204 9111150814 9451200800 9451200800 9453101200
Part # Description Qty Price
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-20261

AE86..GT

*AXC=T282,*FGR=43:10

 1
41110-12023

AE86..GT

*AXC=T283,*FGR=43:10

 1
41110-12200

AE86..GT..(EUR,ME)

*AXC=T282,*FGR=43:10

 1
41110-12210

AE86..GT..(EUR,ME)

*AXC=T283,*FGR=43:10,W/LSD

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90101-12371

AE86..GT

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-29207

AE86..GT

*FGR=43:10=4.300

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90368-30002

AE86

 1
41204A - WASHER, PLATE (FOR REAR DRIVE PINION)
90201-18485

AE86

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-18001

AE86

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-20020

AE86

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-30030

AE86..GT

 4
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-22030

AE86..GT

 1
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-22020

AE86..GT

 2
41331-14010

AE86..GT

W/LSD

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-22020

AE86..GT

 2
41331-14010

AE86..GT

W/LSD

 2
41341 - PINION, REAR DIFFERENTIAL
41341-22020

AE86..GT

 2
41341 - PINION, REAR DIFFERENTIAL
41341-22020

AE86..GT

 2
Common parts
90170-08204
91111-50814
94512-00800
94531-01200
