AE86L-ESMQFW (1983)
Toyota Corolla Coupe
Production
Aug 1983
-
Apr 1987
Engine
4AGE 4AGEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

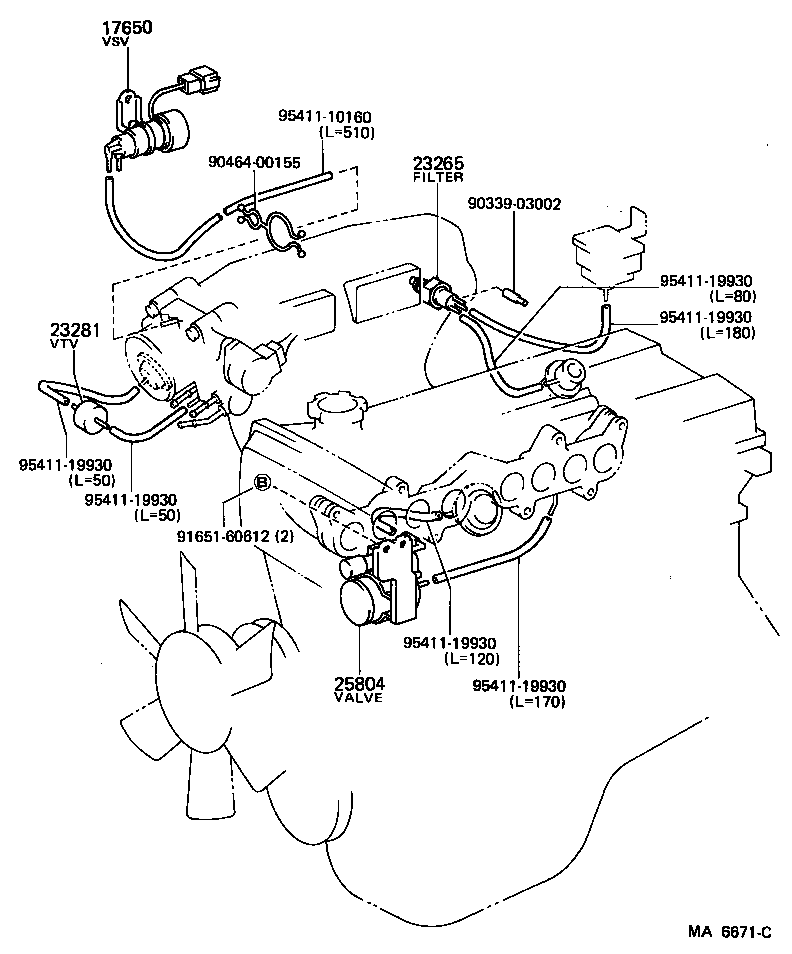

(8308- )4AGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12290 |
4AGEC..AE86 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4A..AE86 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4AC,4AG#..AE86 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90464-00155 | ||||
| 91651-60612 | ||||
| 95411-10160 | ||||
| 95411-19930 | ||||

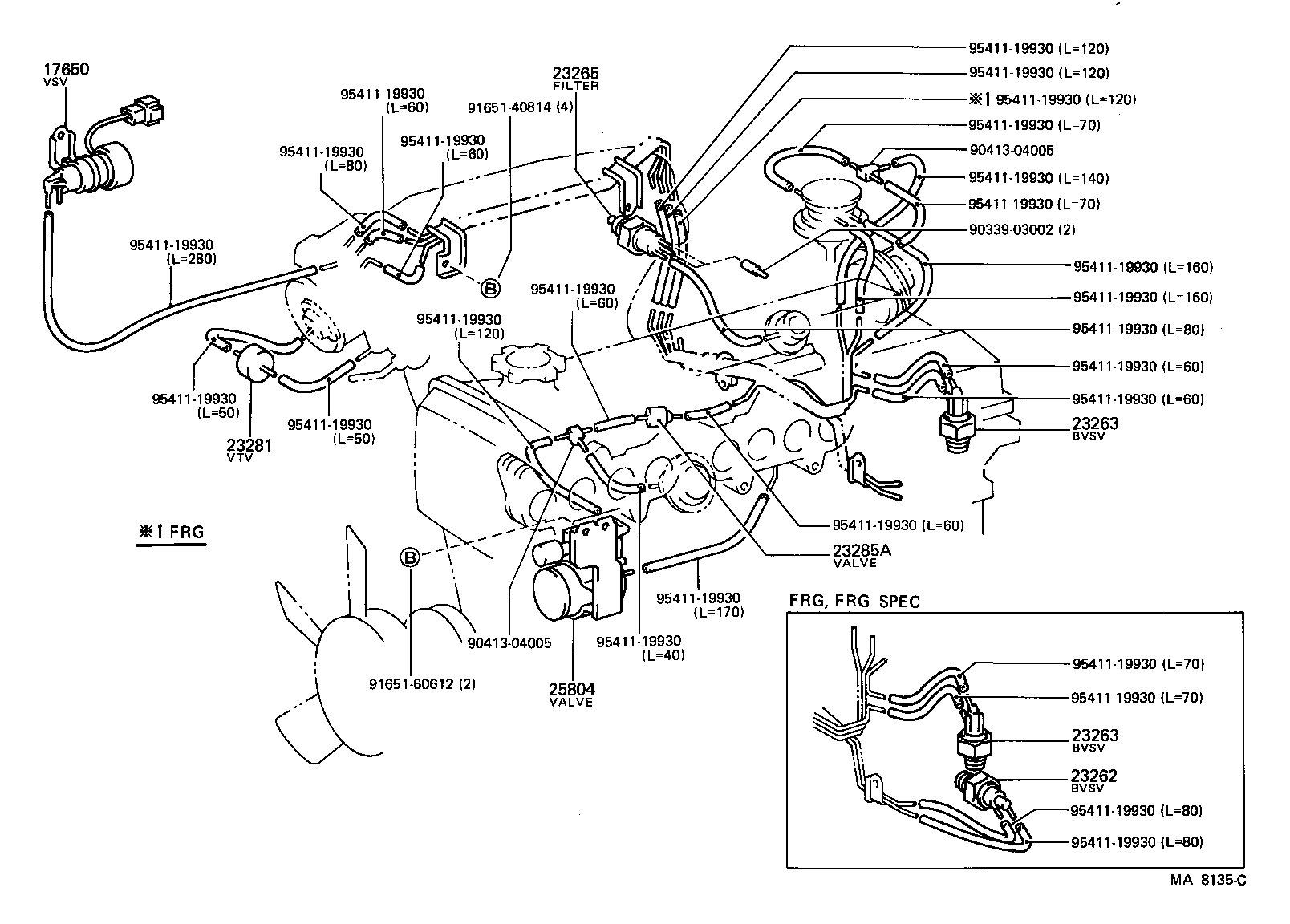

(8502- )4AGEC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12290 |
4AGEC..AE86 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05068 |
4AGEC..AE86 FRG SPEC |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05047 |
4AGEC..AE86 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05047 |
4AGEC..AE86 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4A..AE86 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4AC,4AG#..AE86 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4AC,4AGEC..AE86 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 95411-19930 | ||||
