Toyota Corolla coupe AE86 AIR CLEANER

AE86L-ESMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987

Engine 4AGE 4AGEC

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8308-8505)4AGE

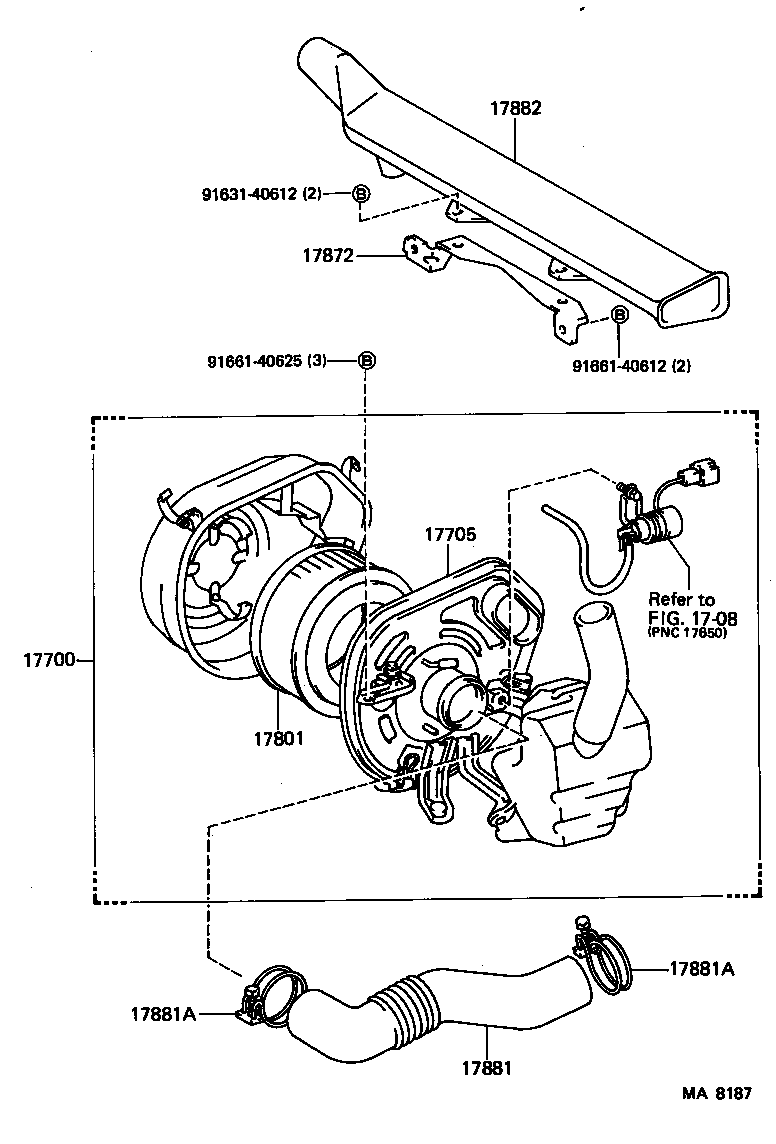

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-16100	4AGE..AE86	08/1983 - 05/1985	1
17700-16270	4AGEC..AE86	02/1985 - 04/1987	1
17700-16100	4AGE..AE86..LHD..EUG W/HEADLAMP CLEANER	05/1985 - 04/1987	1
17700-16090	4AGE..AE86..EUG	05/1985 - 04/1987	1
17700-16110	4A..AE86	05/1983 - 04/1987	1
17700-16250	4A..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16030	4AGE..AE86..LHD..EUG W/HEADLAMP CLEANER	05/1985 - 04/1987	1
17705-16090	4AGEC..AE86	02/1985 - 04/1987	1
17705-16020	4AGE..AE86..EUG	05/1985 - 04/1987	1
17705-15060	4A,4AC..AE86	05/1983 - 04/1987	1
17705-16030	4AGE..AE86	08/1983 - 05/1985	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15010	4A,4AC..AE86	05/1983 - 04/1987	1
17801-16010	4AGEC..AE86	02/1985 - 04/1987	1
17881 - HOSE, AIR CLEANER, NO.1
17881-63010	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 02/1985	1
17881-74040	4A,4AC..AE86 W/HOT AIR INTAKE	02/1985 - 04/1987	1
17881-16080	4AGEC..AE86	02/1985 - 04/1987	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830	4AG#..AE86..EUG,SDZ	08/1983 - 07/1985	2
96111-10460	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830	4AG#..AE86..EUG,SDZ	08/1983 - 07/1985	2
96111-10460	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17882 - HOSE, AIR CLEANER, NO.2
17882-16020	4AGE..AE86	08/1983 - 05/1985	1
17882-16020	4AGE..AE86..LHD..EUG W/HEADLAMP CLEANER	05/1985 - 04/1987	1
17881-15060	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17882-16070	4AGEC..AE86	02/1985 - 04/1987	1
17882-16010	4AGE..AE86..EUG	05/1985 - 04/1987	1
Common parts
91631-40612
91661-40612
91661-40625
Linked diagrams
1708

(8502- )4AGEC

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-16100	4AGE..AE86	08/1983 - 05/1985	1
17700-16270	4AGEC..AE86	02/1985 - 04/1987	1
17700-16100	4AGE..AE86..LHD..EUG W/HEADLAMP CLEANER	05/1985 - 04/1987	1
17700-16090	4AGE..AE86..EUG	05/1985 - 04/1987	1
17700-16110	4A..AE86	05/1983 - 04/1987	1
17700-16250	4A..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16030	4AGE..AE86..LHD..EUG W/HEADLAMP CLEANER	05/1985 - 04/1987	1
17705-16090	4AGEC..AE86	02/1985 - 04/1987	1
17705-16020	4AGE..AE86..EUG	05/1985 - 04/1987	1
17705-15060	4A,4AC..AE86	05/1983 - 04/1987	1
17705-16030	4AGE..AE86	08/1983 - 05/1985	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15010	4A,4AC..AE86	05/1983 - 04/1987	1
17801-16010	4AGEC..AE86	02/1985 - 04/1987	1
17881 - HOSE, AIR CLEANER, NO.1
17881-63010	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 02/1985	1
17881-74040	4A,4AC..AE86 W/HOT AIR INTAKE	02/1985 - 04/1987	1
17881-16080	4AGEC..AE86	02/1985 - 04/1987	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830	4AG#..AE86..EUG,SDZ	08/1983 - 07/1985	2
96111-10460	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830	4AG#..AE86..EUG,SDZ	08/1983 - 07/1985	2
96111-10460	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17882 - HOSE, AIR CLEANER, NO.2
17882-16020	4AGE..AE86	08/1983 - 05/1985	1
17882-16020	4AGE..AE86..LHD..EUG W/HEADLAMP CLEANER	05/1985 - 04/1987	1
17881-15060	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17882-16070	4AGEC..AE86	02/1985 - 04/1987	1
17882-16010	4AGE..AE86..EUG	05/1985 - 04/1987	1
22250 - METER ASSY, INTAKE AIR FLOW
22250-16010	4AGEC..AE86 FRG SPEC	04/1985 - 05/1985	1
22275 - GASKET, AIR FLOW METER
22275-41010	4AGEC..AE86	02/1985 - 04/1987	1
Common parts
90119-06256
90179-06158
90339-07001
91631-40612
91661-40612
94612-10601
Linked diagrams
1708

(8505- )4AGE

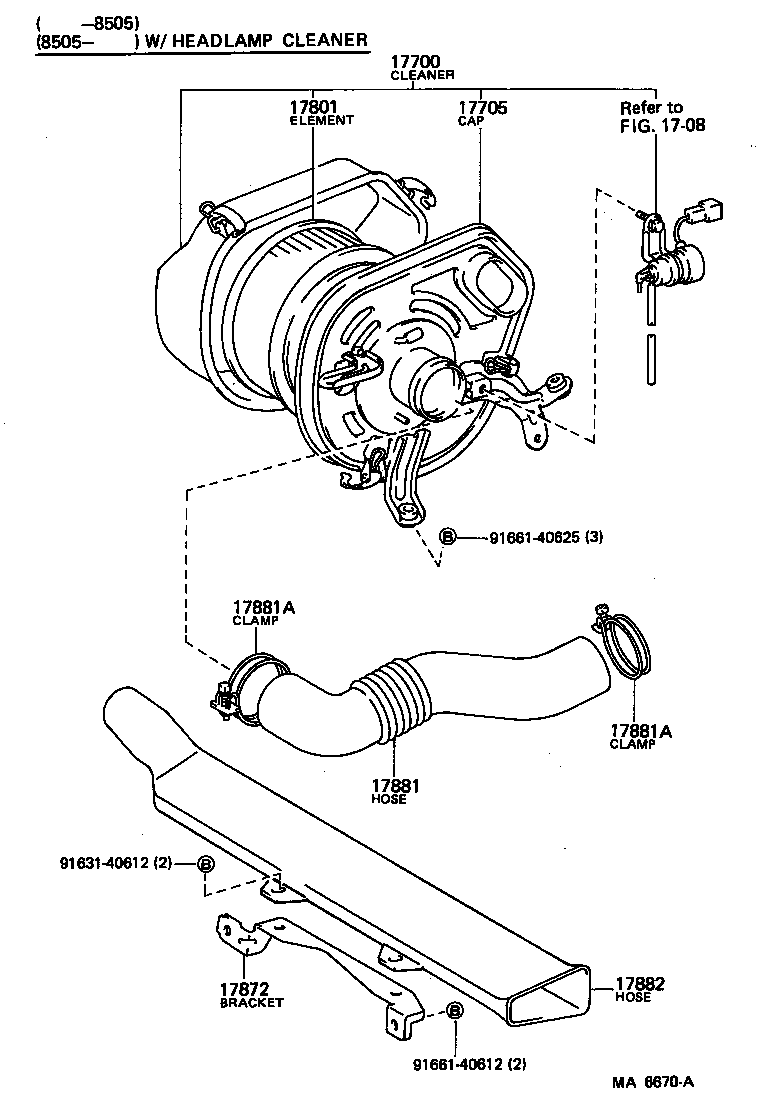

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-16100	4AGE..AE86	08/1983 - 05/1985	1
17700-16270	4AGEC..AE86	02/1985 - 04/1987	1
17700-16100	4AGE..AE86..LHD..EUG W/HEADLAMP CLEANER	05/1985 - 04/1987	1
17700-16090	4AGE..AE86..EUG	05/1985 - 04/1987	1
17700-16110	4A..AE86	05/1983 - 04/1987	1
17700-16250	4A..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16030	4AGE..AE86..LHD..EUG W/HEADLAMP CLEANER	05/1985 - 04/1987	1
17705-16090	4AGEC..AE86	02/1985 - 04/1987	1
17705-16020	4AGE..AE86..EUG	05/1985 - 04/1987	1
17705-15060	4A,4AC..AE86	05/1983 - 04/1987	1
17705-16030	4AGE..AE86	08/1983 - 05/1985	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15010	4A,4AC..AE86	05/1983 - 04/1987	1
17801-16010	4AGEC..AE86	02/1985 - 04/1987	1
17881 - HOSE, AIR CLEANER, NO.1
17881-63010	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 02/1985	1
17881-74040	4A,4AC..AE86 W/HOT AIR INTAKE	02/1985 - 04/1987	1
17881-16080	4AGEC..AE86	02/1985 - 04/1987	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830	4AG#..AE86..EUG,SDZ	08/1983 - 07/1985	2
96111-10460	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830	4AG#..AE86..EUG,SDZ	08/1983 - 07/1985	2
96111-10460	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17882 - HOSE, AIR CLEANER, NO.2
17882-16020	4AGE..AE86	08/1983 - 05/1985	1
17882-16020	4AGE..AE86..LHD..EUG W/HEADLAMP CLEANER	05/1985 - 04/1987	1
17881-15060	4A,4AC..AE86 W/HOT AIR INTAKE	05/1983 - 04/1987	1
17882-16070	4AGEC..AE86	02/1985 - 04/1987	1
17882-16010	4AGE..AE86..EUG	05/1985 - 04/1987	1
Common parts
91631-40612
91661-40612
91661-40625
Linked diagrams
1708
