AE86L-ECMXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )3D

Click highlighted areas on diagram

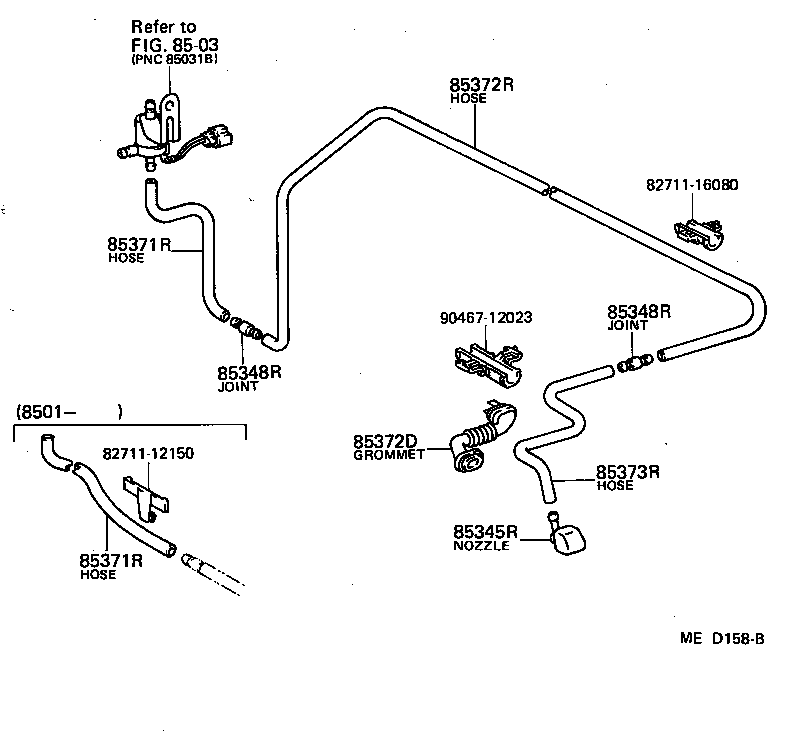

diagram 8271112150 8271116080 8503 85345R 85348R 85348R 85371R 85371R 85372D 85372R 85373R 9046712023
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-12160

AE86..3D

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

AE86..3D

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

AE86..3D

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
85370-12220

AE86..3D

L=600

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
85370-12220

AE86..3D

L=600

 1
85372D - GROMMET, REAR WASHER HOSE
85372-12010

AE86..3D

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33420

AE86..3D

*H,L=2400

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

AE86..3D

*H,L=310

 1
Common parts
82711-12150
82711-16080
90467-12023
Linked diagrams
8503
