AE86L-ECMXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

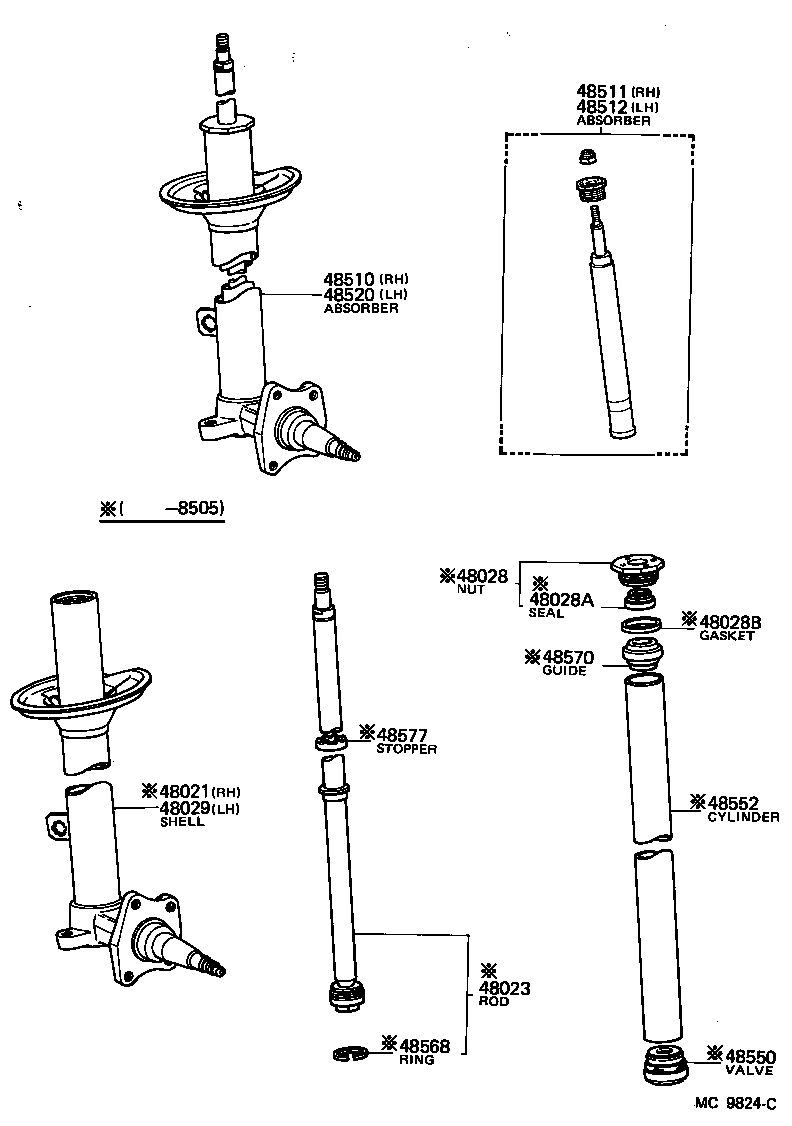

Click highlighted areas on diagram

diagram 48021 48023 48028 48028A 48028B 48029 48510 48511 48512 48520 48550 48552 48568 48570 48577
Part # Description Qty Price
48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
48021-12170

AE86

 1
48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)
48023-12240

AE86

 2
48028 - NUT SUB-ASSY, SHOCK ABSORBER RING
48028-14011

AE86

 2
48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT)
90316-22001

AE86

 2
48028B - GASKET(FOR SHOCK ABSORBER RING NUT)
90430-43206

AE86

 2
48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
48029-12050

AE86

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-12270

AE86

 1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-19135

AE86

MARK 48511-12190

 1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-19135

AE86

MARK 48511-12190

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-12140

AE86

 1
48550 - VALVE ASSY, SHOCK ABSORBER BASE
48550-12230

AE86

 2
48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT)
48552-12030

AE86

 2
48568 - RING, SHOCK ABSORBER PISTON
48568-22021

AE86

 2
48570 - GUIDE ASSY, SHOCK ABSORBER ROD
48022-14010

AE86

 2
48577 - STOPPER, SHOCK ABSORBER REBOUND
48579-14011

AE86

 2

(8305- )

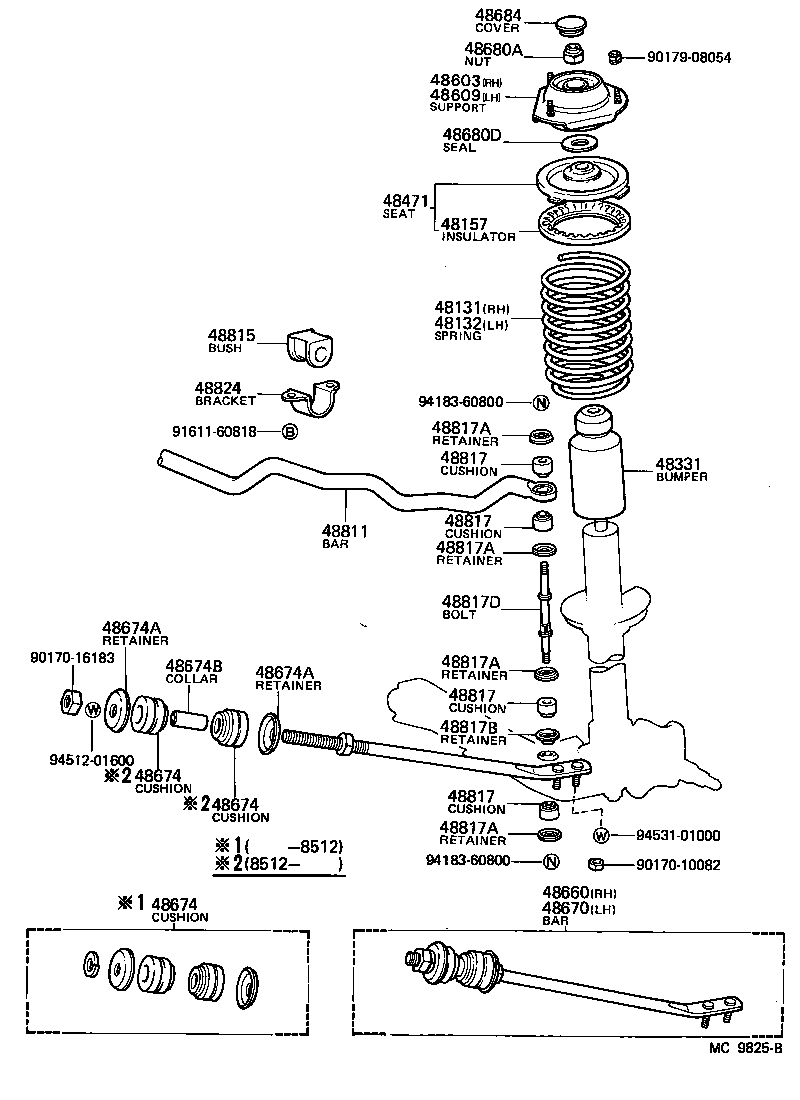

Click highlighted areas on diagram

diagram 48131 48132 48157 48331 48471 48603 48609 48660 48670 48674 48674 48674 48674A 48674A 48674B 48680A 48680D 48684 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817D 48824 9017010082 9017016183 9017908054 9161160818 9418360800 9418360800 9451201600 9453101000
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-1E050

AE86..LHD..5F..SR

 1
48132 - SPRING, FRONT COIL, LH
48131-1A370

AE86..LHD..5F..SR

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-12030

AE86

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-12080

AE86

 2
48471 - SEAT, FRONT SPRING, UPPER
48045-12050

AE86

 2
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603-12040

AE86..SR

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-12130

AE86..SR

 1
48660 - BAR ASSY, STRUT, RH
48660-19115

AE86

 1
48670 - BAR ASSY, STRUT, LH
48670-19105

AE86

 1
48674 - CUSHION, STRUT BAR
48674-19058

AE86

 2
48674 - CUSHION, STRUT BAR
48674-19058

AE86

 2
48674 - CUSHION, STRUT BAR
48674-19058

AE86

 2
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02036

AE86

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02036

AE86

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-16108

AE86

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

AE86

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

AE86

 2
48684 - COVER, BEARING DUST
48684-12030

AE86

 2
48811 - BAR, STABILIZER, FRONT
48811-12340

AE86

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-14140

AE86

 2
48817 - CUSHION, FRONT STABILIZER
48817-20020

AE86

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

AE86

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

AE86

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

AE86

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

AE86

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

AE86

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

AE86

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

AE86

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02037

AE86

 2
48817D - BOLT(FOR FRONT STABILIZER)
48819-20010

AE86

 2
48824 - BRACKET, STABILIZER, FRONT
48824-24010

AE86

 2
Common parts
90170-10082
90170-16183
90179-08054
91611-60818
94183-60800
94512-01600
94531-01000
