AE86L-ECMXCC (1983)

Toyota Corolla Coupe

Production Aug 1983 - Feb 1985
Engine 4AC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8502)LHD..EUR ; (8502- )LHD..EUG

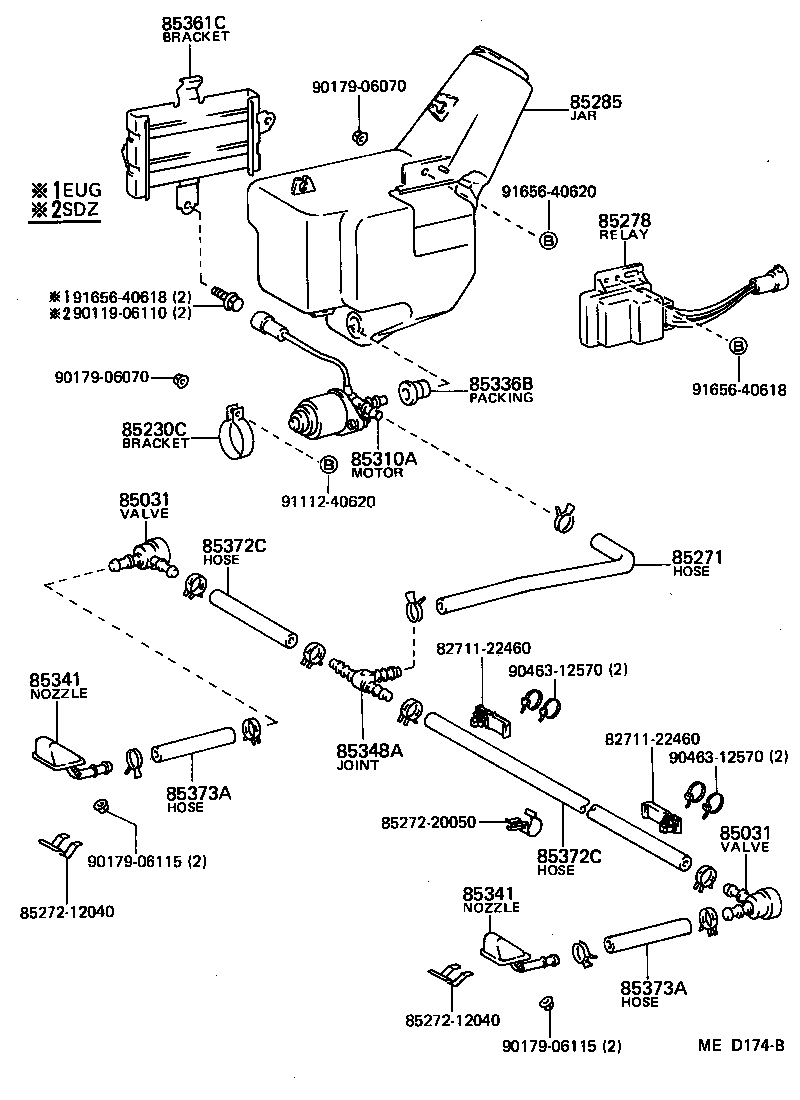

Click highlighted areas on diagram

diagram 8271122460 8271122460 85031 85031 85230C 85271 8527212040 8527212040 8527220050 85278 85285 85310A 85336B 85341 85341 85348A 85361C 85372C 85372C 85373A 85373A 9011906110 9017906070 9017906070 9017906115 9017906115 9046312570 9046312570 9111240620 9165640618 9165640618 9165640620
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

AE86..LHD..EUR

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

AE86..LHD..EUR

 2
85230C - BRACKET ASSY, HEADLAMP CLEANER
85361-16050

AE86..LHD..EUR

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85376-12510

AE86..SDZ

 1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-12040

AE86..LHD..EUR

 1
85276-14030

AE86..LHD..EUR

 1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-12250

AE86..SDZ

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-22070

AE86..SDZ

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-12130

AE86..LHD..EUR

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-12130

AE86..LHD..EUR

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

AE86..LHD..EUR

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
85375-30030

AE86..LHD..EUR

L=120

 1
90445-14049

AE86..LHD..EUR

*H,L=920

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
85375-30030

AE86..LHD..EUR

L=120

 1
90445-14049

AE86..LHD..EUR

*H,L=920

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14055

AE86..LHD..EUR

*H,L=60

 2
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14055

AE86..LHD..EUR

*H,L=60

 2
Common parts
82711-22460
85272-12040
85272-20050
90119-06110
90179-06070
90179-06115
90463-12570
91112-40620
91656-40618
91656-40620
