AE86L-ECMQFW (1983)
Toyota Corolla Coupe
Production
Aug 1983
-
Apr 1987
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )4AG#

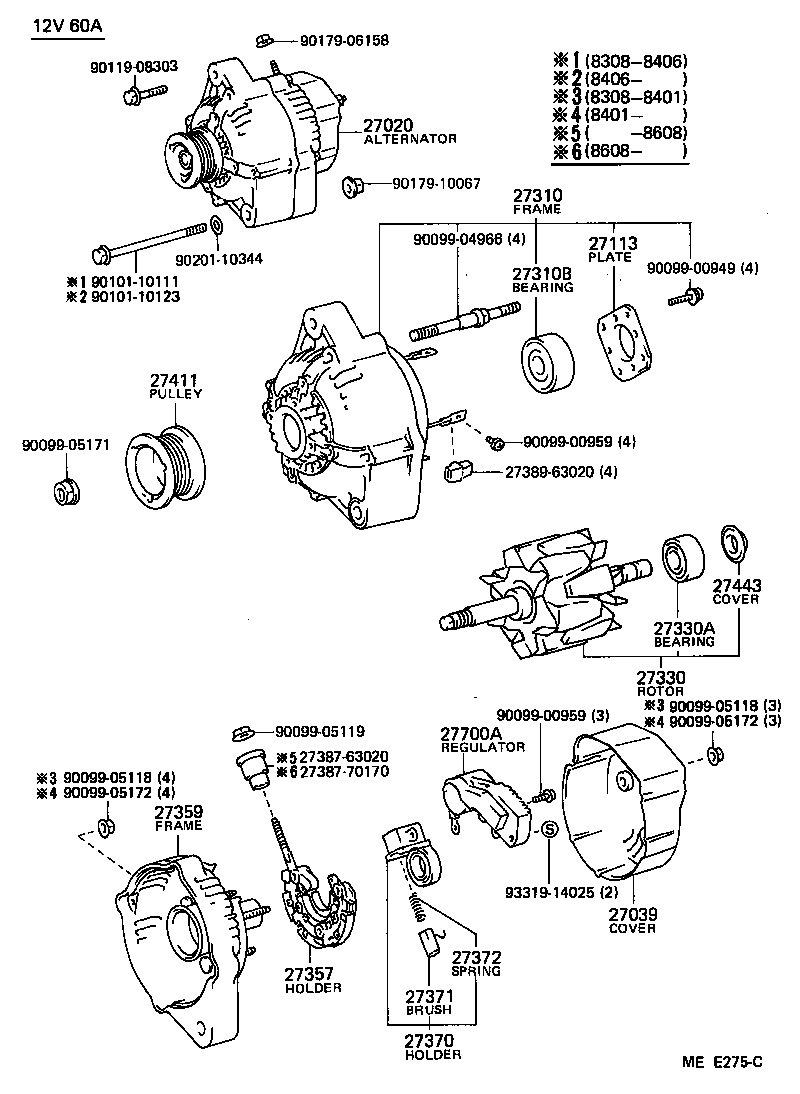

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16090 |
4AG#..AE86 12V 60A |
1 | ||
| 27060-16010 |
4AGE..AE86 12V 60A,12V 60A |
1 | ||
| 27060-16050 |
4AG#..AE86 12V 60A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-63040 |
4AG#..AE86 12V 60A |
1 | ||
| 27039-63021 |
4AGE..AE86 12V 60A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-63020 |
4AGE..AE86 12V 60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16010 |
4AGE..AE86 12V 60A |
1 | ||
| 27310-16080 |
4AGE..AE86 12V 60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
4A,4AC..AE86 12V 45A,50A |
1 | ||
| 90099-10152 |
4AGE..AE86 12V 60A,OD=43 |
1 | ||
| 90099-10141 |
4AGE..AE86 12V 60A,OD=42 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63021 |
4AGE..AE86 12V 60A |
1 | ||
| 27330-63041 |
4AGE..AE86 12V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
4A,4AC..AE86 12V 45A,50A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
4AGE..AE86 12V 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16010 |
4AGE..AE86 12V 60A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-16010 |
4AGE..AE86 12V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
4A,4AC..AE86 12V 45A,50A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
4AG#..AE86 12V 60A |
2 | ||
| 27372-31011 |
4A,4AC..AE86 12V 45A,50A |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
4A,4AC..AE86 12V 45A,50A |
1 | ||
| 27411-16010 |
4AGE..AE86 12V 60A |
1 | ||
| 27411-16011 |
4AG#..AE86 12V 60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15030 |
4A,4AC..AE86 12V 45A,50A |
1 | ||
| Common parts | ||||
| 27387-63020 | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90101-10111 | ||||
| 90101-10123 | ||||
| 90119-08303 | ||||
| 90179-06158 | ||||
| 90179-10067 | ||||
| 90201-10344 | ||||
| 93319-14025 | ||||
