ZWE211R-DHXGBW (2019)
Toyota Corolla (Ukp)

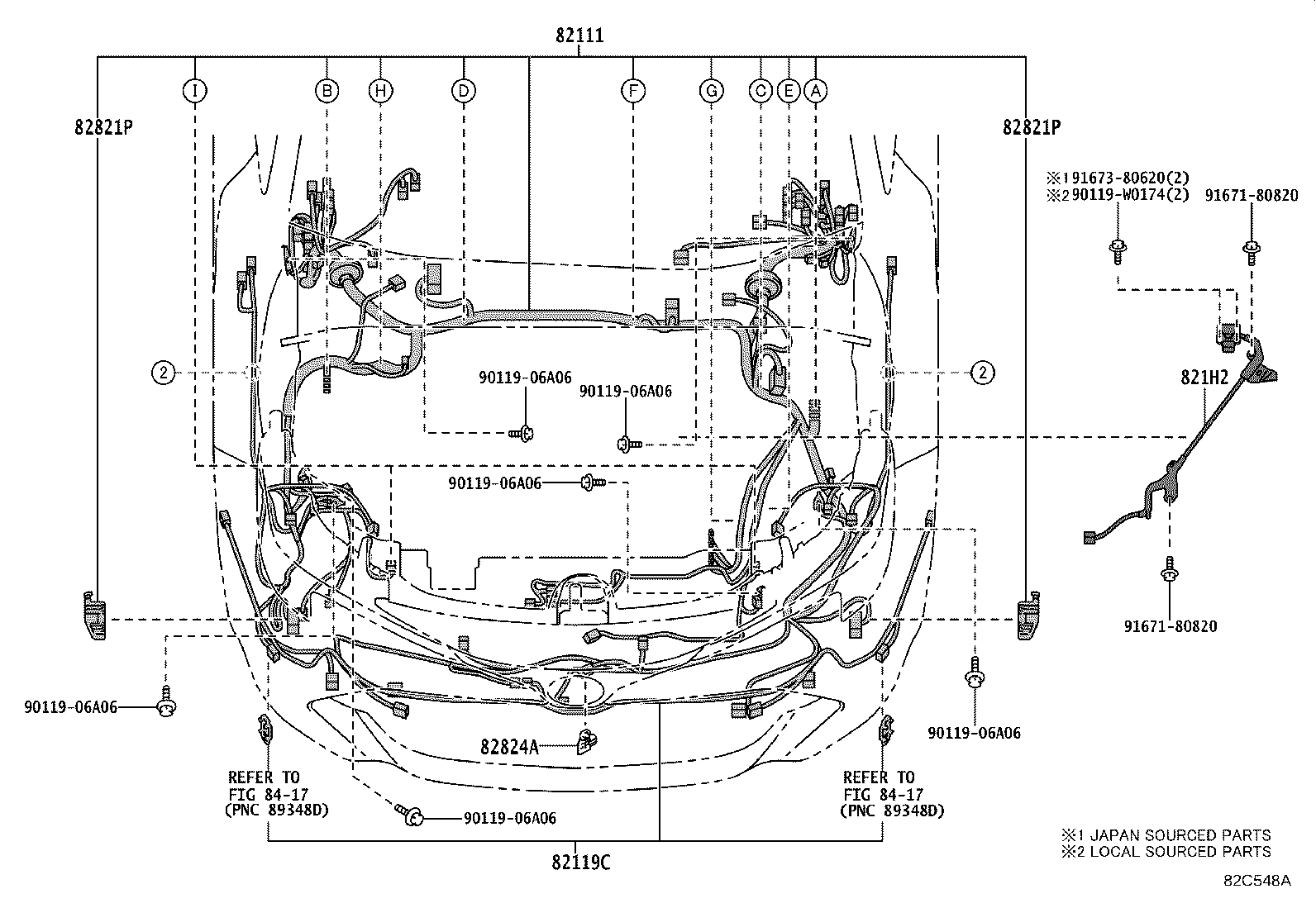

ILLUST NO. 7 OF42(1901- )ZWE211..RHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-F2800 |
ZWE211..RHD..HB..G HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82111-F2L20 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82115-F2810 |
ZWE211..RHD..HB..G |
1 | ||
| 82111-F2T50 |
ZWE211..RHD..D GRILL SHUTTER-WITH |
1 | ||
| 82115-F2810 |
ZWE211..RHD..HB..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82111-F2L10 |
ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82111-F2L10 |
ZWE211..RHD..(D,N) |
1 | ||
| 82111-F2T40 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT |
1 | ||
| 82111-F2L10 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82111-F2L21 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82111-F2T51 |
ZWE211..RHD..D GRILL SHUTTER-WITH |
1 | ||
| 82115-F2811 |
ZWE211..RHD..HB..G |
1 | ||
| 82115-F2811 |
ZWE211..RHD..HB..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82115-F2801 |
ZWE211..RHD..HB..G HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82111-F2L11 |
ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82111-F2L11 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82111-F2L11 |
ZWE211..RHD..(D,N) |
1 | ||
| 82111-F2T41 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-02050 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 82119-02050 |
MZEH12,NRE210,ZWE211..G CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-47010 |
ZWE211 |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-50780 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 82821-50780 |
MZEH12,NRE210,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82821-50780 |
ZWE211..D,N |
1 | ||
| 82821-50780 |
NRE210;MZEH12,ZWE211..G |
1 | ||
| 82821-50780 |
MZEH12..G;ZWE211..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82821-50780 |
ZWE211..D GRILL SHUTTER-WITH |
1 | ||
| 82821-50780 |
ZWE211..D,N |
1 | ||
| 82821-50780 |
ZWE211..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-50780 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 82821-50780 |
MZEH12,NRE210,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82821-50780 |
ZWE211..D,N |
1 | ||
| 82821-50780 |
NRE210;MZEH12,ZWE211..G |
1 | ||
| 82821-50780 |
MZEH12..G;ZWE211..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82821-50780 |
ZWE211..D GRILL SHUTTER-WITH |
1 | ||
| 82821-50780 |
ZWE211..D,N |
1 | ||
| 82821-50780 |
ZWE211..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0174 | ||||
| 91671-80820 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8417 | ||||

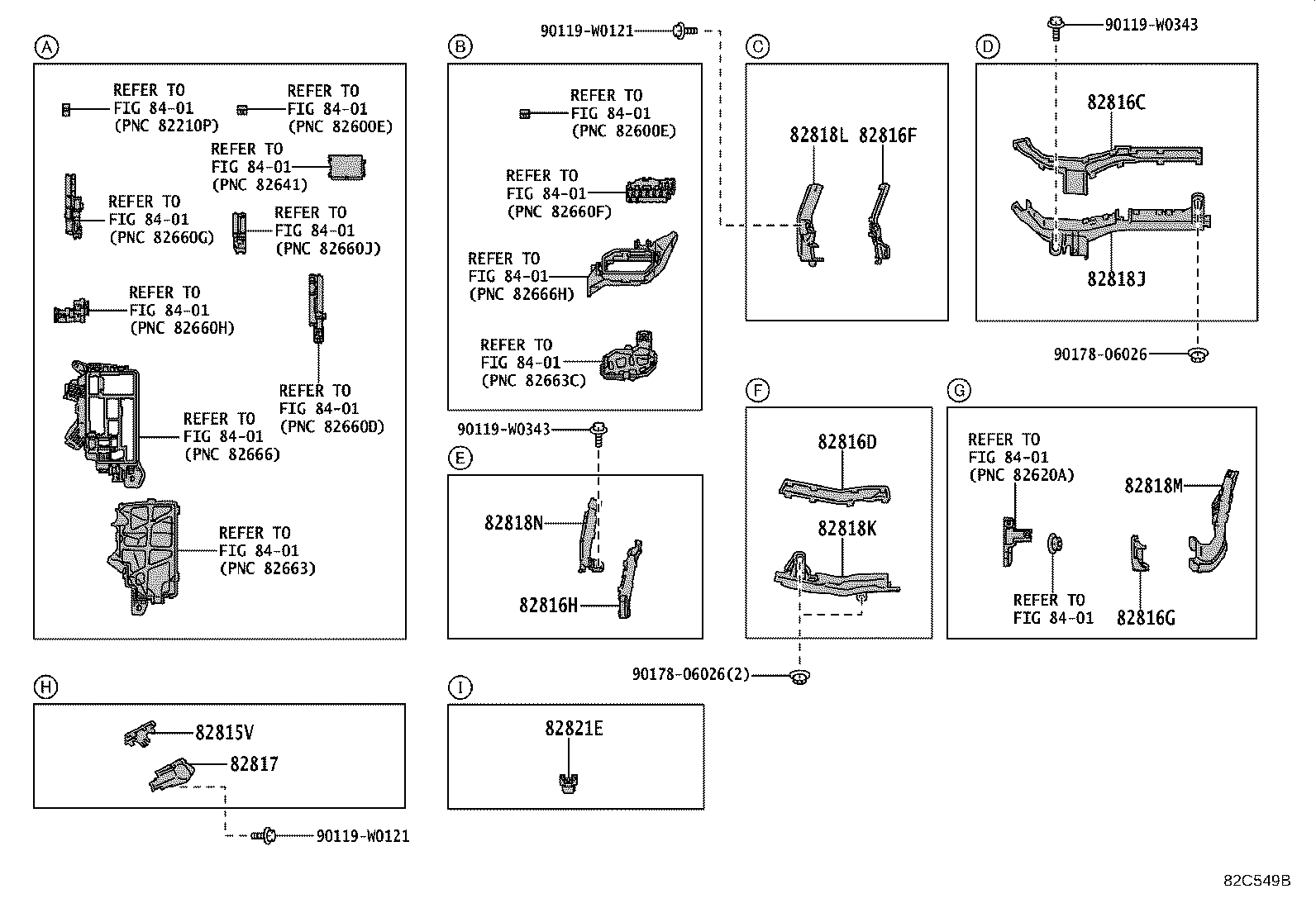

ILLUST NO. 8 OF42(1901- )ZWE211..RHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-47D40 |
MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82815-47D40 |
MZEH12,ZWE211..RHD |
1 | ||
| 82815-47D40 |
MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-47D30 |
MZEH12,ZWE211..RHD |
1 | ||
| 82815-47D30 |
MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82815-47D30 |
MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-47D00 |
ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82815-47D00 |
ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82815-47D00 |
ZWE211..RHD |
1 | ||
| 82816F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-47C90 |
MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82815-47C90 |
MZEH12,ZWE211..RHD |
1 | ||
| 82815-47C90 |
MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82816G - COVER, WIRING HARNESS PROTECTOR, NO.5 | ||||
| 82815-47C20 |
ZWE211 |
1 | ||
| 82815-47C20 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 82815-47C20 |
ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82816H - COVER, WIRING HARNESS PROTECTOR, NO.6 | ||||
| 82815-47880 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 82815-47880 |
ZWE211 |
1 | ||
| 82815-47880 |
ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47P10 |
MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82817-47P10 |
MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82817-47P10 |
MZEH12,ZWE211..RHD |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47P00 |
MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82817-47P00 |
MZEH12,ZWE211..RHD |
1 | ||
| 82817-47P00 |
MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82818K - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47N70 |
ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82817-47N70 |
ZWE211..RHD |
1 | ||
| 82817-47N70 |
ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-47N60 |
MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82817-47N60 |
MZEH12,ZWE211..RHD |
1 | ||
| 82817-47N60 |
MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-47N40 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 82817-47N40 |
ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82817-47N40 |
ZWE211 |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-47N30 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 82817-47N30 |
ZWE211 |
1 | ||
| 82817-47N30 |
ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-30650 |
MZEH12,ZWE211 |
1 | ||
| 82821-30650 |
MZEH12,ZWE211..D,N LIGHT GRADE |
1 | ||
| 82821-30650 |
MZEH12,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| Common parts | ||||
| 90119-W0121 | ||||
| 90119-W0343 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8401 | ||||

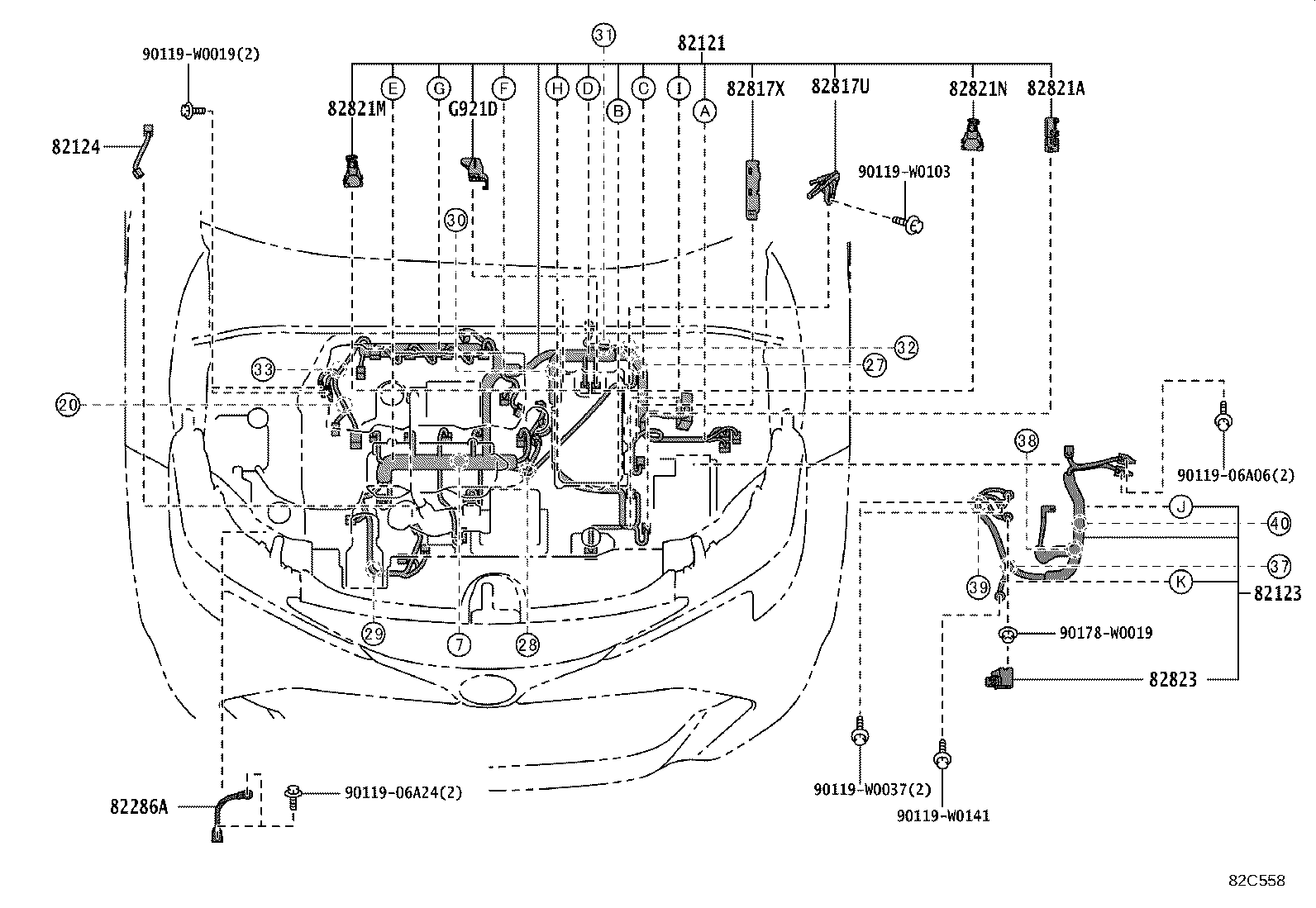

ILLUST NO.17 OF42(1901- )ZWE211
ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0ZL50 |
ZWE211 LIGHT GRADE |
1 | ||
| 82121-0ZL50 |
ZWE211 |
1 | ||
| 82121-0ZM40 |
ZWE211 |
1 | ||
| 82121-0ZM40 |
ZWE211 LIGHT GRADE |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-F4010 |
ZWE211 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZWE211 (J) |
1 | ||
| 82124-02090 |
ZWE211 (L) |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-F4030 |
ZWE211 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-47S30 |
ZWE211 LIGHT GRADE |
1 | ||
| 82817-47S30 |
ZWE211 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-47S40 |
ZWE211 |
1 | ||
| 82817-47S40 |
ZWE211 LIGHT GRADE |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-47330 |
ZWE211 LIGHT GRADE |
1 | ||
| 82821-47330 |
ZWE211 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-47420 |
ZWE211 LIGHT GRADE |
1 | ||
| 82821-47420 |
ZWE211 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-47430 |
ZWE211 |
1 | ||
| 82821-47430 |
ZWE211 LIGHT GRADE |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-47050 |
ZWE211 |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47020 |
MZEH12,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90119-W0103 | ||||
| 90119-W0141 | ||||
| 90178-W0019 | ||||

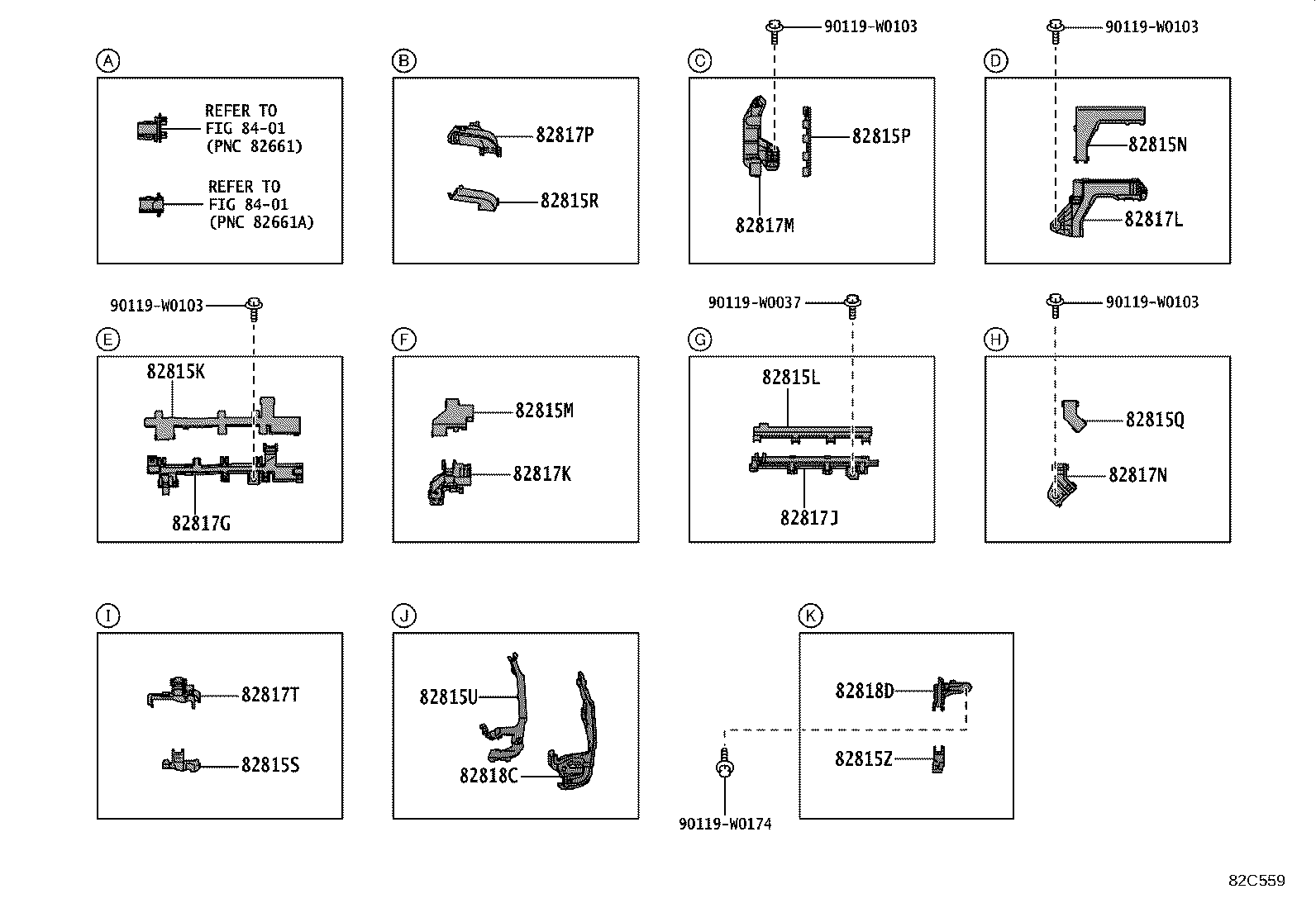

ILLUST NO.18 OF42(1901- )ZWE211
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-47E20 |
ZWE211 |
1 | ||
| 82815-47E20 |
ZWE211 LIGHT GRADE |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47E40 |
ZWE211 |
1 | ||
| 82815-47E40 |
ZWE211 LIGHT GRADE |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-47E30 |
ZWE211 LIGHT GRADE |
1 | ||
| 82815-47E30 |
ZWE211 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-47E10 |
ZWE211 |
1 | ||
| 82815-47E10 |
ZWE211 LIGHT GRADE |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-47E00 |
ZWE211 LIGHT GRADE |
1 | ||
| 82815-47E00 |
ZWE211 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-F4050 |
ZWE211 |
1 | ||
| 82815-F4050 |
ZWE211 LIGHT GRADE |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-47D80 |
ZWE211 |
1 | ||
| 82815-47D80 |
ZWE211 LIGHT GRADE |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-F4060 |
ZWE211 |
1 | ||
| 82815-F4060 |
ZWE211 LIGHT GRADE |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-47E50 |
ZWE211 |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-F4070 |
ZWE211 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-47P90 |
ZWE211 |
1 | ||
| 82817-47P90 |
ZWE211 LIGHT GRADE |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-47Q10 |
ZWE211 |
1 | ||
| 82817-47Q10 |
ZWE211 LIGHT GRADE |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47Q00 |
ZWE211 |
1 | ||
| 82817-47Q00 |
ZWE211 LIGHT GRADE |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47L20 |
ZWE211 LIGHT GRADE |
1 | ||
| 82817-47L20 |
ZWE211 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-47P70 |
ZWE211 |
1 | ||
| 82817-47P70 |
ZWE211 LIGHT GRADE |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-F4060 |
ZWE211 LIGHT GRADE |
1 | ||
| 82817-F4060 |
ZWE211 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-47P50 |
ZWE211 LIGHT GRADE |
1 | ||
| 82817-47P50 |
ZWE211 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-F4070 |
ZWE211 |
1 | ||
| 82817-F4070 |
ZWE211 LIGHT GRADE |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47Q20 |
ZWE211 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-F4080 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90119-W0103 | ||||
| 90119-W0174 | ||||
| Linked diagrams | ||||
| 8401 | ||||

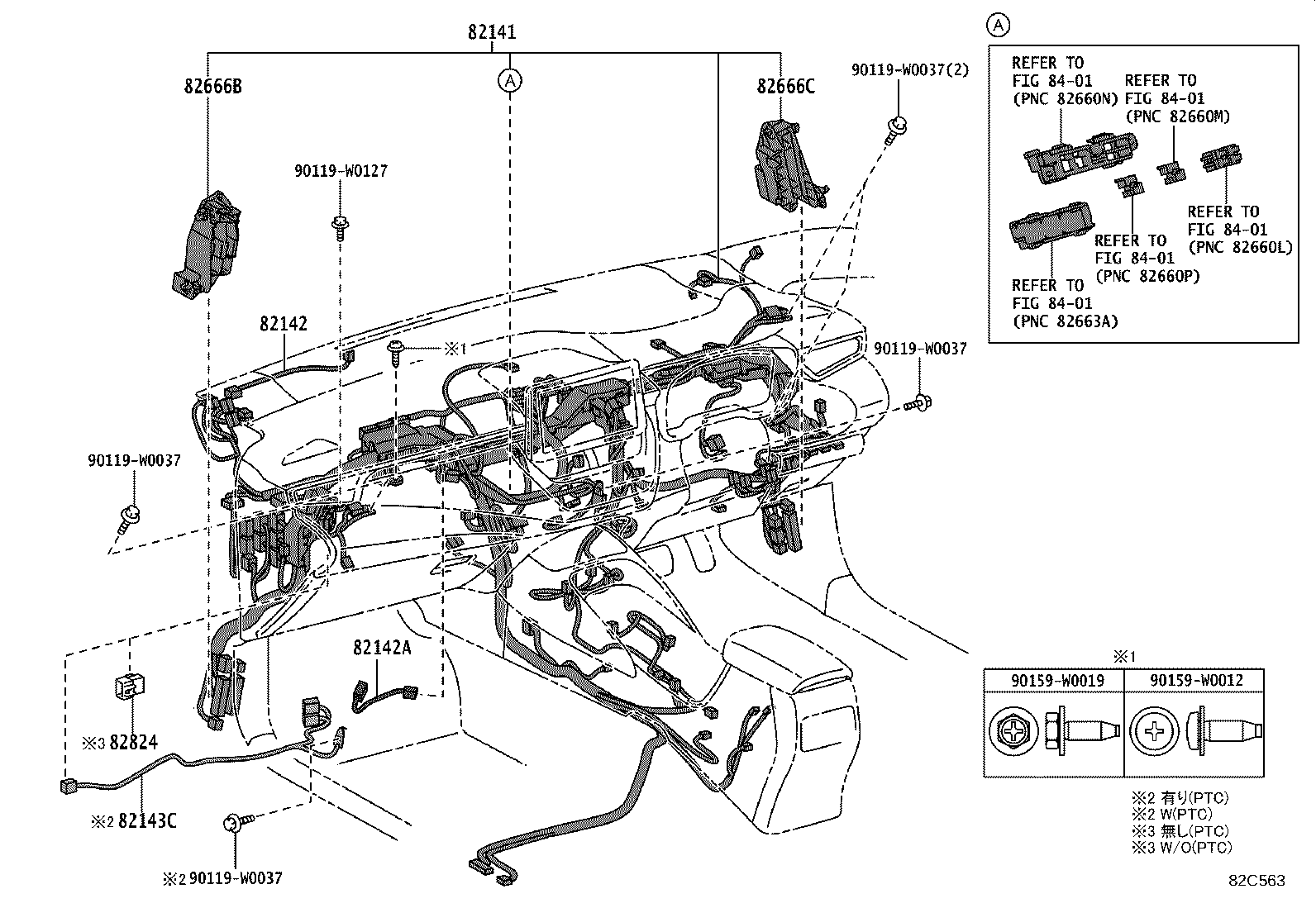

ILLUST NO.22 OF42(1901- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-F2N00 |
ZWE211..RHD..(G,N) |
1 | ||
| 82141-F2M90 |
ZWE211..RHD..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2N00 |
ZWE211..RHD..D AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 82141-F2N00 |
ZWE211..RHD..D AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82141-F2M90 |
ZWE211..RHD..(G,N) AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82141-F2M90 |
ZWE211..RHD..D |
1 | ||
| 82141-F2N10 |
ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82141-F2N10 |
ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82141-F2N10 |
ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82141-F2N00 |
ZWE211..RHD..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2N10 |
ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82141-F2M91 |
ZWE211..RHD..D |
1 | ||
| 82141-F2N11 |
ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82141-F2N11 |
ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82141-F2M91 |
ZWE211..RHD..(G,N) AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82141-F2N11 |
ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82141-F2M91 |
ZWE211..RHD..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2N11 |
ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82141-F2N01 |
ZWE211..RHD..(G,N) |
1 | ||
| 82141-F2N01 |
ZWE211..RHD..D AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82141-F2N01 |
ZWE211..RHD..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2N01 |
ZWE211..RHD..D AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 82141-F2N12 |
ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82141-F2N12 |
ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82141-F2N12 |
ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82141-F2N12 |
ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82141-F2N02 |
ZWE211..RHD..G LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2N02 |
ZWE211..RHD..G |
1 | ||
| 82141-F2M92 |
ZWE211..RHD..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2M92 |
ZWE211..RHD..D |
1 | ||
| 82141-F2M92 |
ZWE211..RHD..(G,N) AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82141-F2N02 |
ZWE211..RHD..D AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 82141-F2N02 |
ZWE211..RHD..D AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12680 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02550 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-02170 |
NRE210,ZWE211..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER) |
1 | ||
| 82143-02170 |
ZWE211..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS |
1 | ||
| 82143-02170 |
NRE210,ZWE211..RHD..(D,N) SUB COLD AREA SPEC |
1 | ||
| 82143-02170 |
NRE210,ZWE211..RHD..G SUB COLD AREA SPEC |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12670 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82666-12670 |
MZEH12,NRE210,ZWE211..EUR LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12680 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82666-12680 |
MZEH12,NRE210,ZWE211..EUR LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||

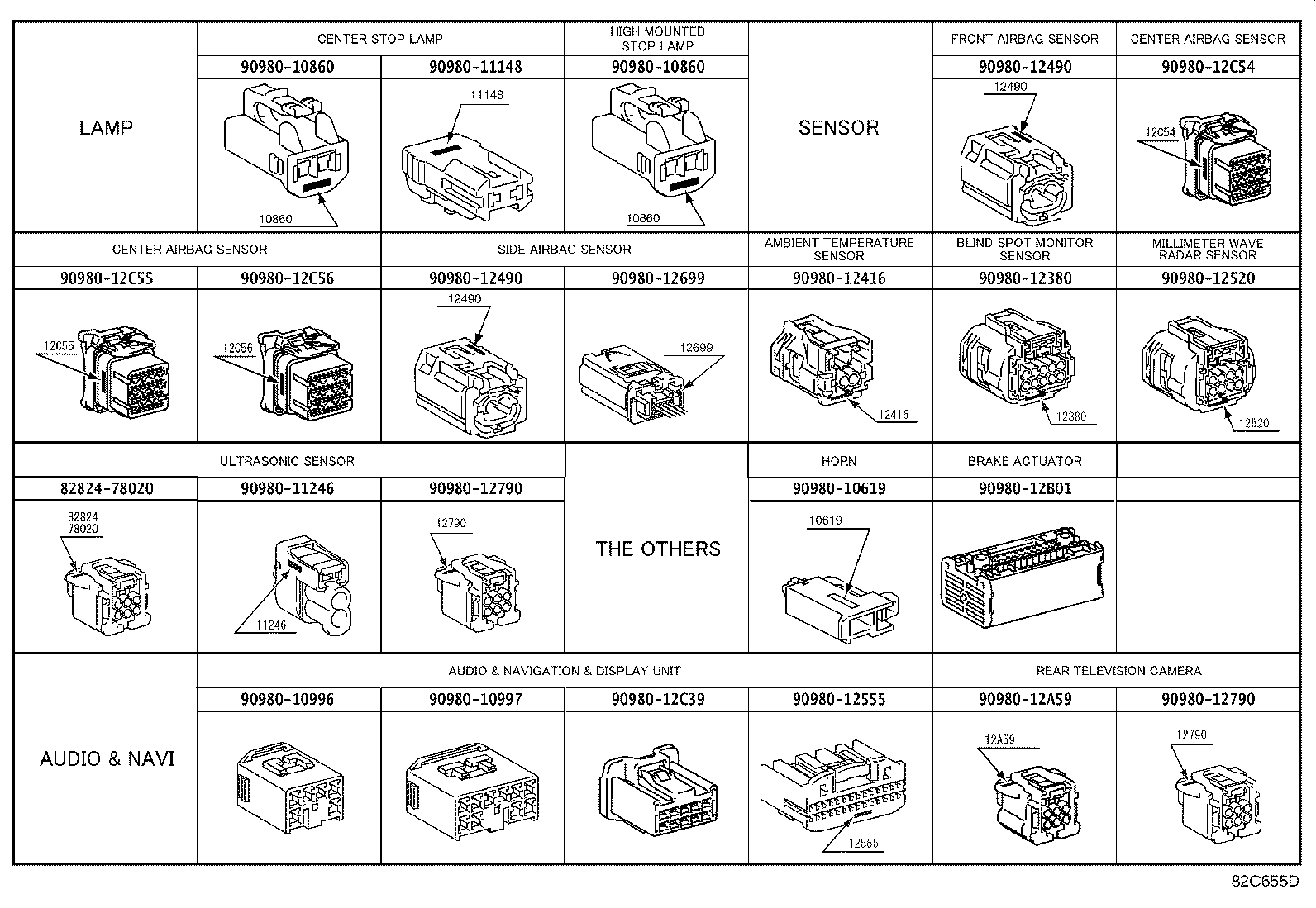

| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12530 |
ZWE211..HB..G LIGHT GRADE&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)&SEAT HEATER-WITHOUT |
1 | ||
| 82824-12530 |
ZWE211;NRE210..RHD;NRE210..LHD..WG;NRE210..LHD..HB..6F |
1 | ||
| 82824-12530 |
ZWE211..HB..G LIGHT GRADE&AVS(TEMS)-WITHOUT&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)&SEAT HEATER-WITHOUT |
1 | ||
| 82824-12530 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 82824-12530 |
ZWE211..D,N;ZWE211..WG..G;NRE210..RHD..CVT;NRE210..LHD..WG..CVT LIGHT GRADE&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82824-12530 |
ZWE211..HB..G LIGHT GRADE&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90159-W0012 | ||||
| 90159-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||

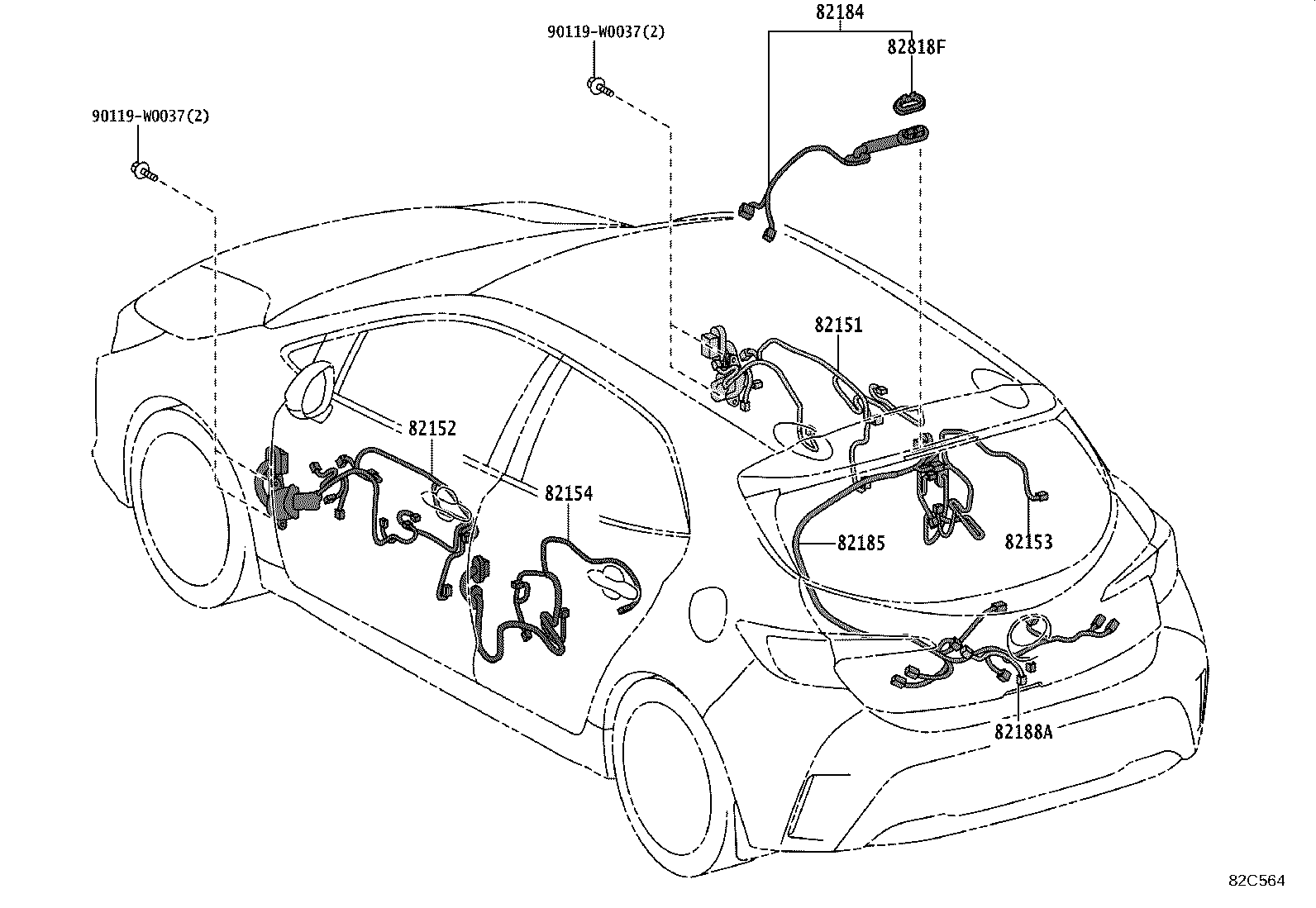

ILLUST NO.23 OF42(1901- )HB
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0ZR00 |
MZEH12,ZWE211..RHD..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 82151-0ZW40 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW40 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82151-0ZV70 |
MZEH12,ZWE211..RHD..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 82151-0ZW50 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW40 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW50 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW40 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW50 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW50 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW40 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW50 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW40 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW50 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW50 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW40 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW40 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82151-0ZW50 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82151-0ZM10 |
NRE210,ZWE211..RHD..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82151-0ZM10 |
MZEH12,NRE210,ZWE211..RHD..(D,N) |
1 | ||
| 82151-0ZQ80 |
MZEH12,NRE210,ZWE211..RHD..G |
1 | ||
| 82151-0ZQ70 |
MZEH12,NRE210,ZWE211..RHD..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 82151-0ZQ80 |
MZEH12,ZWE211..RHD..G LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82151-0ZV70 |
MZEH12,ZWE211..RHD..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY) |
1 | ||
| 82151-0ZR00 |
MZEH12,ZWE211..RHD..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0ZQ10 |
MZEH12,ZWE211..RHD..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 82152-0ZV20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZU50 |
MZEH12,ZWE211..RHD..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 82152-0ZV20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV00 |
MZEH12..RHD..G;ZWE211..RHD..HB..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV00 |
MZEH12..RHD..G;ZWE211..RHD..HB..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV00 |
MZEH12..RHD..G;ZWE211..RHD..HB..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV00 |
MZEH12..RHD..G;ZWE211..RHD..HB..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV10 |
MZEH12..RHD..G;ZWE211..RHD..HB..G AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV10 |
MZEH12..RHD..G;ZWE211..RHD..HB..G AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV10 |
MZEH12..RHD..G;ZWE211..RHD..HB..G AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV10 |
MZEH12..RHD..G;ZWE211..RHD..HB..G AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV20 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82152-0ZV30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZK60 |
MZEH12,NRE210,ZWE211..RHD..(D,N) |
1 | ||
| 82152-0ZV30 |
MZEH12..RHD..G;ZWE211..RHD..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82152-0ZK60 |
NRE210,ZWE211..RHD..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82152-0ZP90 |
MZEH12,ZWE211..RHD..G LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82152-0ZP80 |
MZEH12,NRE210,ZWE211..RHD..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 82152-0ZP90 |
MZEH12,NRE210,ZWE211..RHD..G |
1 | ||
| 82152-0ZU50 |
MZEH12,ZWE211..RHD..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY) |
1 | ||
| 82152-0ZQ10 |
MZEH12,ZWE211..RHD..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02J40 |
MZEH12,ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82153-02J40 |
MZEH12,ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82153-02J40 |
MZEH12,ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82153-02J40 |
MZEH12,ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82153-02G40 |
MZEH12,NRE210,ZWE211..RHD..HB |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02F40 |
MZEH12,ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER |
1 | ||
| 82154-02F40 |
MZEH12,ZWE211..RHD..HB..(G,N) AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER |
1 | ||
| 82154-02F40 |
MZEH12,ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER |
1 | ||
| 82154-02F40 |
MZEH12,ZWE211..RHD..HB..(G,N) AUDIO-T1 (8INCH) & JBL & 8SPEAKER |
1 | ||
| 82154-02E40 |
MZEH12,NRE210,ZWE211..RHD..HB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02880 |
MZEH12,NRE210,ZWE211..RHD..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82184-02790 |
MZEH12,NRE210,ZWE211..RHD..HB |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-02350 |
MZEH12,ZWE211..RHD..HB |
1 | ||
| 82185-02350 |
ZWE211..RHD..HB..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82185-02350 |
MZEH12,ZWE211..RHD..HB..G LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82184-12A90 |
MZEH12,NRE210,ZWE211..HB..G |
1 | ||
| 82184-12B00 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 82184-12B00 |
MZEH12,ZWE211..RHD..HB..G UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY) |
1 | ||
| 82184-12B00 |
MZEH12,ZWE211..HB..G WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY) |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-1AA90 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||

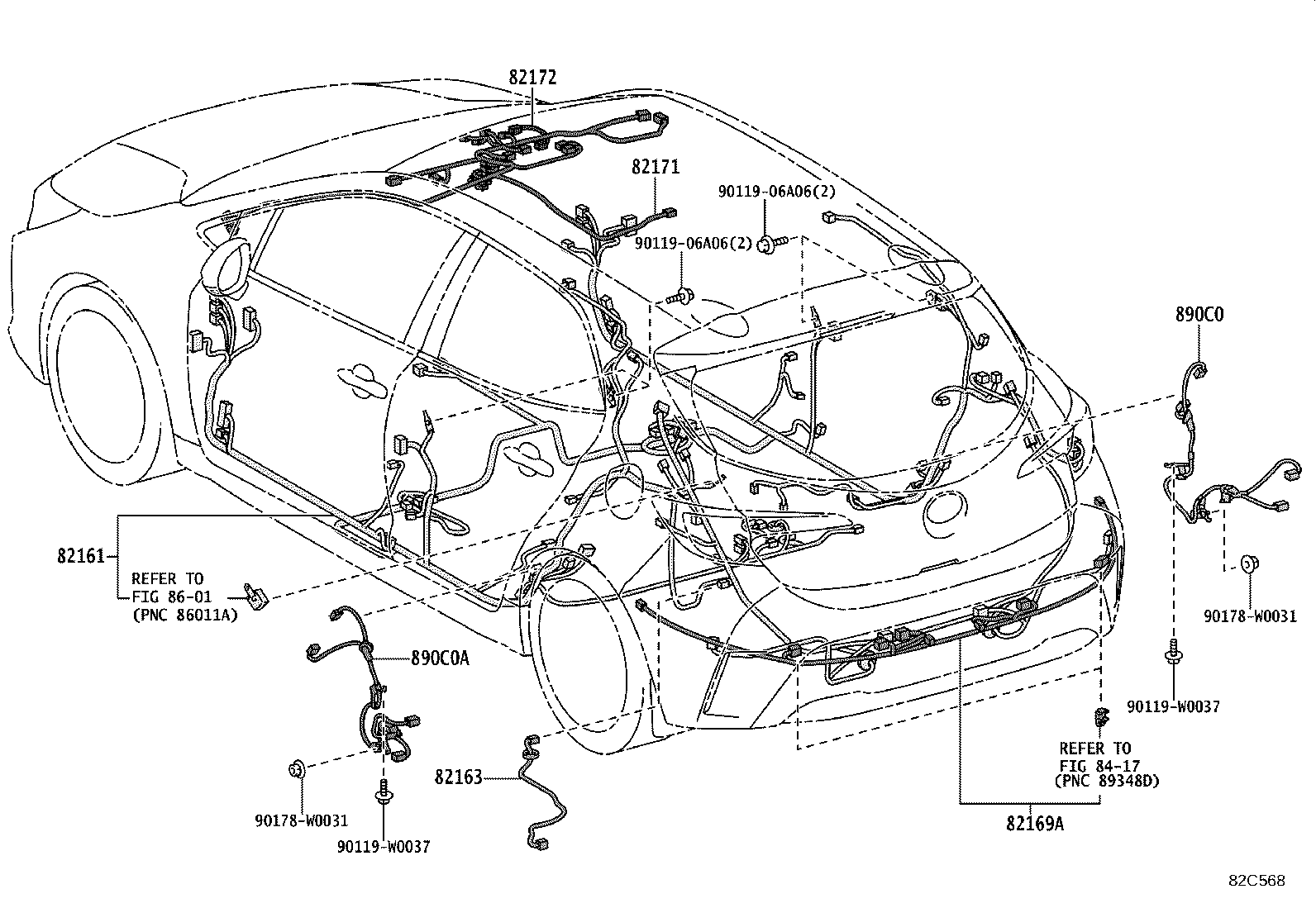

ILLUST NO.27 OF42(1901- )ZWE211..HB
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-F2E40 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT |
1 | ||
| 82161-F2E60 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 82161-F2Y50 |
ZWE211..RHD..HB..(D,N) UNITED KINGDOM SPEC |
1 | ||
| 82199-0ZL80 |
ZWE211..RHD..HB..G |
1 | ||
| 82161-F2E60 |
ZWE211..RHD..HB..(D,N) |
1 | ||
| 82161-F2E60 |
ZWE211..RHD..HB..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82199-0ZL80 |
ZWE211..RHD..HB..G LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82161-F2Y50 |
ZWE211..RHD..HB..G REGULATION COMPLIANCE LABEL & NAME PLATE-*WVTA LABEL & ID PLATE&UNITED KINGDOM SPEC&AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 82161-F2E41 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT |
1 | ||
| 82199-0ZL81 |
ZWE211..RHD..HB..G LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82199-0ZL81 |
ZWE211..RHD..HB..G |
1 | ||
| 82161-F2E61 |
ZWE211..RHD..HB..(D,N) |
1 | ||
| 82161-F2E61 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE |
1 | ||
| 82161-F2E61 |
ZWE211..RHD..HB..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82161-F2E42 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT |
1 | ||
| 82199-0ZL82 |
ZWE211..RHD..HB..G LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82199-0ZL82 |
ZWE211..RHD..HB..G |
1 | ||
| 82161-F2E62 |
ZWE211..RHD..HB..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82161-F2E62 |
ZWE211..RHD..HB..G AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY) |
1 | ||
| 82161-F2E62 |
ZWE211..RHD..HB..(D,N) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-02410 |
MZEH12,ZWE211..HB..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-02050 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 82169-02070 |
MZEH12,NRE210,ZWE211..HB..G |
1 | ||
| 82169-02050 |
MZEH12,NRE210,ZWE211..HB..G CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-F2040 |
MZEH12,ZWE211..RHD..HB..(D,N) LIGHT GRADE |
1 | ||
| 82171-F2100 |
MZEH12,ZWE211..RHD..HB..G INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE |
1 | ||
| 82171-F2040 |
MZEH12,ZWE211..RHD..HB..G INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE |
1 | ||
| 82171-F2160 |
MZEH12,ZWE211..RHD..HB..G INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT) |
1 | ||
| 82171-F2220 |
MZEH12,ZWE211..RHD..HB..G MOON ROOF-WITH(PANORAMA ROOF)&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE |
1 | ||
| 82171-F2260 |
MZEH12,ZWE211..RHD..HB..G MOON ROOF-WITH(PANORAMA ROOF)&INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE |
1 | ||
| 82171-F2340 |
MZEH12,ZWE211..RHD..HB..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-F2040 |
MZEH12,ZWE211..RHD..HB..(D,N) |
1 | ||
| 82171-F2300 |
MZEH12,ZWE211..RHD..HB..G MOON ROOF-WITH(PANORAMA ROOF)&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT) |
1 | ||
| 82171-F2630 |
MZEH12,ZWE211..RHD..HB..G |
1 | ||
| 82171-F2630 |
MZEH12,ZWE211..RHD..HB..G LIGHT GRADE&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-02060 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-02030 |
MZEH12..G;ZWE211..HB..G AVS(TEMS)-WITHOUT |
1 | ||
| 890C0-02030 |
NRE210;ZWE211..WG..G;MZEH12,ZWE211..D,N |
1 | ||
| 890C0-02050 |
MZEH12..G;ZWE211..HB..G |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-02040 |
NRE210;ZWE211..WG..G;MZEH12,ZWE211..D,N |
1 | ||
| 890C0-02040 |
MZEH12..G;ZWE211..HB..G AVS(TEMS)-WITHOUT |
1 | ||
| 890C0-02060 |
MZEH12..G;ZWE211..HB..G |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0037 | ||||
| 90178-W0031 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||

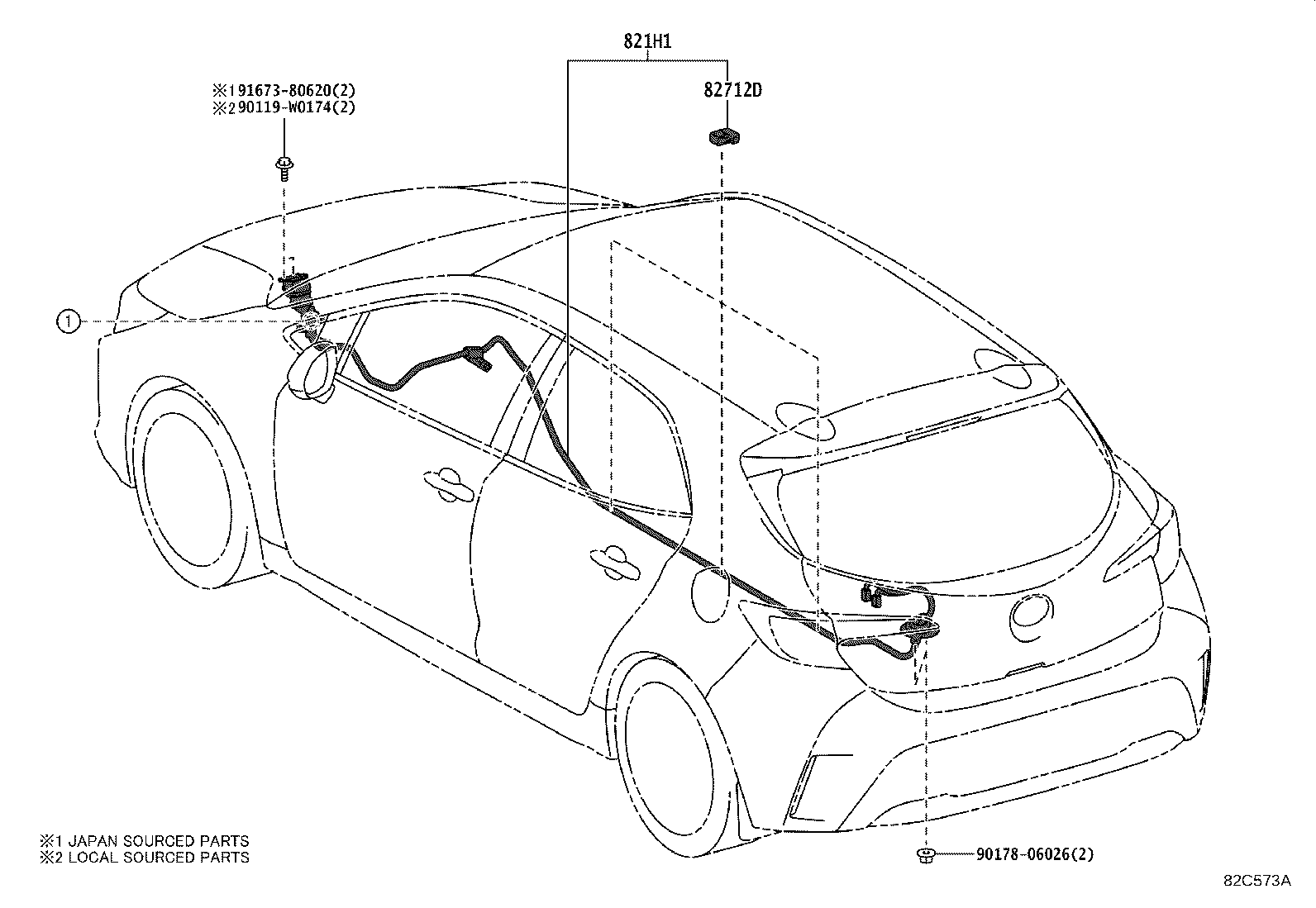

ILLUST NO.32 OF42(1901- )ZWE211..RHD
HIGH VOLTAGE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-02050 |
ZWE211..RHD..HB |
1 | ||
| 82712D - SUPPORT, WIRING HARNESS | ||||
| 82712-47530 |
ZWE211 |
3 | ||
| Common parts | ||||
| 90119-W0174 | ||||
| 90178-06026 | ||||
| 91673-80620 | ||||

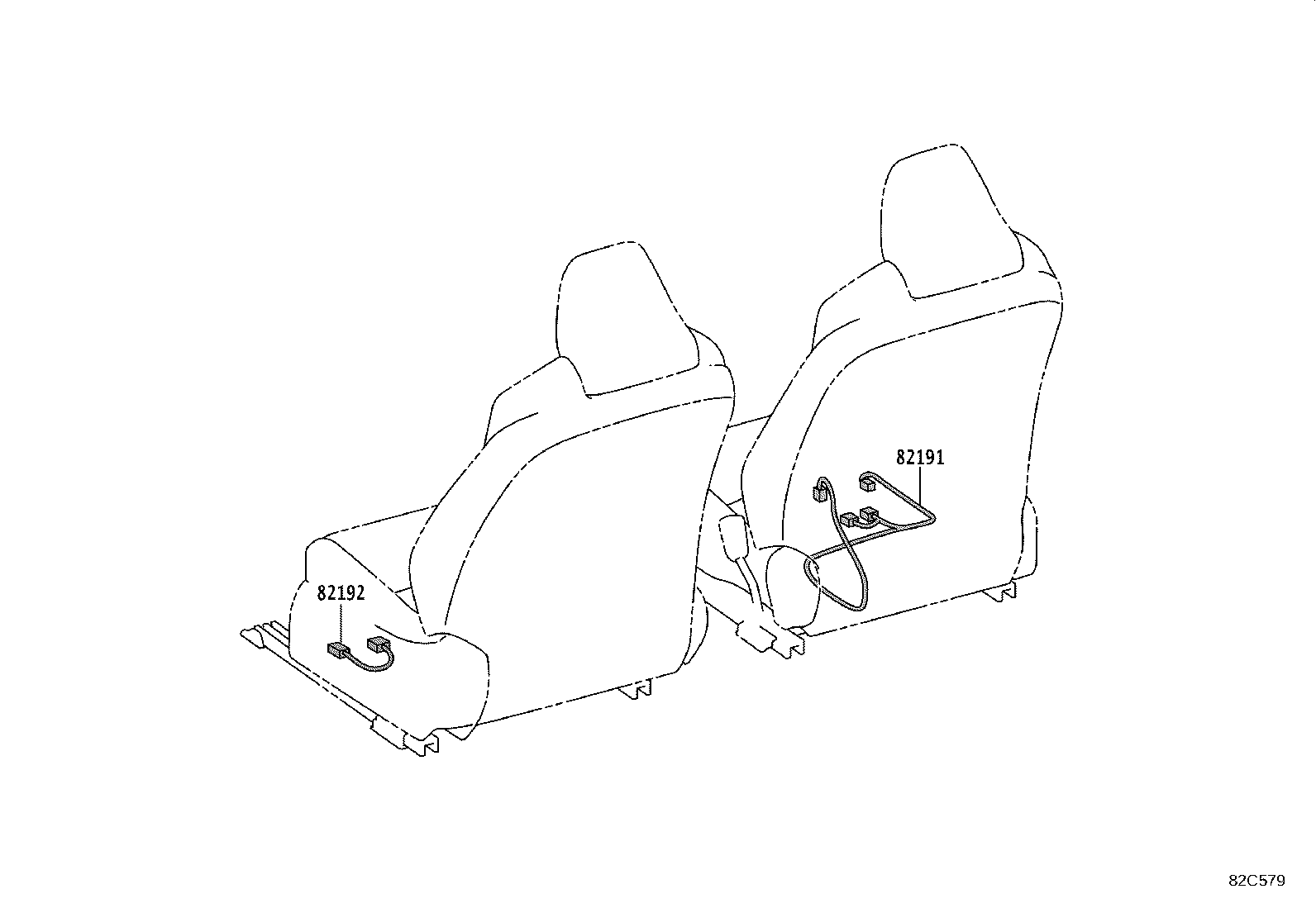

ILLUST NO.38 OF42(1901- )RHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-02250 |
MZEH12,NRE210,ZWE211..RHD..G |
1 | ||
| 82191-02250 |
MZEH12,NRE210,ZWE211..RHD..G LIGHT GRADE |
1 | ||
| 82191-02250 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-02250 |
MZEH12,NRE210,ZWE211..RHD..G LIGHT GRADE&SEAT COVER MATERIAL-SPORT FABRIC C(HIGH GRAY) |
1 | ||
| 82191-02230 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82191-02330 |
MZEH12,NRE210,ZWE211..RHD..G |
1 | ||
| 82191-02330 |
MZEH12,NRE210,ZWE211..RHD..G LIGHT GRADE |
1 | ||
| 82191-02330 |
MZEH12,NRE210,ZWE211..RHD..G LIGHT GRADE&SEAT COVER MATERIAL-SPORT FABRIC C(HIGH GRAY) |
1 | ||
| 82191-02330 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||

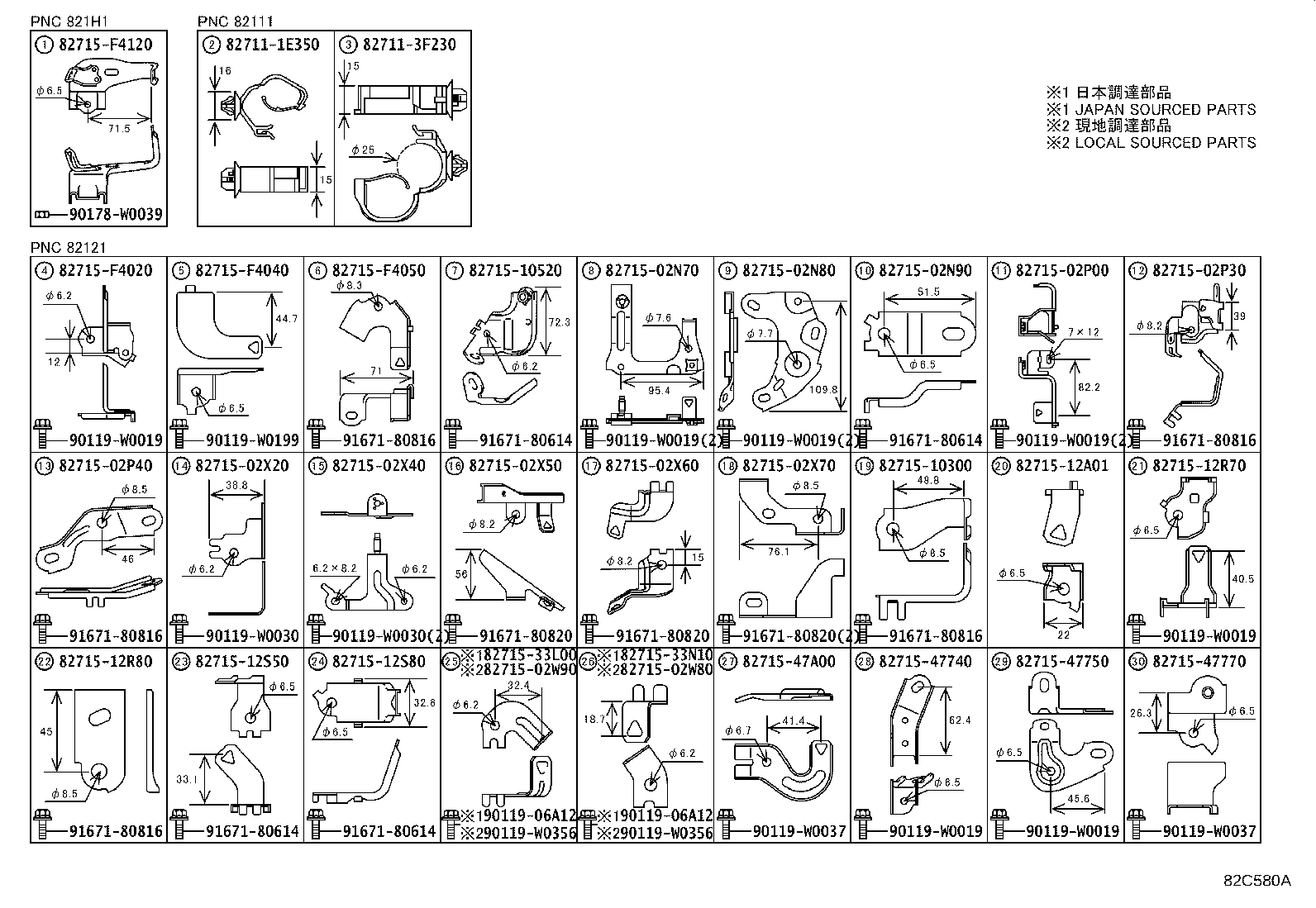

ILLUST NO.39 OF42(1901- )
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-02N70 | ||||
| 82715-02N80 | ||||
| 82715-02N90 | ||||
| 82715-02P00 | ||||
| 82715-02P30 | ||||
| 82715-02P40 | ||||
| 82715-02W80 | ||||
| 82715-02W90 | ||||
| 82715-02X20 | ||||
| 82715-02X40 | ||||
| 82715-02X50 | ||||
| 82715-02X60 | ||||
| 82715-02X70 | ||||
| 82715-10300 | ||||
| 82715-10520 | ||||
| 82715-12A01 | ||||
| 82715-12R70 | ||||
| 82715-12R80 | ||||
| 82715-12S50 | ||||
| 82715-12S80 | ||||
| 82715-33L00 | ||||
| 82715-33N10 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47770 | ||||
| 82715-47A00 | ||||
| 82715-F4020 | ||||
| 82715-F4040 | ||||
| 82715-F4050 | ||||
| 82715-F4120 | ||||
| 90119-06A12 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0199 | ||||
| 90119-W0356 | ||||
| 90178-W0039 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||

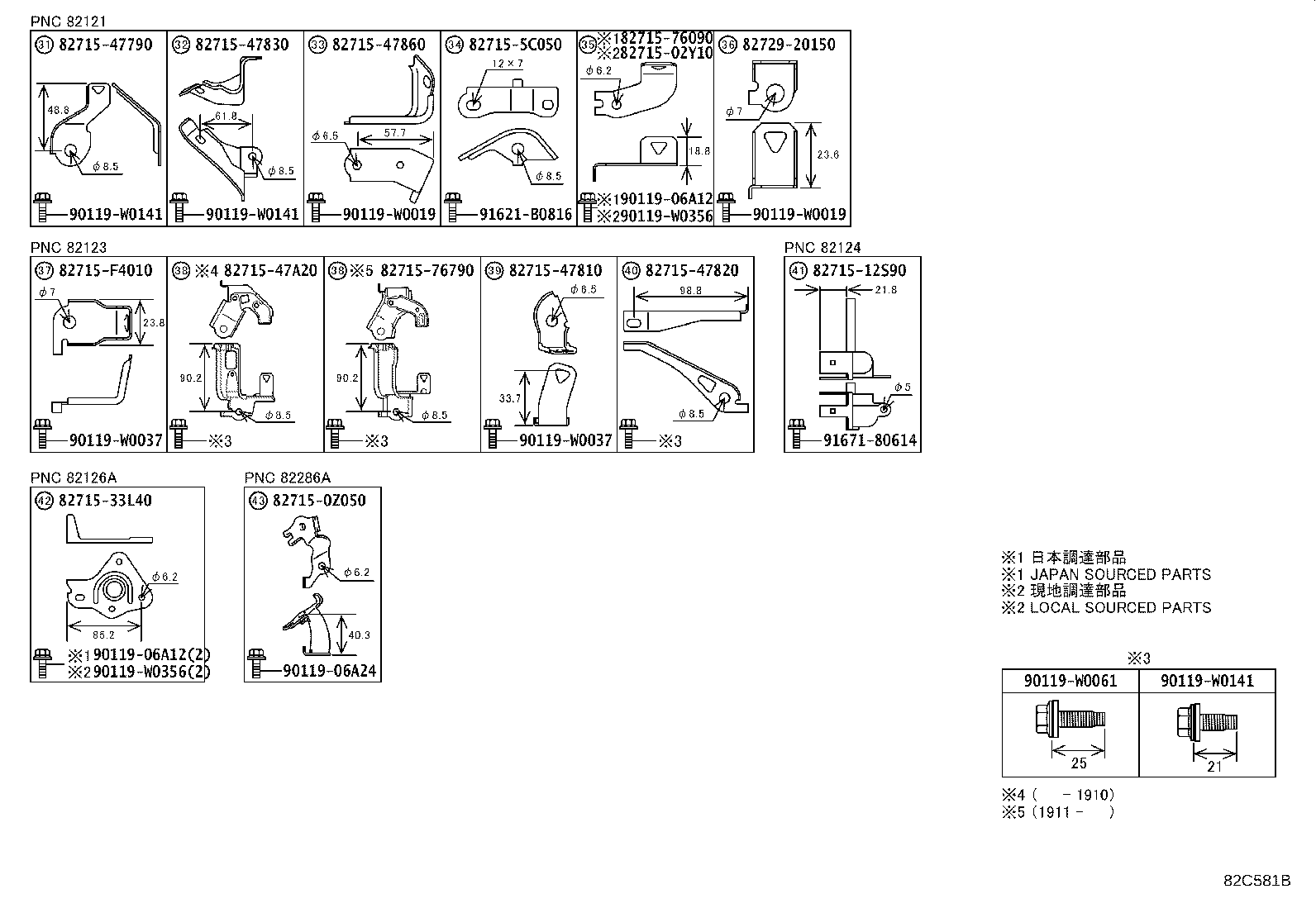

ILLUST NO.40 OF42(1901- )
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02Y10 | ||||
| 82715-0Z050 | ||||
| 82715-12S90 | ||||
| 82715-33L40 | ||||
| 82715-47790 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47830 | ||||
| 82715-47860 | ||||
| 82715-47A20 | ||||
| 82715-5C050 | ||||
| 82715-76090 | ||||
| 82715-76790 | ||||
| 82715-F4010 | ||||
| 82729-20150 | ||||
| 90119-06A12 | ||||
| 90119-06A24 | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90119-W0061 | ||||
| 90119-W0141 | ||||
| 90119-W0356 | ||||
| 91621-B0816 | ||||
| 91671-80614 | ||||

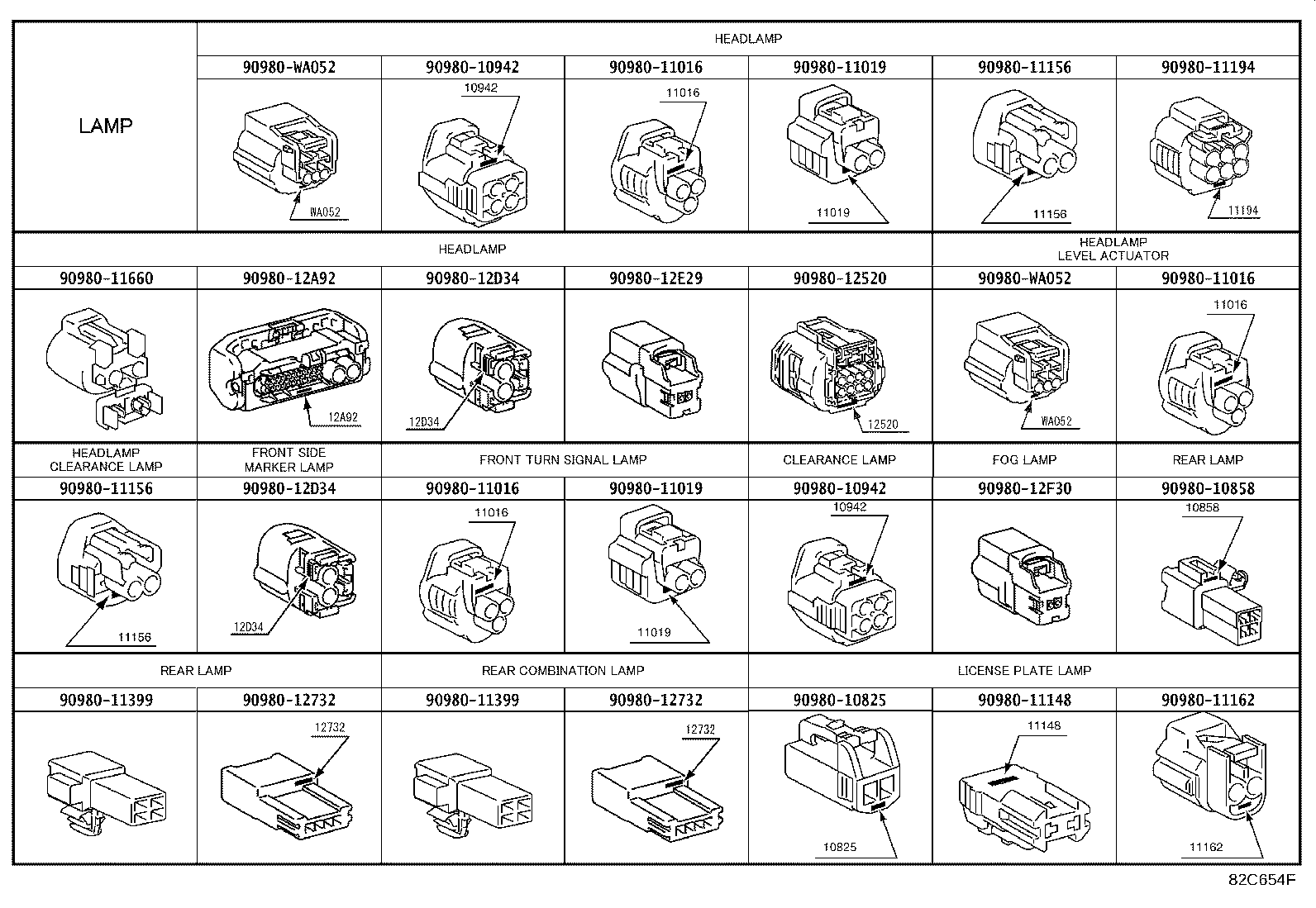

ILLUST NO.41 OF42(1901- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10825 | ||||
| 90980-10858 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-11660 | ||||
| 90980-12520 | ||||
| 90980-12732 | ||||
| 90980-12A92 | ||||
| 90980-12D34 | ||||
| 90980-12E29 | ||||
| 90980-12F30 | ||||
| 90980-WA052 | ||||
ILLUST NO.42 OF42(1901- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10860 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11148 | ||||
| 90980-11246 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B01 | ||||
| 90980-12C39 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
