ZWE211R-DHXGBW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )MZEH12,ZWE211..RHD

Click highlighted areas on diagram

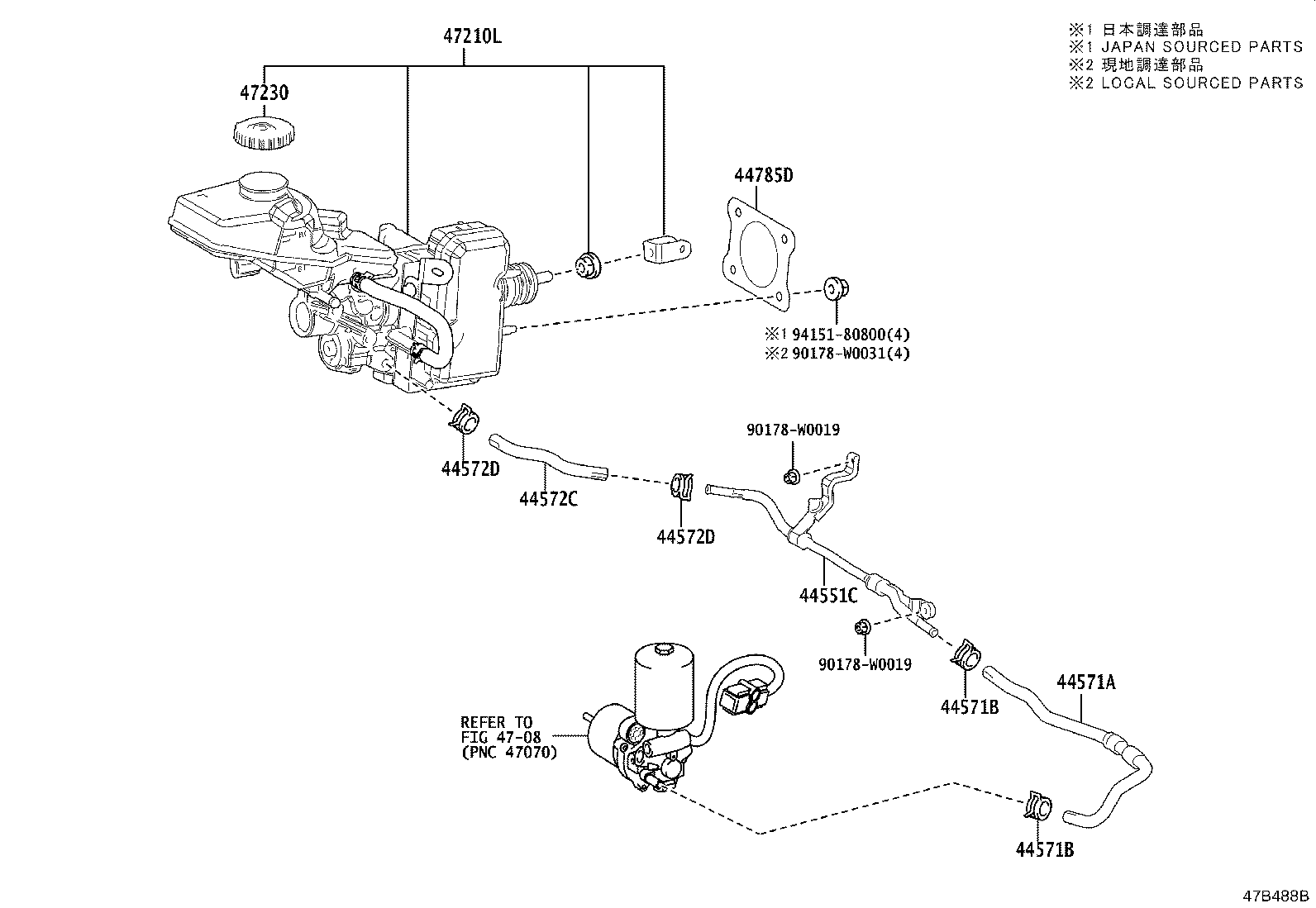

diagram 44551C 44571A 44571B 44571B 44572C 44572D 44572D 44785D 4708 47210L 47230 90178W0019 90178W0019 90178W0031 9415180800
Part # Description Qty Price
44551C - TUBE, BRAKE ACTUATOR, NO.1
44551-47060

MZEH12,ZWE211..RHD

 1
44571A - HOSE, BRAKE ACTUATOR, NO.1
44571-47080

MZEH12,ZWE211..RHD

 1
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96137-41501

MZEH12,ZWE211

 2
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96137-41501

MZEH12,ZWE211

 2
44572C - HOSE, BRAKE ACTUATOR, NO.2
44572-47060

MZEH12,ZWE211..RHD

 1
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501

MZEH12,ZWE211

 2
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501

MZEH12,ZWE211

 2
44785D - GASKET, BRAKE MASTER CYLINDER
44785-12040

MZEH12,ZWE211

(J)

 1
44785-05020

MZEH12,ZWE211

(L)

 1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-12480

ZWE211..RHD..HB..G

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

 1
47050-12480

ZWE211..RHD..HB..G

TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE

 1
47050-12500

ZWE211..RHD..HB..G

ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE

 1
47050-12480

MZEH12,ZWE211..RHD..HB..(D,N)

 1
47050-12500

MZEH12,ZWE211..RHD..HB..(D,N)

ROUGH ROAD AREA SPEC

 1
47050-12480

MZEH12,ZWE211..RHD..HB..G

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

 1
47050-12500

MZEH12,ZWE211..RHD..HB..G

ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

 1
47050-12510

MZEH12,ZWE211..RHD..HB..G

ROUGH ROAD AREA SPEC

 1
47050-12500

ZWE211..RHD..HB..G

ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

 1
47050-12490

MZEH12,ZWE211..RHD..HB..G

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-47090

MZEH12,ZWE211

 1
Common parts
90178-W0019
90178-W0031
94151-80800
Linked diagrams
4708
