NRE210R-DHFGZW (2019)
Toyota Corolla (Ukp)
ILLUST NO. 1 OF 3(1901- )
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-02E20 |
NRE210..RHD..G;MZEH12..RHD..HB..G LIGHT GRADE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 55900-02E50 |
NRE210..RHD..6F..D AIR CONDITIONER-WITHOUT |
1 | ||
| 55900-02E40 |
ZWE211..RHD..WG..(D,N);MZEH12,NRE210..RHD..WG..N;MZEH12,NRE210,ZWE211..RHD..G |
1 | ||
| 55900-02E20 |
ZWE211..RHD..HB..(D,N);MZEH12,NRE210..RHD..HB..N |
1 | ||
| 55900-02F60 |
NRE210..RHD..D |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90468-08048 | ||||

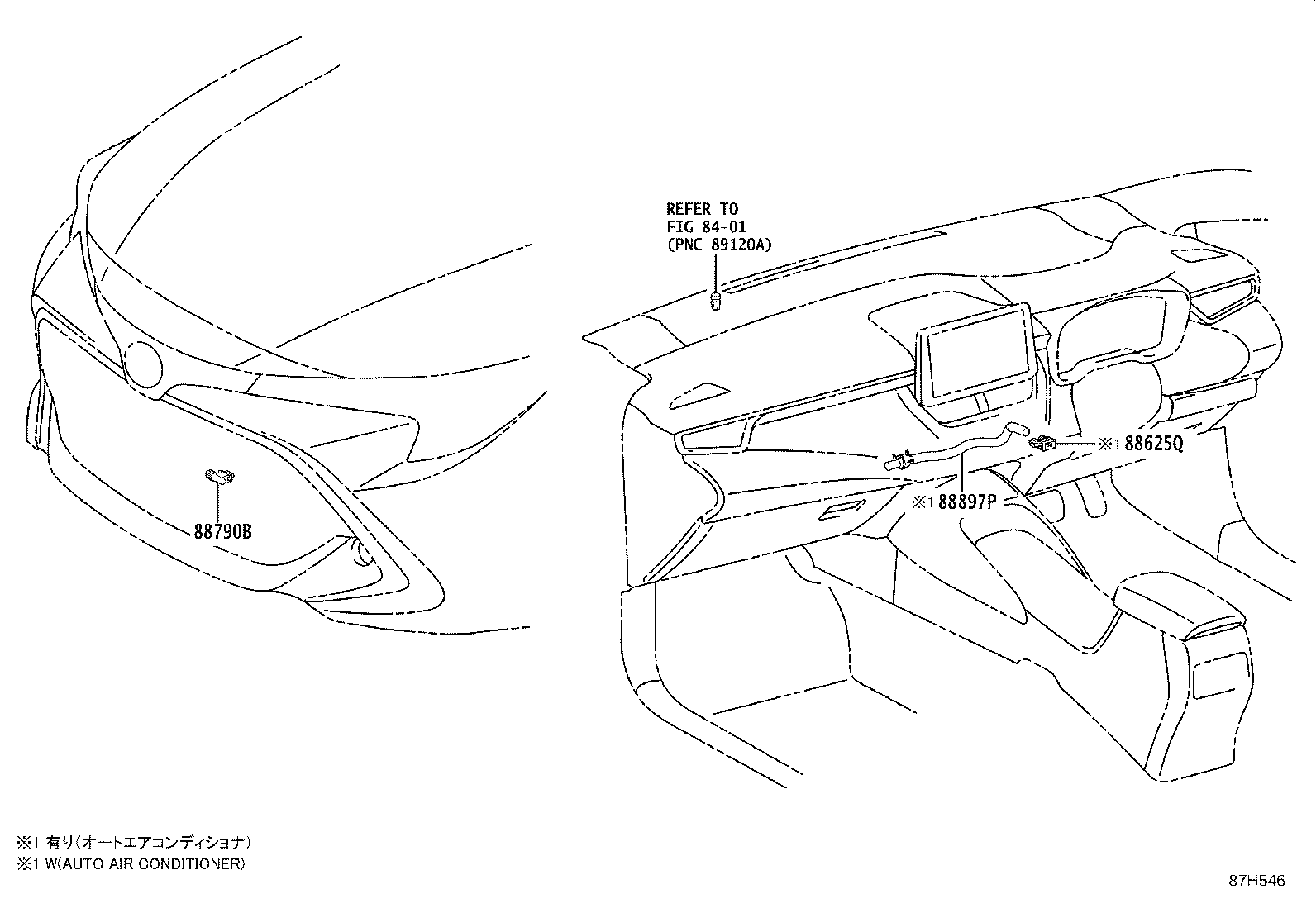

ILLUST NO. 3 OF 3(1901- )RHD
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ZWE211;MZEH12,NRE210..G,N |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-02230 |
MZEH12,ZWE211..RHD;NRE210..RHD..(G,N) |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

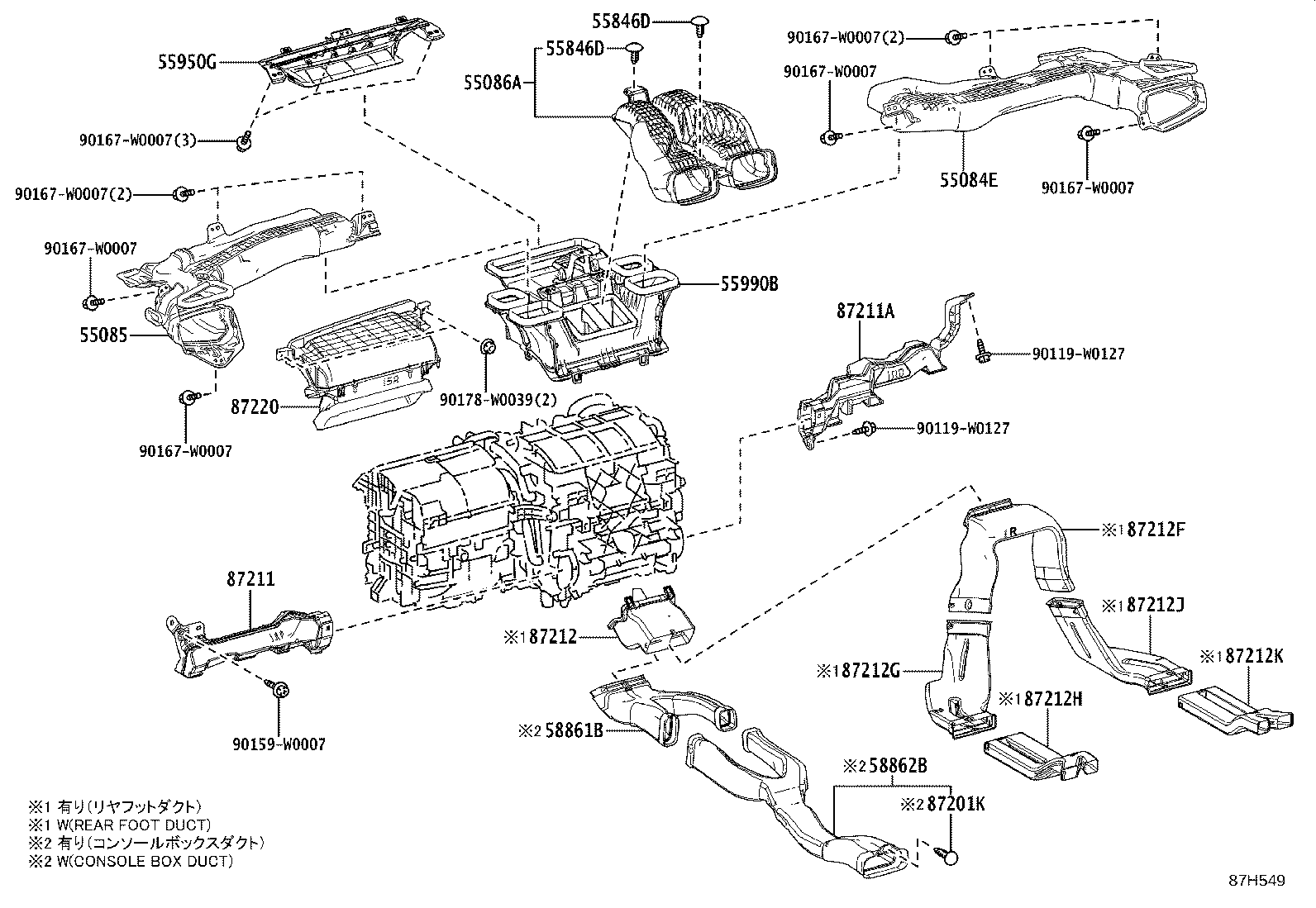

ILLUST NO. 2 OF 3(1901- )RHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-02630 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-02170 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-02600 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-W0001C0 |
MZEH12,NRE210,ZWE211 BLACK |
2 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-W0001C0 |
MZEH12,NRE210,ZWE211 BLACK |
2 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-02490 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-02300 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-02080 |
MZEH12,NRE210..RHD..G;MZEH12,NRE210..RHD..WG..N LIGHT GRADE |
1 | ||
| 58861-02080 |
MZEH12,NRE210,ZWE211..RHD..G;MZEH12,NRE210,ZWE211..RHD..WG..N |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-02010 |
MZEH12,NRE210,ZWE211..RHD..G;MZEH12,NRE210,ZWE211..RHD..WG..N |
1 | ||
| 58862-02010 |
MZEH12,NRE210..RHD..G;MZEH12,NRE210..RHD..WG..N LIGHT GRADE |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-W0001C0 |
MZEH12,NRE210,ZWE211..G;MZEH12,NRE210,ZWE211..WG..N BLACK |
1 | ||
| 90467-W0001C0 |
MZEH12,NRE210..G;MZEH12,NRE210..WG..N LIGHT GRADE,BLACK |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-02620 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-02610 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87413-02020 |
NRE210..G LIGHT GRADE |
1 | ||
| 87413-02020 |
NRE210..WG..D;MZEH12,NRE210,ZWE211..HB..(D,N)..EUR SUB COLD AREA SPEC |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87215-02160 |
MZEH12,NRE210,ZWE211..RHD..G |
1 | ||
| 87215-02160 |
ZWE211..RHD..WG..N;ZWE211..RHD..HB..(D,N);MZEH12,NRE210..RHD..(D,N) SUB COLD AREA SPEC |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-F4010 |
MZEH12,NRE210,ZWE211..(D,N)..EUR SUB COLD AREA SPEC |
1 | ||
| 87213-F4010 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87217-F4010 |
MZEH12,NRE210,ZWE211..HB..G |
1 | ||
| 87217-F4010 |
MZEH12,NRE210,ZWE211..HB..(D,N)..EUR SUB COLD AREA SPEC |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87212-F4010 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 87212-F4010 |
MZEH12,NRE210,ZWE211..(D,N)..EUR SUB COLD AREA SPEC |
1 | ||
| 87212K - DUCT, AIR, REAR NO.6 | ||||
| 87216-F4010 |
MZEH12,NRE210,ZWE211..HB..G |
1 | ||
| 87216-F4010 |
MZEH12,NRE210,ZWE211..HB..(D,N)..EUR SUB COLD AREA SPEC |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-02380 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 87220-02381 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90159-W0007 | ||||
| 90167-W0007 | ||||
| 90178-W0039 | ||||
