NRE210L-DHXDZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )NRE210..CVT

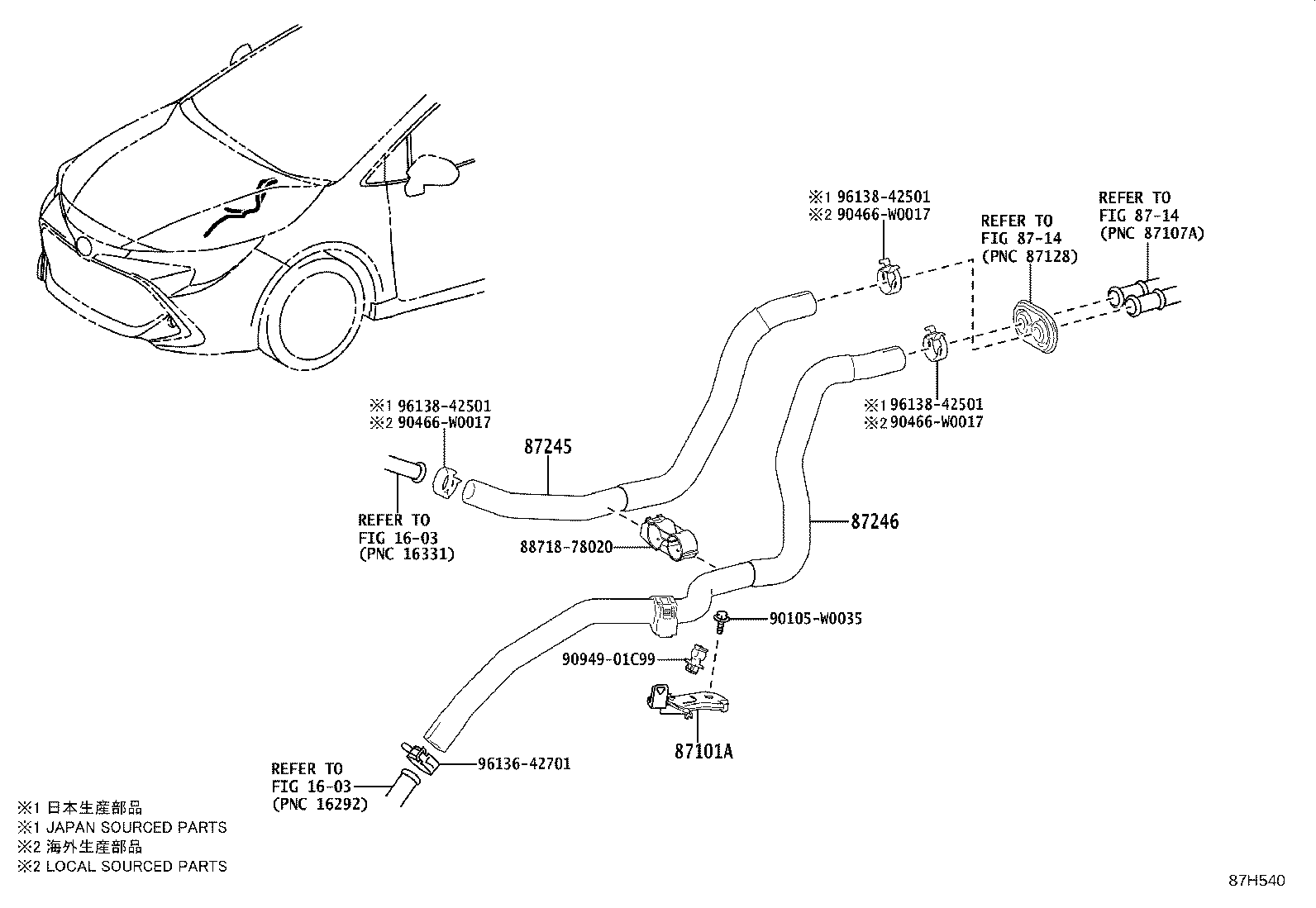

Click highlighted areas on diagram

diagram 1603 1603 87101A 8714 8714 87245 87246 8871878020 90105W0035 90466W0017 90466W0017 90466W0017 9094901C99 9613642701 9613842501 9613842501 9613842501
Part # Description Qty Price
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-12150

NRE210..CVT

 1
87245 - HOSE, HEATER WATER, INLET
87245-02R30

NRE210

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-02360

NRE210..CVT

 1
Common parts
88718-78020
90105-W0035
90466-W0017
90949-01C99
96136-42701
96138-42501
Linked diagrams
1603
8714
