NRE210L-DHXDZW (2019)
Toyota Corolla (Ukp)
(1901- )NRE210..LHD..D

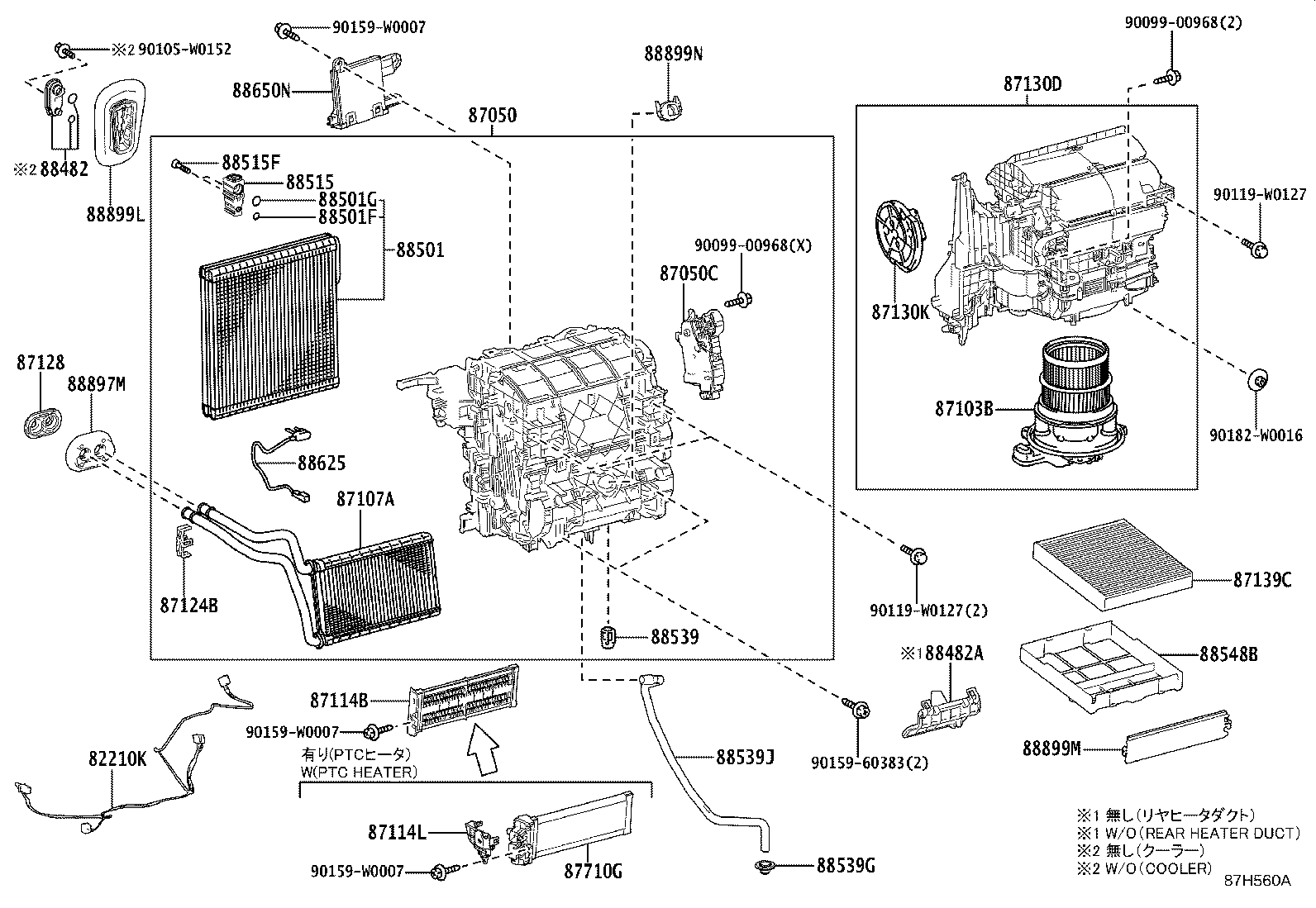

MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-02580 |
NRE210..LHD..WG..D;NRE210..LHD..HB..(D,N) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0Z400 |
NRE210..LHD..HB..N REFRIGERANT CORRESPONDENCE-HFC134A |
1 | ||
| 87050-0Z470 |
NRE210..LHD..WG..6F..D;NRE210..LHD..HB..D..EUR REFRIGERANT CORRESPONDENCE-HFC134A |
1 | ||
| 87050-0Z420 |
NRE210..LHD..HB..N REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 87050-0Z480 |
NRE210..LHD..WG..6F..D;NRE210..LHD..HB..D..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 87050-0Z520 |
NRE210..LHD..HB..N LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 87050-0Z590 |
NRE210..LHD..WG..6F..D;NRE210..LHD..HB..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 87050-0Z580 |
NRE210..LHD..WG..6F..D;NRE210..LHD..HB..D..EUR |
1 | ||
| 87050-0ZE50 |
NRE210..LHD..HB..N |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-02540 |
NRE210..D |
1 | ||
| 87106-F4010 |
ZWE211;MZEH12,NRE210..G,N |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-F4020 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-F4020 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-F4060 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87114L - COVER, HEATER, NO.2 | ||||
| 87114-F4050 |
NRE210,ZWE211..LHD..EUR SUB COLD AREA SPEC |
1 | ||
| 87114-F4050 |
NRE210,ZWE211..LHD..EUR COLD AREA SPEC |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-F4020 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-F4030 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
MZEH12,NRE210,ZWE211 DEODORANT FILTER |
1 | ||
| 87139-F4020 |
MZEH12,NRE210,ZWE211 POLLEN FILTER,OE PART |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-F4030 |
NRE210,ZWE211..EUR SUB COLD AREA SPEC |
1 | ||
| 87710-F4030 |
NRE210,ZWE211..LHD..EUR COLD AREA SPEC |
1 | ||
| 88482A - COVER | ||||
| 87114-F4070 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02510 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A |
1 | ||
| 88501-02520 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 88501-02480 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 88501-02680 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NRE210;MZEH12,ZWE211..G;MZEH12,ZWE211..WG..(D,N) ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NRE210;MZEH12,ZWE211..G;MZEH12,ZWE211..WG..(D,N) ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02770 |
NRE210..6F..EUR;MZEH12,ZWE211..HB;NRE210..LHD..HB..CVT..EUR |
1 | ||
| 88515-02790 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 88515-02560 |
NRE210..LHD..WG..6F;MZEH12,NRE210,ZWE211..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A |
1 | ||
| 88515-02800 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88899-10110 |
NRE210;MZEH12,ZWE211..G;MZEH12,ZWE211..WG..(D,N) |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-F4040 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-F4030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02130 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 88620-02130 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 88620-02210 |
NRE210..6F;MZEH12,ZWE211..HB..G;NRE210..LHD..HB..CVT |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-02L40 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-02370 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 88899-02370 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 88899-F4040 |
NRE210..6F;MZEH12,ZWE211..HB;NRE210..LHD..HB..CVT |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-F4011 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-02320 |
NRE210..D |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90105-W0152 | ||||
| 90119-W0127 | ||||
| 90159-60383 | ||||
| 90159-W0007 | ||||
| 90182-W0016 | ||||
(1901- )GEN ; (1901- )NRE210..LHD..G,N ; (1901- )MZEH12,ZWE211..LHD

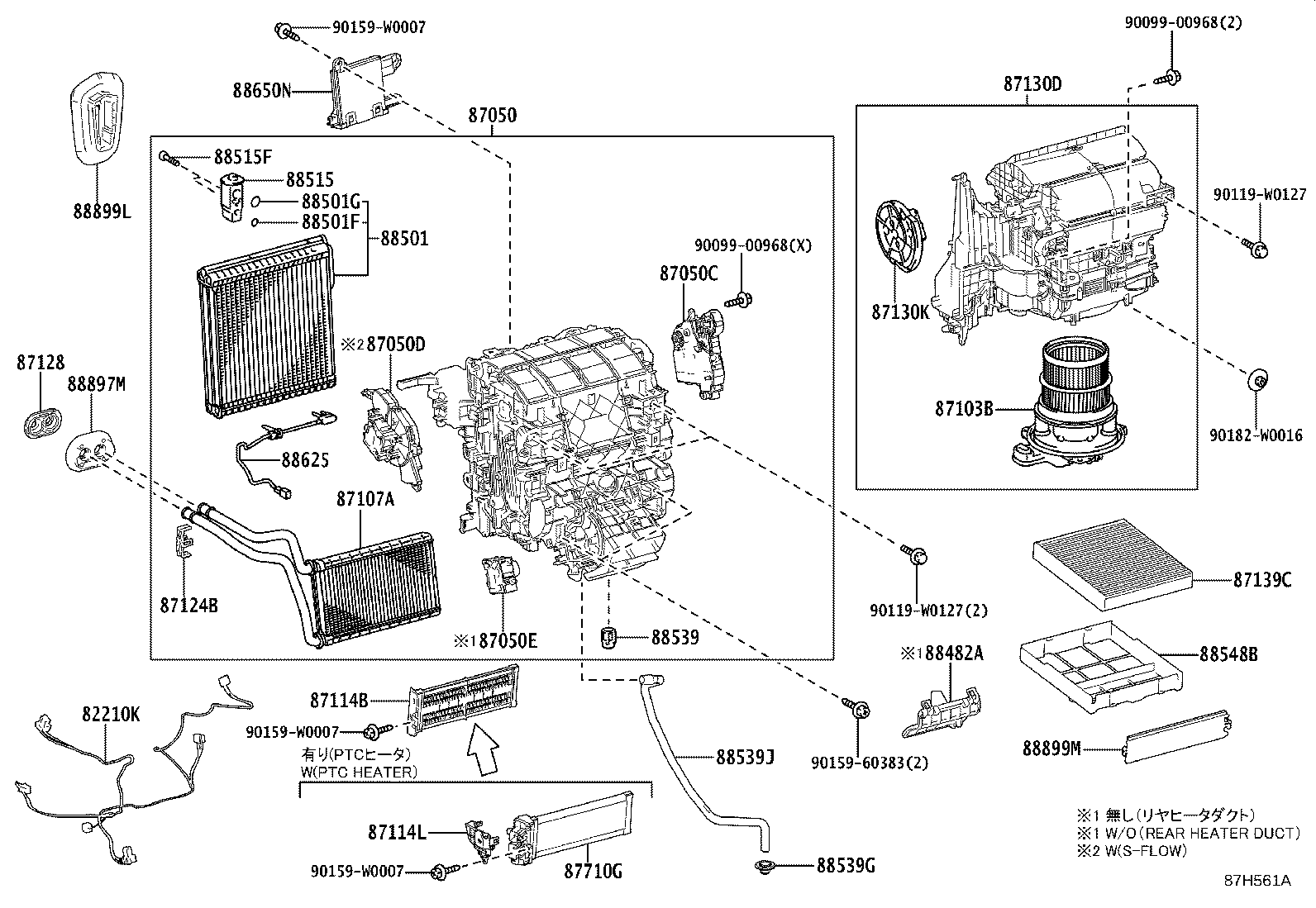

AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-02580 |
NRE210..LHD..WG..D;NRE210..LHD..HB..(D,N) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0Z400 |
NRE210..LHD..HB..N REFRIGERANT CORRESPONDENCE-HFC134A |
1 | ||
| 87050-0Z470 |
NRE210..LHD..WG..6F..D;NRE210..LHD..HB..D..EUR REFRIGERANT CORRESPONDENCE-HFC134A |
1 | ||
| 87050-0Z420 |
NRE210..LHD..HB..N REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 87050-0Z480 |
NRE210..LHD..WG..6F..D;NRE210..LHD..HB..D..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 87050-0Z520 |
NRE210..LHD..HB..N LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 87050-0Z590 |
NRE210..LHD..WG..6F..D;NRE210..LHD..HB..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 87050-0Z580 |
NRE210..LHD..WG..6F..D;NRE210..LHD..HB..D..EUR |
1 | ||
| 87050-0ZE50 |
NRE210..LHD..HB..N |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-02540 |
NRE210..D |
1 | ||
| 87106-F4010 |
ZWE211;MZEH12,NRE210..G,N |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-F4020 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-F4020 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-F4060 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87114L - COVER, HEATER, NO.2 | ||||
| 87114-F4050 |
NRE210,ZWE211..LHD..EUR SUB COLD AREA SPEC |
1 | ||
| 87114-F4050 |
NRE210,ZWE211..LHD..EUR COLD AREA SPEC |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-F4020 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-F4030 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
MZEH12,NRE210,ZWE211 DEODORANT FILTER |
1 | ||
| 87139-F4020 |
MZEH12,NRE210,ZWE211 POLLEN FILTER,OE PART |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-F4030 |
NRE210,ZWE211..EUR SUB COLD AREA SPEC |
1 | ||
| 87710-F4030 |
NRE210,ZWE211..LHD..EUR COLD AREA SPEC |
1 | ||
| 88482A - COVER | ||||
| 87114-F4070 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02510 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A |
1 | ||
| 88501-02520 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 88501-02480 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 88501-02680 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NRE210;MZEH12,ZWE211..G;MZEH12,ZWE211..WG..(D,N) ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NRE210;MZEH12,ZWE211..G;MZEH12,ZWE211..WG..(D,N) ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02770 |
NRE210..6F..EUR;MZEH12,ZWE211..HB;NRE210..LHD..HB..CVT..EUR |
1 | ||
| 88515-02790 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 88515-02560 |
NRE210..LHD..WG..6F;MZEH12,NRE210,ZWE211..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A |
1 | ||
| 88515-02800 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88899-10110 |
NRE210;MZEH12,ZWE211..G;MZEH12,ZWE211..WG..(D,N) |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-F4040 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-F4030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02130 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 88620-02130 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 88620-02210 |
NRE210..6F;MZEH12,ZWE211..HB..G;NRE210..LHD..HB..CVT |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-02L40 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-02370 |
NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 88899-02370 |
NRE210..LHD..WG..6F;NRE210..LHD..HB..EUR REFRIGERANT CORRESPONDENCE-HFC134A&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & STARTSYSTEM) |
1 | ||
| 88899-F4040 |
NRE210..6F;MZEH12,ZWE211..HB;NRE210..LHD..HB..CVT |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-F4011 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90119-W0127 | ||||
| 90159-60383 | ||||
| 90159-W0007 | ||||
| 90182-W0016 | ||||
