NRE210L-DHXDZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )LHD..HB

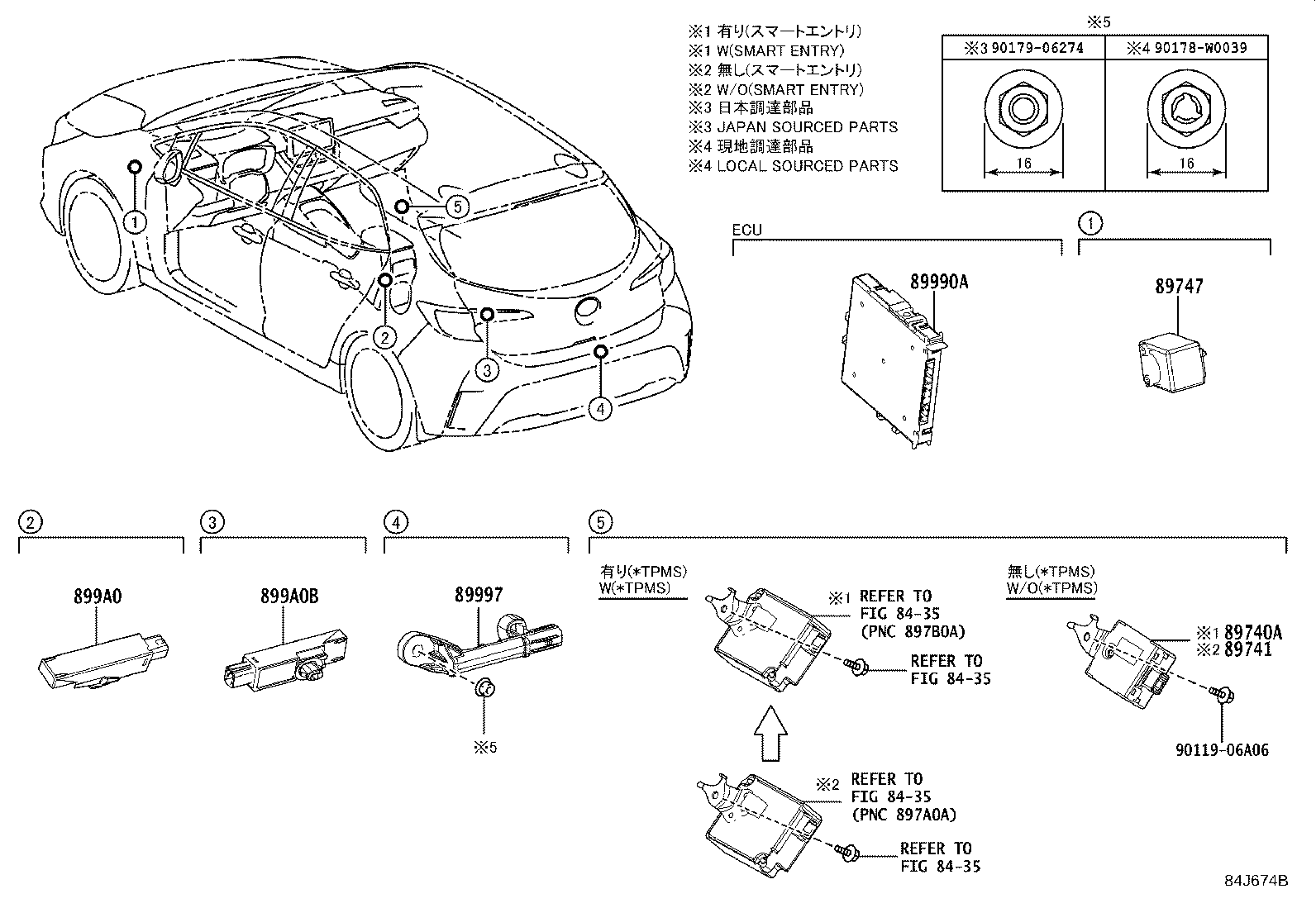

Click highlighted areas on diagram

diagram 8435 8435 8435 8435 89740A 89741 89747 89990A 89997 899A0 899A0B 9011906A06
Part # Description Qty Price
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-02200

NRE210..LHD..HB..N

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&KEY PLATE-FOR SMART(2)&TIRE INFLATION PRESSURE WARNING-WITHOUT

 1
89741 - RECEIVER, DOOR CONTROL
89741-02420

NRE210..LHD..HB..(D,N)..EUR

TIRE INFLATION PRESSURE WARNING-WITHOUT

 1
89741-02410

NRE210..LHD..HB..(D,N)..EUR

KEY PLATE-WIRELESS KEY(2)&TIRE INFLATION PRESSURE WARNING-WITHOUT

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-05010

NRE210..HB..N

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&KEY PLATE-FOR SMART(2)

 1
89747-05010

NRE210..LHD..HB..N

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&KEY PLATE-FOR SMART(2)&TIRE INFLATION PRESSURE WARNING-WITHOUT

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-02010

NRE210..LHD..HB..N

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

MZEH12,NRE210,ZWE211..HB..N

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-02220

NRE210..HB..N

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-02410

MZEH12,NRE210,ZWE211..HB..N

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
Common parts
90119-06A06
Linked diagrams
8435
