Toyota Corolla (ukp) NRE210 SEAT BELT & CHILD RESTRAINT SEAT

Manufacturers Home
Toyota
EU
COROLLA (UKP)
NRE210L-DHXDZW (2019)
7104 - SEAT BELT & CHILD RESTRAINT SEAT

NRE210L-DHXDZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999

Engine 8NRFTS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1901- )

Click highlighted areas on diagram

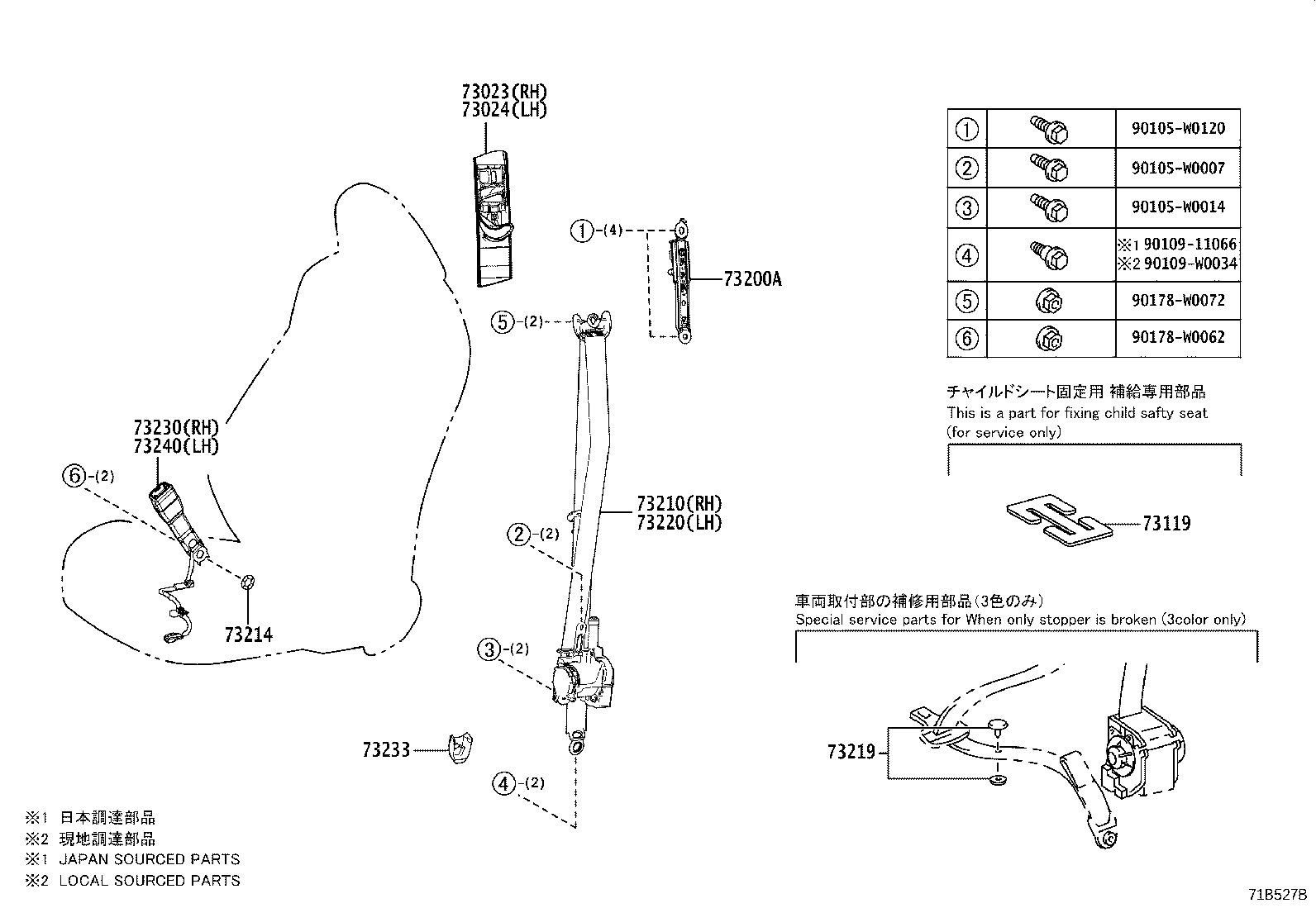

FRONT SEAT BELT

Part #	Description	Period	Qty
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-02100C0	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-02100C0	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-F4010	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-02690C0	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	2
73219 - STOPPER, TONGUE PLATE
73219-33020	MZEH12,NRE210,ZWE211 GRAY	01/2019 - 12/2999	1
73219-33010	MZEH12,NRE210,ZWE211 BLACK	01/2019 - 12/2999	1
73219-33030	MZEH12,NRE210,ZWE211 BEIGE	01/2019 - 12/2999	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-02630C0	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-02B80C0	NRE210,ZWE211..LHD..D..EUR BLACK,TRIM2#	01/2019 - 12/2999	1
73230-02B90C0	NRE210,ZWE211..LHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73230-02B80C0	MZEH12,NRE210..LHD..(G,N) LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2#	01/2019 - 12/2999	1
73230-02B90C0	ZWE211..LHD..G;ZWE211..LHD..WG..N;MZEH12,NRE210..LHD..(G,N) BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-02040C2	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-02B70C0	NRE210,ZWE211..LHD..D..EUR BLACK,TRIM2#	01/2019 - 12/2999	1
73230-02B70C0	NRE210..GEN;MZEH12,NRE210,ZWE211..LHD..(G,N) BLACK,TRIM1#,2#	01/2019 - 12/2999	1
Common parts
90105-W0007
90105-W0014
90105-W0120
90109-11066
90109-W0034
90178-W0062
90178-W0072

(1901- )HB

Click highlighted areas on diagram

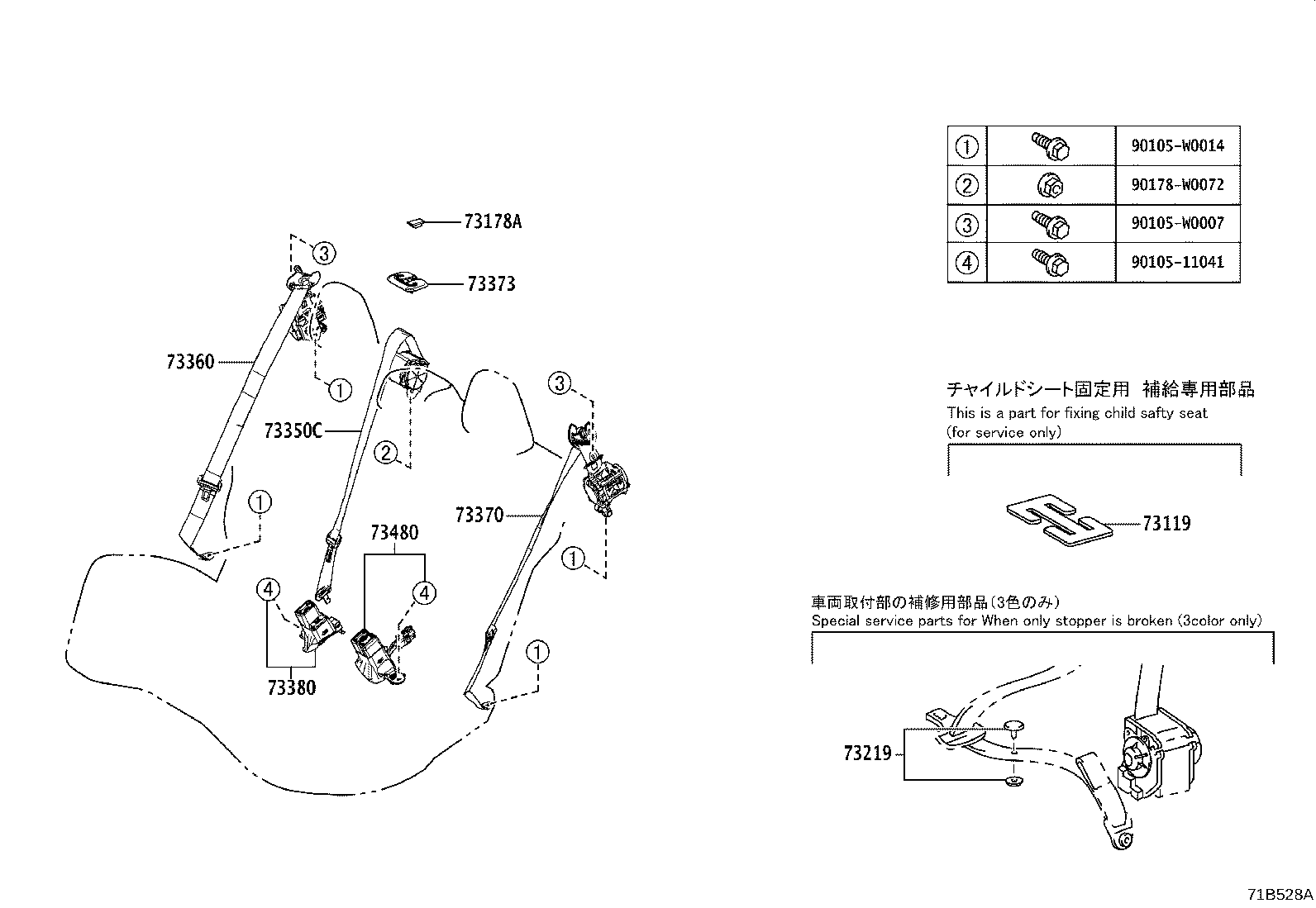

REAR SEAT BELT

Part #	Description	Period	Qty
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-48010C1	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73219 - STOPPER, TONGUE PLATE
73219-33020	MZEH12,NRE210,ZWE211 GRAY	01/2019 - 12/2999	1
73219-33010	MZEH12,NRE210,ZWE211 BLACK	01/2019 - 12/2999	1
73219-33030	MZEH12,NRE210,ZWE211 BEIGE	01/2019 - 12/2999	1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-02250C0	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-02681C1	MZEH12,NRE210,ZWE211..HB BLACK/BLACK,TRIM1#,2#	07/2020 - 12/2999	1
73360-02680C1	MZEH12,NRE210,ZWE211..HB BLACK/BLACK,TRIM1#,2#	01/2019 - 07/2020	1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-02230C1	MZEH12,NRE210,ZWE211..HB BLACK/BLACK,TRIM1#,2#	01/2019 - 07/2020	1
73370-02231C1	MZEH12,NRE210,ZWE211..HB BLACK/BLACK,TRIM1#,2#	07/2020 - 12/2999	1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-48080C1	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-02110C0	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-02620C1	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
Common parts
90105-11041
90105-W0007
90105-W0014
90178-W0072

NRE210L-DHXDZW (2019)

(1901- )

(1901- )HB
