NRE210L-DHXDZW (2019)
Toyota Corolla (Ukp)

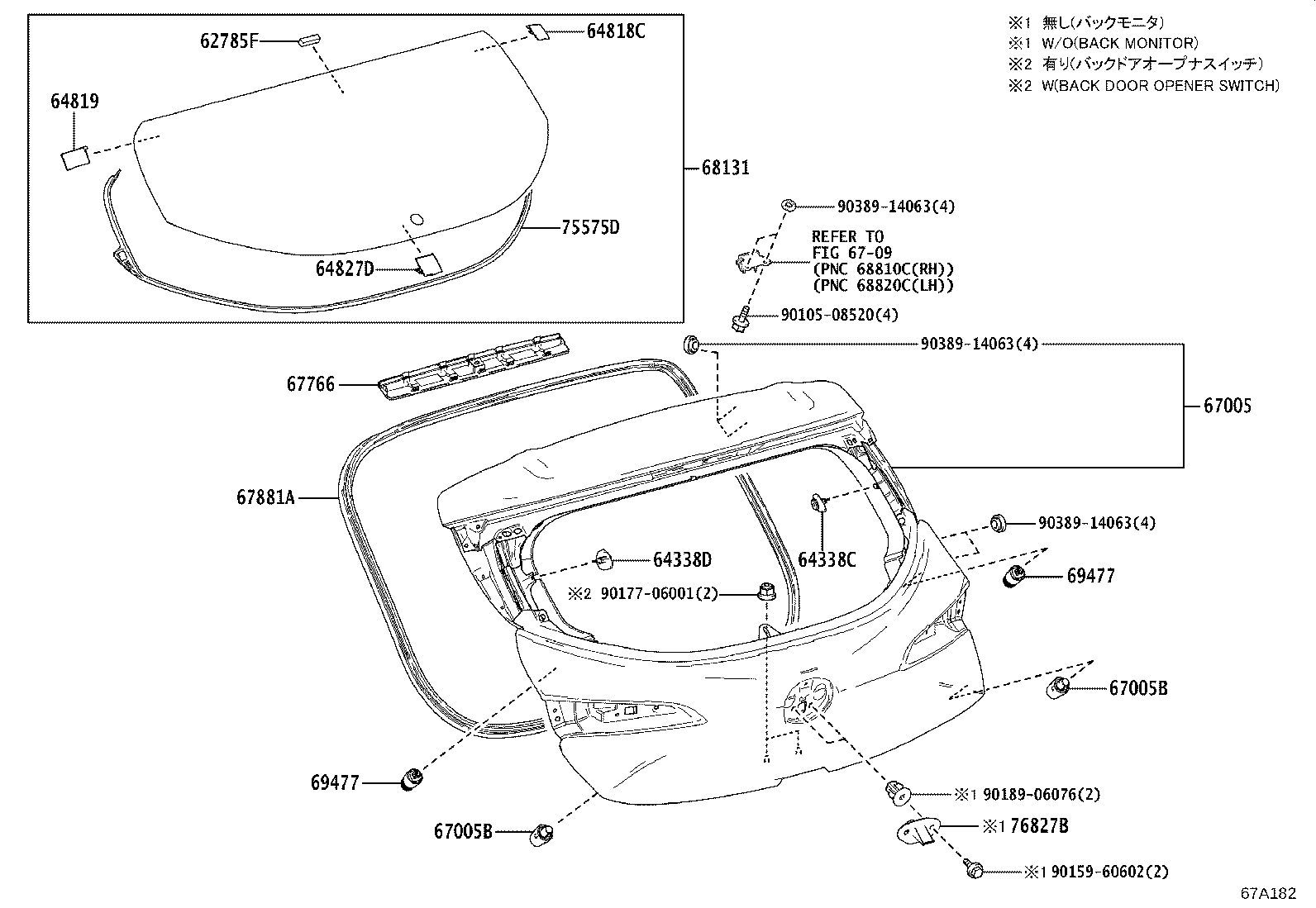

ILLUST NO. 1 OF 2(1901- )HB
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-60030 |
MZEH12,NRE210,ZWE211..HB;MZEH12,ZWE211..RHD..WG..(D,N) |
1 | ||
| 64338C - HOOK, PACKAGE TRAY TRIM GARNISH, RH | ||||
| 64338-02020C0 |
MZEH12,NRE210,ZWE211..HB..EUR LIGHT GRADE,BLACK,TRIM1#,2# |
1 | ||
| 64338-02020C0 |
MZEH12,NRE210,ZWE211..HB BLACK,TRIM1#,2# |
1 | ||
| 64338-02020C0 |
NRE210..HB..EUR LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&TRUNK & DECK CARPET & MAT-WITHOUT(LIGHT),BLACK,TRIM1#,2# |
1 | ||
| 64338-02020C0 |
ZWE211..HB..G;MZEH12,NRE210..HB..EUR LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 64338D - HOOK, PACKAGE TRAY TRIM GARNISH, LH | ||||
| 64338-02030C0 |
MZEH12,NRE210,ZWE211..HB..EUR LIGHT GRADE,BLACK,TRIM1#,2# |
1 | ||
| 64338-02030C0 |
ZWE211..HB..G;MZEH12,NRE210..HB..EUR LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 64338-02030C0 |
NRE210..HB..EUR LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&TRUNK & DECK CARPET & MAT-WITHOUT(LIGHT),BLACK,TRIM1#,2# |
1 | ||
| 64338-02030C0 |
MZEH12,NRE210,ZWE211..HB BLACK,TRIM1#,2# |
1 | ||
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-02080 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-02070 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 64827D - CLIP, BACK WINDOW GLASS | ||||
| 64827-02030 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-02610 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09147 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09147 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-02020C0 |
MZEH12,NRE210,ZWE211..HB BLACK,TRIM1#,2# |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-02130 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-02330 |
NRE210..HB..(D,N);MZEH12,ZWE211..LHD..HB..(D,N) |
1 | ||
| 68105-02680 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N REAR SIDE GLASS-PRIVACY&AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 68105-02720 |
NRE210..HB..(D,N)..EUR;MZEH12,ZWE211..LHD..HB..(D,N) AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 68105-02680 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N REAR SIDE GLASS-PRIVACY&AUDIO-T2 (8INCH) & NAVI & DAB & 6SPEAKER |
1 | ||
| 68105-02730 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68105-02720 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N AUDIO-T2 (8INCH) & NAVI & DAB & 6SPEAKER |
1 | ||
| 68105-02681 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N REAR SIDE GLASS-PRIVACY&AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 68105-02721 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N AUDIO-T2 (8INCH) & NAVI & DAB & 6SPEAKER |
1 | ||
| 68105-02331 |
NRE210..HB..(D,N);MZEH12,ZWE211..LHD..HB..(D,N) |
1 | ||
| 68105-02731 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68105-02721 |
NRE210..HB..(D,N)..EUR;MZEH12,ZWE211..LHD..HB..(D,N) AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 68105-02681 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N REAR SIDE GLASS-PRIVACY&AUDIO-T2 (8INCH) & NAVI & DAB & 6SPEAKER |
1 | ||
| 69477 - CUSHION, BACK DOOR UPPER STOPPER | ||||
| 69477-02010 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 69477 - CUSHION, BACK DOOR UPPER STOPPER | ||||
| 69477-02010 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-02090 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 76827B - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-02060 |
MZEH12,NRE210,ZWE211..HB..(G,N) AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 76827-02060 |
MZEH12,NRE210..HB..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 76827-02060 |
NRE210,ZWE211..HB..D |
1 | ||
| Common parts | ||||
| 90105-08520 | ||||
| 90159-60602 | ||||
| 90177-06001 | ||||
| 90189-06076 | ||||
| 90389-14063 | ||||
| Linked diagrams | ||||
| 6709 | ||||

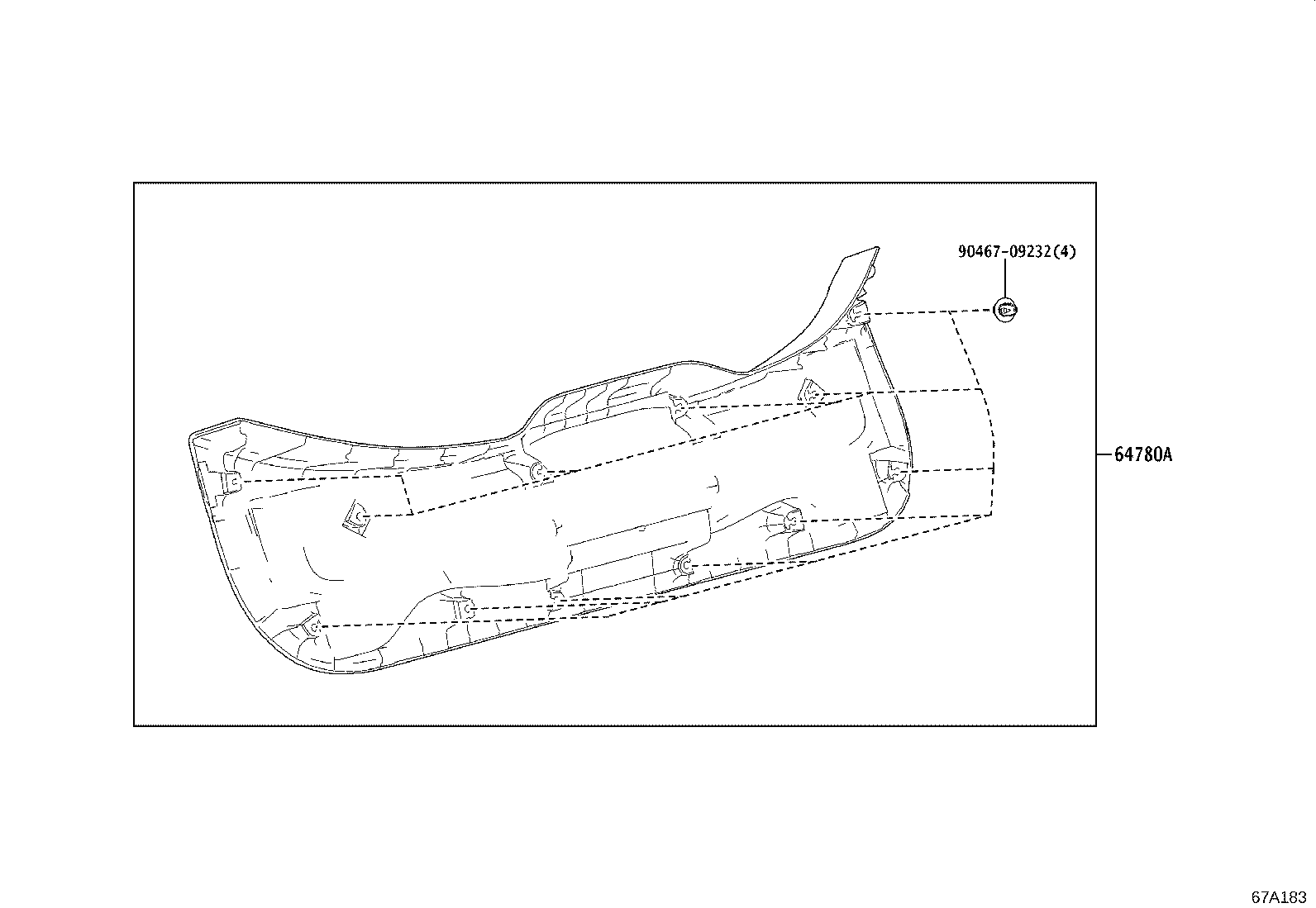

ILLUST NO. 2 OF 2(1901- )HB
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-02060C0 |
MZEH12,NRE210,ZWE211..HB BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90467-09232 | ||||
