NRE210L-DHXDZW (2019)
Toyota Corolla (Ukp)

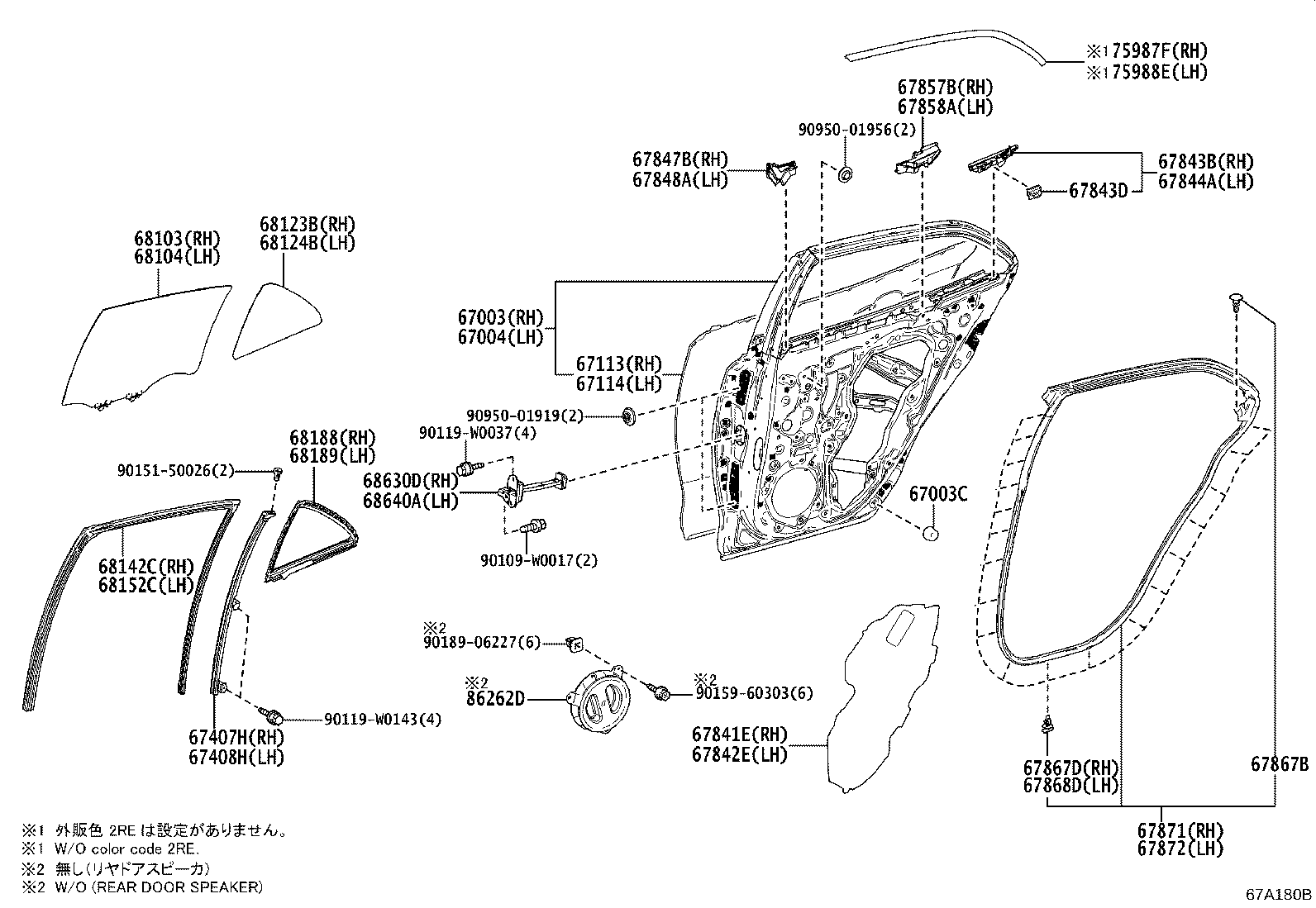

ILLUST NO. 1 OF 2(1901- )HB
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02540 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-02540 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-02290 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-02290 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-12410 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-12410 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-02420 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-02390 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-02020 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67843D - CLIP, REAR DOOR SERVICE HOLE | ||||
| 67923-33100 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-02020 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-02100 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-02040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-02110 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67858A - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-02110 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MZEH12,NRE210,ZWE211..HB |
19 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MZEH12,NRE210,ZWE211..HB |
19 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02320 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02320 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-02550 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 68103-02561 |
MZEH12,NRE210,ZWE211..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68103-02560 |
MZEH12,NRE210,ZWE211..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68103-02551 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-02520 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 68104-02560 |
MZEH12,NRE210,ZWE211..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68104-02521 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 68104-02561 |
MZEH12,NRE210,ZWE211..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-02480 |
MZEH12,NRE210,ZWE211..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68123-02470 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 68123-02471 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 68123-02481 |
MZEH12,NRE210,ZWE211..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-02470 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 68124-02480 |
MZEH12,NRE210,ZWE211..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68124-02481 |
MZEH12,NRE210,ZWE211..HB..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68124-02471 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02350 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-02350 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-02240 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-02240 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-02340 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-02340 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-02020 |
MZEH12,NRE210,ZWE211..HB BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75987-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75988-02020 |
MZEH12,NRE210,ZWE211..HB BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-02030 |
NRE210,ZWE211..D..EUR |
2 | ||
| Common parts | ||||
| 90109-W0017 | ||||
| 90119-W0037 | ||||
| 90119-W0143 | ||||
| 90151-50026 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||

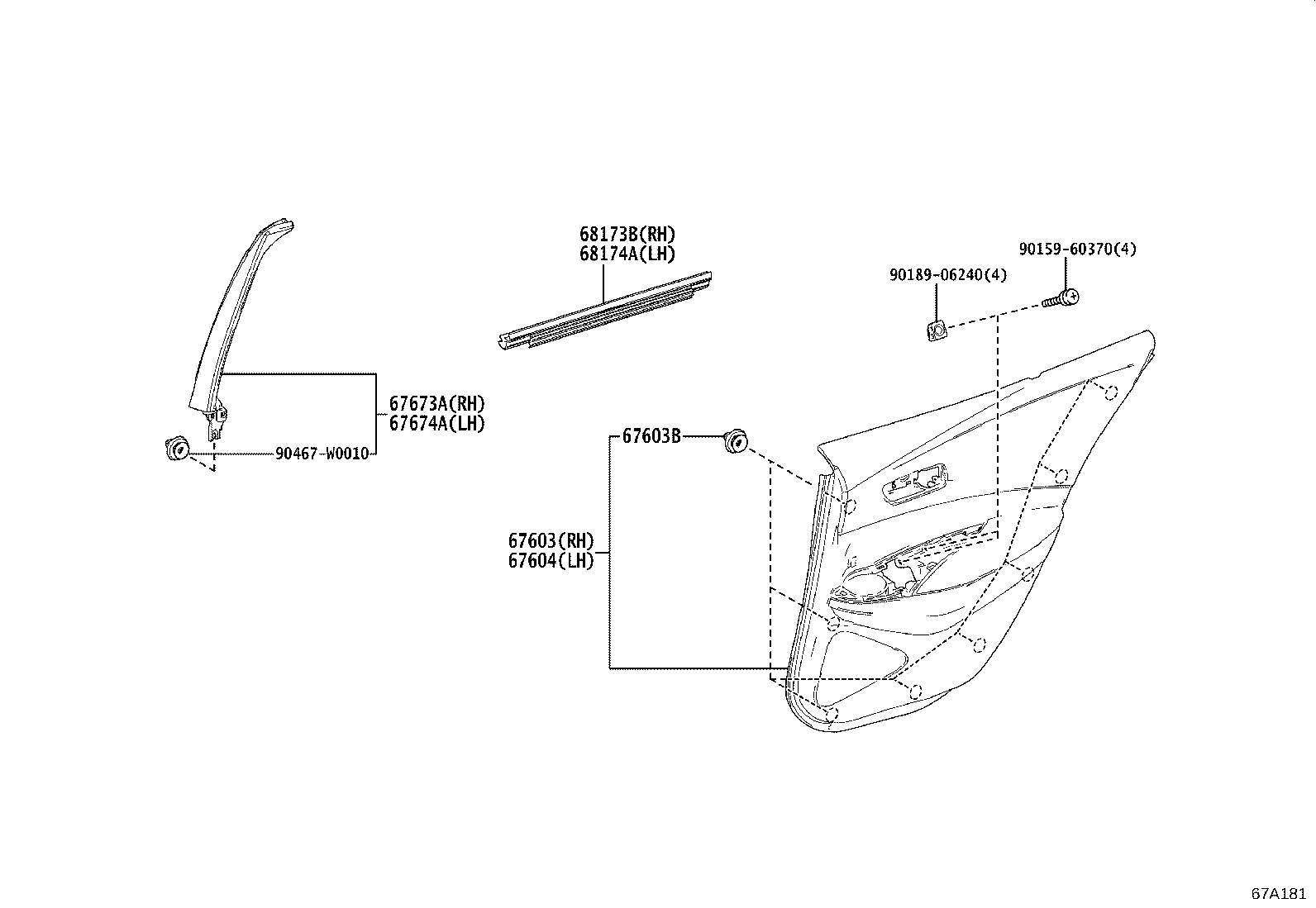

ILLUST NO. 2 OF 2(1901- )HB
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-02X20C3 |
MZEH12,NRE210,ZWE211..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/GRAY/BLACK,TRIM1# |
1 | ||
| 67630-02V70C0 |
NRE210,ZWE211..HB..(D,N) BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67630-02V70C1 |
NRE210,ZWE211..HB..(D,N) BLACK/BLACK,TRIM2# |
1 | ||
| 67630-02X20C5 |
NRE210..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
MZEH12,NRE210,ZWE211..HB |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-02U90C3 |
MZEH12,NRE210,ZWE211..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67640-02V80C1 |
NRE210,ZWE211..HB..(D,N) BLACK/BLACK,TRIM2# |
1 | ||
| 67640-02U90C5 |
NRE210..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67640-02V80C0 |
NRE210,ZWE211..HB..(D,N) BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-02390 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-02330 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06240 | ||||
| 90467-W0010 | ||||
