NRE210L-DHXDZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

Click highlighted areas on diagram

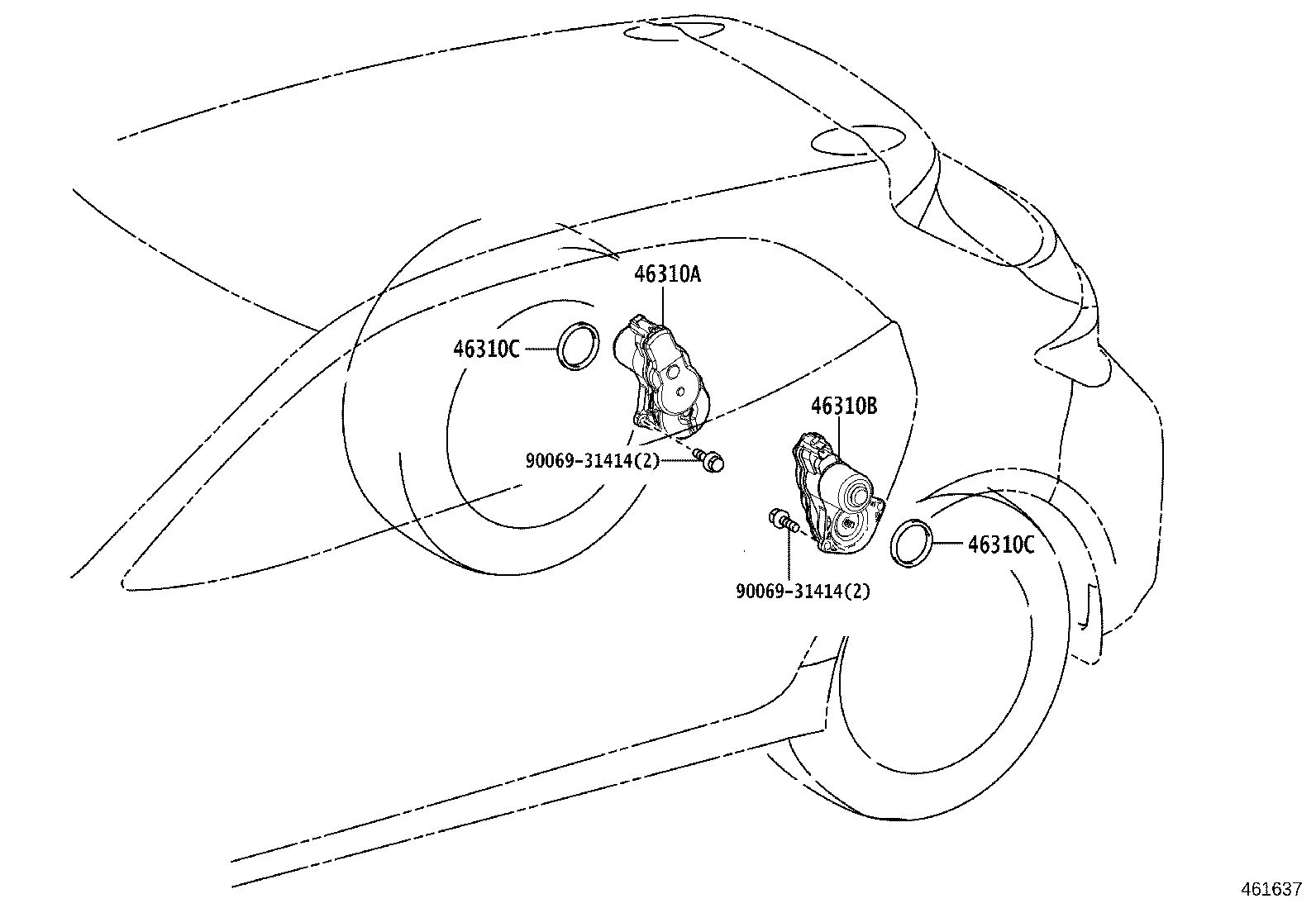

diagram 46310A 46310B 46310C 46310C 9006931414 9006931414
Part # Description Qty Price
46310A - ACTUATOR ASSY, PARKING BRAKE, RH
46310-F4011

MZEH12,NRE210,ZWE211

 1
46310B - ACTUATOR ASSY, PARKING BRAKE, LH
46310-F4011

MZEH12,NRE210,ZWE211

 1
46310C - SEAL(FOR PARKING BRAKE ACTUATOR)
90069-38055

MZEH12,NRE210,ZWE211

 2
46310C - SEAL(FOR PARKING BRAKE ACTUATOR)
90069-38055

MZEH12,NRE210,ZWE211

 2
Common parts
90069-31414
