NRE210L-DHXDZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )8NRFTS

Click highlighted areas on diagram

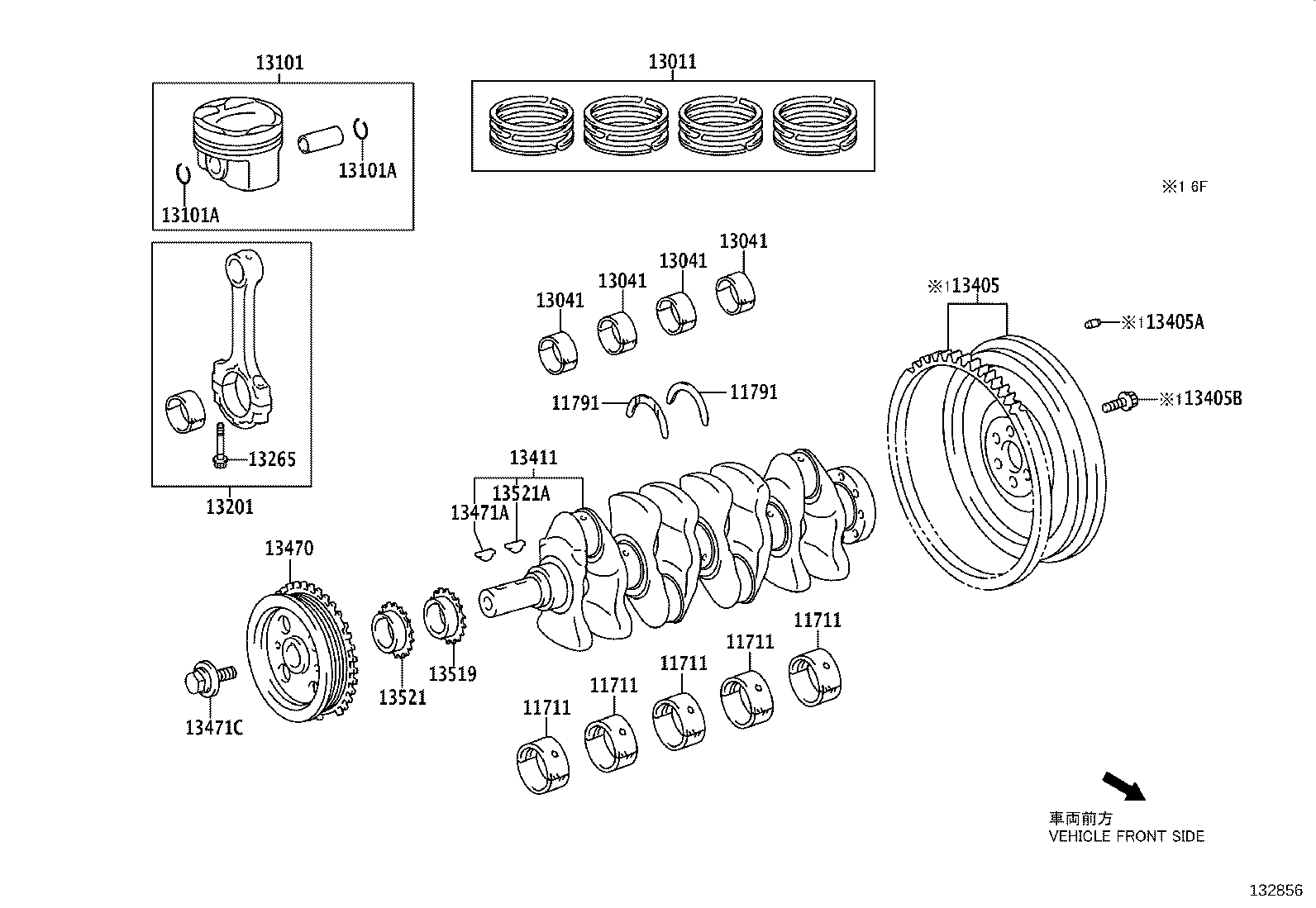

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13101A 13101A 13201 13265 13405 13405A 13405B 13411 13470 13471A 13471C 13519 13521 13521A
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-4703201

8NRFTS..NRE210

MARK1,REFER REPAIR MANUAL

 5
11701-4703202

8NRFTS..NRE210

MARK2,REFER REPAIR MANUAL

 5
11701-4703203

8NRFTS..NRE210

MARK3,REFER REPAIR MANUAL

 5
11701-4703204

8NRFTS..NRE210

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-4703201

8NRFTS..NRE210

MARK1,REFER REPAIR MANUAL

 5
11701-4703202

8NRFTS..NRE210

MARK2,REFER REPAIR MANUAL

 5
11701-4703203

8NRFTS..NRE210

MARK3,REFER REPAIR MANUAL

 5
11701-4703204

8NRFTS..NRE210

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-4703201

8NRFTS..NRE210

MARK1,REFER REPAIR MANUAL

 5
11701-4703202

8NRFTS..NRE210

MARK2,REFER REPAIR MANUAL

 5
11701-4703203

8NRFTS..NRE210

MARK3,REFER REPAIR MANUAL

 5
11701-4703204

8NRFTS..NRE210

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-4703201

8NRFTS..NRE210

MARK1,REFER REPAIR MANUAL

 5
11701-4703202

8NRFTS..NRE210

MARK2,REFER REPAIR MANUAL

 5
11701-4703203

8NRFTS..NRE210

MARK3,REFER REPAIR MANUAL

 5
11701-4703204

8NRFTS..NRE210

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-4703201

8NRFTS..NRE210

MARK1,REFER REPAIR MANUAL

 5
11701-4703202

8NRFTS..NRE210

MARK2,REFER REPAIR MANUAL

 5
11701-4703203

8NRFTS..NRE210

MARK3,REFER REPAIR MANUAL

 5
11701-4703204

8NRFTS..NRE210

MARK4,REFER REPAIR MANUAL

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-47011

8NRFTS..NRE210

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-47011

8NRFTS..NRE210

STD

 2
13011 - RING SET, PISTON
13011-47130

8NRFTS..NRE210

STD

 1
13011-47131

8NRFTS..NRE210

STD

 1
13041 - BEARING, CONNECTING ROD
13041-4704103

8NRFTS..NRE210

MARK3,REFER REPAIR MANUAL

 4
13041-4704101

8NRFTS..NRE210

MARK1,REFER REPAIR MANUAL

 4
13041-4704102

8NRFTS..NRE210

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-4704103

8NRFTS..NRE210

MARK3,REFER REPAIR MANUAL

 4
13041-4704101

8NRFTS..NRE210

MARK1,REFER REPAIR MANUAL

 4
13041-4704102

8NRFTS..NRE210

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-4704103

8NRFTS..NRE210

MARK3,REFER REPAIR MANUAL

 4
13041-4704101

8NRFTS..NRE210

MARK1,REFER REPAIR MANUAL

 4
13041-4704102

8NRFTS..NRE210

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-4704103

8NRFTS..NRE210

MARK3,REFER REPAIR MANUAL

 4
13041-4704101

8NRFTS..NRE210

MARK1,REFER REPAIR MANUAL

 4
13041-4704102

8NRFTS..NRE210

MARK2,REFER REPAIR MANUAL

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-47190

8NRFTS..NRE210

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

8NRFTS..NRE210

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

8NRFTS..NRE210

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-49126

8NRFTS..NRE210

 4
13265 - BOLT, CONNECTING ROD
13265-47010

8NRFTS..NRE210

 8
13411 - CRANKSHAFT
13401-47100

8NRFTS..NRE210

 1
13470 - PULLEY ASSY, CRANKSHAFT
13470-0Y050

8NRFTS..NRE210

 1
13470-47100

8NRFTS..NRE210

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-04001

8NRFTS..NRE210

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14106

8NRFTS..NRE210

 1
13519 - GEAR, OIL PUMP DRIVE
13519-47010

8NRFTS..NRE210

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-37011

8NRFTS..NRE210

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04001

8NRFTS..NRE210

 1
