NRE210L-DHXDZ (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

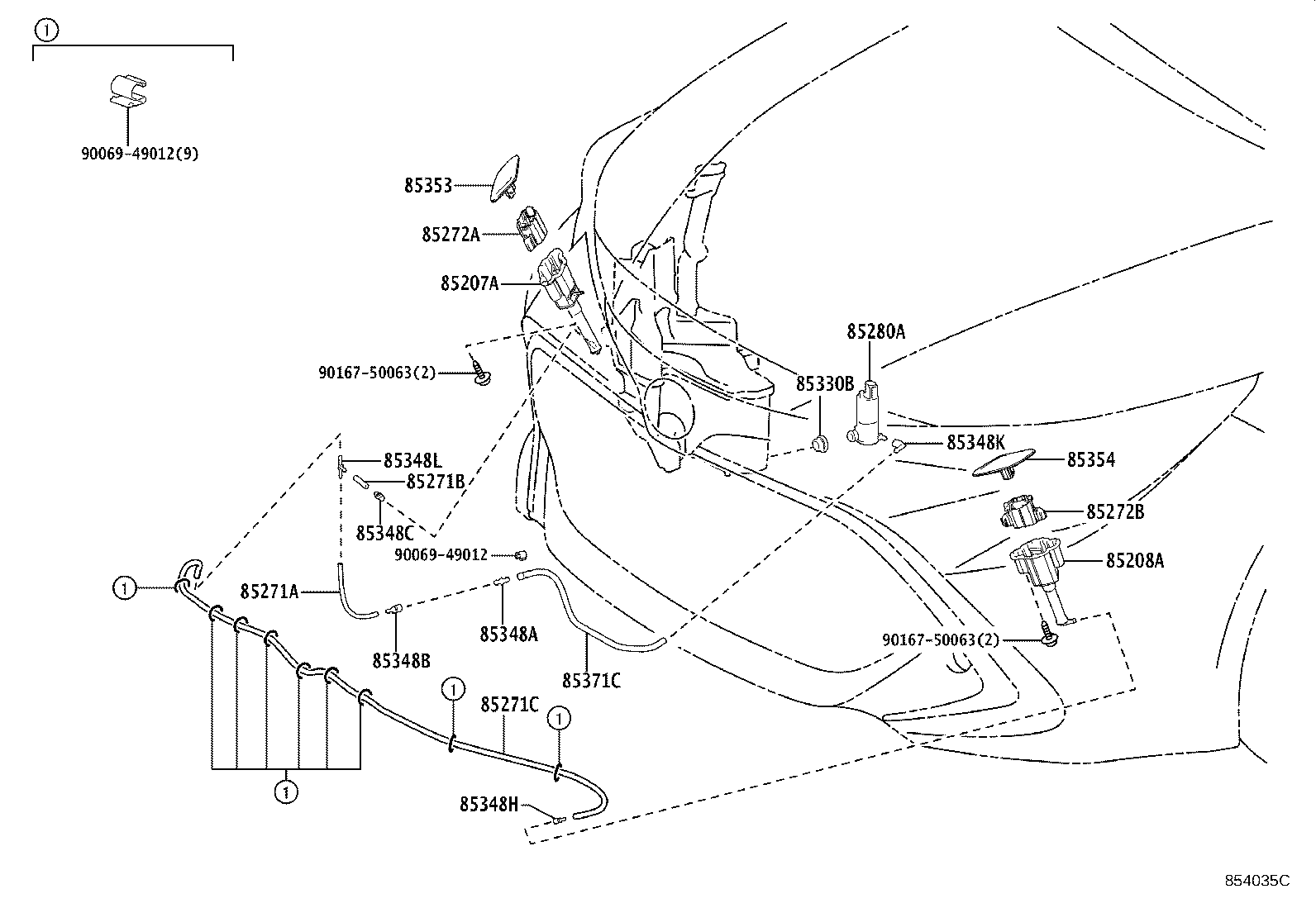

Click highlighted areas on diagram

diagram 85207A 85208A 85271A 85271B 85271C 85272A 85272B 85280A 85330B 85348A 85348B 85348C 85348H 85348K 85348L 85353 85354 85371C 9006949012 9006949012 9016750063 9016750063
Part # Description Qty Price
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-05050

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
85280-05050

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
85280-05050

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85280-05050

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90069-20005

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
90069-20005

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
90069-20005

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
90069-20005

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85279-02150

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
85279-02150

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
85279-02150

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85279-02150

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85278-05110

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
85278-05110

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85278-05110

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85278-05110

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
85371C - HOSE, HEADLAMP CLEANER, NO.1
85271-0W050

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
85271-0W050

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85271-0W050

MZEH12,NRE210,ZWE211..LHD..G

SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP CLEANER-WITH

 1
85271-0W050

MZEH12,NRE210,ZWE211..LHD..G

COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
Common parts
90069-49012
90167-50063
