NRE210L-DHXDZ (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

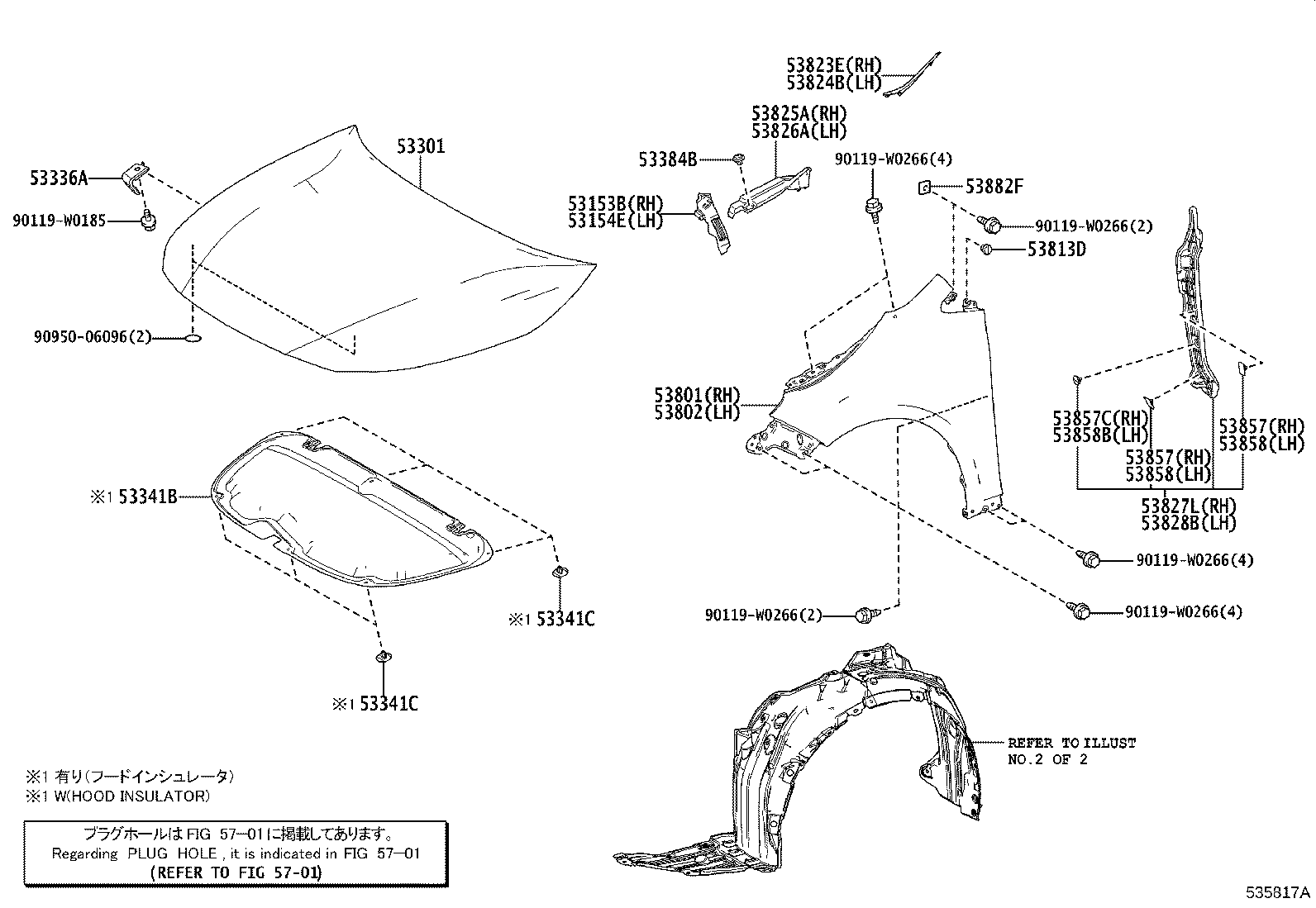

ILLUST NO. 1 OF 2(1901- )

Click highlighted areas on diagram

diagram 53153B 53154E 53301 53336A 53341B 53341C 53341C 53384B 53801 53802 53813D 53823E 53824B 53825A 53826A 53827L 53828B 53857 53857 53857C 53858 53858 53858B 53882F 5701 90119W0185 90119W0266 90119W0266 90119W0266 90119W0266 90119W0266 9095006096
Part # Description Qty Price
53153B - GUIDE, FRONT SIDE AIR
53153-02100

MZEH12,NRE210,ZWE211

 1
53154E - GUIDE, FRONT SIDE AIR, NO.2
53154-02100

MZEH12,NRE210,ZWE211

 1
53301 - HOOD SUB-ASSY
53301-02380

MZEH12,NRE210,ZWE211

 1
53336A - BRACKET, HOOD STAY
53336-02010

MZEH12,NRE210,ZWE211

 1
53384B - CUSHION, HOOD, CENTER
53384-78010

MZEH12,NRE210,ZWE211

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-02210

MZEH12,NRE210,ZWE211

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-02270

MZEH12,NRE210,ZWE211

 1
53813D - EXTENSION, FRONT FENDER
53813-47040

MZEH12,NRE210,ZWE211

 2
53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH
53823-02190

MZEH12,NRE210,ZWE211

 1
53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH
53824-02190

MZEH12,NRE210,ZWE211

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-02150

MZEH12,NRE210,ZWE211

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-02150

MZEH12,NRE210,ZWE211

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-02250

MZEH12,NRE210,ZWE211

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-02250

MZEH12,NRE210,ZWE211

 1
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-02020

MZEH12,NRE210,ZWE211

 2
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-02020

MZEH12,NRE210,ZWE211

 2
53857C - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-02040

MZEH12,NRE210,ZWE211

 1
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-02020

MZEH12,NRE210,ZWE211

 2
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-02020

MZEH12,NRE210,ZWE211

 2
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-02040

MZEH12,NRE210,ZWE211

 1
53882F - SEAL, FRONT FENDER
53882-33060

MZEH12,NRE210,ZWE211

 2
Common parts
90119-W0185
90119-W0266
90950-06096
Linked diagrams
5701

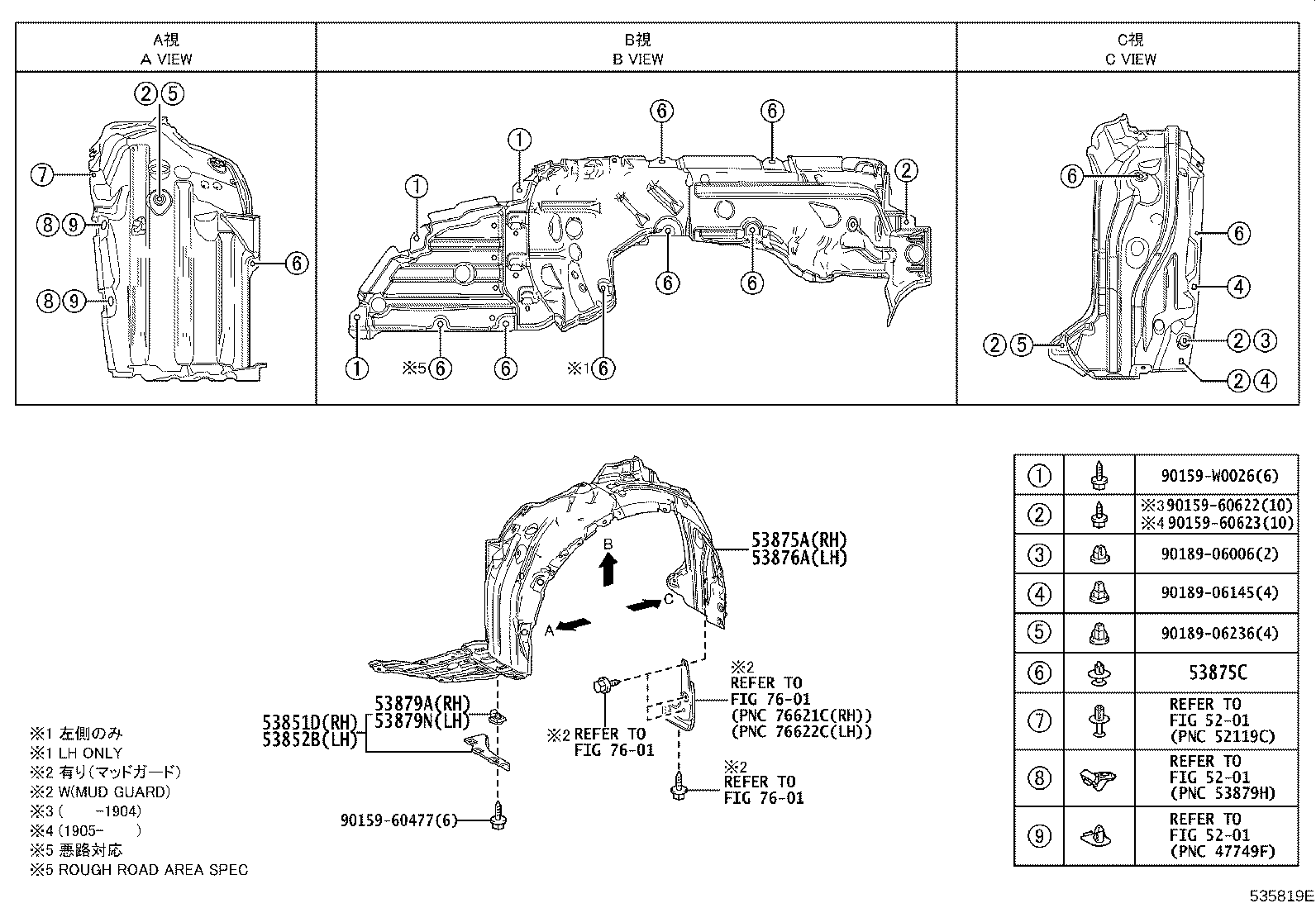

ILLUST NO. 2 OF 2(1901- )

Click highlighted areas on diagram

diagram 5201 5201 5201 53851D 53852B 53875A 53875C 53876A 53879A 53879N 7601 7601 7601 9015960477 9015960622 9015960623 90159W0026 9018906006 9018906145 9018906236
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-02220

MZEH12,NRE210,ZWE211

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-02200

MZEH12,NRE210,ZWE211

 1
53875A - LINER, FRONT FENDER, RH
53875-02710

NRE210;ZWE211..D,N

 1
53875C - CLIP, FRONT FENDER LINER
90467-07214

MZEH12,NRE210,ZWE211

 19
53876A - LINER, FRONT FENDER, LH
53876-02630

NRE210;ZWE211..D,N

 1
53879A - RETAINER, FRONT FENDER LINER
53879-47020

MZEH12,NRE210,ZWE211

 3
53879N - RETAINER, FRONT FENDER LINER, LH
53879-47020

MZEH12,NRE210,ZWE211

 3
Common parts
90159-60477
90159-60622
90159-60623
90159-W0026
90189-06006
90189-06145
90189-06236
Linked diagrams
5201
7601
