NRE210L-DHFNZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )LHD

Click highlighted areas on diagram

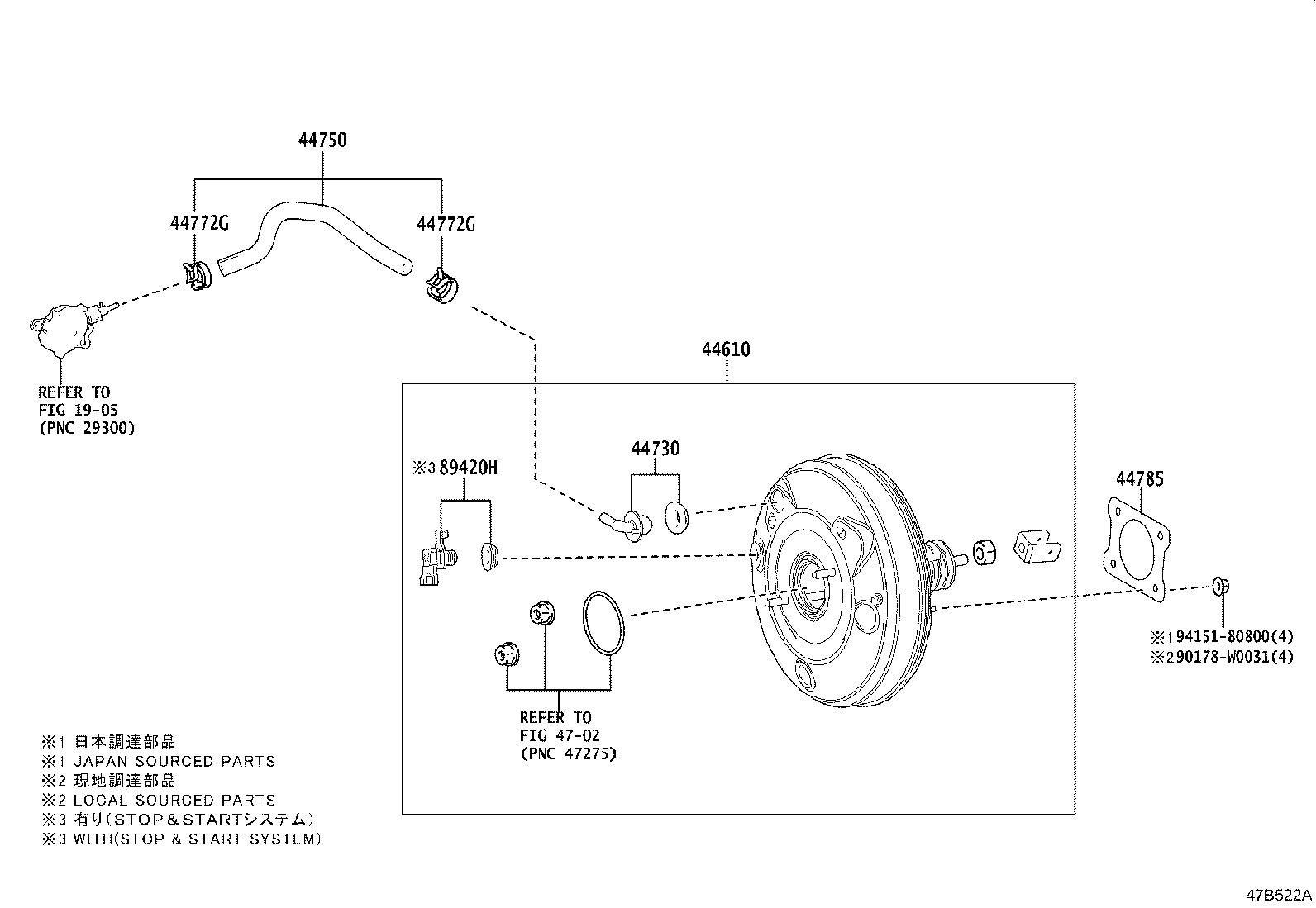

diagram 1905 44610 44730 44750 44772G 44772G 44785 4702 89420H 90178W0031 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09F80

NRE210..LHD..6F..EUR

LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

 1
44610-09G00

NRE210..LHD..6F

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-F9010

NRE210

 1
44750 - HOSE ASSY, VACUUM
44750-12E80

NRE210..LHD

 1
44772G - CLIP(FOR CHECK VALVE TO CHECK VALVE HOSE)
90467-16014

NRE210..LHD

 2
44772G - CLIP(FOR CHECK VALVE TO CHECK VALVE HOSE)
90467-16014

NRE210..LHD

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

NRE210

(J)

 1
44785-05020

NRE210

(L)

 1
89420H - SENSOR ASSY, VACUUM
89421-09010

NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR

LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

 1
Common parts
90178-W0031
94151-80800
Linked diagrams
1905
4702
