NRE210L-DHFNZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )6F

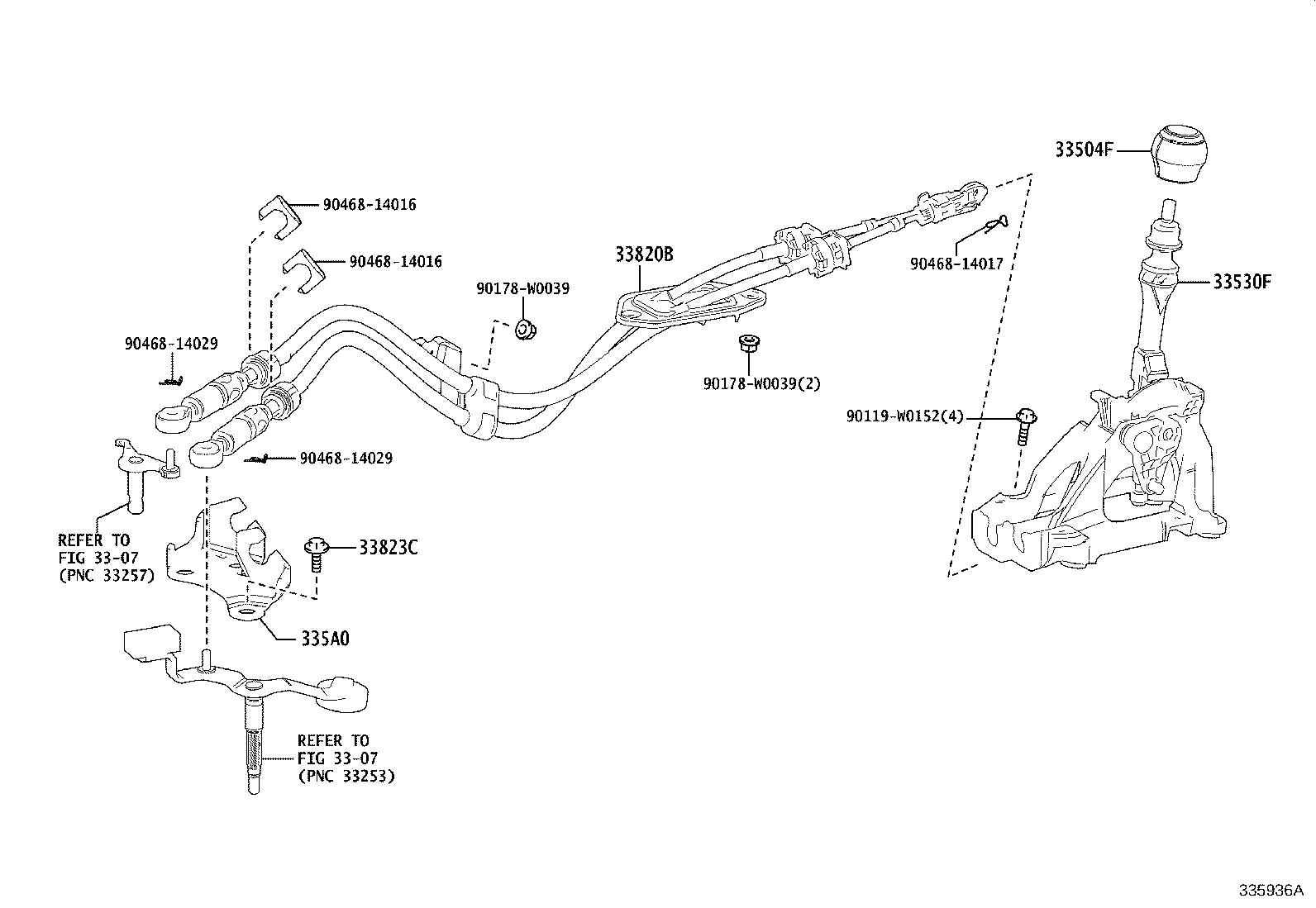

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 335A0 33820B 33823C 90119W0152 90178W0039 90178W0039 9046814016 9046814016 9046814017 9046814029 9046814029
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02760C0

NRE210..6F..D

BLACK,TRIM1#,2#

 1
33504-02770C0

NRE210..6F..(G,N)

BLACK,TRIM1#,2#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-02360

NRE210..6F

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-0D010

NRE210..6F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02A71

NRE210..6F

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08C60

NRE210..6F

(J)

 3
90119-W0255

NRE210..6F

(L)

 3
Common parts
90119-W0152
90178-W0039
90468-14016
90468-14017
90468-14029
Linked diagrams
3307
