NRE210L-DHFDZW (2019)
Toyota Corolla (Ukp)

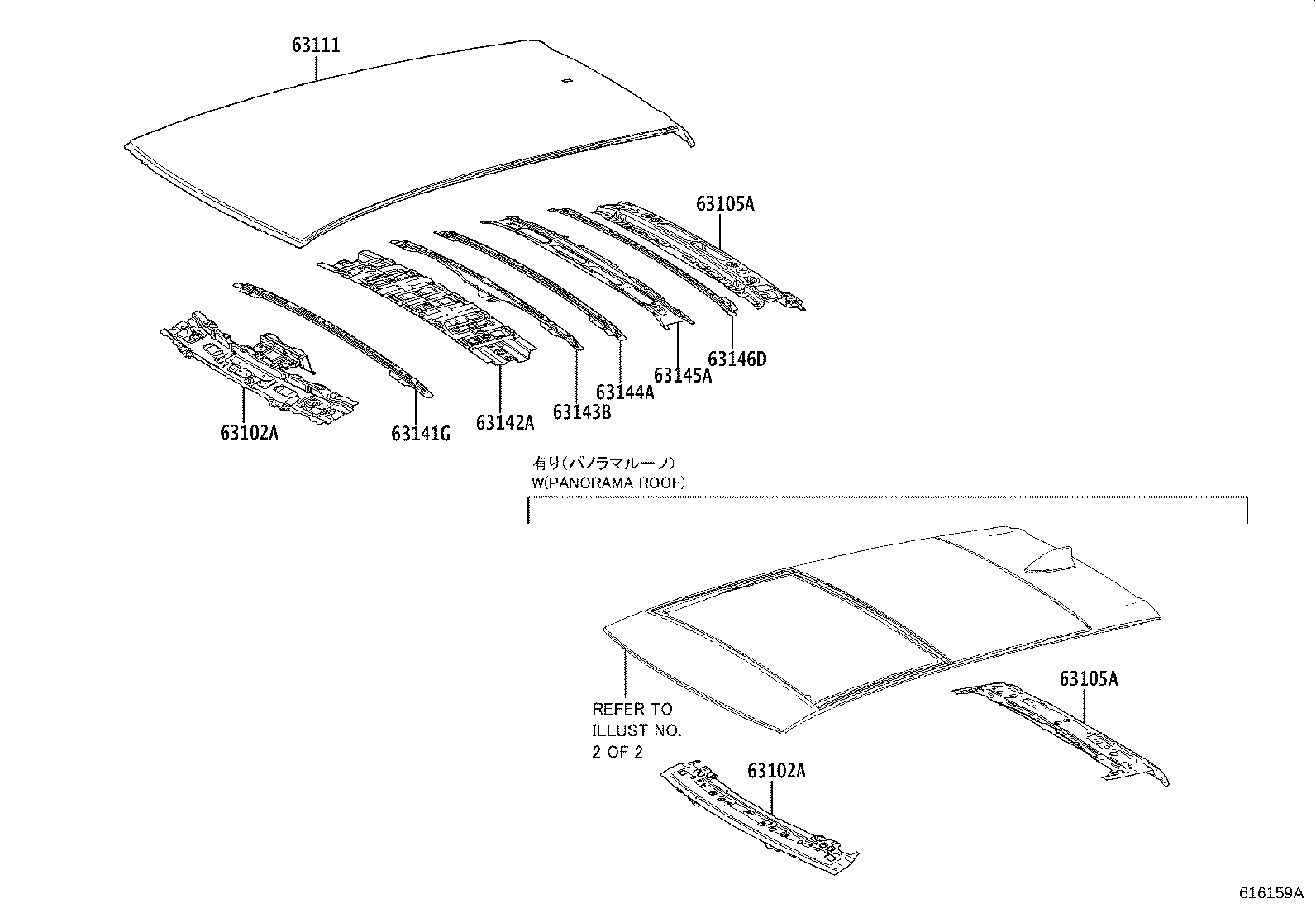

ILLUST NO. 1 OF 2(1901- )HB
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02904 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 63102-02903 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02904 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 63102-02903 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-02190 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 63105-02180 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-02190 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 63105-02180 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02670 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63142-02160 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63103-02120 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-02220 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-02150 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63128-02060 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 63146D - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63148-02120 |
MZEH12,NRE210,ZWE211..HB |
1 | ||

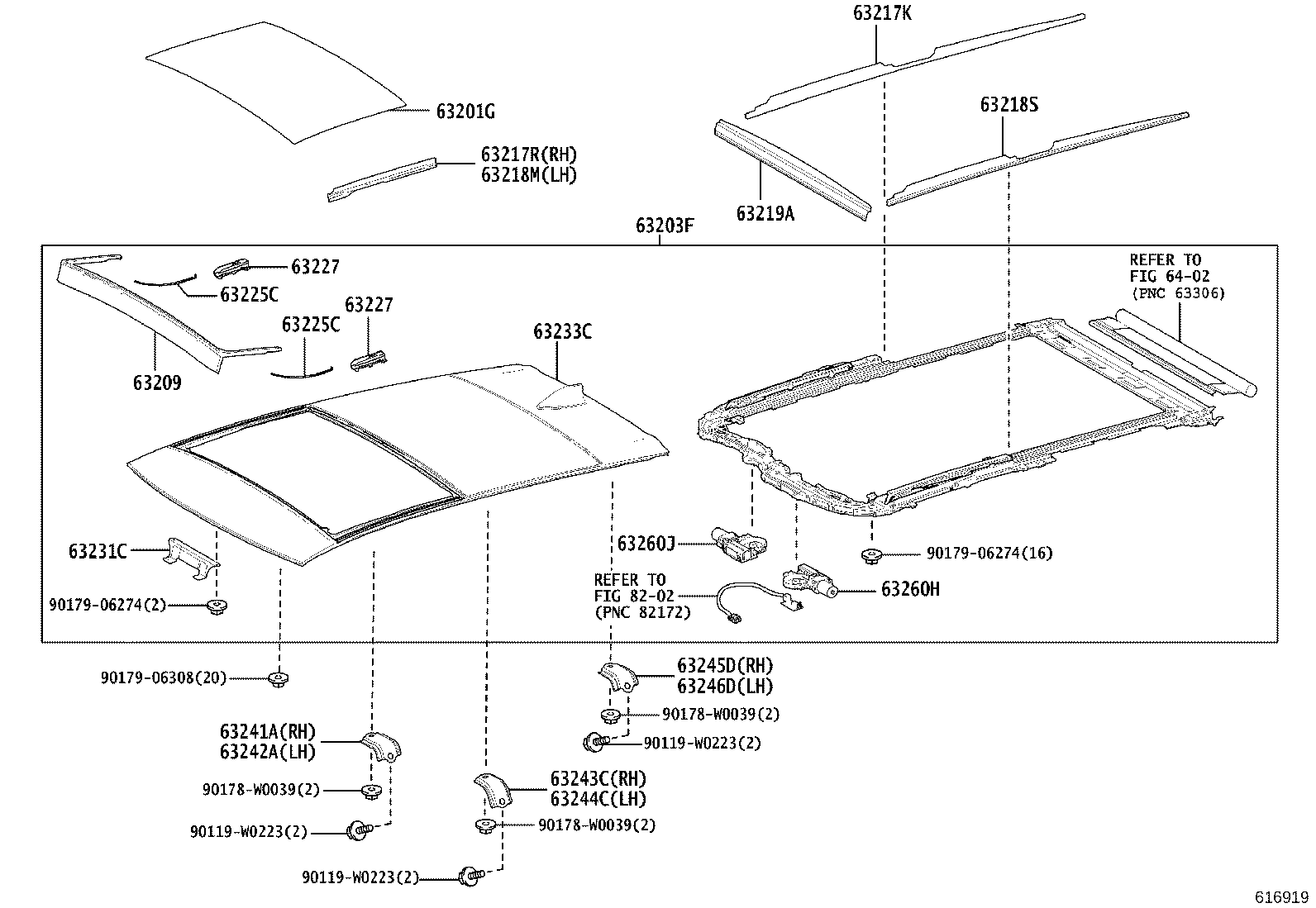

ILLUST NO. 2 OF 2(1901-1908)HB..G,N
SLIDING ROOF(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-02140 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-02140C0 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF),TRIM2# |
1 | ||
| 63203-02141C0 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63203-02140B1 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF),TRIM1# |
1 | ||
| 63203-02141B1 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-02120 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02050 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217R - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02060 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02030 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218S - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-02010 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63227 - CLIP, ROOF WIND DEFLECTOR PANEL | ||||
| 63227-02040 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63227 - CLIP, ROOF WIND DEFLECTOR PANEL | ||||
| 63227-02040 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63231C - BRACKET, ROOM LAMP | ||||
| 63231-02110 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-02140 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-02190 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-02190 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-02120 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-02120 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-02080 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63245-02080 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02170 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02180 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| Common parts | ||||
| 90119-W0223 | ||||
| 90178-W0039 | ||||
| 90179-06274 | ||||
| 90179-06308 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||

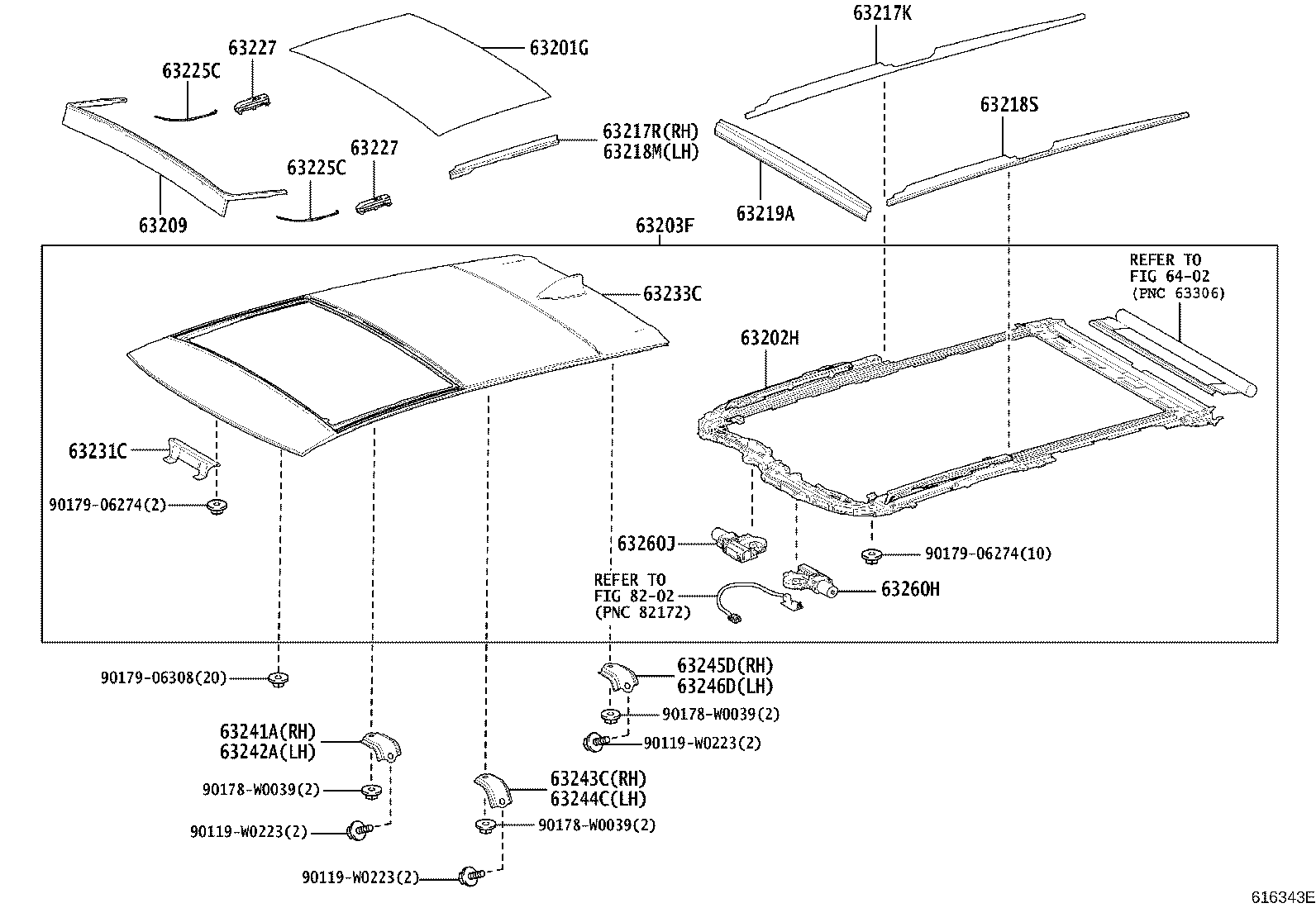

ILLUST NO. 2 OF 2(1908- )HB..G,N
SLIDING ROOF(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-02140 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-02140C0 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF),TRIM2# |
1 | ||
| 63203-02141C0 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63203-02140B1 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF),TRIM1# |
1 | ||
| 63203-02141B1 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-02120 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02050 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217R - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02060 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02030 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218S - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-02010 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63227 - CLIP, ROOF WIND DEFLECTOR PANEL | ||||
| 63227-02040 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63227 - CLIP, ROOF WIND DEFLECTOR PANEL | ||||
| 63227-02040 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63231C - BRACKET, ROOM LAMP | ||||
| 63231-02110 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-02140 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-02190 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-02190 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-02120 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-02120 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-02080 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63245-02080 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02170 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02180 |
MZEH12,NRE210,ZWE211..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| Common parts | ||||
| 90119-W0223 | ||||
| 90178-W0039 | ||||
| 90179-06274 | ||||
| 90179-06308 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||
