NRE210L-DHFDZW (2019)
Toyota Corolla (Ukp)

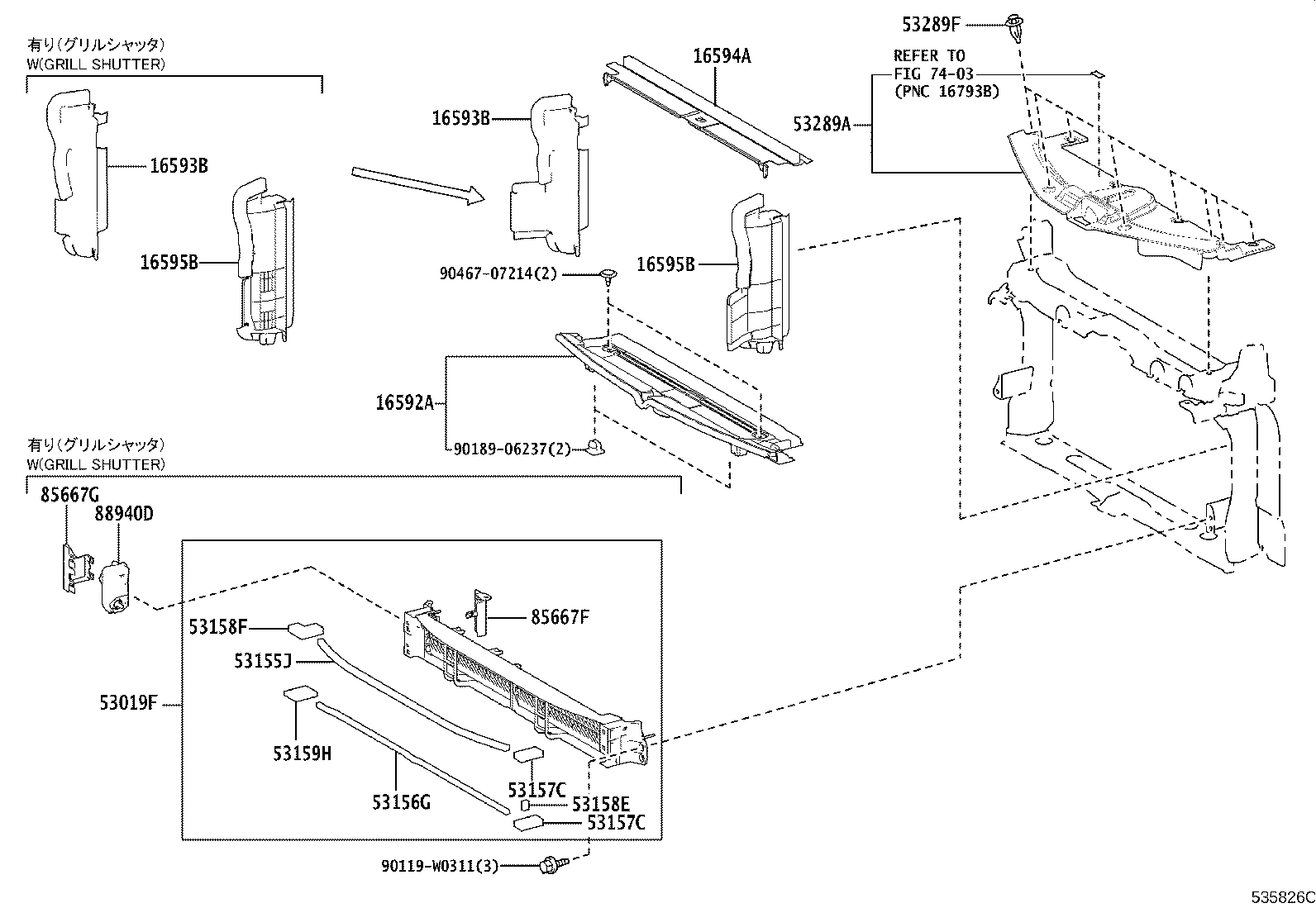

ILLUST NO. 1 OF 3(1901- )NRE210
AIR GUIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-0T110 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211 |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-0T140 |
8NRFTS..NRE210..6F..D..EUR LIGHT GRADE&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&AIR CONDITIONER-WITHOUT |
1 | ||
| 16593-0T150 |
8NRFTS,2ZRFXE..NRE210,ZWE211 |
1 | ||
| 16593-0T140 |
8NRFTS..NRE210..6F..D..EUR;8NRFTS..NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-0T140 |
8NRFTS..NRE210..6F..D..EUR LIGHT GRADE&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&AIR CONDITIONER-WITHOUT |
1 | ||
| 16593-0T150 |
8NRFTS,2ZRFXE..NRE210,ZWE211 |
1 | ||
| 16593-0T140 |
8NRFTS..NRE210..6F..D..EUR;8NRFTS..NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-0Y070 |
8NRFTS..NRE210 |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-0Y120 |
8NRFTS..NRE210..6F..D..EUR;8NRFTS..NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 16595-0Y120 |
8NRFTS..NRE210..6F..D..EUR LIGHT GRADE&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&AIR CONDITIONER-WITHOUT |
1 | ||
| 16595-0Y130 |
8NRFTS..NRE210 |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-0Y120 |
8NRFTS..NRE210..6F..D..EUR;8NRFTS..NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 16595-0Y120 |
8NRFTS..NRE210..6F..D..EUR LIGHT GRADE&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&AIR CONDITIONER-WITHOUT |
1 | ||
| 16595-0Y130 |
8NRFTS..NRE210 |
1 | ||
| 53019F - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-12020 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 53155J - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-12100 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 53156G - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-12040 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-12010 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
2 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-12010 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
2 | ||
| 53158E - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-12010 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 53158F - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-47010 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 53159H - SEAL, RADIATOR GRILLE, NO.5 | ||||
| 53159-47030 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-02060 |
MZEH12,NRE210 |
1 | ||
| 53289F - CLIP(FOR RADIATOR SUPPORT OPENING COVER) | ||||
| 90467-07217 |
MZEH12,NRE210 |
8 | ||
| 85667F - COVER, MOTOR | ||||
| 85667-12010 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 85667G - COVER, MOTOR | ||||
| 85667-47010 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 88940D - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-12030 |
NRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| Common parts | ||||
| 90119-W0311 | ||||
| 90189-06237 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 7403 | ||||

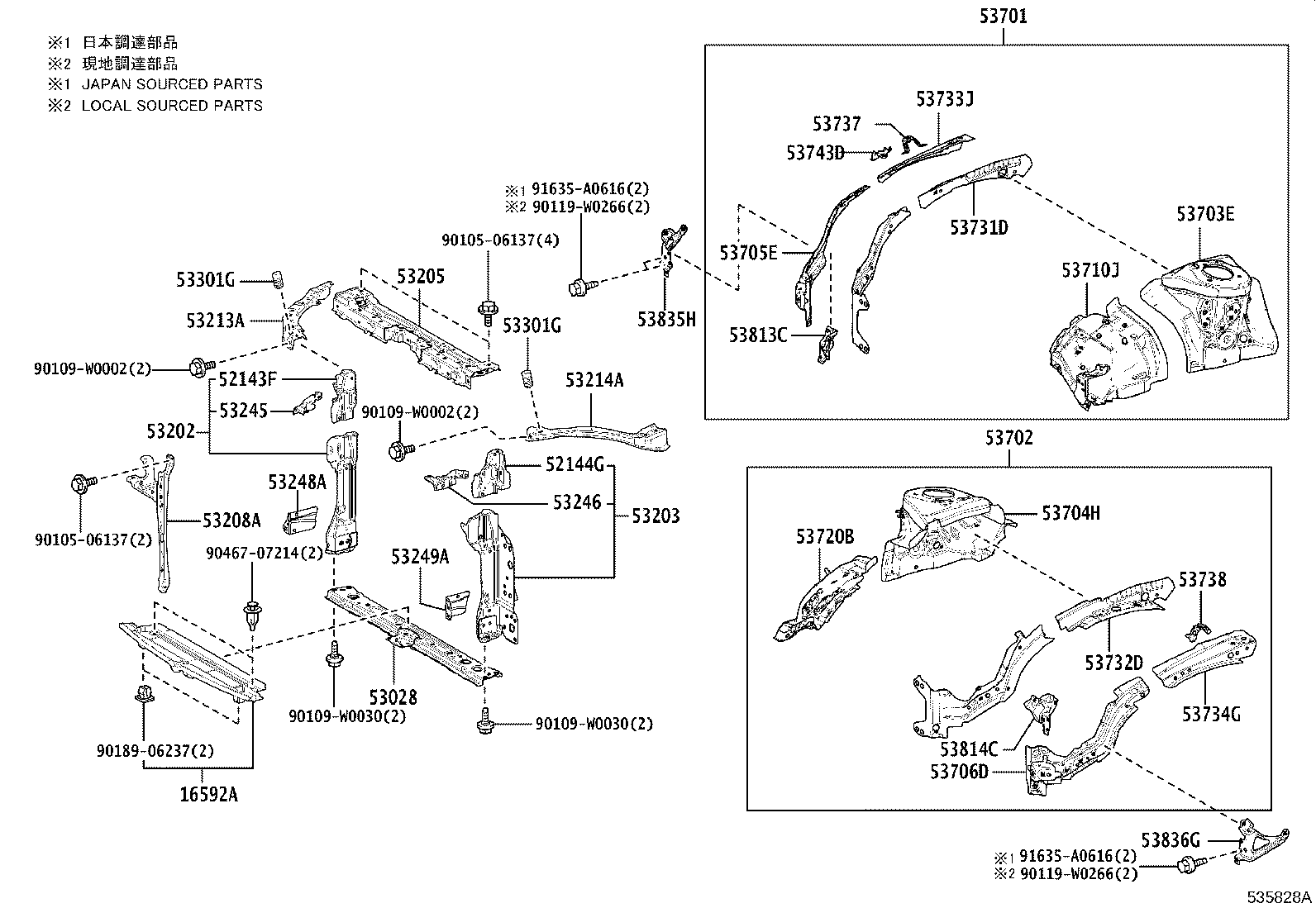

ILLUST NO. 2 OF 3(1901- )
RADIATOR SUPPORT & FENDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-0T110 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211 |
1 | ||
| 52143F - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-02070 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52144G - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-02060 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-02060 |
NRE210,ZWE211 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-02902 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-02900 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-02320 |
NRE210,ZWE211 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-02260 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-02210 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-02200 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53245 - BRACKET, HEADLAMP, RH | ||||
| 53245-02050 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53246 - BRACKET, HEADLAMP, LH | ||||
| 53246-02050 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53248A - BRACKET, RADIATOR SHUTTER, RH | ||||
| 53248-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53249A - BRACKET, RADIATOR SHUTTER, LH | ||||
| 53249-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-02410 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-02340 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53703E - APRON SUB-ASSY, FRONT FENDER, REAR RH | ||||
| 53703-02200 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53704H - APRON SUB-ASSY, FRONT FENDER, REAR LH | ||||
| 53704-02200 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-02090 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-02090 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-02140 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-02160 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-02130 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-02130 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH | ||||
| 53733-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH | ||||
| 53734-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-02210 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-02180 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53743D - REINFORCEMENT, FRONT FENDER APRON FRONT EXTENSION, RH | ||||
| 53743-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-02040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-02040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90109-W0002 | ||||
| 90109-W0030 | ||||
| 90119-W0266 | ||||
| 90189-06237 | ||||
| 90467-07214 | ||||
| 91635-A0616 | ||||

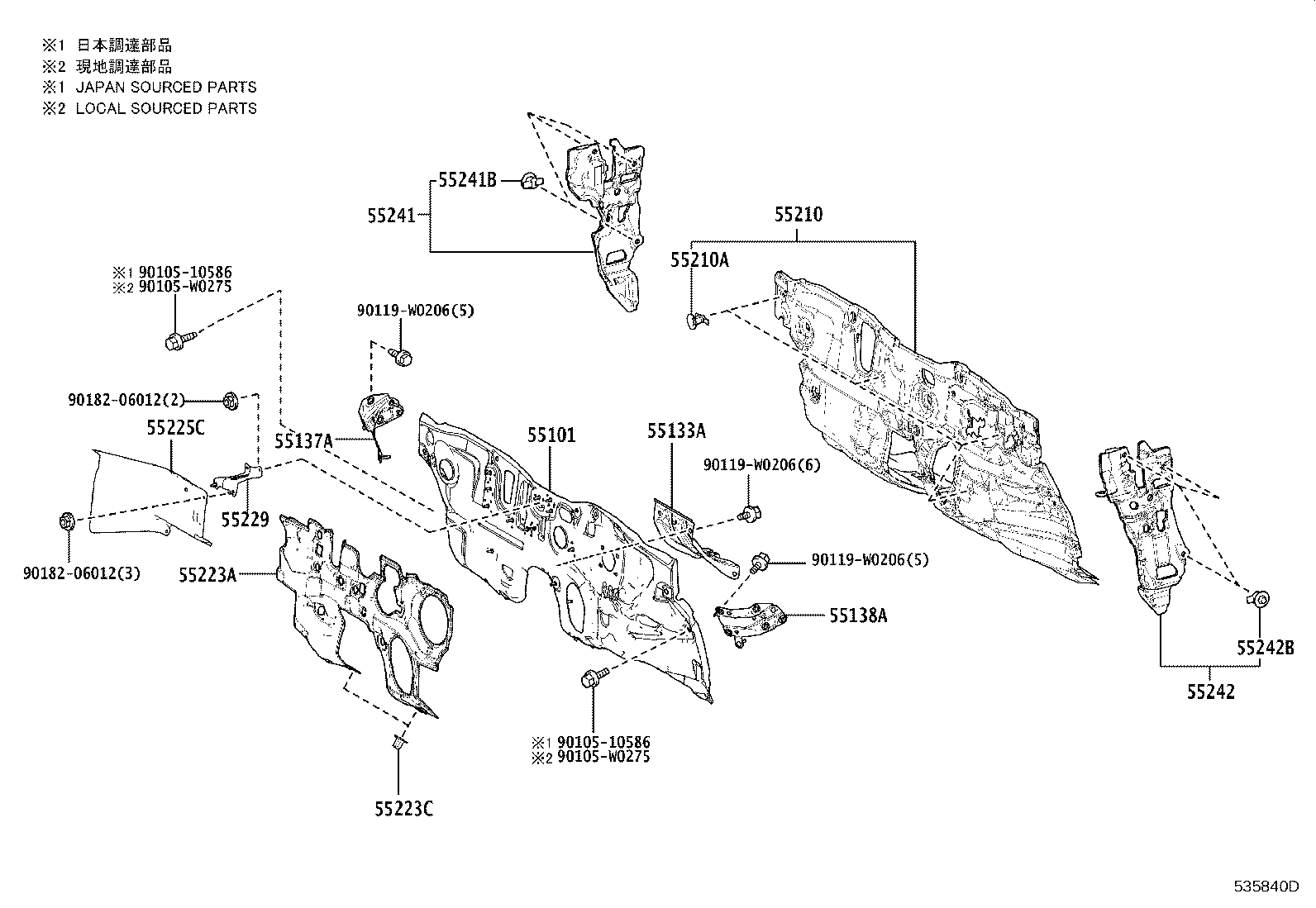

ILLUST NO. 3 OF 3(1901- )LHD
DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-02D51 |
NRE210..LHD..6F |
1 | ||
| 55133A - REINFORCEMENT, DASH TO FLOOR, RH | ||||
| 55133-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-02210 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-02200 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-02670 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02420 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 55223-02420 |
MZEH12,NRE210..LHD..(D,N)..EUR LIGHT GRADE |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
NRE210..(D,N)..EUR LIGHT GRADE |
2 | ||
| 90467-06197 |
NRE210,ZWE211 |
2 | ||
| 55225C - INSULATOR, DASH PANEL HEAT | ||||
| 55225-F4010 |
NRE210..LHD |
1 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-F4010 |
NRE210;MZEH12..RHD |
1 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-02040 |
NRE210;ZWE211..D,N |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
MZEH12,NRE210,ZWE211 |
3 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-02030 |
NRE210;ZWE211..D,N |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
MZEH12,NRE210,ZWE211 |
3 | ||
| Common parts | ||||
| 90105-10586 | ||||
| 90105-W0275 | ||||
| 90119-W0206 | ||||
| 90182-06012 | ||||
