NRE210L-DHFDZ (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

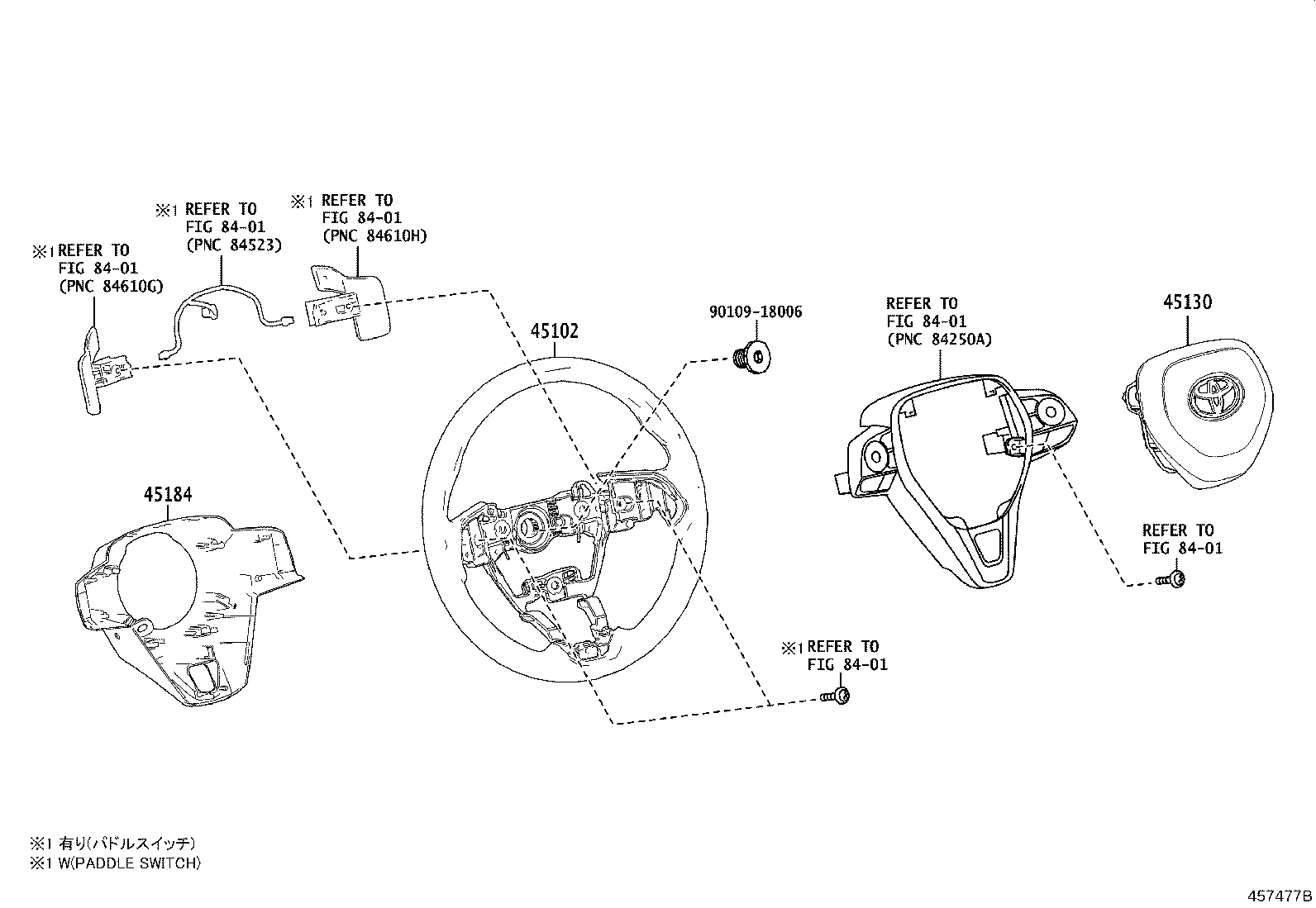

Click highlighted areas on diagram

diagram 45102 45130 45184 8401 8401 8401 8401 8401 8401 9010918006
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-02820C0

MZEH12,NRE210,ZWE211..G,N

BLACK,TRIM1#,2#

 1
45102-02810C0

MZEH12,NRE210,ZWE211..G,N

SUB COLD AREA SPEC,BLACK,TRIM1#,2#

 1
45102-02800C0

MZEH12,NRE210,ZWE211..G,N

BLACK,TRIM1#,2#

 1
45102-02830C0

NRE210..LHD..(G,N)

COLD AREA SPEC,BLACK,TRIM1#,2#

 1
45102-02790C0

NRE210,ZWE211..D

BLACK,TRIM1#,2#

 1
45102-02810C0

MZEH12,NRE210,ZWE211..LHD..(G,N)

COLD AREA SPEC,BLACK,TRIM1#,2#

 1
45102-02830C0

NRE210..G,N;MZEH12,ZWE211..RHD..(G,N)

SUB COLD AREA SPEC,BLACK,TRIM1#,2#

 1
45130 - BUTTON ASSY, HORN
45130-02830C0

MZEH12,NRE210,ZWE211

BLACK,TRIM1#,2#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-02470C0

NRE210,ZWE211

BLACK,TRIM1#,2#

 1
Common parts
90109-18006
Linked diagrams
8401
