MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)
Production
Feb 2019
-
Sep 9999
Engine
M20AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1902- )MZEH12..RHD

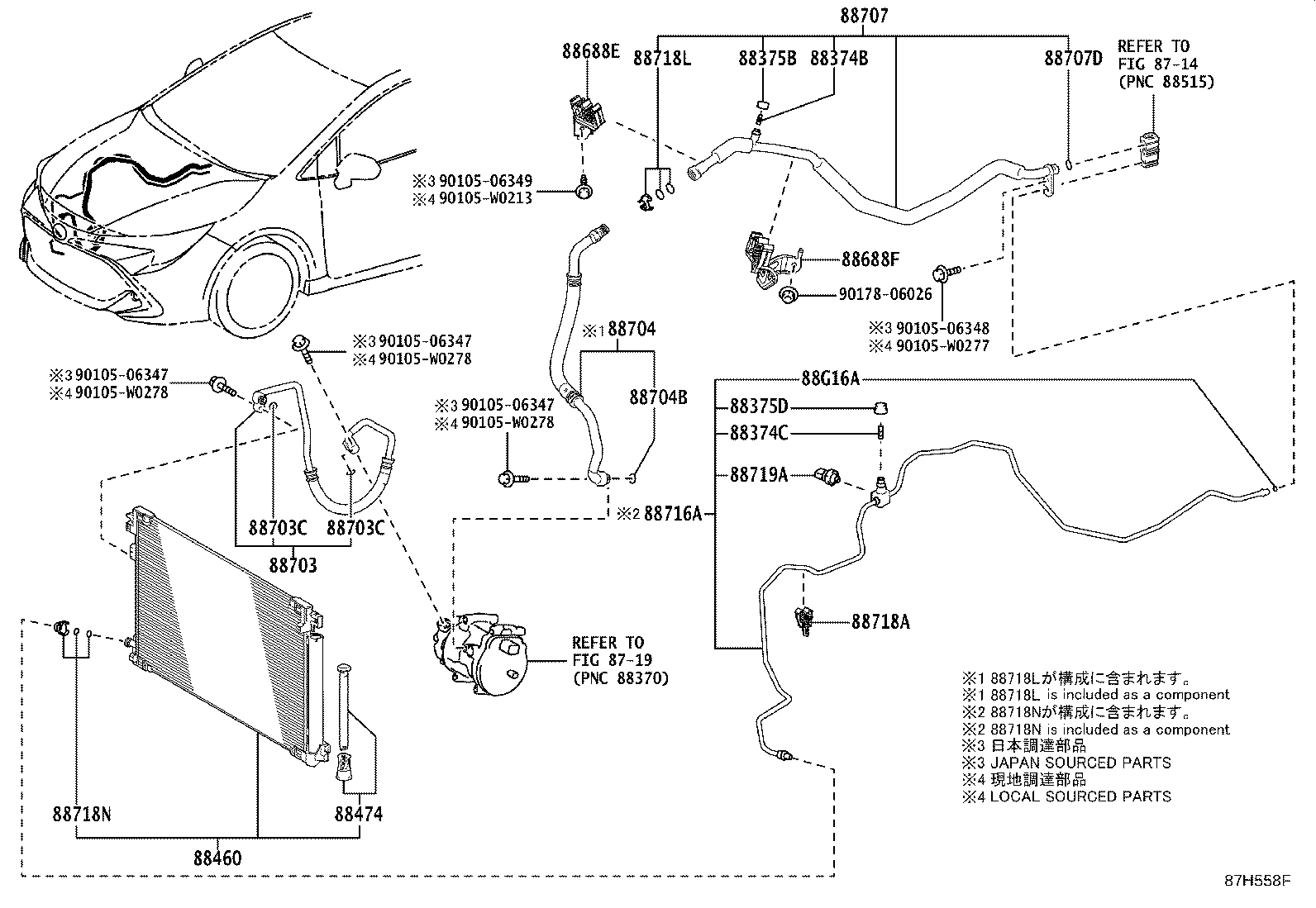

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30020 |
MZEH12..RHD;NRE210..EUR;ZWE211..LHD |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30310 |
MZEH12,NRE210,ZWE211..EUR |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30320 |
MZEH12,NRE210,ZWE211..EUR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 884A0-02050 |
MZEH12 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-02C90 |
MZEH12 |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-F4050 |
MZEH12,ZWE211 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-02D00 |
MZEH12 |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
MZEH12,NRE210,ZWE211 ID=10.8,OD=15.6 |
2 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
MZEH12,NRE210,ZWE211 ID=10.8,OD=15.6 |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-02D20 |
MZEH12 |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
MZEH12,NRE210,ZWE211 ID=13.4,OD=18.2 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-02530 |
MZEH12..RHD |
1 | ||
| 88707D - RING, O(FOR SUCTION TUBE) | ||||
| 90068-14038 |
MZEH12,NRE210 ID=13.4,OD=18.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-02D90 |
MZEH12..RHD |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-02A30 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 88G16A - RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
MZEH12,NRE210,ZWE211 ID=6.7,OD=10.3 |
1 | ||
| Common parts | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90105-W0213 | ||||
| 90105-W0277 | ||||
| 90105-W0278 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
