Toyota Corolla (ukp) MZEH12 WIRING & CLAMP

MZEH12R-DWXNBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999

Engine M20AFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO.11 OF42(1902- )MZEH12..RHD

Click highlighted areas on diagram

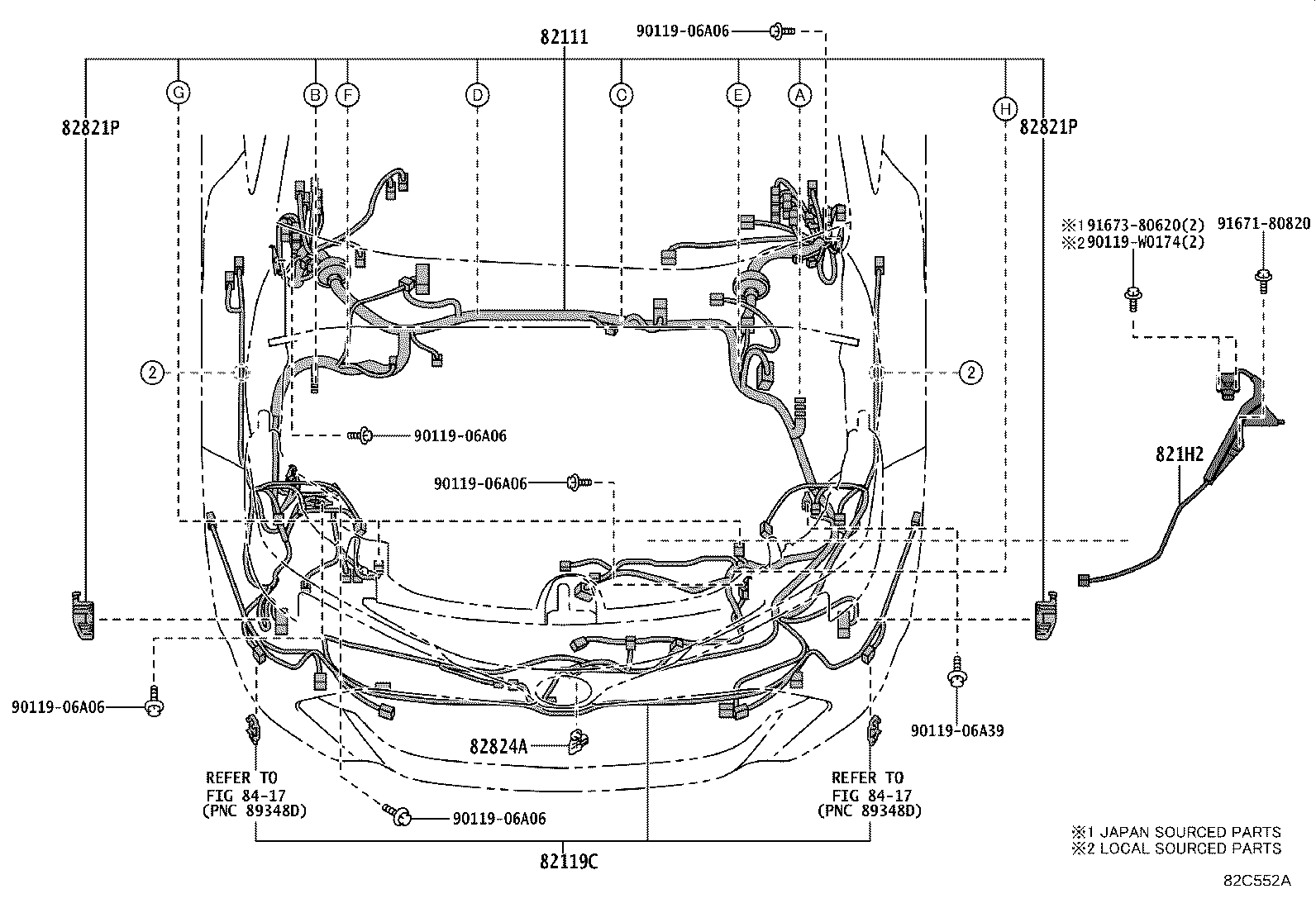

ENGINE ROOM 1/2

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-F2L30	MZEH12..RHD..N	02/2019 - 09/2020	1
82111-F2L30	MZEH12..RHD..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82111-F2L30	MZEH12..RHD..N SUB COLD AREA SPEC	02/2019 - 09/2020	1
82111-F2L40	MZEH12..RHD..G AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82111-F2T60	MZEH12..RHD..G AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82111-F2L40	MZEH12..RHD..N HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82111-F2L30	MZEH12..RHD..N SUB COLD AREA SPEC&GRILL SHUTTER-WITH	02/2019 - 09/2020	1
82111-F2L30	MZEH12..RHD..G AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82111-F2L30	MZEH12..RHD..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82111-F2L30	MZEH12..RHD..N LIGHT GRADE	02/2019 - 09/2020	1
82111-F2T60	MZEH12..RHD..N HEADLAMP-PROJECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82111-F2T70	MZEH12..RHD..N GRILL SHUTTER-WITH	02/2019 - 09/2020	1
82115-F2830	MZEH12..RHD..G	02/2019 - 09/2020	1
82115-F2830	MZEH12..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82115-F2830	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82115-F2830	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82115-F2830	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82115-F2820	MZEH12..RHD..G HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82115-F2830	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82115-F2830	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82115-F2D90	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82115-F2E00	MZEH12..RHD..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82115-F2D80	MZEH12..RHD..N SUB COLD AREA SPEC	02/2019 - 09/2020	1
82115-F2E20	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)	02/2019 - 09/2020	1
82115-F2E00	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82115-F2D90	MZEH12..RHD..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82115-F2L70	MZEH12..RHD..N SUB COLD AREA SPEC&GRILL SHUTTER-WITH	02/2019 - 09/2020	1
82115-F2D80	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82115-F2E10	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82115-F2E00	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS&AVS(TEMS)-WITHOUT	11/2019 - 09/2020	1
82115-F2E10	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS&HEADLAMP-PROJECTOR & WITH(*AHS)	11/2019 - 09/2020	1
82115-F2E20	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS	11/2019 - 09/2020	1
82115-F2D80	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	11/2019 - 09/2020	1
82115-F2D90	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	11/2019 - 09/2020	1
82115-F2D91	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 10/2020	1
82115-F2D81	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	09/2020 - 10/2020	1
82115-F2E01	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&AVS(TEMS)-WITHOUT	09/2020 - 10/2020	1
82115-F2D91	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 10/2020	1
82115-F2E11	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 10/2020	1
82115-F2E01	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS&AVS(TEMS)-WITHOUT	09/2020 - 10/2020	1
82115-F2D81	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	09/2020 - 10/2020	1
82115-F2E21	MZEH12..RHD..G SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)	09/2020 - 10/2020	1
82115-F2E11	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 10/2020	1
82115-F2E21	MZEH12..RHD..G GRS PACKAGE&SUB COLD AREA SPEC&STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER) GRS	09/2020 - 10/2020	1
82111-F2L31	MZEH12..RHD..N SUB COLD AREA SPEC	09/2020 - 12/2999	1
82111-F2L31	MZEH12..RHD..N	09/2020 - 12/2999	1
82111-F2L31	MZEH12..RHD..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82111-F2L31	MZEH12..RHD..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82111-F2L41	MZEH12..RHD..G AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82111-F2L31	MZEH12..RHD..N SUB COLD AREA SPEC&GRILL SHUTTER-WITH	09/2020 - 12/2999	1
82111-F2L31	MZEH12..RHD..G AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82111-F2L31	MZEH12..RHD..N LIGHT GRADE	09/2020 - 12/2999	1
82111-F2T61	MZEH12..RHD..N HEADLAMP-PROJECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82111-F2L41	MZEH12..RHD..N HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82111-F2T61	MZEH12..RHD..G AVS(TEMS)-WITHOUT	09/2020 - 12/2999	1
82111-F2T71	MZEH12..RHD..N GRILL SHUTTER-WITH	09/2020 - 12/2999	1
82115-F2821	MZEH12..RHD..G HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82115-F2831	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82115-F2831	MZEH12..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82115-F2831	MZEH12..RHD..G	09/2020 - 12/2999	1
82115-F2831	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82115-F2831	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82115-F2831	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	09/2020 - 12/2999	1
82115-F2831	MZEH12..RHD..G SUB COLD AREA SPEC	09/2020 - 12/2999	1
82115-F2D81	MZEH12..RHD..N SUB COLD AREA SPEC	09/2020 - 12/2999	1
82115-F2D91	MZEH12..RHD..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82115-F2E01	MZEH12..RHD..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82115-F2L71	MZEH12..RHD..N SUB COLD AREA SPEC&GRILL SHUTTER-WITH	09/2020 - 12/2999	1
82115-F2E11	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	10/2020 - 12/2999	1
82115-F2D81	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	10/2020 - 12/2999	1
82115-F2E01	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	10/2020 - 12/2999	1
82115-F2E21	MZEH12..RHD..G SUB COLD AREA SPEC	10/2020 - 12/2999	1
82115-F2D91	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	10/2020 - 12/2999	1
82119C - WIRE, ENGINE ROOM, NO.5
82119-02050	MZEH12,NRE210,ZWE211..CVT..N CLEARANCE & BACK SONAR-WITH(ICS & IPA)	01/2019 - 12/2999	1
82119-02050	MZEH12,NRE210,ZWE211..G	01/2019 - 12/2999	1
82119-02050	MZEH12,NRE210,ZWE211..G CLEARANCE & BACK SONAR-WITHOUT	01/2019 - 12/2999	1
82119-02130	MZEH12,NRE210,ZWE211..WG..CVT..N CLEARANCE & BACK SONAR-WITH(*ICS)	07/2019 - 12/2999	1
821H2 - WIRE, HV AIR CONDITIONER
821H2-76010	MZEH12	02/2019 - 12/2999	1
82821P - COVER, CONNECTOR
82821-50780	MZEH12..N LIGHT GRADE	01/2019 - 09/2020	1
82821-50780	MZEH12..N	01/2019 - 09/2020	1
82821-50780	MZEH12..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82821-50780	MZEH12..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82821-50780	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82821-50780	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82821-50780	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82821-50780	MZEH12,NRE210,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	01/2019 - 12/2999	1
82821-50780	MZEH12..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82821-50780	NRE210;MZEH12,ZWE211..G	01/2019 - 12/2999	1
82821-50780	MZEH12..N SUB COLD AREA SPEC&GRILL SHUTTER-WITH	09/2020 - 12/2999	1
82821-50780	MZEH12..N HEADLAMP-PROJECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82821-50780	MZEH12..G;ZWE211..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82821-50780	MZEH12..N SUB COLD AREA SPEC	09/2020 - 12/2999	1
82821-50780	MZEH12..N GRILL SHUTTER-WITH	09/2020 - 12/2999	1
82821-50780	MZEH12..G AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82821-50780	MZEH12..N	09/2020 - 12/2999	1
82821-50780	MZEH12..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82821P - COVER, CONNECTOR
82821-50780	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82821-50780	MZEH12..N LIGHT GRADE	01/2019 - 09/2020	1
82821-50780	MZEH12..N	01/2019 - 09/2020	1
82821-50780	MZEH12..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82821-50780	MZEH12..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82821-50780	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82821-50780	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82821-50780	MZEH12,NRE210,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	01/2019 - 12/2999	1
82821-50780	MZEH12..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82821-50780	NRE210;MZEH12,ZWE211..G	01/2019 - 12/2999	1
82821-50780	MZEH12..N SUB COLD AREA SPEC&GRILL SHUTTER-WITH	09/2020 - 12/2999	1
82821-50780	MZEH12..N HEADLAMP-PROJECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82821-50780	MZEH12..G;ZWE211..HB..G AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
82821-50780	MZEH12..N SUB COLD AREA SPEC	09/2020 - 12/2999	1
82821-50780	MZEH12..N GRILL SHUTTER-WITH	09/2020 - 12/2999	1
82821-50780	MZEH12..G AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	09/2020 - 12/2999	1
82821-50780	MZEH12..N	09/2020 - 12/2999	1
82821-50780	MZEH12..N SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	09/2020 - 12/2999	1
Common parts
90119-06A06
90119-06A39
90119-W0174
91671-80820
91673-80620
Linked diagrams
8417

ILLUST NO.12 OF42(1902- )MZEH12..RHD

Click highlighted areas on diagram

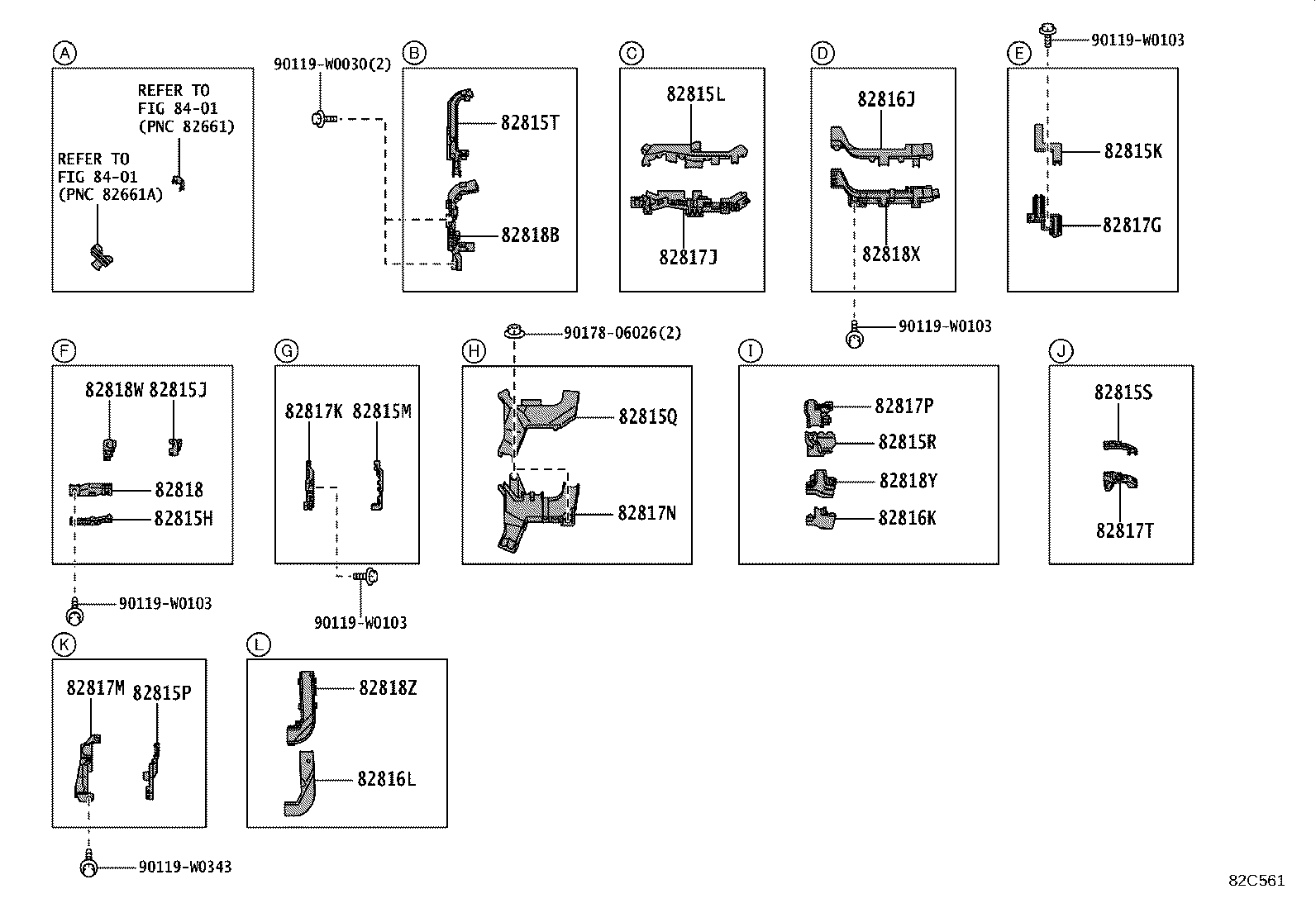

ENGINE ROOM 2/2

Part #	Description	Period	Qty
82815V - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-47D40	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-47D40	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-47D40	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82815-47D40	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82815-47D40	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82815-47D40	MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE	01/2019 - 12/2999	1
82815-47D40	MZEH12,ZWE211..RHD	01/2019 - 12/2999	1
82815-47D40	MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	01/2019 - 12/2999	1
82816C - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-47D30	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-47D30	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82815-47D30	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82815-47D30	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-47D30	MZEH12,ZWE211..RHD	01/2019 - 12/2999	1
82815-47D30	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82815-47D30	MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	01/2019 - 12/2999	1
82815-47D30	MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE	01/2019 - 12/2999	1
82816D - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-76610	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82815-76610	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82815-76610	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82815-76610	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-76610	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-76610	MZEH12..RHD	02/2019 - 12/2999	1
82815-76610	MZEH12..RHD..N LIGHT GRADE	02/2019 - 12/2999	1
82815-76610	MZEH12..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 12/2999	1
82816F - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-47C90	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82815-47C90	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-47C90	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82815-47C90	MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE	01/2019 - 12/2999	1
82815-47C90	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82815-47C90	MZEH12,ZWE211..RHD	01/2019 - 12/2999	1
82815-47C90	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-47C90	MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	01/2019 - 12/2999	1
82816H - COVER, WIRING HARNESS PROTECTOR, NO.6
82815-76600	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82815-76600	MZEH12..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82815-76600	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-76600	MZEH12..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82815-76600	MZEH12..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 12/2999	1
82815-76600	MZEH12	02/2019 - 12/2999	1
82815-76600	MZEH12..N LIGHT GRADE	02/2019 - 12/2999	1
82815-76600	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-47P10	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-47P10	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-47P10	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82817-47P10	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82817-47P10	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82817-47P10	MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE	01/2019 - 12/2999	1
82817-47P10	MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	01/2019 - 12/2999	1
82817-47P10	MZEH12,ZWE211..RHD	01/2019 - 12/2999	1
82818J - PROTECTOR, WIRING HARNESS, NO.10
82817-47P00	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82817-47P00	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-47P00	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82817-47P00	MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	01/2019 - 12/2999	1
82817-47P00	MZEH12,ZWE211..RHD	01/2019 - 12/2999	1
82817-47P00	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-47P00	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82817-47P00	MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE	01/2019 - 12/2999	1
82818K - PROTECTOR, WIRING HARNESS, NO.11
82817-76A30	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82817-76A30	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-76A30	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82817-76A30	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82817-76A30	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-76A30	MZEH12..RHD..N LIGHT GRADE	02/2019 - 12/2999	1
82817-76A30	MZEH12..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 12/2999	1
82817-76A30	MZEH12..RHD	02/2019 - 12/2999	1
82818L - PROTECTOR, WIRING HARNESS, NO.12
82817-47N60	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82817-47N60	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82817-47N60	MZEH12,ZWE211..RHD..(D,N) LIGHT GRADE	01/2019 - 12/2999	1
82817-47N60	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82817-47N60	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-47N60	MZEH12,ZWE211..RHD	01/2019 - 12/2999	1
82817-47N60	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-47N60	MZEH12,ZWE211..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	01/2019 - 12/2999	1
82818M - PROTECTOR, WIRING HARNESS, NO.13
82817-76A40	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82817-76A40	MZEH12..RHD..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82817-76A40	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-76A40	MZEH12..RHD..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-76A40	MZEH12..RHD..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82817-76A40	MZEH12..RHD..N LIGHT GRADE	02/2019 - 12/2999	1
82817-76A40	MZEH12..RHD	02/2019 - 12/2999	1
82817-76A40	MZEH12..RHD..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 12/2999	1
82818N - PROTECTOR, WIRING HARNESS, NO.14
82817-76A20	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82817-76A20	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82817-76A20	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-76A20	MZEH12	02/2019 - 12/2999	1
82817-76A20	MZEH12..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82817-76A20	MZEH12..N LIGHT GRADE	02/2019 - 12/2999	1
82817-76A20	MZEH12..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82817-76A20	MZEH12..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 12/2999	1
82821E - COVER, CONNECTOR
82821-30650	MZEH12,ZWE211	01/2019 - 12/2999	1
82821-30650	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	02/2019 - 09/2020	1
82821-30650	MZEH12,ZWE211..D,N LIGHT GRADE	01/2019 - 12/2999	1
82821-30650	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT	02/2019 - 09/2020	1
82821-30650	MZEH12..G SUB COLD AREA SPEC	02/2019 - 09/2020	1
82821-30650	MZEH12..G SUB COLD AREA SPEC&AVS(TEMS)-WITHOUT&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82821-30650	MZEH12..G SUB COLD AREA SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 09/2020	1
82821-30650	MZEH12,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)	01/2019 - 12/2999	1
Common parts
90119-W0121
90119-W0343
90178-06026
Linked diagrams
8401

ILLUST NO.19 OF42(1902- )MZEH12

Click highlighted areas on diagram

ENGINE 1/2

Part #	Description	Period	Qty
16364A - WIRE, COOLING FAN
16364-0Y020	M20AFXS,8NRFTS..MZEH12,NRE210	01/2019 - 12/2999	1
82121 - WIRE, ENGINE
82121-0ZM00	MZEH12	02/2019 - 12/2999	1
82121-0ZM00	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82125N - WIRE, ENGINE, NO.5
82125-12660	MZEH12 (J)	02/2019 - 12/2999	1
82125-F4020	MZEH12 (L)	02/2019 - 12/2999	1
82126A - WIRE, ENGINE, NO.6
82126-12010	MZEH12 (J)	02/2019 - 12/2999	1
82126-F4010	MZEH12 (L)	02/2019 - 12/2999	1
82219C - WIRE, SENSOR
82219-76020	MZEH12 (J)	02/2019 - 12/2999	1
82219-F4010	MZEH12 (L)	02/2019 - 12/2999	1
82286A - WIRE, EARTH, NO.2
82286-02060	MZEH12	02/2019 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-12490	MZEH12	02/2019 - 12/2999	1
82823 - CAP, TERMINAL, NO.1
82823-33060	MZEH12	02/2019 - 12/2999	1
82823-33060	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
G921D - PROTECTOR, INVERTER CONNECTOR COVER
G921D-47020	MZEH12,ZWE211	01/2019 - 12/2999	1
Common parts
90119-06A06
90119-06A24
90119-06A29
90119-W0030
90119-W0357
90178-W0019
91671-80820
Linked diagrams
8401

ILLUST NO.20 OF42(1902- )MZEH12

Click highlighted areas on diagram

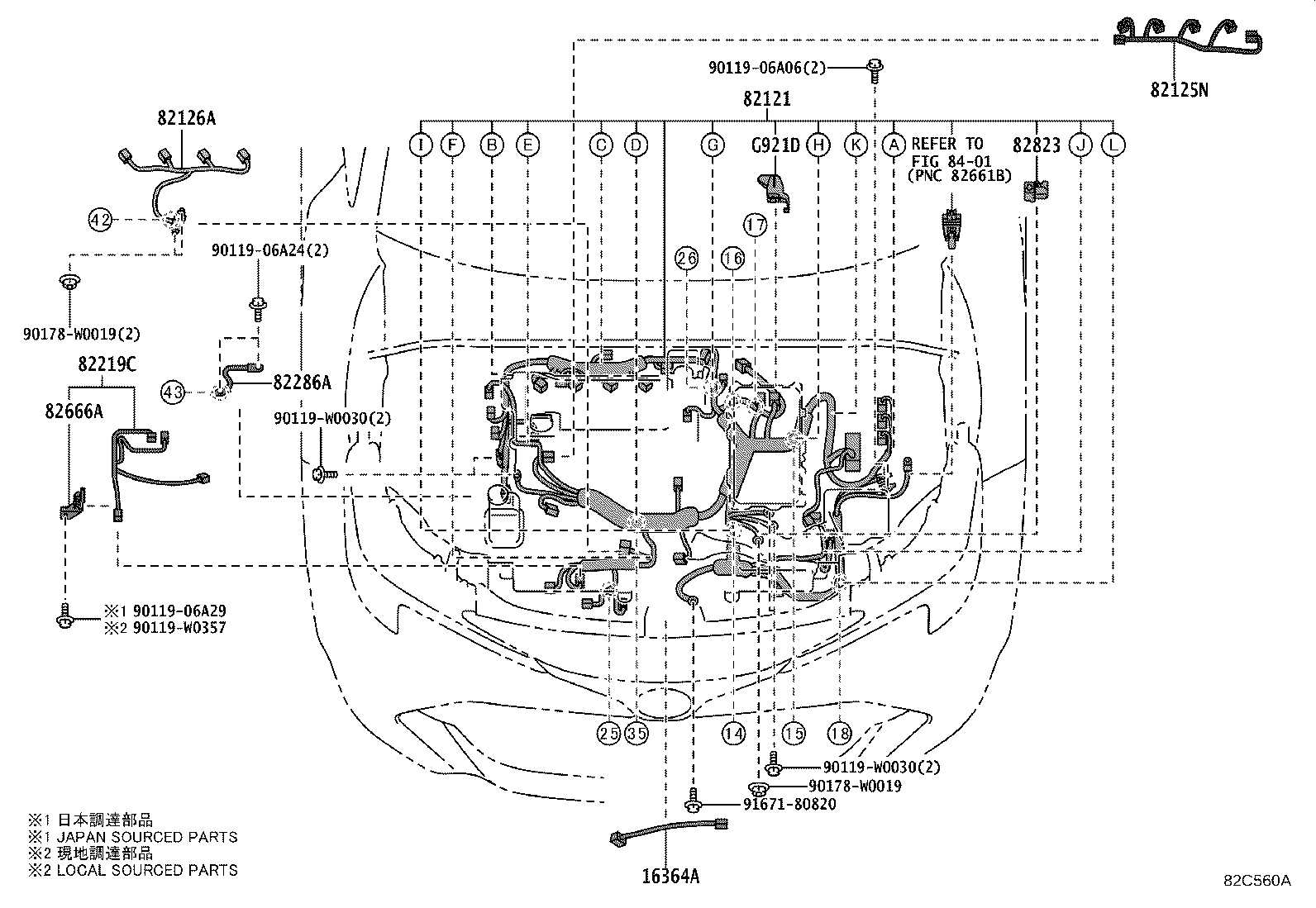

ENGINE 2/2

Part #	Description	Period	Qty
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-76750	MZEH12	02/2019 - 12/2999	1
82815-76750	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-76740	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815-76740	MZEH12	02/2019 - 12/2999	1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-76730	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815-76730	MZEH12	02/2019 - 12/2999	1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-12D60	MZEH12	02/2019 - 12/2999	1
82815-12D60	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-76760	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815-76760	MZEH12	02/2019 - 12/2999	1
82815P - COVER, WIRING HARNESS PROTECTOR, NO.12
82815-76810	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815-76810	MZEH12	02/2019 - 12/2999	1
82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13
82815-76770	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815-76770	MZEH12	02/2019 - 12/2999	1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-76780	MZEH12	02/2019 - 12/2999	1
82815-76780	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815S - COVER, WIRING HARNESS PROTECTOR, NO.15
82815-76800	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815-76800	MZEH12	02/2019 - 12/2999	1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-12B00	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815-12B00	MZEH12	02/2019 - 12/2999	1
82816J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-76720	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815-76720	MZEH12	02/2019 - 12/2999	1
82816K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-76790	MZEH12	02/2019 - 12/2999	1
82815-76790	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82816L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-76840	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82815-76840	MZEH12	02/2019 - 12/2999	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-76530	MZEH12	02/2019 - 12/2999	1
82817-76530	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-12R60	MZEH12	02/2019 - 12/2999	1
82817-12R60	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-76560	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82817-76560	MZEH12	02/2019 - 12/2999	1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-76610	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82817-76610	MZEH12	02/2019 - 12/2999	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-76570	MZEH12	02/2019 - 12/2999	1
82817-76570	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-76580	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82817-76580	MZEH12	02/2019 - 12/2999	1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-76600	MZEH12	02/2019 - 12/2999	1
82817-76600	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-76550	MZEH12	02/2019 - 12/2999	1
82817-76550	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-12V00	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82817-12V00	MZEH12	02/2019 - 12/2999	1
82818W - PROTECTOR, WIRING HARNESS, NO.19
82817-76540	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82817-76540	MZEH12	02/2019 - 12/2999	1
82818X - PROTECTOR, WIRING HARNESS, NO.20
82817-76520	MZEH12	02/2019 - 12/2999	1
82817-76520	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82818Y - PROTECTOR, WIRING HARNESS, NO.21
82817-76590	MZEH12	02/2019 - 12/2999	1
82817-76590	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
82818Z - PROTECTOR, WIRING HARNESS, NO.22
82817-76640	MZEH12	02/2019 - 12/2999	1
82817-76640	MZEH12 LIGHT GRADE	02/2019 - 12/2999	1
Common parts
90119-W0030
90119-W0103
90119-W0343
90178-06026
Linked diagrams
8401

ILLUST NO.30 OF42(1902- )MZEH12..WG

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-F2F80	MZEH12..RHD..WG..N LIGHT GRADE&BACK MONITOR-WITHOUT	02/2019 - 10/2019	1
82161-F2F90	MZEH12..RHD..WG..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	02/2019 - 10/2019	1
82161-F2F90	MZEH12..RHD..WG..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE SMART	02/2019 - 10/2019	1
82161-F2F80	MZEH12..RHD..WG..G AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE	02/2019 - 10/2019	1
82161-F2F90	MZEH12..RHD..WG..G AVS(TEMS)-WITHOUT	02/2019 - 10/2019	1
82161-F2F90	MZEH12..RHD..WG..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE SMART	02/2019 - 10/2019	1
82161-F2F80	MZEH12..RHD..WG..N	02/2019 - 10/2019	1
82161-F2F90	MZEH12..RHD..WG..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	02/2019 - 10/2019	1
82161-F2Z50	MZEH12..RHD..WG..N UNITED KINGDOM SPEC	02/2019 - 10/2019	1
82161-F2Z50	MZEH12..RHD..WG..G REGULATION COMPLIANCE LABEL & NAME PLATE-*WVTA LABEL & ID PLATE&UNITED KINGDOM SPEC&AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE	02/2019 - 10/2019	1
82199-0ZN10	MZEH12..RHD..WG..G	02/2019 - 10/2019	1
82199-0ZN10	MZEH12..RHD..WG..G LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT	02/2019 - 10/2019	1
82161-F2F91	MZEH12..RHD..WG..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE SMART	11/2019 - 09/2020	1
82161-F2F91	MZEH12..RHD..WG..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	11/2019 - 09/2020	1
82161-F2F91	MZEH12..RHD..WG..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE SMART	11/2019 - 09/2020	1
82161-F2Z51	MZEH12..RHD..WG..G REGULATION COMPLIANCE LABEL & NAME PLATE-*WVTA LABEL & ID PLATE&UNITED KINGDOM SPEC&AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE	11/2019 - 09/2020	1
82161-F2F91	MZEH12..RHD..WG..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	11/2019 - 09/2020	1
82161-F2F91	MZEH12..RHD..WG..G AVS(TEMS)-WITHOUT	11/2019 - 09/2020	1
82199-0ZN11	MZEH12..RHD..WG..G	11/2019 - 09/2020	1
82161-F2Z51	MZEH12..RHD..WG..N UNITED KINGDOM SPEC	11/2019 - 09/2020	1
82199-0ZN11	MZEH12..RHD..WG..G LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT	11/2019 - 09/2020	1
82161-F2F81	MZEH12..RHD..WG..G AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE	11/2019 - 10/2020	1
82161-F2F81	MZEH12..RHD..WG..N	11/2019 - 10/2020	1
82161-F2F81	MZEH12..RHD..WG..N LIGHT GRADE&BACK MONITOR-WITHOUT	11/2019 - 10/2020	1
82161-F2F92	MZEH12..RHD..WG..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE SMART	09/2020 - 01/2022	1
82161-F2F92	MZEH12..RHD..WG..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	09/2020 - 01/2022	1
82161-F2F92	MZEH12..RHD..WG..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	09/2020 - 01/2022	1
82161-F2F92	MZEH12..RHD..WG..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE SMART	09/2020 - 01/2022	1
82161-F2Z52	MZEH12..RHD..WG..G REGULATION COMPLIANCE LABEL & NAME PLATE-*WVTA LABEL & ID PLATE&UNITED KINGDOM SPEC&AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE	09/2020 - 12/2999	1
82161-F2Z52	MZEH12..RHD..WG..N UNITED KINGDOM SPEC	09/2020 - 12/2999	1
82161-F2F92	MZEH12..RHD..WG..G AVS(TEMS)-WITHOUT	09/2020 - 12/2999	1
82199-0ZN12	MZEH12..RHD..WG..G	09/2020 - 12/2999	1
82199-0ZN12	MZEH12..RHD..WG..G LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT	09/2020 - 12/2999	1
82161-F2F82	MZEH12..RHD..WG..N LIGHT GRADE&BACK MONITOR-WITHOUT	10/2020 - 12/2999	1
82161-F2F82	MZEH12..RHD..WG..N	10/2020 - 12/2999	1
82161-F2F82	MZEH12..RHD..WG..G AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE	10/2020 - 12/2999	1
82163 - WIRE, FLOOR, NO.3
82163-02420	MZEH12,ZWE211..WG..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 12/2999	1
82169A - WIRE, FLOOR, NO.6
82169-02100	MZEH12..WG..G LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	1
82169-02110	MZEH12,NRE210,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	02/2019 - 12/2999	1
82169-02100	MZEH12,NRE210,ZWE211..WG..G	02/2019 - 12/2999	1
82169-02100	MZEH12,NRE210,ZWE211..WG..CVT..N CLEARANCE & BACK SONAR-WITH(ICS & IPA)	02/2019 - 12/2999	1
82169-02090	MZEH12,NRE210,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	1
82169-02100	MZEH12,NRE210,ZWE211..WG..G CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	1
82169-02090	MZEH12,NRE210,ZWE211..WG..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	02/2019 - 12/2999	1
82169-02110	MZEH12,NRE210,ZWE211..WG..CVT..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(ICS & IPA)	02/2019 - 12/2999	1
82169-02180	MZEH12,NRE210,ZWE211..WG..CVT..N CLEARANCE & BACK SONAR-WITH(*ICS)	07/2019 - 12/2999	1
82169-02190	MZEH12,NRE210,ZWE211..WG..CVT..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(*ICS)	07/2019 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-F2060	MZEH12,ZWE211..RHD..WG..(D,N) LIGHT GRADE	02/2019 - 12/2999	1
82171-F2060	MZEH12,ZWE211..RHD..WG..G INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE	02/2019 - 12/2999	1
82171-F2060	MZEH12,ZWE211..RHD..WG..(D,N)	02/2019 - 12/2999	1
82171-F2110	MZEH12,ZWE211..RHD..WG..G INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE	02/2019 - 12/2999	1
82171-F2110	MZEH12,ZWE211..RHD..WG..N INTERMITTENT WIPER-WITH(AUTO)	02/2019 - 12/2999	1
82171-F2230	MZEH12..RHD..WG..N MOON ROOF-WITH(PANORAMA ROOF)	02/2019 - 12/2999	1
82171-F2230	MZEH12..RHD..WG..G MOON ROOF-WITH(PANORAMA ROOF)&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE	02/2019 - 12/2999	1
82171-F2310	MZEH12..RHD..WG..G MOON ROOF-WITH(PANORAMA ROOF)&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)	02/2019 - 12/2999	1
82171-F2270	MZEH12..RHD..WG..N MOON ROOF-WITH(PANORAMA ROOF)&INTERMITTENT WIPER-WITH(AUTO)	02/2019 - 12/2999	1
82171-F2640	MZEH12,ZWE211..RHD..WG..N INTERMITTENT WIPER-WITH(AUTO)&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE	02/2019 - 12/2999	1
82171-F2590	MZEH12,ZWE211..RHD..WG..G INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)	02/2019 - 12/2999	1
82171-F2350	MZEH12..RHD..WG..G MOON ROOF-WITH(PANORAMA ROOF)	02/2019 - 12/2999	1
82171-F2310	MZEH12..RHD..WG..N MOON ROOF-WITH(PANORAMA ROOF)&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE	02/2019 - 12/2999	1
82171-F2350	MZEH12..RHD..WG..N MOON ROOF-WITH(PANORAMA ROOF)&INTERMITTENT WIPER-WITH(AUTO)&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE	02/2019 - 12/2999	1
82171-F2640	MZEH12,ZWE211..RHD..WG..G	02/2019 - 12/2999	1
82171-F2270	MZEH12..RHD..WG..G MOON ROOF-WITH(PANORAMA ROOF)&INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE	02/2019 - 12/2999	1
82171-F2640	MZEH12,ZWE211..RHD..WG..G LIGHT GRADE&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE	02/2019 - 12/2999	1
82171-F2590	MZEH12,ZWE211..RHD..WG..N INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE	02/2019 - 12/2999	1
82172 - WIRE, ROOF, NO.2
82172-02060	ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF)	01/2019 - 12/2999	1
82172 - WIRE, ROOF, NO.2
82172-02060	ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF)	01/2019 - 12/2999	1
82284 - WIRE, EARTH
82284-02010	MZEH12..WG	02/2019 - 12/2999	1
82818E - PROTECTOR, WIRING HARNESS, NO.6
82817-52A60	MZEH12,ZWE211..WG..(D,N)	02/2019 - 12/2999	1
82817-52A60	MZEH12..WG..G AVS(TEMS)-WITHOUT&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE	02/2019 - 12/2999	1
82817-52A60	MZEH12,ZWE211..WG..N LIGHT GRADE&BACK MONITOR-WITHOUT	02/2019 - 12/2999	1
82819G - PROTECTOR, WIRING HARNESS, NO.23
82817-52A60	MZEH12,NRE210,ZWE211..WG..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS)	02/2019 - 12/2999	1
82824D - CONNECTOR, WIRING HARNESS
82824-12730	MZEH12,NRE210,ZWE211..WG..G CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	1
82824-12730	MZEH12,NRE210..WG..(D,N) LIGHT GRADE	02/2019 - 12/2999	1
82824-12730	MZEH12,NRE210,ZWE211..WG..(D,N)	02/2019 - 12/2999	1
890C0 - WIRE ASSY, PARKING BRAKE, NO.1
890C0-02030	MZEH12..G;ZWE211..HB..G AVS(TEMS)-WITHOUT	01/2019 - 12/2999	1
890C0-02030	NRE210;ZWE211..WG..G;MZEH12,ZWE211..D,N	01/2019 - 12/2999	1
890C0-02050	MZEH12..G;ZWE211..HB..G	01/2019 - 12/2999	1
890C0A - WIRE ASSY, PARKING BRAKE, NO.2
890C0-02040	NRE210;ZWE211..WG..G;MZEH12,ZWE211..D,N	01/2019 - 12/2999	1
890C0-02040	MZEH12..G;ZWE211..HB..G AVS(TEMS)-WITHOUT	01/2019 - 12/2999	1
890C0-02060	MZEH12..G;ZWE211..HB..G	01/2019 - 12/2999	1
89349C - CLIP, ULTRASONIC SENSOR, REAR NO.2
89348-50050	MZEH12,NRE210,ZWE211..WG..G	02/2019 - 12/2999	11
89348-50050	MZEH12,NRE210,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	3
89348-50050	MZEH12,NRE210,ZWE211..WG..CVT..N CLEARANCE & BACK SONAR-WITH(ICS & IPA)	02/2019 - 12/2999	11
89348-50050	MZEH12,NRE210,ZWE211..WG..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	02/2019 - 12/2999	3
89348-50050	MZEH12,NRE210,ZWE211..WG..G CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	11
89348-50050	MZEH12,NRE210,ZWE211..WG..CVT..N CLEARANCE & BACK SONAR-WITH(*ICS)	07/2019 - 12/2999	5
89348-50050	MZEH12..WG..G LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	11
89348-50050	MZEH12,NRE210,ZWE211..WG..CVT..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(*ICS)	07/2019 - 12/2999	5
89348-50050	MZEH12,NRE210,ZWE211..WG..CVT..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(ICS & IPA)	02/2019 - 12/2999	11
89349C - CLIP, ULTRASONIC SENSOR, REAR NO.2
89348-50050	MZEH12,NRE210,ZWE211..WG..G	02/2019 - 12/2999	11
89348-50050	MZEH12,NRE210,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	3
89348-50050	MZEH12,NRE210,ZWE211..WG..CVT..N CLEARANCE & BACK SONAR-WITH(ICS & IPA)	02/2019 - 12/2999	11
89348-50050	MZEH12,NRE210,ZWE211..WG..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE	02/2019 - 12/2999	3
89348-50050	MZEH12,NRE210,ZWE211..WG..G CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	11
89348-50050	MZEH12,NRE210,ZWE211..WG..CVT..N CLEARANCE & BACK SONAR-WITH(*ICS)	07/2019 - 12/2999	5
89348-50050	MZEH12..WG..G LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT	02/2019 - 12/2999	11
89348-50050	MZEH12,NRE210,ZWE211..WG..CVT..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(*ICS)	07/2019 - 12/2999	5
89348-50050	MZEH12,NRE210,ZWE211..WG..CVT..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(ICS & IPA)	02/2019 - 12/2999	11
Common parts
90119-06A06
90119-W0037
90178-W0031
Linked diagrams
8401
8417
8601

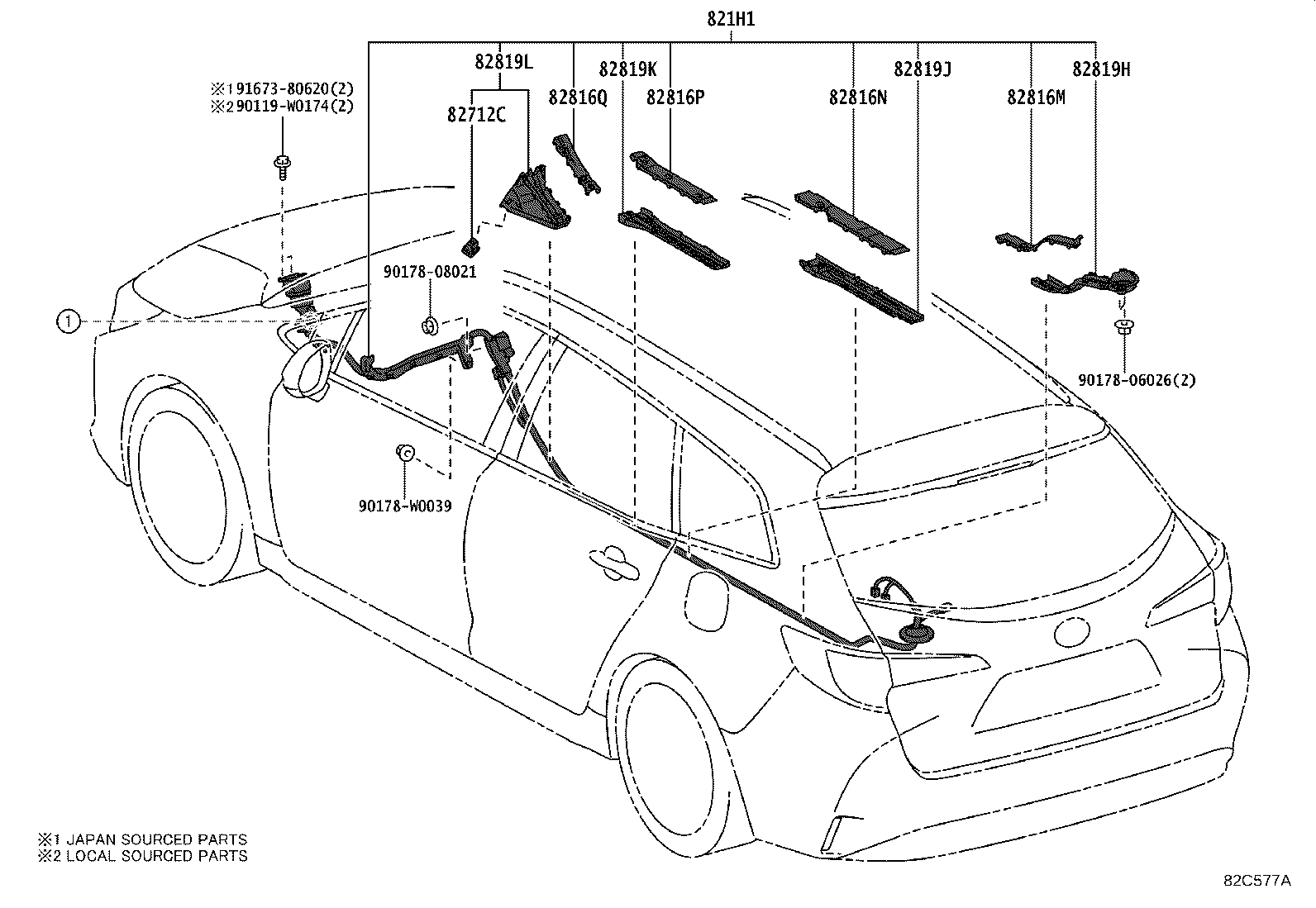

ILLUST NO.36 OF42(1902- )MZEH12..RHD..WG

Click highlighted areas on diagram

HIGH VOLTAGE CABLE

Part #	Description	Period	Qty
821H1 - WIRE, FLOOR UNDER
821H1-12110	MZEH12..RHD..WG	02/2019 - 12/2999	1
82712C - SUPPORT, WIRING HARNESS, NO.1
82712-76010	MZEH12	02/2019 - 12/2999	1
82816M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-76530	MZEH12	02/2019 - 12/2999	1
82816N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-12M80	MZEH12..WG	02/2019 - 12/2999	1
82816P - COVER, WIRING HARNESS PROTECTOR, NO.12
82815-76540	MZEH12	02/2019 - 12/2999	1
82816Q - COVER, WIRING HARNESS PROTECTOR, NO.13
82815-76520	MZEH12	02/2019 - 12/2999	1
82819H - PROTECTOR, WIRING HARNESS, NO.24
82817-76810	MZEH12	02/2019 - 12/2999	1
82819J - PROTECTOR, WIRING HARNESS, NO.25
82817-1AB20	MZEH12..WG	02/2019 - 12/2999	1
82819K - PROTECTOR, WIRING HARNESS, NO.26
82817-76820	MZEH12	02/2019 - 12/2999	1
82819L - PROTECTOR, WIRING HARNESS, NO.27
82817-76800	MZEH12	02/2019 - 12/2999	1
Common parts
90119-W0174
90178-06026
90178-08021
90178-W0039
91673-80620

MZEH12R-DWXNBW (2019)

ILLUST NO.11 OF42(1902- )MZEH12..RHD

ILLUST NO.12 OF42(1902- )MZEH12..RHD

ILLUST NO.19 OF42(1902- )MZEH12

ILLUST NO.20 OF42(1902- )MZEH12

ILLUST NO.30 OF42(1902- )MZEH12..WG

ILLUST NO.36 OF42(1902- )MZEH12..RHD..WG

Part Price Details
