MZEH12R-DWXNBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999
Engine M20AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

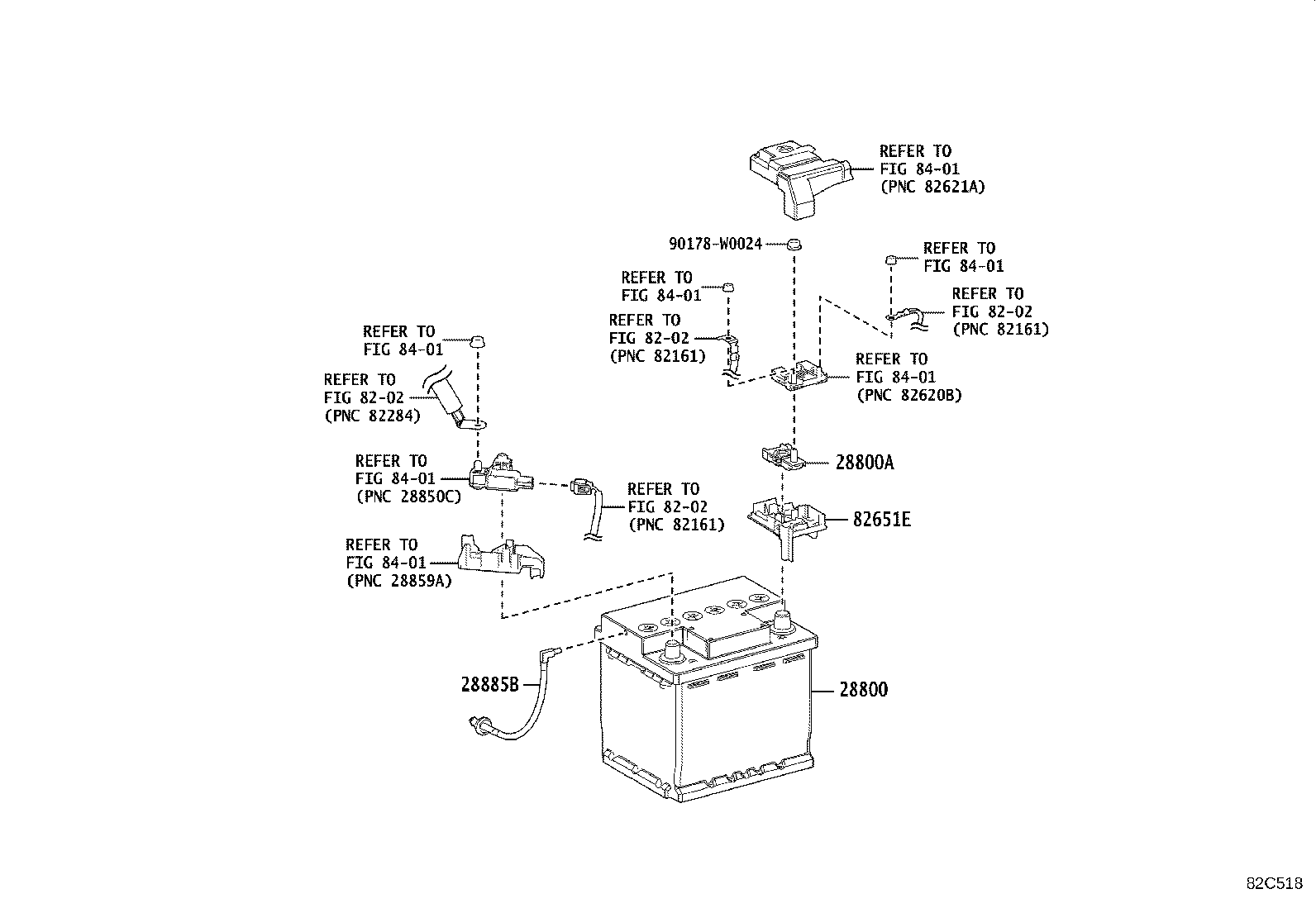

ILLUST NO. 1 OF 3(1902- )MZEH12..WG

Click highlighted areas on diagram

12V BATTERY

diagram 28800 28800A 28885B 82651E 90178W0024
Part # Description Qty Price
28800 - BATTERY
28800-F2040

M20AFXS..MZEH12

LN1

 1
28800-F2041

M20AFXS..MZEH12

LN1

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

M20AFXS,2ZRFXE..MZEH12,ZWE211

 1
90982-05061

M20AFXS..MZEH12..G

LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT

 1
90982-05061

M20AFXS..MZEH12..N

LIGHT GRADE&BACK MONITOR-WITHOUT

 1
28885B - HOSE, BATTERY
28885-24030

M20AFXS..MZEH12..WG

 1
82651E - BLOCK, TERMINAL
82817-1AB10

MZEH12..G

LIGHT GRADE&WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)&BACK MONITOR-WITHOUT

 1
82817-1AB10

MZEH12

 1
82817-1AB10

MZEH12..N

LIGHT GRADE&BACK MONITOR-WITHOUT

 1
Common parts
90178-W0024

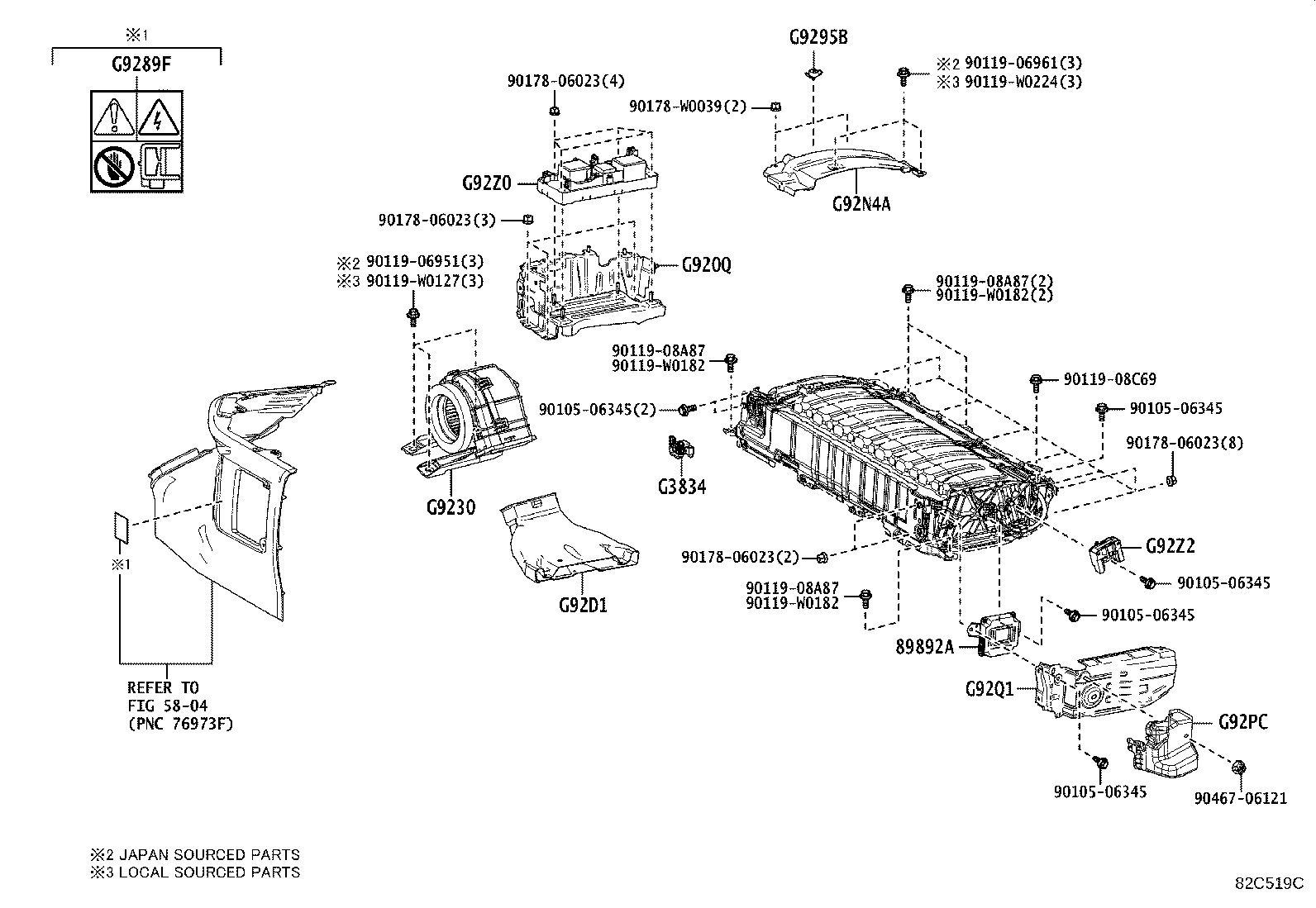

ILLUST NO. 2 OF 3(1902- )MZEH12

Click highlighted areas on diagram

HV BATTERY

diagram 5804 89892A 9010506345 9010506345 9010506345 9010506345 9010506345 9011906951 9011906961 9011908A87 9011908A87 9011908A87 9011908C69 90119W0127 90119W0182 90119W0182 90119W0182 90119W0224 9017806023 9017806023 9017806023 9017806023 90178W0039 9046706121 G3834 G920Q G9230 G9289F G9295B G92D1 G92N4A G92PC G92Q1 G92Z0 G92Z2
Part # Description Qty Price
89892A - SENSOR, BATTERY VOLTAGE
89892-76010

MZEH12

 1
G3834 - GRIP, SERVICE PLUG
G3834-47050

MZEH12,ZWE211

 1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-47041

MZEH12

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-47080

MZEH12

 1
G9289F - LABEL, BATTERY CAUTION, NO.3
82685-47110

MZEH12,ZWE211

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

MZEH12,ZWE211

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92E1-47040

MZEH12

 1
G92N4A - PANEL, HV BATTERY RH COVER, NO.1
G92N4-47060

MZEH12

 1
G92PC - PROTECTOR, HV BATTERY, NO.1
G92PC-76010

MZEH12

 1
G92Q1 - PANEL, HV BATTERY SHIELD, NO.1
G92Q1-76010

MZEH12

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-33041

MZEH12

 1
G92Z2 - BLOCK, HYBRID BATTERY TERMINAL
G92Z2-47070

MZEH12,ZWE211

 1
Common parts
90105-06345
90119-06951
90119-06961
90119-08A87
90119-08C69
90119-W0127
90119-W0182
90119-W0224
90178-06023
90178-W0039
90467-06121
Linked diagrams
5804

ILLUST NO. 3 OF 3(1902- )MZEH12

Click highlighted areas on diagram

HV BATTERY

diagram 82818P 9010506345 9017806023 G920L G9282 G9289A G9298 G9298 G9298 G9298 G9510
Part # Description Qty Price
82818P - PROTECTOR, WIRING HARNESS
82817-47Q60

MZEH12,ZWE211

 1
G920L - COVER SUB-ASSY, HYBRID BATTERY, UPPER NO.1
G920N-76010

MZEH12

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-76010

MZEH12

 1
G9289A - LABEL, BATTERY CAUTION
G9288-48040

MZEH12

 1
G9298 - CLAMP, HV BATTERY
G928E-47010

MZEH12

 4
G9298 - CLAMP, HV BATTERY
G928E-47010

MZEH12

 4
G9298 - CLAMP, HV BATTERY
G928E-47010

MZEH12

 4
G9298 - CLAMP, HV BATTERY
G928E-47010

MZEH12

 4
G9510 - BATTERY ASSY, HV SUPPLY
G9510-76030

MZEH12

 1
Common parts
90105-06345
90178-06023
