MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)
(1902- )WG

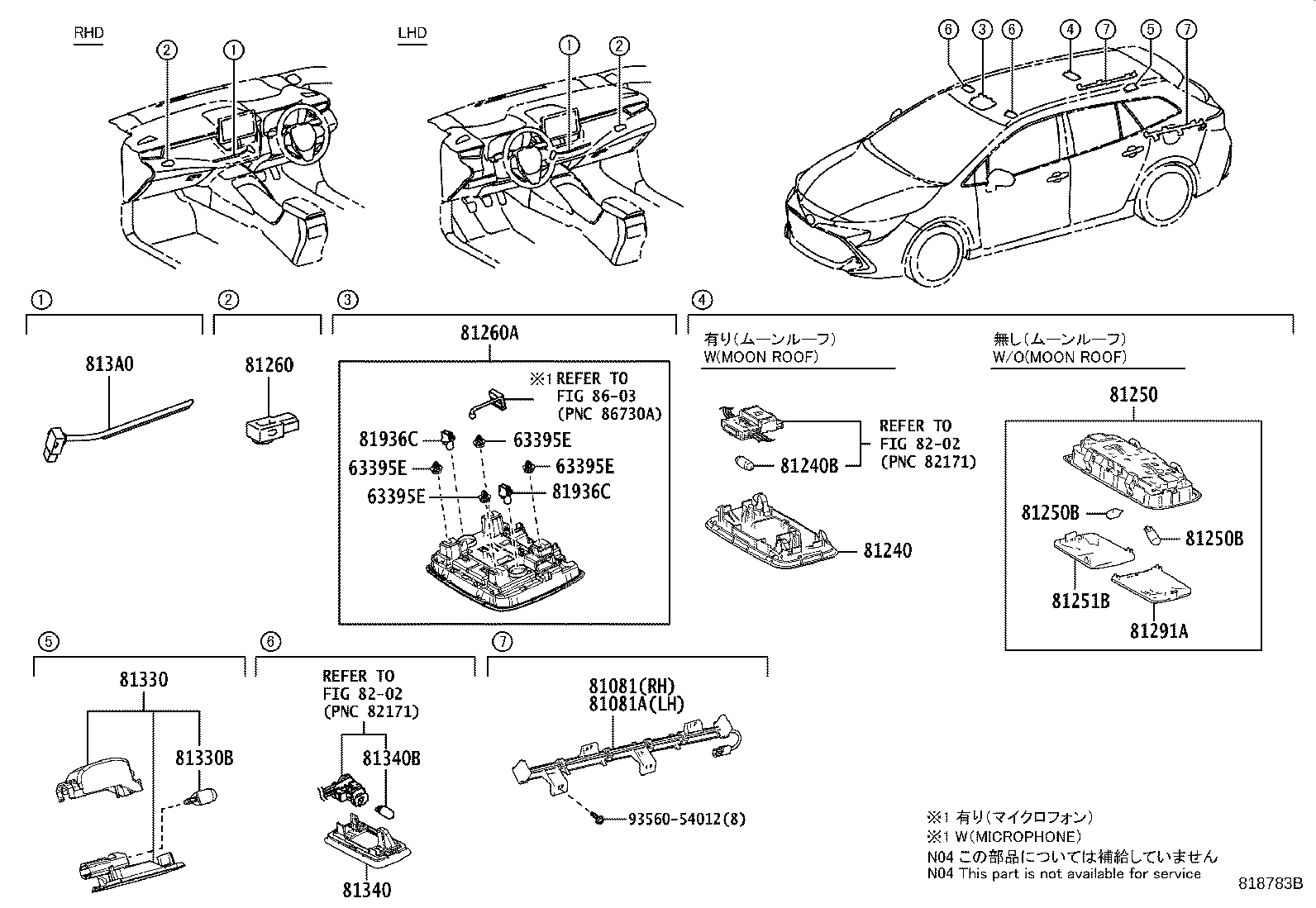

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09240 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09240 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 90467-09240 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09240 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09240 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION | ||||
| 81081-02040 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM) |
1 | ||
| 81081-02040 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 81081A - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81081-02050 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 81081-02050 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM) |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-60060B3 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 81240-12100C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 81240-60060C1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 81240-12100B1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
MZEH12,NRE210..WG..(G,N) 12V 8W,MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-05030B1 |
MZEH12,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,COOL GRAY,TRIM1# |
1 | ||
| 81250-05030C1 |
MZEH12,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 81250-05030B1 |
MZEH12,NRE210,ZWE211..WG COOL GRAY,TRIM1# |
1 | ||
| 81250-05030B1 |
MZEH12..WG..G SEAT HEATER-WITHOUT,COOL GRAY,TRIM1# |
1 | ||
| 81250-05030C1 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM2# |
1 | ||
| 81250-05030C1 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE,BLACK,TRIM2# |
1 | ||
| 81250-05030C1 |
MZEH12..WG..G SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 81250-05030B1 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE,COOL GRAY,TRIM1# |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-11062 |
MZEH12,NRE210,ZWE211..WG 12V 8W |
2 | ||
| 90981-11062 |
MZEH12,ZWE211..WG..G 12V 8W,LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT |
2 | ||
| 90981-11062 |
MZEH12..WG..G 12V 8W,SEAT HEATER-WITHOUT |
2 | ||
| 90981-11062 |
ZWE211..WG..G;MZEH12,NRE210..WG 12V 8W,LIGHT GRADE |
2 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-11062 |
MZEH12,NRE210,ZWE211..WG 12V 8W |
2 | ||
| 90981-11062 |
MZEH12,ZWE211..WG..G 12V 8W,LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT |
2 | ||
| 90981-11062 |
MZEH12..WG..G 12V 8W,SEAT HEATER-WITHOUT |
2 | ||
| 90981-11062 |
ZWE211..WG..G;MZEH12,NRE210..WG 12V 8W,LIGHT GRADE |
2 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-05030 |
MZEH12,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT |
1 | ||
| 81251-05030 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 81251-05030 |
MZEH12..WG..G SEAT HEATER-WITHOUT |
1 | ||
| 81251-05030 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-33290 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-02A50B0 |
MZEH12,NRE210,ZWE211..RHD COOL GRAY,TRIM1# |
1 | ||
| 81260-02A90C0 |
ZWE211..RHD..HB..(G,N);MZEH12,NRE210..RHD..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 81260-02A90B0 |
ZWE211..RHD..HB..(G,N);MZEH12,NRE210..RHD..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 81260-02A50C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM2# |
1 | ||
| 81260-02A51B0 |
MZEH12,NRE210,ZWE211..RHD COOL GRAY,TRIM1# |
1 | ||
| 81260-02A51C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM2# |
1 | ||
| 81260-02A91C0 |
ZWE211..RHD..HB..(G,N);MZEH12,NRE210..RHD..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 81260-02A91B0 |
ZWE211..RHD..HB..(G,N);MZEH12,NRE210..RHD..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-05030 |
MZEH12..WG..G SEAT HEATER-WITHOUT |
1 | ||
| 81291-05030 |
MZEH12,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT |
1 | ||
| 81291-05030 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE |
1 | ||
| 81291-05030 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-02060 |
MZEH12,NRE210,ZWE211..HB;MZEH12,NRE210,ZWE211..WG..(D,N) |
1 | ||
| 81330-02060 |
MZEH12,NRE210..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP) |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-WB021 |
MZEH12,NRE210,ZWE211..HB;MZEH12,NRE210,ZWE211..WG..(D,N) 12V 5W |
1 | ||
| 90981-WB021 |
MZEH12,NRE210..WG..G 12V 5W,LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP) |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-F4010 |
MZEH12;NRE210,ZWE211..RHD;NRE210,ZWE211..LHD..(G,N) SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
2 | ||
| 81340-F4010 |
MZEH12..G LIGHT GRADE&SEAT HEATER-WITHOUT |
2 | ||
| 81340-F4010 |
MZEH12;ZWE211..G;NRE210..RHD;NRE210..LHD..(G,N) LIGHT GRADE |
2 | ||
| 81340-F4010 |
MZEH12;NRE210,ZWE211..RHD;NRE210,ZWE211..LHD..(G,N) SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
2 | ||
| 81340-F4010 |
MZEH12;NRE210,ZWE211..RHD;NRE210,ZWE211..LHD..(G,N) |
2 | ||
| 81340-F4010 |
MZEH12,ZWE211..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
MZEH12;NRE210,ZWE211..RHD;NRE210,ZWE211..LHD..(G,N) 12V 8W,SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
2 | ||
| 90981-11062 |
MZEH12;NRE210,ZWE211..RHD;NRE210,ZWE211..LHD..(G,N) 12V 8W,SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
2 | ||
| 90981-11062 |
MZEH12,ZWE211..G 12V 8W,LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT |
2 | ||
| 90981-11062 |
MZEH12;ZWE211..G;NRE210..RHD;NRE210..LHD..(G,N) 12V 8W,LIGHT GRADE |
2 | ||
| 90981-11062 |
MZEH12..G 12V 8W,LIGHT GRADE&SEAT HEATER-WITHOUT |
2 | ||
| 90981-11062 |
MZEH12;NRE210,ZWE211..RHD;NRE210,ZWE211..LHD..(G,N) 12V 8W |
2 | ||
| 813A0 - LAMP ASSY, INSTRUMENT PANEL | ||||
| 813A0-12020 |
MZEH12,NRE210,ZWE211..RHD..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 813A0-12020 |
MZEH12,NRE210,ZWE211..RHD..G |
1 | ||
| 813A0-12020 |
MZEH12,NRE210,ZWE211..RHD..G AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 813A0-12020 |
MZEH12,NRE210,ZWE211..RHD..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 813A0-12020 |
MZEH12,NRE210,ZWE211..RHD..G AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 813A0-12020 |
MZEH12,NRE210,ZWE211..RHD..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM) |
1 | ||
| 81936C - BULB ASSY | ||||
| 81936-12160 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 81936C - BULB ASSY | ||||
| 81936-12160 |
MZEH12,NRE210,ZWE211 |
2 | ||
| Common parts | ||||
| 93560-54012 | ||||
