MZEH12R-DWXNBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999
Engine M20AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )RHD..WG

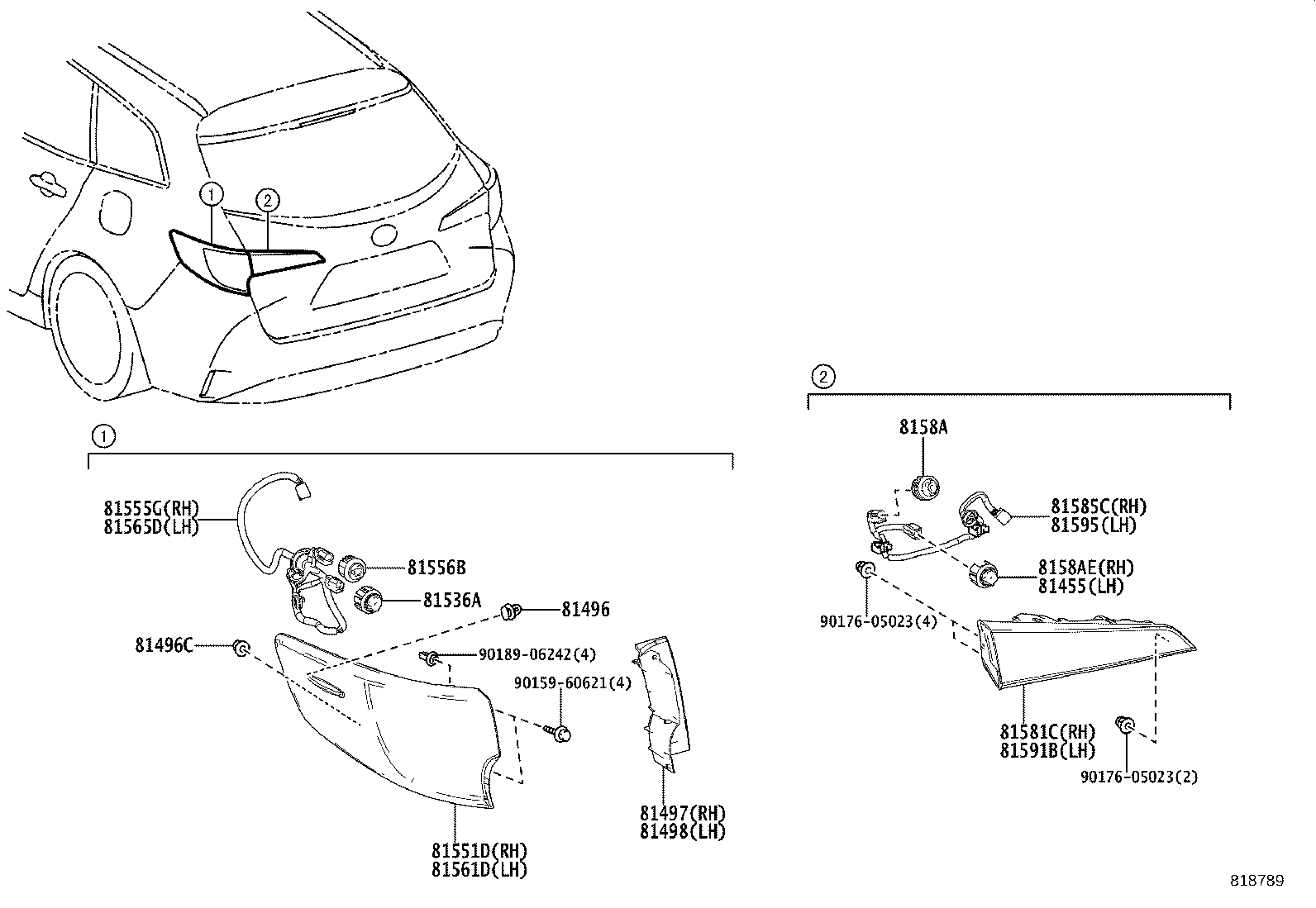

Click highlighted areas on diagram

diagram 81455 81496 81496C 81497 81498 81536A 81551D 81555G 81556B 81561D 81565D 81581C 81585C 8158A 8158AE 81591B 81595 9015960621 9017605023 9017605023 9018906242
Part # Description Qty Price
81455 - LED, REAR FOG LAMP
8158A-12260

MZEH12,NRE210,ZWE211..WG

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-50010

MZEH12,NRE210,ZWE211

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-52020

MZEH12,NRE210,ZWE211

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-02050

MZEH12,NRE210,ZWE211..WG

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-02050

MZEH12,NRE210,ZWE211..WG

 1
81536A - LED, REAR COMBINATION LAMP
81536-12D30

MZEH12,NRE210,ZWE211

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02D30

MZEH12,NRE210,ZWE211..WG

 1
81555G - CORD, REAR COMBINATION LAMP, RH
81555-02D30

MZEH12,NRE210,ZWE211..WG

 1
81556B - LED, REAR COMBINATION LAMP, RH
81536-15120

MZEH12,NRE210,ZWE211..WG

 2
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02D30

MZEH12,NRE210,ZWE211..WG

 1
81565D - CORD, REAR COMBINATION LAMP, LH
81565-02D30

MZEH12,NRE210,ZWE211..WG

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02C70

MZEH12,NRE210,ZWE211..RHD..WG

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-02C70

MZEH12,NRE210,ZWE211..RHD..WG

 1
8158A - LED, REAR LAMP
8158A-0D610

MZEH12,NRE210,ZWE211..WG

 2
8158AE - LED, BACK-UP LAMP
8158A-0D610

MZEH12,NRE210,ZWE211..WG

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-02C70

MZEH12,NRE210,ZWE211..RHD..WG

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81595-02C70

MZEH12,NRE210,ZWE211..RHD..WG

 1
Common parts
90159-60621
90176-05023
90189-06242
