MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)
ILLUST NO. 2 OF 3(1902- )MZEH12

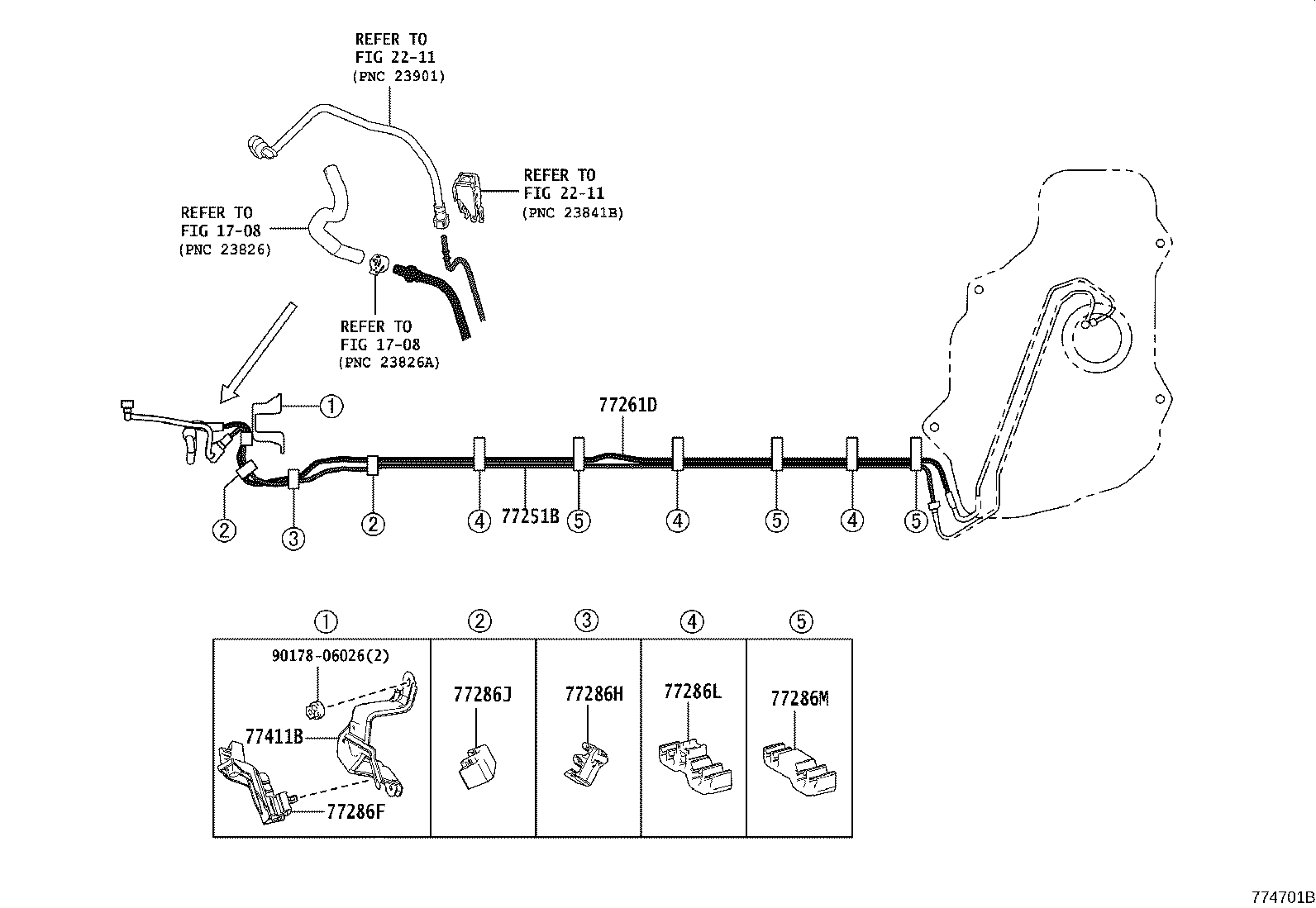

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02A90 |
MZEH12,ZWE211..WG |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02790 |
MZEH12..WG |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-76010 |
MZEH12 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-12240 |
MZEH12,ZWE211 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-12080 |
MZEH12,ZWE211 |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-12180 |
MZEH12,ZWE211 |
3 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77298-12190 |
MZEH12,ZWE211 |
3 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-02070 |
MZEH12..RHD |
1 | ||
| Common parts | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 1 OF 3(1902- )MZEH12

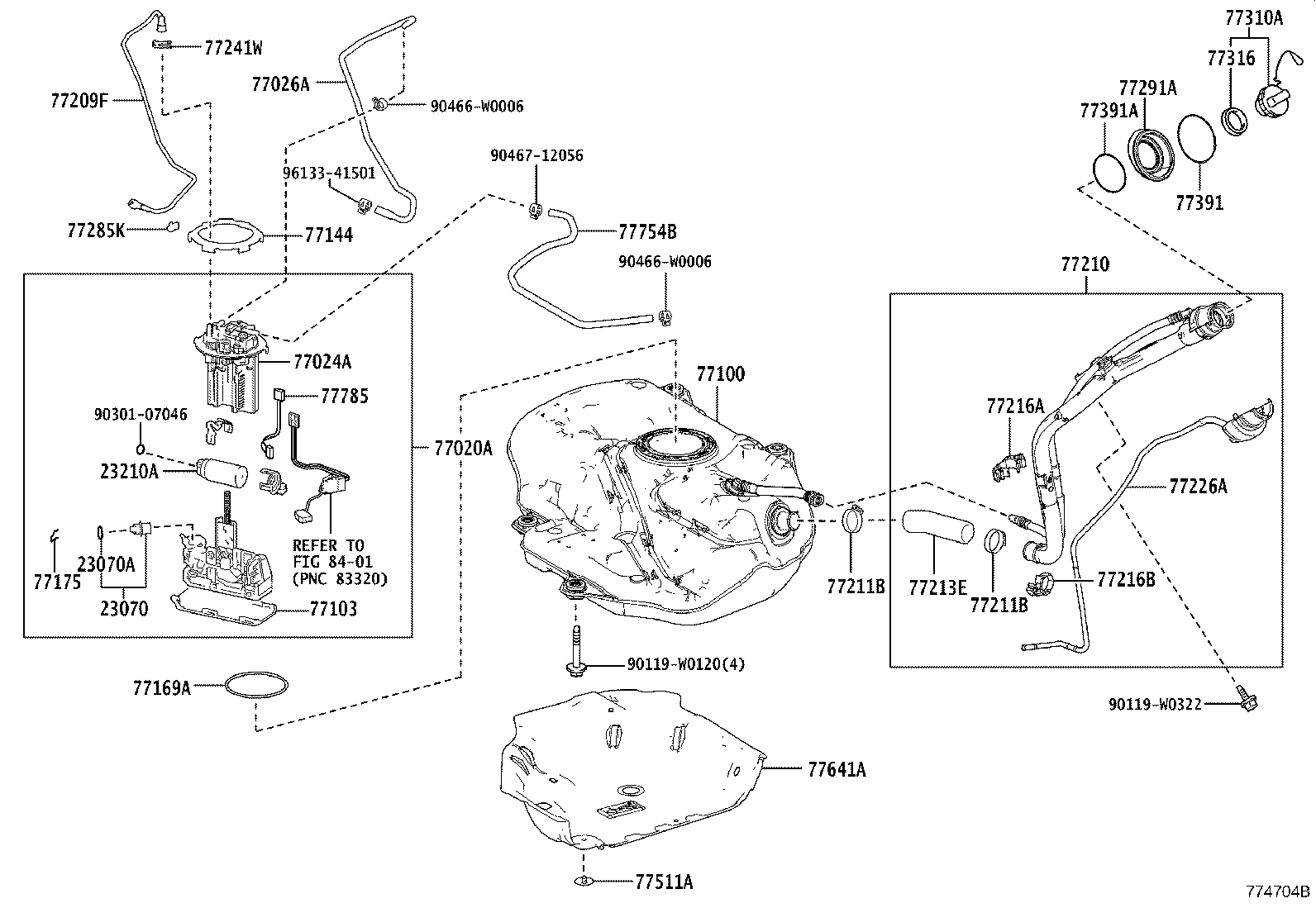

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-24010 |
M20AFXS..MZEH12 |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
M20AFXS..MZEH12 |
1 | ||
| 23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-0T040 |
M20AFXS..MZEH12 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02C50 |
MZEH12 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02540 |
MZEH12 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-02150 |
MZEH12,ZWE211 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-F4100 |
MZEH12,ZWE211 |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-02090 |
MZEH12 |
1 | ||
| 77103-K0030 |
MZEH12 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-F4050 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-02050 |
MZEH12 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02380 |
MZEH12,ZWE211 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-02690 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77210-02691 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77210-02692 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-50008 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-50008 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77213-F4040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77216-F4030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-02130 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77226-02131 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
MZEH12,ZWE211 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02350 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-48020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-20040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-F4090 |
MZEH12,ZWE211 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-02190 |
MZEH12,ZWE211 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-76010 |
MZEH12 |
1 | ||
| Common parts | ||||
| 90119-W0120 | ||||
| 90119-W0322 | ||||
| 90301-07046 | ||||
| 90466-W0006 | ||||
| 90467-12056 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 8401 | ||||
