MZEH12R-DWXNBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999
Engine M20AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )WG

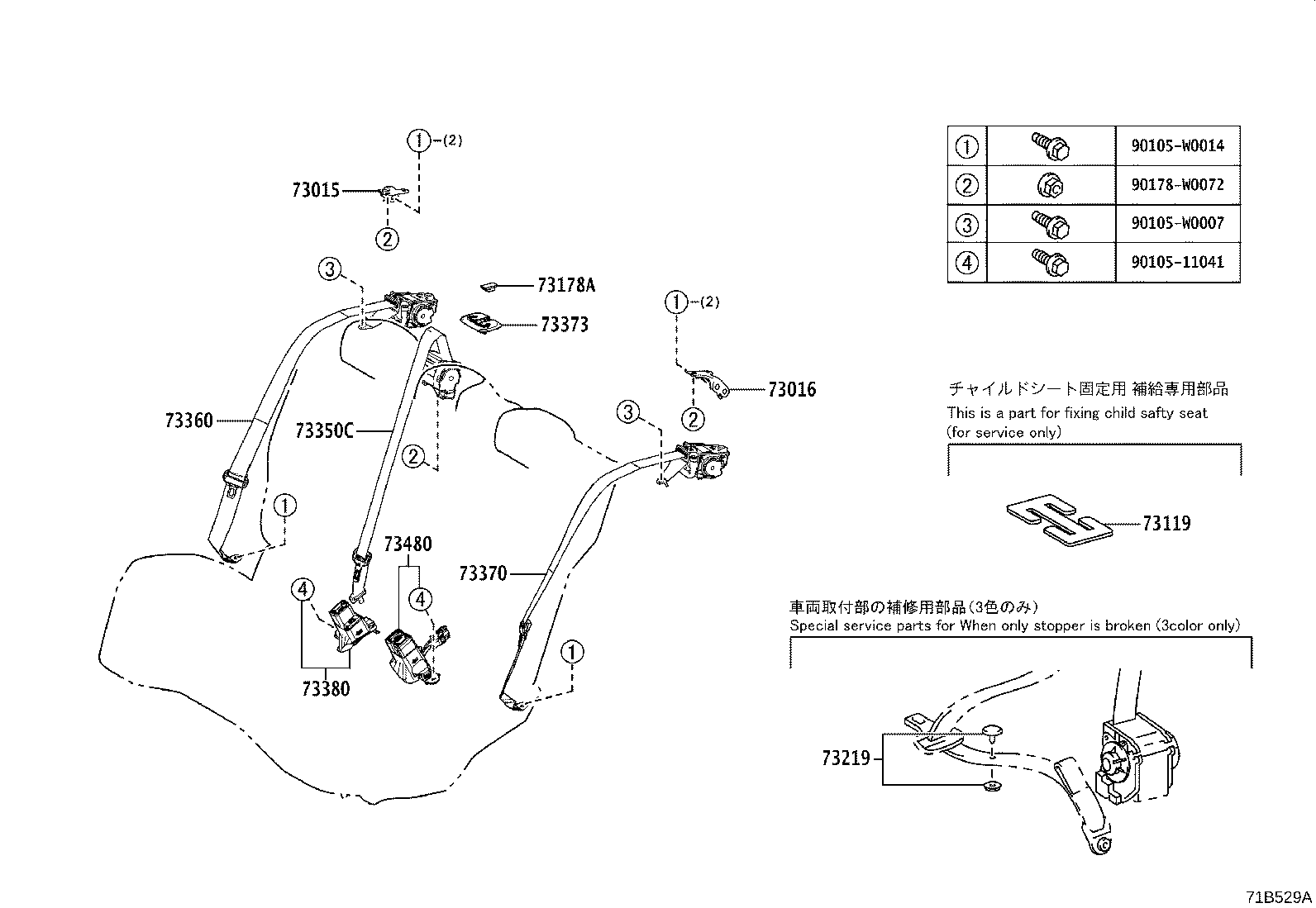

Click highlighted areas on diagram

REAR SEAT BELT

diagram 73015 73016 73119 73178A 73219 73350C 73360 73370 73373 73380 73480 9010511041 90105W0007 90105W0014 90178W0072
Part # Description Qty Price
73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH
73015-02160

MZEH12,NRE210,ZWE211..WG

 1
73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH
73016-02160

MZEH12,NRE210,ZWE211..WG

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

MZEH12,NRE210,ZWE211

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-48010C1

MZEH12,NRE210,ZWE211

BLACK,TRIM1#,2#

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

MZEH12,NRE210,ZWE211

GRAY

 1
73219-33010

MZEH12,NRE210,ZWE211

BLACK

 1
73219-33030

MZEH12,NRE210,ZWE211

BEIGE

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-02250C0

MZEH12,NRE210,ZWE211

BLACK,TRIM1#,2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-02761C0

MZEH12,NRE210,ZWE211..WG

BLACK,TRIM1#,2#

 1
73360-02760C0

MZEH12,NRE210,ZWE211..WG

BLACK,TRIM1#,2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-02251C0

MZEH12,NRE210,ZWE211..WG

BLACK,TRIM1#,2#

 1
73370-02250C0

MZEH12,NRE210,ZWE211..WG

BLACK,TRIM1#,2#

 1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-48080C1

MZEH12,NRE210,ZWE211

BLACK,TRIM1#,2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-02110C0

MZEH12,NRE210,ZWE211

BLACK,TRIM1#,2#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-02620C1

MZEH12,NRE210,ZWE211

BLACK,TRIM1#,2#

 1
Common parts
90105-11041
90105-W0007
90105-W0014
90178-W0072
