MZEH12R-DWXNBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999
Engine M20AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

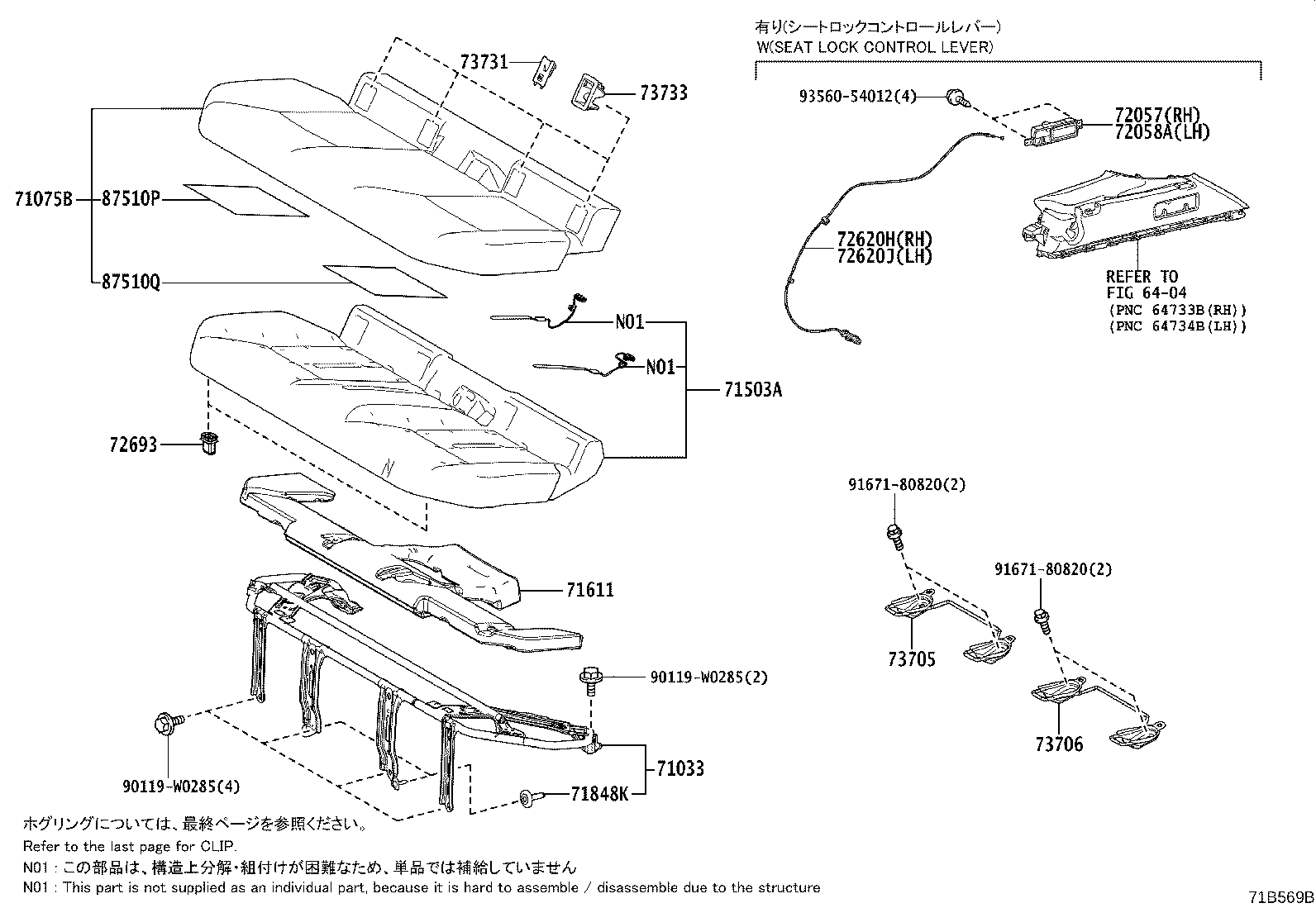

ILLUST NO. 2 OF 3(1902- )MZEH12

Click highlighted areas on diagram

SEAT CUSHION

diagram 6404 71033 71075B 71503A 71611 71848K 72057 72058A 72620H 72620J 72693 73705 73706 73731 73733 87510P 87510Q 90119W0285 90119W0285 9167180820 9167180820 9356054012
Part # Description Qty Price
71033 - LEG SUB-ASSY, REAR SEAT CUSHION
71033-02020

MZEH12

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0Z370B1

MZEH12..G

DARK GRAY/BLACK/DK.ROSE,TRIM2#

 1
71075-YY080

MZEH12..N

SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-YY090

MZEH12..N

SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-YY360

MZEH12..WG..N

SEAT COVER CROSS PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-YY360

MZEH12..WG..N

SEAT COVER CROSS PACKAGE

 1
71075-0Z710B3

MZEH12..G

SEAT COVER MATERIAL-SPORT FABRIC C(HIGH GRAY),GRAY/BLACK/GRAY,TRIM1#

 1
71075-0Z370B1

MZEH12..G

DARK GRAY/BLACK/DK.ROSE,TRIM20

 1
71075-0Z370A0

MZEH12..G

CKD COLOR,TRIM21,22,23

 1
71075-0Z370A0

MZEH12..N

GRS PACKAGE&SEAT COVER MATERIAL-GRS,CKD COLOR,TRIM2#

 1
71075-YY110

MZEH12..N

SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-0Z370A0

MZEH12..N

GRS PACKAGE&SEAT COVER MATERIAL-GRS&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),CKD COLOR,TRIM2#

 1
71075-YY590

MZEH12..G

GRS PACKAGE&SEAT HEATER-WITHOUT

 1
71075-YY590

MZEH12

GRS PACKAGE

 1
71075-YY600

MZEH12

GRS PACKAGE

 1
71075-YY600

MZEH12..N

GRS PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-YY590

MZEH12..N

GRS PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-0Z360C1

MZEH12..N

BLACK/GRAY,TRIM2#

 1
71075-YY240

MZEH12..G

SEAT COVER LEATHER BROWN PACKAGE

 1
71075-YY090

MZEH12..N

SEAT COVER FABRIC RED INSERT PACKAGE

 1
71075-YY080

MZEH12..N

SEAT COVER BROWN FABRIC PACKAGE

 1
71075-YY250

MZEH12..G

SEAT COVER LEATHER RED INSERT PACKAGE

 1
71075-YY260

MZEH12..G

SEAT COVER LEATHER LIGHT PACKAGE

 1
71075-YY110

MZEH12..N

SEAT COVER FABRIC LIGHT PACKAGE

 1
71075-0Z371A0

MZEH12..N

GRS PACKAGE&SEAT COVER MATERIAL-GRS,CKD COLOR,TRIM2#

 1
71075-0Z371A0

MZEH12..G

CKD COLOR,TRIM21

 1
71075-0Z371B1

MZEH12..G

DARK GRAY/BLACK/DK.ROSE,TRIM20

 1
71075-0Z360C2

MZEH12..N

BLACK/COOL GRAY,TRIM1#

 1
71075-0Z371A0

MZEH12..N

GRS PACKAGE&SEAT COVER MATERIAL-GRS&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),CKD COLOR,TRIM2#

 1
71075-YY090

MZEH12..N

SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-YY110

MZEH12..N

SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-YY080

MZEH12..N

SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-YY360

MZEH12..WG..N

SEAT COVER CROSS PACKAGE&CROSS PACKAGE

 1
71075-YY360

MZEH12..WG..N

SEAT COVER CROSS PACKAGE&CROSS PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71075-YY601

MZEH12

GRS PACKAGE

 1
71075-0Z711B3

MZEH12..G

SEAT COVER MATERIAL-SPORT FABRIC C(HIGH GRAY),GRAY/BLACK/GRAY,TRIM1#

 1
71075-YY601

MZEH12..N

GRS PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71503A - PAD SUB-ASSY, REAR SEAT CUSHION
71503-02A20

MZEH12

 1
71611 - PAD, REAR SEAT CUSHION
71611-02230

MZEH12

 1
71848K - CAP, SEAT ADJUSTER COVER
71848-02090

MZEH12,ZWE211

 2
72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
72057-02090C0

MZEH12,NRE210,ZWE211..WG..(G,N)

BLACK,TRIM1#,2#

 1
72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
72058-02090C0

MZEH12,NRE210,ZWE211..WG..(G,N)

BLACK,TRIM1#,2#

 1
72620H - CABLE ASSY, REAR SEAT REMOTE FOLDING, RH
72620-02070

MZEH12,NRE210,ZWE211..WG..(G,N)

 1
72620J - CABLE ASSY, REAR SEAT REMOTE FOLDING, LH
72620-02070

MZEH12,NRE210,ZWE211..WG..(G,N)

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

MZEH12,NRE210,ZWE211

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-02281

MZEH12,NRE210,ZWE211

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-02121

MZEH12,NRE210,ZWE211

 1
73731 - COVER, CHILD RESTRAINT SEAT
73731-02060C0

MZEH12,NRE210,ZWE211

BLACK,TRIM1#,2#

 4
73733 - COVER, CHILD RESTRAINT SEAT BASE
73733-02060C0

MZEH12,NRE210,ZWE211

BLACK,TRIM1#,2#

 4
Common parts
90119-W0285
91671-80820
93560-54012
Linked diagrams
6404
