MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)

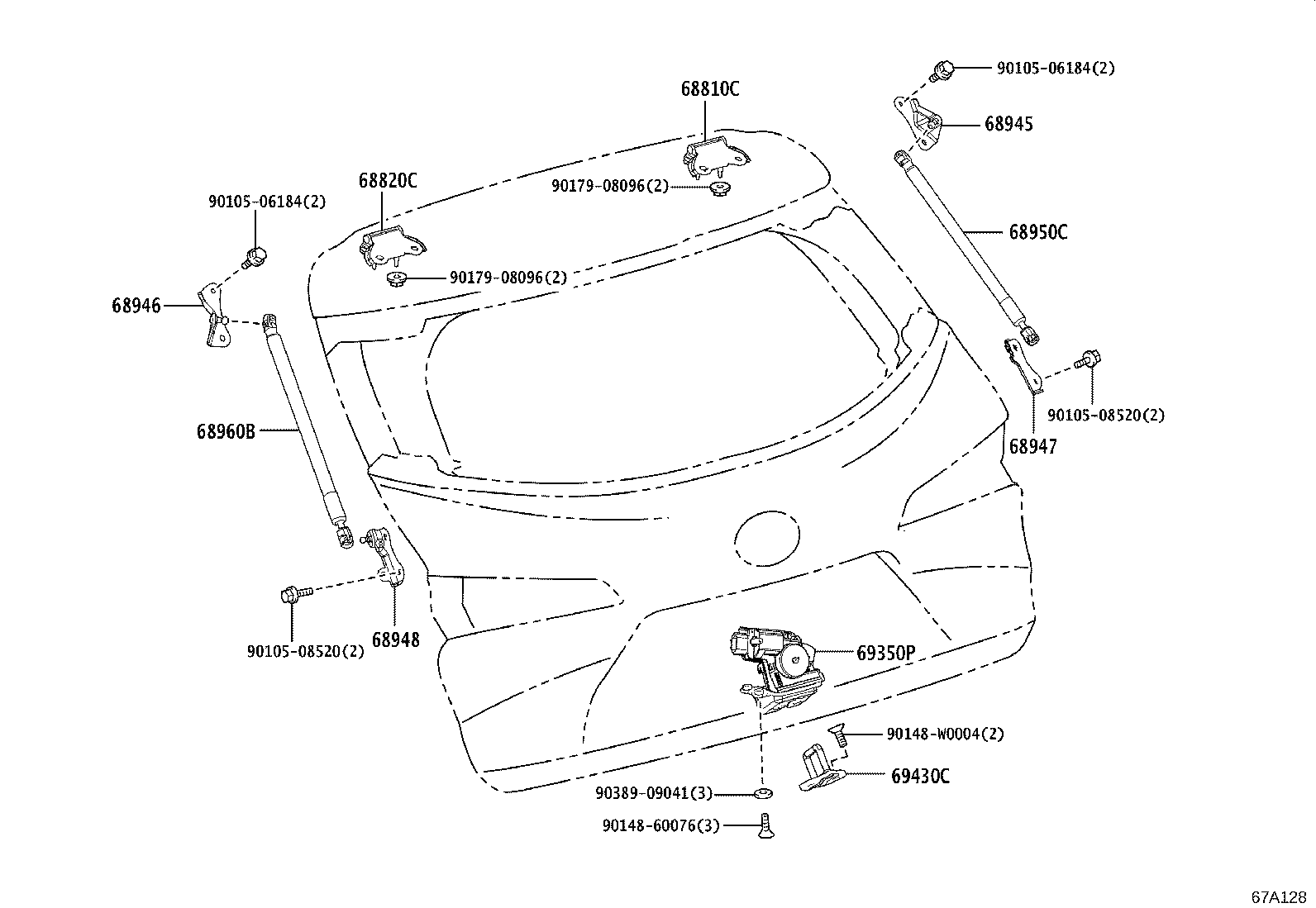

(1902- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-02150 |
MZEH12,NRE210,ZWE211..WG PAD T=1.0 |
1 | ||
| 68810-02160 |
MZEH12,NRE210,ZWE211..WG PAD T=1.5 |
1 | ||
| 68810-02170 |
MZEH12,NRE210,ZWE211..WG PAD T=2.0 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-02060 |
MZEH12,NRE210,ZWE211..WG PAD T=1.5 |
1 | ||
| 68820-02070 |
MZEH12,NRE210,ZWE211..WG PAD T=2.0 |
1 | ||
| 68820-02050 |
MZEH12,NRE210,ZWE211..WG PAD T=1.0 |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-02080 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68945-02080 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68945-02090 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-02060 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68946-02060 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68946-02070 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-02030 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68947-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68947-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-02030 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68948-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68948-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-02220 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68950-02220 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68960B - STAY ASSY, BACK DOOR, LH | ||||
| 68960-02210 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68960-02210 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-12250 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-48030 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90105-08520 | ||||
| 90148-60076 | ||||
| 90148-W0004 | ||||
| 90179-08096 | ||||
| 90389-09041 | ||||

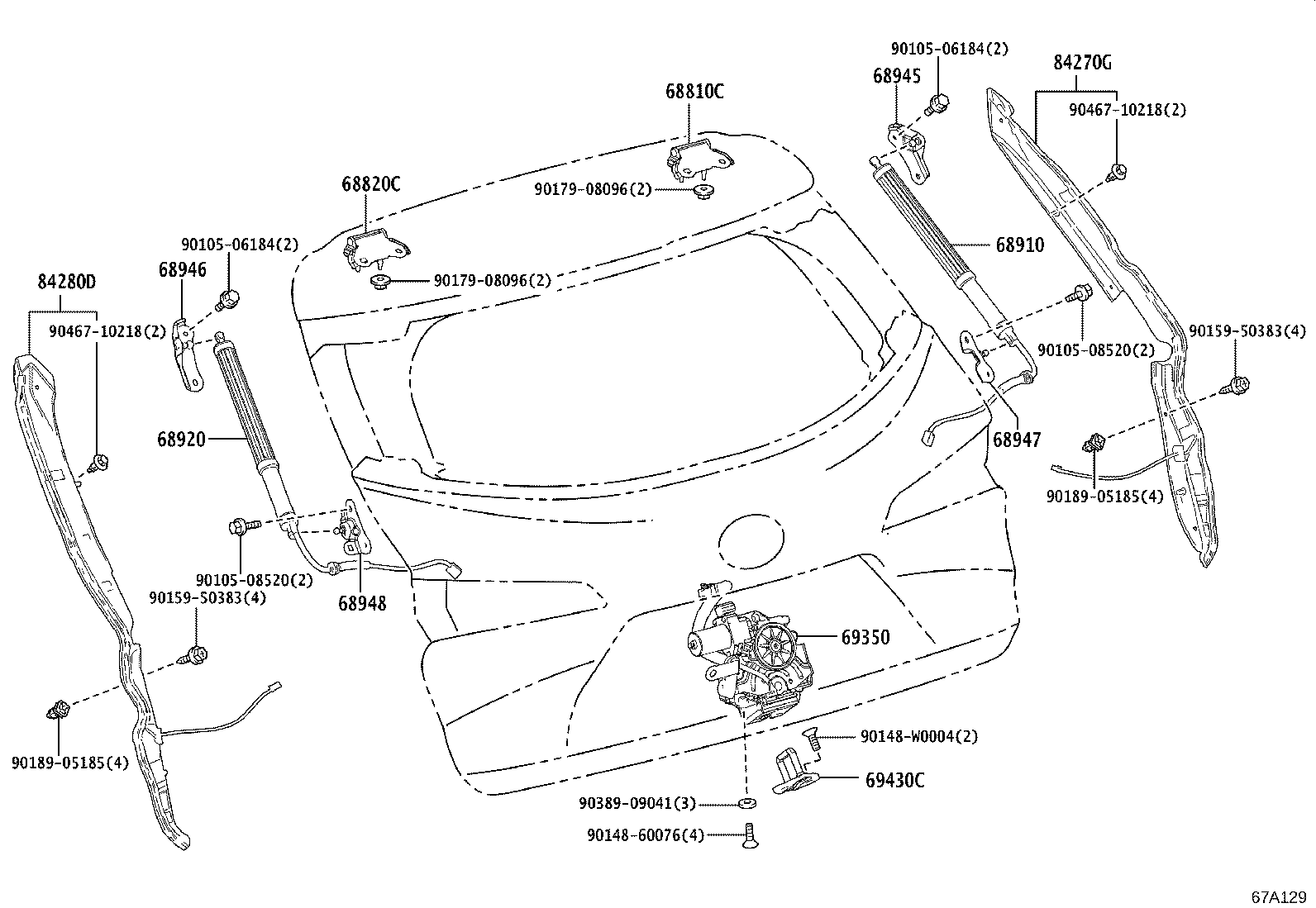

(1902- )WG..G,N
W(POWER BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-02150 |
MZEH12,NRE210,ZWE211..WG PAD T=1.0 |
1 | ||
| 68810-02160 |
MZEH12,NRE210,ZWE211..WG PAD T=1.5 |
1 | ||
| 68810-02170 |
MZEH12,NRE210,ZWE211..WG PAD T=2.0 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-02060 |
MZEH12,NRE210,ZWE211..WG PAD T=1.5 |
1 | ||
| 68820-02070 |
MZEH12,NRE210,ZWE211..WG PAD T=2.0 |
1 | ||
| 68820-02050 |
MZEH12,NRE210,ZWE211..WG PAD T=1.0 |
1 | ||
| 68910 - UNIT ASSY, POWER BACK DOOR | ||||
| 68910-12010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68920 - UNIT ASSY SET, POWER BACK DOOR, LH | ||||
| 68920-12010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-02080 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68945-02080 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68945-02090 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-02060 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68946-02060 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68946-02070 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-02030 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68947-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68947-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-02030 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68948-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 68948-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-12240 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-48030 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-12010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-12010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90105-08520 | ||||
| 90148-60076 | ||||
| 90148-W0004 | ||||
| 90159-50383 | ||||
| 90179-08096 | ||||
| 90189-05185 | ||||
| 90389-09041 | ||||
| 90467-10218 | ||||
