MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)

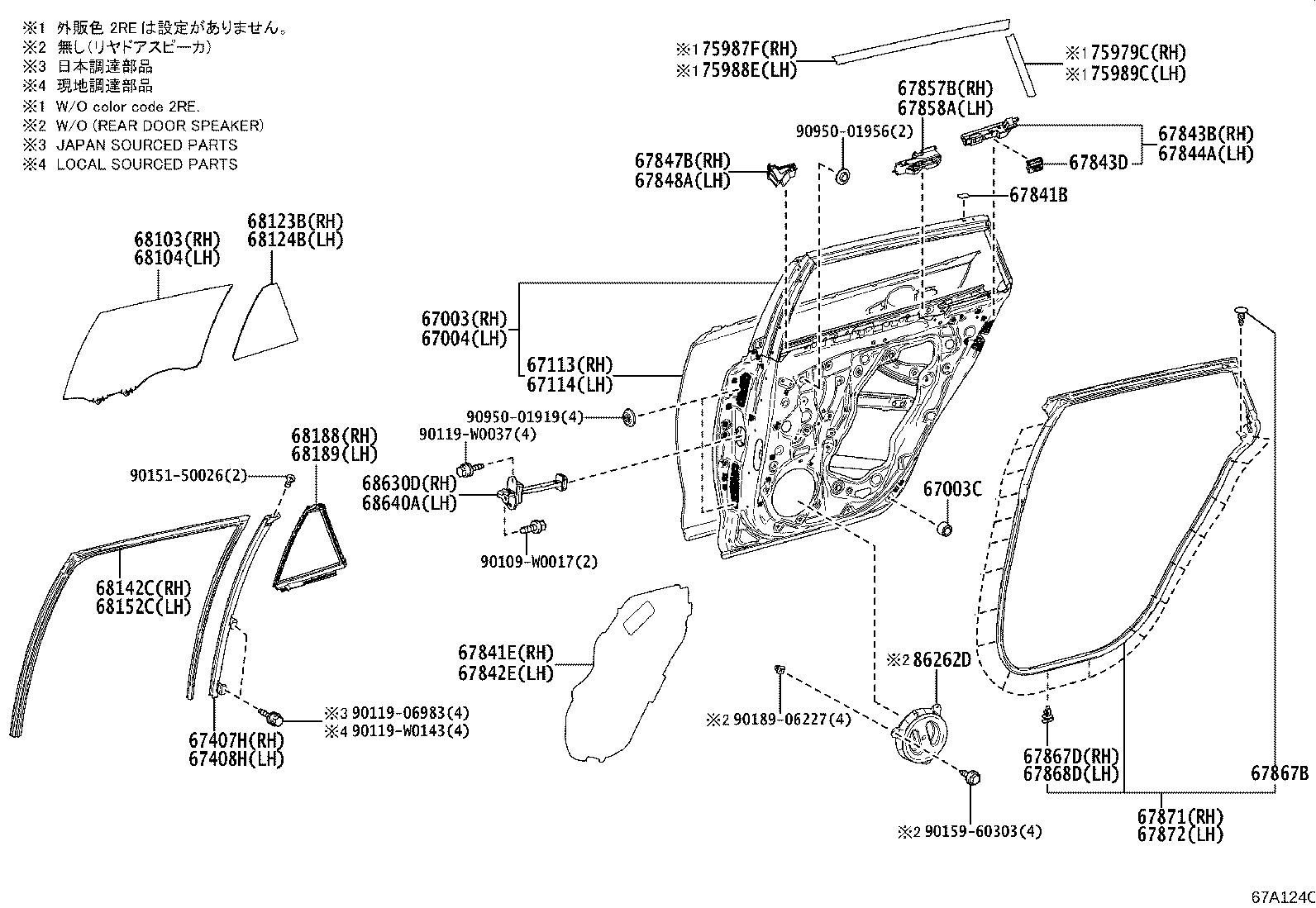

ILLUST NO. 1 OF 2(1902- )WG
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02560 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-02560 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-02310 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-02310 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-12400 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-12400 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-02540 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-02530 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-02490 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-02100 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67843D - CLIP, REAR DOOR SERVICE HOLE | ||||
| 67923-33100 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-02100 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-02100 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-02040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-02120 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67858A - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-02120 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MZEH12,NRE210,ZWE211..WG |
20 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MZEH12,NRE210,ZWE211..WG |
20 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02330 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02330 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-02570 |
MZEH12,NRE210,ZWE211..WG..G REAR SIDE GLASS-GREEN |
1 | ||
| 68103-02601 |
MZEH12,NRE210,ZWE211..WG..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68103-02570 |
MZEH12,NRE210,ZWE211..WG..(D,N) |
1 | ||
| 68103-02600 |
MZEH12,NRE210,ZWE211..WG..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68103-02600 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 68103-02601 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 68103-02571 |
MZEH12,NRE210,ZWE211..WG..G REAR SIDE GLASS-GREEN |
1 | ||
| 68103-02571 |
MZEH12,NRE210,ZWE211..WG..(D,N) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-02570 |
MZEH12,NRE210,ZWE211..WG..(D,N) |
1 | ||
| 68104-02571 |
MZEH12,NRE210,ZWE211..WG..(D,N) |
1 | ||
| 68104-02570 |
MZEH12,NRE210,ZWE211..WG..G REAR SIDE GLASS-GREEN |
1 | ||
| 68104-02600 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 68104-02571 |
MZEH12,NRE210,ZWE211..WG..G REAR SIDE GLASS-GREEN |
1 | ||
| 68104-02601 |
MZEH12,NRE210,ZWE211..WG..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68104-02600 |
MZEH12,NRE210,ZWE211..WG..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68104-02601 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-02520 |
MZEH12,NRE210,ZWE211..WG..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68123-02520 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 68123-02521 |
MZEH12,NRE210,ZWE211..WG..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68123-02491 |
MZEH12,NRE210,ZWE211..WG..G REAR SIDE GLASS-GREEN |
1 | ||
| 68123-02490 |
MZEH12,NRE210,ZWE211..WG..(D,N) |
1 | ||
| 68123-02490 |
MZEH12,NRE210,ZWE211..WG..G REAR SIDE GLASS-GREEN |
1 | ||
| 68123-02491 |
MZEH12,NRE210,ZWE211..WG..(D,N) |
1 | ||
| 68123-02521 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-02490 |
MZEH12,NRE210,ZWE211..WG..G REAR SIDE GLASS-GREEN |
1 | ||
| 68124-02520 |
MZEH12,NRE210,ZWE211..WG..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68124-02520 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 68124-02491 |
MZEH12,NRE210,ZWE211..WG..(D,N) |
1 | ||
| 68124-02490 |
MZEH12,NRE210,ZWE211..WG..(D,N) |
1 | ||
| 68124-02491 |
MZEH12,NRE210,ZWE211..WG..G REAR SIDE GLASS-GREEN |
1 | ||
| 68124-02521 |
MZEH12,NRE210,ZWE211..WG..N REAR SIDE GLASS-PRIVACY |
1 | ||
| 68124-02521 |
MZEH12,NRE210,ZWE211..WG..G |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02360 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-02360 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-02260 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-02260 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-02340 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-02340 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 75979C - STRIPE, REAR DOOR, OUTSIDE UPPER RH | ||||
| 75979-02040 |
MZEH12,NRE210,ZWE211..WG BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75979-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75987-02040 |
MZEH12,NRE210,ZWE211..WG BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-02040 |
MZEH12,NRE210,ZWE211..WG BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75988-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75989C - STRIPE, REAR DOOR, OUTSIDE UPPER LH | ||||
| 75989-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75989-02040 |
MZEH12,NRE210,ZWE211..WG BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| Common parts | ||||
| 90109-W0017 | ||||
| 90119-06983 | ||||
| 90119-W0037 | ||||
| 90119-W0143 | ||||
| 90151-50026 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||

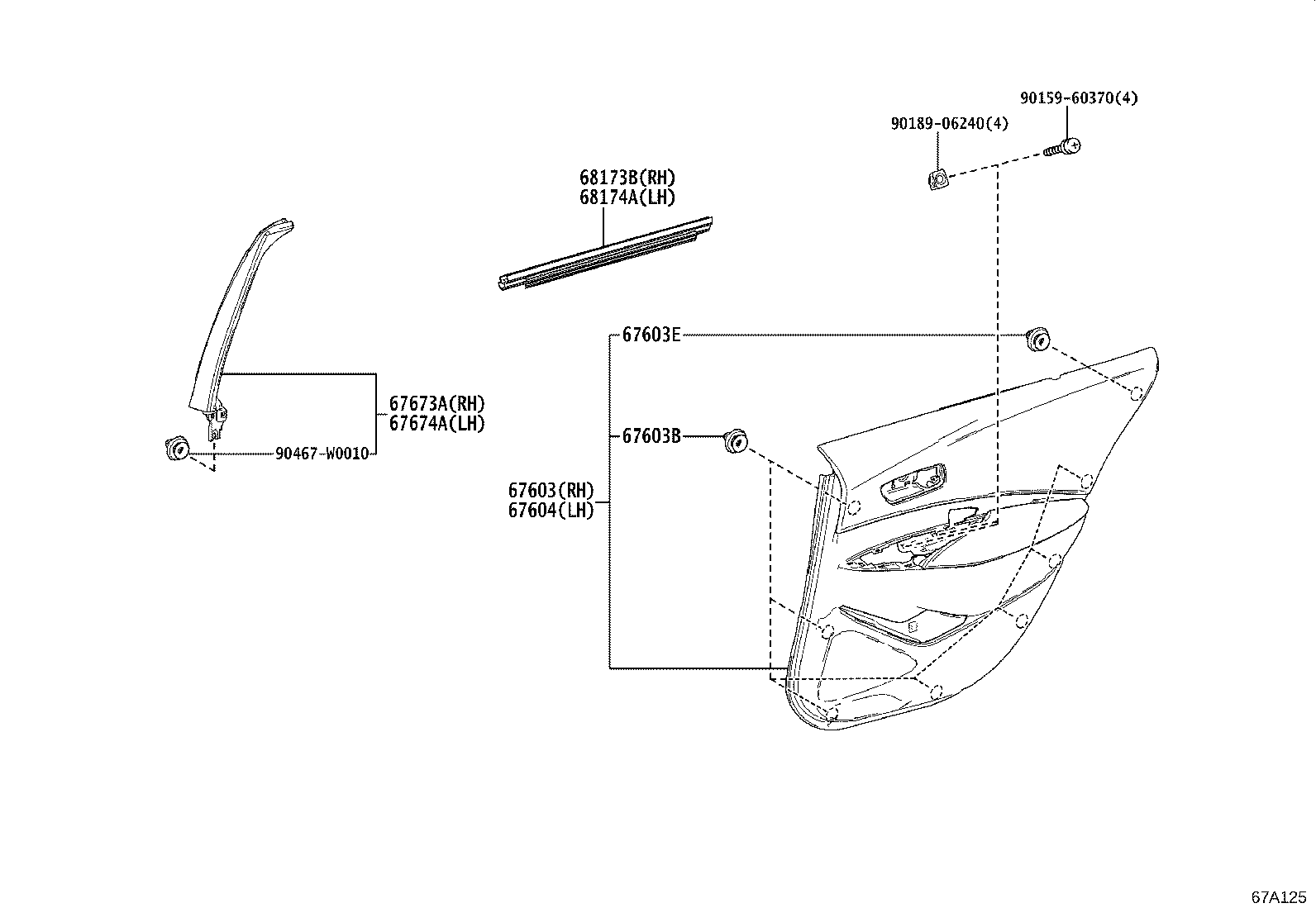

ILLUST NO. 2 OF 2(1902- )WG
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-02Y70C8 |
MZEH12,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67630-02Y60C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/COOL GRAY/BLACK,TRIM1# |
1 | ||
| 67630-02Y60C1 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&DOOR ARM REST-FABRIC&SEAT COVER MATERIAL-SPORTY FABRIC A&SEAT HEATER-WITHOUT,BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67630-02Y60C1 |
MZEH12,NRE210..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67630-02Y70C6 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67630-02Y70C6 |
MZEH12,NRE210,ZWE211..WG..G BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67630-02Y70C7 |
NRE210..LHD..WG..G;MZEH12,ZWE211..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP),BLACK/BLACK/BLACK/DK.ROSE,TRIM20 |
1 | ||
| 67630-02Y70C6 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67630-02Y70C7 |
NRE210..LHD..WG..G;MZEH12,ZWE211..WG..G BLACK/BLACK/BLACK/DK.ROSE,TRIM20 |
1 | ||
| 67630-02Y70C7 |
NRE210..LHD..WG..G;MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/BLACK/BLACK/DK.ROSE,TRIM20 |
1 | ||
| 67630-02Y70C8 |
MZEH12,ZWE211..RHD..WG..G BLACK/BLACK/BLACK/GRAY,TRIM22 |
1 | ||
| 67630-0Z260C0 |
MZEH12,NRE210,ZWE211..WG..N BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67630-02Y70C6 |
MZEH12,NRE210,ZWE211..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP),BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67630-02Y70C8 |
MZEH12,ZWE211..RHD..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/BLACK/BLACK/GRAY,TRIM22 |
1 | ||
| 67630-0Z260C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67630-02Y70C8 |
MZEH12,ZWE211..RHD..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP),BLACK/BLACK/BLACK/GRAY,TRIM22 |
1 | ||
| 67630-0Z260C1 |
MZEH12,NRE210,ZWE211..WG..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK/BLACK,TRIM2# |
1 | ||
| 67630-0Z260C0 |
MZEH12,NRE210,ZWE211..WG..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67630-02Y70C9 |
MZEH12,ZWE211..WG..G BLACK/RED,TRIM20,21 |
1 | ||
| 67630-0Z260C1 |
MZEH12,NRE210,ZWE211..WG..N BLACK/BLACK,TRIM2# |
1 | ||
| 67630-0Z260C1 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK/BLACK,TRIM2# |
1 | ||
| 67630-0Z260C1 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-02Y70C9 |
MZEH12,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/RED,TRIM20,21 |
1 | ||
| 67630-02Y70C8 |
MZEH12,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM20,22,23 |
1 | ||
| 67630-02Y70C9 |
MZEH12,ZWE211..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP),BLACK/RED,TRIM20,21 |
1 | ||
| 67630-0Z260C0 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67630-02Y60C1 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&DOOR ARM REST-FABRIC&SEAT COVER MATERIAL-SPORTY FABRIC A&SEAT HEATER-WITHOUT,BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67630-02Y70C9 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/RED,TRIM20,21 |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
MZEH12,NRE210,ZWE211..WG..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
14 | ||
| 90467-09206 |
MZEH12,NRE210,ZWE211..WG |
14 | ||
| 90467-09206 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A |
14 | ||
| 90467-09206 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
14 | ||
| 90467-09206 |
MZEH12,NRE210,ZWE211..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP) |
14 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09236 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| 90467-09236 |
MZEH12,NRE210,ZWE211..WG..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
2 | ||
| 90467-09236 |
MZEH12,NRE210,ZWE211..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP) |
2 | ||
| 90467-09236 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A |
2 | ||
| 90467-09236 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-02Y50C8 |
MZEH12,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67640-02Y40C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/COOL GRAY/BLACK,TRIM1# |
1 | ||
| 67640-02Y40C1 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&DOOR ARM REST-FABRIC&SEAT COVER MATERIAL-SPORTY FABRIC A&SEAT HEATER-WITHOUT,BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67640-02Y50C7 |
NRE210..LHD..WG..G;MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/BLACK/BLACK/DK.ROSE,TRIM20 |
1 | ||
| 67640-02Y50C6 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67640-02Y50C6 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67640-02Y40C1 |
MZEH12,NRE210..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67640-02Y50C6 |
MZEH12,NRE210,ZWE211..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP),BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67640-02Y50C7 |
NRE210..LHD..WG..G;MZEH12,ZWE211..WG..G BLACK/BLACK/BLACK/DK.ROSE,TRIM20 |
1 | ||
| 67640-02Y50C8 |
MZEH12,ZWE211..RHD..WG..G BLACK/BLACK/BLACK/GRAY,TRIM22 |
1 | ||
| 67640-02Y50C7 |
NRE210..LHD..WG..G;MZEH12,ZWE211..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP),BLACK/BLACK/BLACK/DK.ROSE,TRIM20 |
1 | ||
| 67640-02Y50C8 |
MZEH12,ZWE211..RHD..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/BLACK/BLACK/GRAY,TRIM22 |
1 | ||
| 67640-0Z250C0 |
MZEH12,NRE210,ZWE211..WG..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67640-0Z250C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67640-0Z250C0 |
MZEH12,NRE210,ZWE211..WG..N BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67640-0Z250C1 |
MZEH12,NRE210,ZWE211..WG..N BLACK/BLACK,TRIM2# |
1 | ||
| 67640-02Y50C6 |
MZEH12,NRE210,ZWE211..WG..G BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67640-0Z250C1 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-02Y50C8 |
MZEH12,ZWE211..RHD..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP),BLACK/BLACK/BLACK/GRAY,TRIM22 |
1 | ||
| 67640-0Z250C1 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK/BLACK,TRIM2# |
1 | ||
| 67640-0Z250C0 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67640-0Z250C1 |
MZEH12,NRE210,ZWE211..WG..N LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK/BLACK,TRIM2# |
1 | ||
| 67640-02Y50C9 |
MZEH12,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/RED,TRIM20,21 |
1 | ||
| 67640-02Y50C9 |
MZEH12,ZWE211..WG..G ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP),BLACK/RED,TRIM20,21 |
1 | ||
| 67640-02Y50C8 |
MZEH12,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM20,22,23 |
1 | ||
| 67640-02Y40C1 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&DOOR ARM REST-FABRIC&SEAT COVER MATERIAL-SPORTY FABRIC A&SEAT HEATER-WITHOUT,BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67640-02Y50C9 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK/RED,TRIM20,21 |
1 | ||
| 67640-02Y50C9 |
MZEH12,ZWE211..WG..G BLACK/RED,TRIM20,21 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-02410 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-02350 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06240 | ||||
| 90467-W0010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
