MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)

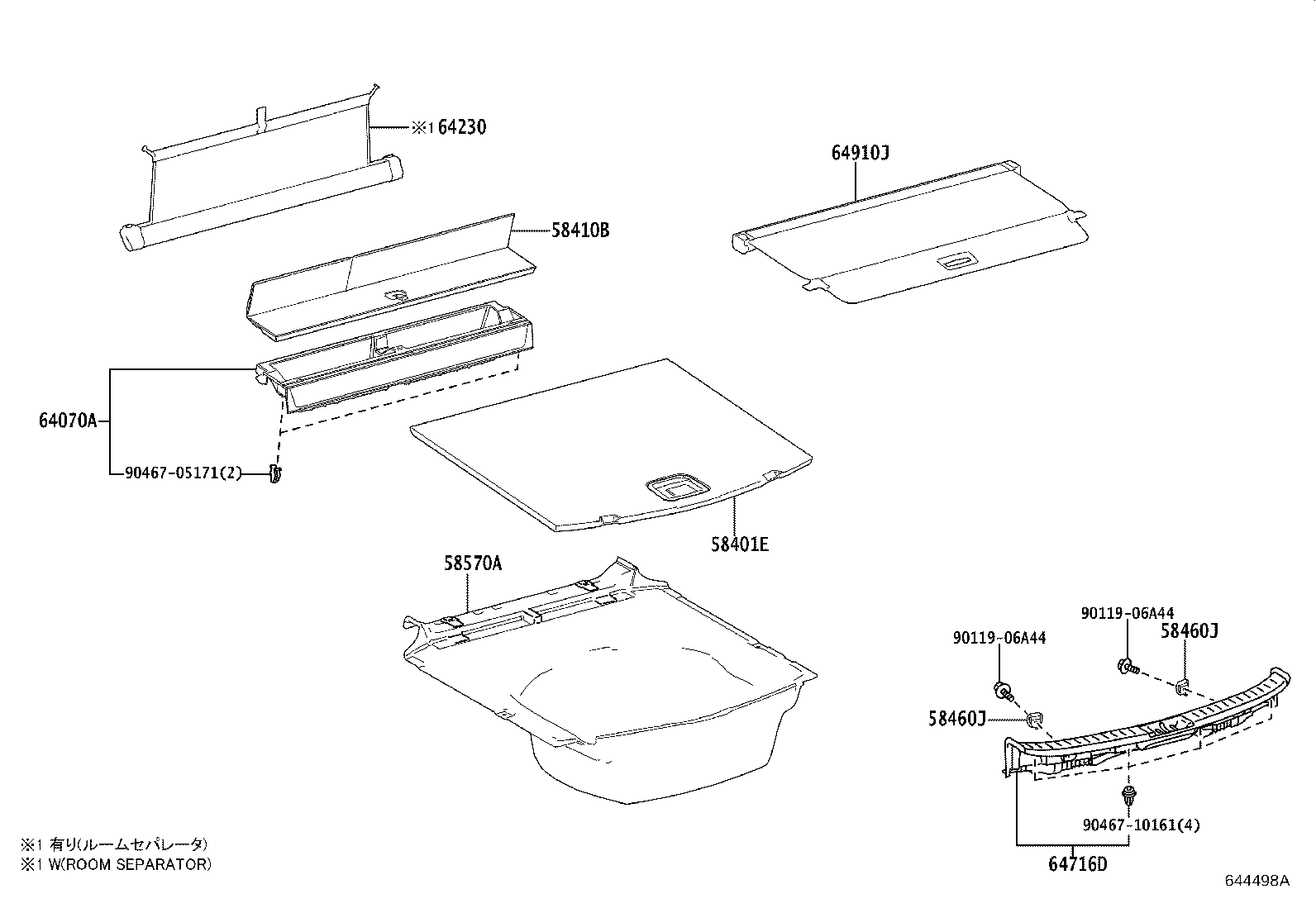

ILLUST NO. 2 OF 2(1902- )WG
W/O SPARE TIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58401-02080C0 |
MZEH12,NRE210,ZWE211..WG..G BLACK,TRIM1#,2# |
1 | ||
| 58401-02050C0 |
MZEH12,NRE210..WG..(D,N) LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,NRE210,ZWE211..WG..N SPARE TIRE-TEMPORARY TIRE(T125/70D17)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,NRE210..WG..N SPARE TIRE-GROUND TIRE&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
ZWE211..LHD..WG..N;MZEH12,NRE210..WG..N SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58401-02050C0 |
MZEH12,NRE210,ZWE211..WG..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,NRE210,ZWE211..WG..N TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-02080C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 58410-02080C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58410-02080C0 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58410-02080C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58410-02081C0 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58410-02081C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 58410-02081C0 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..G,N |
2 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..G,N |
2 | ||
| 58570A - MAT ASSY, REAR FLOOR | ||||
| 58570-02250C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
MZEH12,NRE210..WG SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2# |
1 | ||
| 58570-02250C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
MZEH12,NRE210,ZWE211..WG..N SPARE TIRE-TEMPORARY TIRE(T125/70D17)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
ZWE211..LHD..WG;MZEH12,NRE210..WG SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT),BLACK,TRIM1#,2# |
1 | ||
| 58570-02250C0 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58570-02250C0 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
ZWE211..LHD..WG..N;MZEH12,NRE210..WG..N SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
MZEH12,NRE210..WG..N SPARE TIRE-GROUND TIRE&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
MZEH12,NRE210,ZWE211..WG SPARE TIRE-TEMPORARY TIRE(T125/70D17),BLACK,TRIM1#,2# |
1 | ||
| 64070A - BOX ASSY, DECK FLOOR, FRONT | ||||
| 64070-02030C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 64070-02030C0 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 64070-02030C0 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 64070-02030C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 64230 - NET ASSY, ROOM PARTITION | ||||
| 64230-02020 |
MZEH12,NRE210,ZWE211..WG ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 58387-02350C0 |
MZEH12,NRE210,ZWE211..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64716-02180C0 |
MZEH12,NRE210,ZWE211..WG..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE |
1 | ||
| 64910-02070 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ROOM SEPARATOR-WITH(NET)&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 64910-02060 |
MZEH12,NRE210,ZWE211..WG ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS) |
1 | ||
| 64910-02070 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02070 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&ROOM SEPARATOR-WITH(NET)&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02071 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 64910-02071 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02071 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS) |
1 | ||
| 64910-02071 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02061 |
MZEH12,NRE210,ZWE211..WG ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02070 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02071 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02071 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE |
1 | ||
| 64910-02071 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&ROOM SEPARATOR-WITH(NET)&SEAT HEATER-WITHOUT |
1 | ||
| Common parts | ||||
| 90119-06A44 | ||||
| 90467-05171 | ||||
| 90467-10161 | ||||

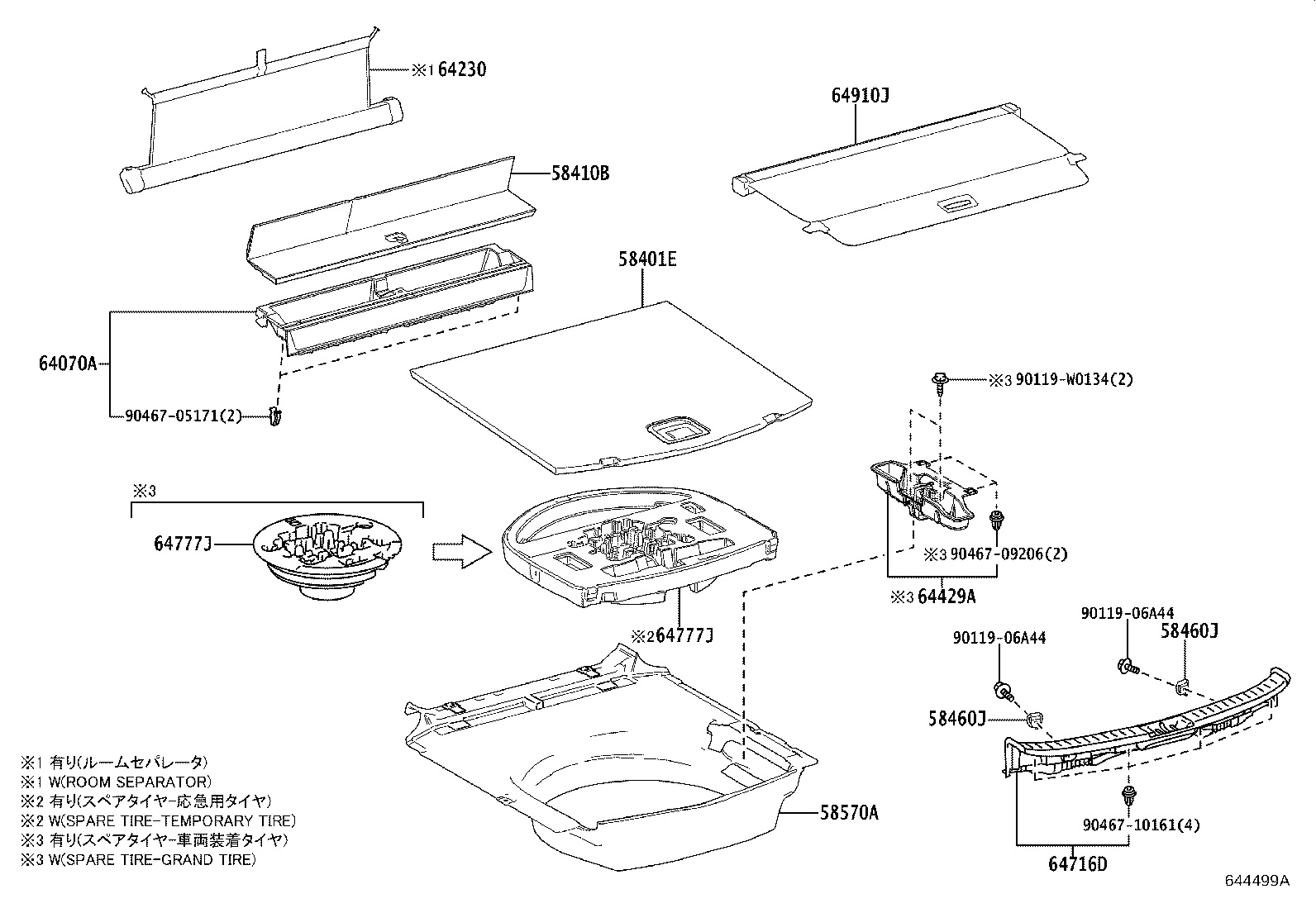

ILLUST NO. 2 OF 2(1902- )WG
W SPARE TIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58401-02080C0 |
MZEH12,NRE210,ZWE211..WG..G BLACK,TRIM1#,2# |
1 | ||
| 58401-02050C0 |
MZEH12,NRE210..WG..(D,N) LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,NRE210,ZWE211..WG..N SPARE TIRE-TEMPORARY TIRE(T125/70D17)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,NRE210..WG..N SPARE TIRE-GROUND TIRE&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
ZWE211..LHD..WG..N;MZEH12,NRE210..WG..N SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58401-02050C0 |
MZEH12,NRE210,ZWE211..WG..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 58401-02080C0 |
MZEH12,NRE210,ZWE211..WG..N TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-02080C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 58410-02080C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58410-02080C0 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58410-02080C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58410-02081C0 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58410-02081C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 58410-02081C0 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..G,N |
2 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..G,N |
2 | ||
| 58570A - MAT ASSY, REAR FLOOR | ||||
| 58570-02250C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
MZEH12,NRE210..WG SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2# |
1 | ||
| 58570-02250C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
MZEH12,NRE210,ZWE211..WG..N SPARE TIRE-TEMPORARY TIRE(T125/70D17)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
ZWE211..LHD..WG;MZEH12,NRE210..WG SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT),BLACK,TRIM1#,2# |
1 | ||
| 58570-02250C0 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 58570-02250C0 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
ZWE211..LHD..WG..N;MZEH12,NRE210..WG..N SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
MZEH12,NRE210..WG..N SPARE TIRE-GROUND TIRE&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL),BLACK,TRIM1#,2# |
1 | ||
| 58570-02260C0 |
MZEH12,NRE210,ZWE211..WG SPARE TIRE-TEMPORARY TIRE(T125/70D17),BLACK,TRIM1#,2# |
1 | ||
| 64070A - BOX ASSY, DECK FLOOR, FRONT | ||||
| 64070-02030C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 64070-02030C0 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 64070-02030C0 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2# |
1 | ||
| 64070-02030C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 64230 - NET ASSY, ROOM PARTITION | ||||
| 64230-02020 |
MZEH12,NRE210,ZWE211..WG ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64429A - BOX, LUGGAGE COMPARTMENT TRIM | ||||
| 64429-02030 |
MZEH12,NRE210..WG..N SPARE TIRE-GROUND TIRE&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL) |
1 | ||
| 64429-02030 |
MZEH12,NRE210..WG SPARE TIRE-GROUND TIRE |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 58387-02350C0 |
MZEH12,NRE210,ZWE211..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64716-02180C0 |
MZEH12,NRE210,ZWE211..WG..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-02400 |
MZEH12,NRE210,ZWE211..WG SPARE TIRE-TEMPORARY TIRE(T125/70D17) |
1 | ||
| 64777-02400 |
ZWE211..LHD..WG;MZEH12,NRE210..WG SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT) |
1 | ||
| 64777-02410 |
MZEH12,NRE210..WG..N SPARE TIRE-GROUND TIRE&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL) |
1 | ||
| 64777-02400 |
ZWE211..LHD..WG..N;MZEH12,NRE210..WG..N SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL) |
1 | ||
| 64777-02400 |
MZEH12,NRE210,ZWE211..WG..N SPARE TIRE-TEMPORARY TIRE(T125/70D17)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL) |
1 | ||
| 64777-02410 |
MZEH12,NRE210..WG SPARE TIRE-GROUND TIRE |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-02400 |
MZEH12,NRE210,ZWE211..WG SPARE TIRE-TEMPORARY TIRE(T125/70D17) |
1 | ||
| 64777-02400 |
ZWE211..LHD..WG;MZEH12,NRE210..WG SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT) |
1 | ||
| 64777-02410 |
MZEH12,NRE210..WG..N SPARE TIRE-GROUND TIRE&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL) |
1 | ||
| 64777-02400 |
ZWE211..LHD..WG..N;MZEH12,NRE210..WG..N SPARE TIRE-TEMPORARY TIRE (WITH REINFORCEMENT)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL) |
1 | ||
| 64777-02400 |
MZEH12,NRE210,ZWE211..WG..N SPARE TIRE-TEMPORARY TIRE(T125/70D17)&TRUNK & DECK CARPET & MAT-ADJUSTABLE DECK BOARD(WITH RAIL) |
1 | ||
| 64777-02410 |
MZEH12,NRE210..WG SPARE TIRE-GROUND TIRE |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE |
1 | ||
| 64910-02070 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ROOM SEPARATOR-WITH(NET)&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 64910-02060 |
MZEH12,NRE210,ZWE211..WG ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS) |
1 | ||
| 64910-02070 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02070 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&ROOM SEPARATOR-WITH(NET)&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02071 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 64910-02071 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02071 |
ZWE211..WG..G;MZEH12,NRE210..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS) |
1 | ||
| 64910-02071 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02061 |
MZEH12,NRE210,ZWE211..WG ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02070 |
MZEH12,ZWE211..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02071 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&SEAT HEATER-WITHOUT |
1 | ||
| 64910-02070 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64910-02071 |
MZEH12,NRE210,ZWE211..WG LIGHT GRADE |
1 | ||
| 64910-02071 |
MZEH12..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&ROOM SEPARATOR-WITH(NET)&SEAT HEATER-WITHOUT |
1 | ||
| Common parts | ||||
| 90119-06A44 | ||||
| 90119-W0134 | ||||
| 90467-05171 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||

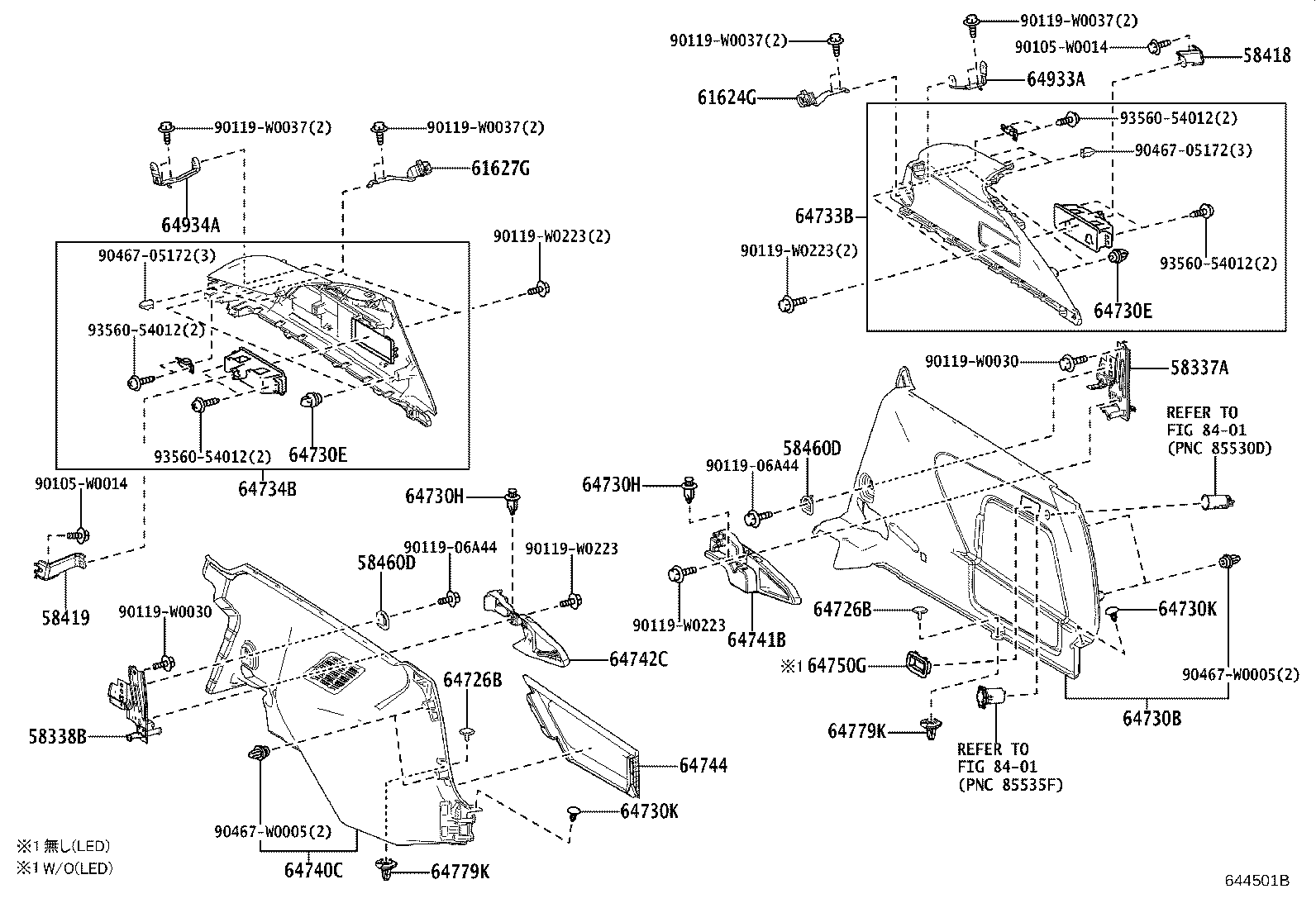

ILLUST NO. 1 OF 2(1902- )MZEH12..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58337A - BRACKET, DECK SIDE TRIM, RH | ||||
| 58337-02050 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58337-02050 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58337-02050 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58337-02050 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58337-02050 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58338B - BRACKET, DECK SIDE TRIM, LH | ||||
| 58338-02040 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58338-02040 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58338-02040 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58338-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58338-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58418 - BRACKET, DECK BOARD, NO.1 | ||||
| 58418-02010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58418-02010 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58418-02010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58418-02010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58418-02010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58419 - BRACKET, DECK BOARD, NO.2 | ||||
| 58419-02010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58419-02010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58419-02010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58419-02010 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58419-02010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..G,N |
2 | ||
| 58460-33020 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 58460-33020 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 58460-33020 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 58460-33020 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..G,N |
2 | ||
| 58460-33020 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 58460-33020 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 58460-33020 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 58460-33020 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 61624G - BRACKET, DECK SIDE TRIM UPPER, RH | ||||
| 61624-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 61624-02040 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 61624-02040 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 61624-02040 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 61624-02040 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 61627G - BRACKET, DECK SIDE TRIM UPPER, LH | ||||
| 61627-02100 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 61627-02100 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 61627-02100 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 61627-02100 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 61627-02100 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
2 | ||
| 64726-26010C2 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-02340C0 |
MZEH12..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64730-02340C0 |
MZEH12..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64730-02340C0 |
MZEH12..WG..N LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64730-02340C0 |
MZEH12..WG..N BLACK,TRIM1#,2# |
1 | ||
| 64730-02340C0 |
MZEH12..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64730-02330C0 |
MZEH12..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64730-02330C0 |
MZEH12..WG..G LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64730-02340C0 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64730-02330C0 |
MZEH12..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM),BLACK,TRIM1#,2# |
1 | ||
| 64730-02330C0 |
MZEH12..WG..G LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64730-02340C0 |
MZEH12..WG..N LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG |
4 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
4 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
4 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
4 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
4 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG |
4 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
4 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
4 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
4 | ||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
4 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK |
2 | ||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK |
2 | ||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG BLACK |
2 | ||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK |
2 | ||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK |
2 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK |
2 | ||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK |
2 | ||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG BLACK |
2 | ||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK |
2 | ||
| 90467-07076C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK |
2 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 90467-W0007 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64733B - BOARD, DECK TRIM SIDE, UPR RH | ||||
| 64733-02120C0 |
MZEH12,NRE210,ZWE211..WG..N BLACK,TRIM1#,2# |
1 | ||
| 64733-02120C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64733-02120C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64733-02100C0 |
MZEH12,NRE210..WG..N LIGHT GRADE,BLACK,TRIM2# |
1 | ||
| 64733-02110C0 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64733-02110C0 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64733-02100C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64733-02110C0 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM),BLACK,TRIM1#,2# |
1 | ||
| 64733-02100C0 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64733-02110C0 |
MZEH12,NRE210,ZWE211..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64733-02120C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64733-02120C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64734B - BOARD, DECK TRIM SIDE, UPPER LH | ||||
| 64734-02150C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64734-02170C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64734-02160C0 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64734-02160C0 |
MZEH12,NRE210,ZWE211..WG..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FR&RR DOOR TRIM),BLACK,TRIM1#,2# |
1 | ||
| 64734-02160C0 |
MZEH12,NRE210,ZWE211..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64734-02160C0 |
MZEH12,NRE210,ZWE211..WG..G LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64734-02150C0 |
MZEH12,NRE210..WG..N LIGHT GRADE,BLACK,TRIM2# |
1 | ||
| 64734-02150C0 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64734-02170C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64734-02170C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64734-02170C0 |
MZEH12,NRE210,ZWE211..WG..N BLACK,TRIM1#,2# |
1 | ||
| 64734-02170C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-02340C0 |
MZEH12..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64740-02340C0 |
MZEH12..WG BLACK,TRIM1#,2# |
1 | ||
| 64740-02340C0 |
MZEH12..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64740-02340C0 |
MZEH12..WG LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64740-02340C0 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64740-02340C0 |
MZEH12..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64740-02340C0 |
MZEH12..WG LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64741B - BOX, DECK SIDE TRIM, RH | ||||
| 64741-02060C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64741-02060C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 64741-02060C0 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64741-02060C0 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64741-02060C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64741-02060C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64741-02060C0 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-02060C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 64742-02060C0 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64742-02060C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64742-02060C0 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64742-02060C0 |
MZEH12,ZWE211..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64742-02060C0 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 64742-02060C0 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64744 - BOARD, DECK TRIM SIDE, LWR LH | ||||
| 64744-02050C0 |
MZEH12..WG..G AUDIO-T1 (8INCH) & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64744-02050C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 64744-02050C0 |
MZEH12..WG..G AUDIO-T2 (8INCH) & NAVI & JBL & 8SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64744-02050C0 |
MZEH12..WG..G AUDIO-T1 (8INCH) & JBL & 8SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64744-02050C0 |
MZEH12..WG..G AUDIO-T2 (8INCH) & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64750G - GARNISH ASSY, DECK SIDE, REAR RH | ||||
| 64750-02010 |
MZEH12..WG..G LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT |
1 | ||
| 64750-02010 |
MZEH12..WG..N |
1 | ||
| 64750-02010 |
MZEH12..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64750-02010 |
MZEH12..WG..N LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64750-02010 |
MZEH12..WG..N LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64750-02010 |
MZEH12..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64750-02010 |
MZEH12..WG..G LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, MAP LAMP)&SEAT HEATER-WITHOUT |
1 | ||
| 64779K - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64779K - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64779-26010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 64933A - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-02020 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64933-02020 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64933-02020 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64933-02020 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64933-02020 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 64934A - BRACKET, TONNEAU COVER HOLDER, LH | ||||
| 64934-02010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64934-02010 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 64934-02010 |
MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64934-02010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 64934-02010 |
MZEH12,NRE210,ZWE211..WG..(G,N) LIGHT GRADE&PAINT PROTECTION FILM-WITHOUT&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| Common parts | ||||
| 90105-W0014 | ||||
| 90119-06A44 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0223 | ||||
| 90467-05172 | ||||
| 90467-W0005 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
