Toyota Corolla (ukp) MZEH12 SIDE MEMBER

MZEH12R-DWXNBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999

Engine M20AFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

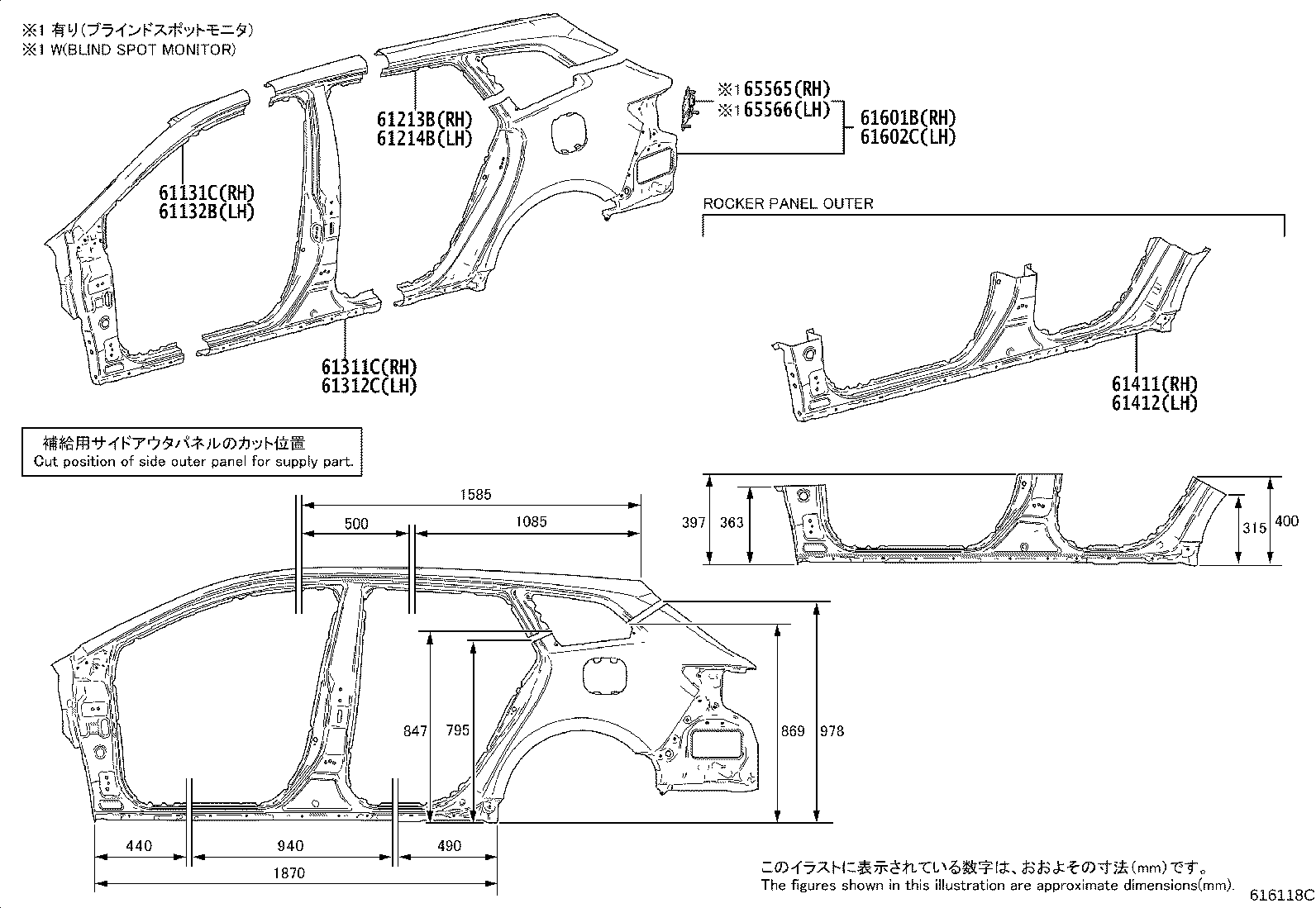

ILLUST NO. 1 OF 2(1902- )WG

Click highlighted areas on diagram

OUTER PANEL

Part #	Description	Period	Qty
61131C - PILLAR, FRONT BODY, OUTER RH
61013-02010	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61132B - PILLAR, FRONT BODY, OUTER LH
61014-02010	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-02240	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61214-02250	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61311C - PANEL, REAR BODY FRONT OUTSIDE, RH
61311-02320	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61312C - PANEL, REAR BODY FRONT OUTSIDE, LH
61312-02350	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61411 - PANEL, ROCKER, OUTER RH
61411-02340	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61412 - PANEL, ROCKER, OUTER LH
61412-02340	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61601B - PANEL SUB-ASSY, QUARTER, RH
61601-02520	MZEH12,NRE210,ZWE211..WG..(G,N) LANE CHANGE ASSIST-WITH(BSM & LANE CHANGE ASSIST & RCTA)	02/2019 - 12/2999	1
61601-02520	MZEH12,NRE210,ZWE211..WG..(G,N) LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)	02/2019 - 12/2999	1
61601-02530	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61602C - PANEL SUB-ASSY, QUARTER, LH
61602-02560	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61602-02550	MZEH12,NRE210,ZWE211..WG..(G,N) LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)	02/2019 - 12/2999	1
61602-02550	MZEH12,NRE210,ZWE211..WG..(G,N) LANE CHANGE ASSIST-WITH(BSM & LANE CHANGE ASSIST & RCTA)	02/2019 - 12/2999	1
65565 - PATCH, SIDE PANEL REAR END, RH
65565-02070	MZEH12,NRE210,ZWE211..G,N LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)	01/2019 - 12/2999	1
65565-02070	MZEH12,NRE210,ZWE211..G,N LANE CHANGE ASSIST-WITH(BSM & LANE CHANGE ASSIST & RCTA)	01/2019 - 12/2999	1
65566 - PATCH, SIDE PANEL REAR END, LH
65565-02070	MZEH12,NRE210,ZWE211..G,N LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)	01/2019 - 12/2999	1
65565-02070	MZEH12,NRE210,ZWE211..G,N LANE CHANGE ASSIST-WITH(BSM & LANE CHANGE ASSIST & RCTA)	01/2019 - 12/2999	1

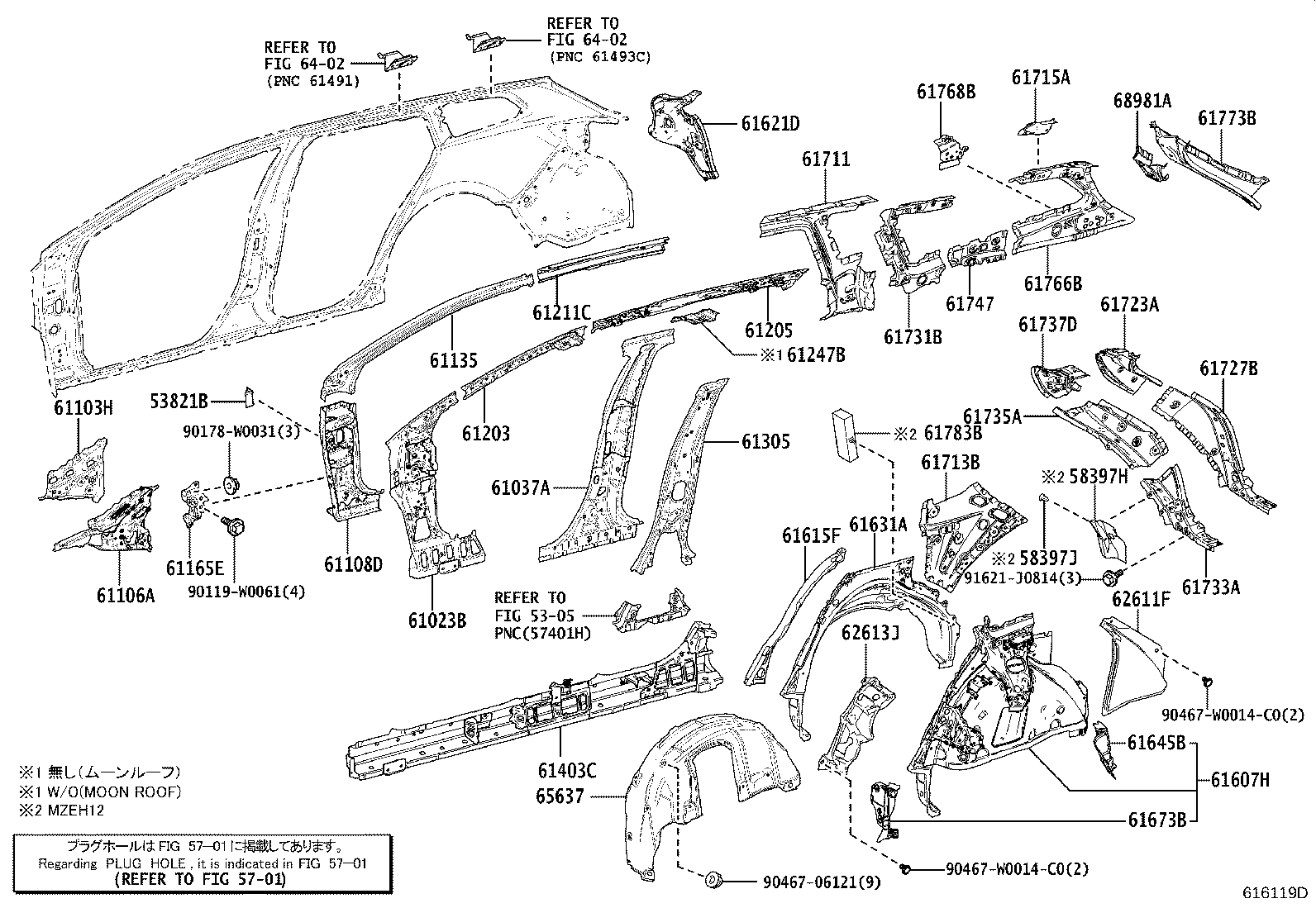

ILLUST NO. 2 OF 2(1902- )WG

Click highlighted areas on diagram

INNER PANEL,RH

Part #	Description	Period	Qty
53821B - BRACKET, FRONT FENDER, REAR RH
53879-02120	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
58397H - COVER, BODY LOWER BACK, RH
58397-02010	MZEH12..WG	02/2019 - 12/2999	1
58397J - CLIP, BODY LOWER BACK COVER
90467-W0014C0	MZEH12..WG BLACK	02/2019 - 12/2999	2
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-02360	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-02330	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61103H - PANEL SUB-ASSY, SIDE, NO.2 RH
61113-02020	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61106-02040	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61108-02310	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61135-02260	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61165E - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61165-02010	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-02190	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61205-02040	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61211C - RAIL, ROOF SIDE, RH
61211-02220	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH
61247-02220	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61305-02200	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-02903	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61607-02800	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61615F - REINFORCEMENT, QUARTER PANEL, OUTER RH
61615-02210	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61621D - TROUGH, BACK DOOR OPENING, RH
61621-02290	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-02260	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-02120	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61673B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61673-02120	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-02180	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61713B - REINFORCE, ROOF SIDE, OUTER RH
61713-02080	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61715A - EXTENSION, ROOF SIDE, INNER UPPER RH
61715-02150	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61723A - REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61723-02020	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61727B - EXTENSION, QUARTER PANEL REINFORCEMENT, RH
61727-02020	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61731B - PANEL, ROOF SIDE, INNER RH
61731-02360	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-02050	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-02260	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61737D - REINFORCEMENT, ROOF SIDE, INNER RH
61737-02130	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-02080	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61766-02090	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61768-02050	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH
61773-02040	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-02010	MZEH12..WG	02/2019 - 12/2999	1
62611F - INSULATOR, QUARTER WHEEL HOUSE, RH
62611-02020	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
62613J - INSURATOR, QUARTER WHEEL HOUSE, NO.2 RH
62613-02010	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-02180	MZEH12..WG;ZWE211..WG..G	02/2019 - 12/2999	1
68981A - RETAINER, BACK DOOR STAY, RH
68981-02080	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
Common parts
90119-W0061
90178-W0031
90467-06121
90467-W0014C0
91621-J0814
Linked diagrams
5305
5701
6402

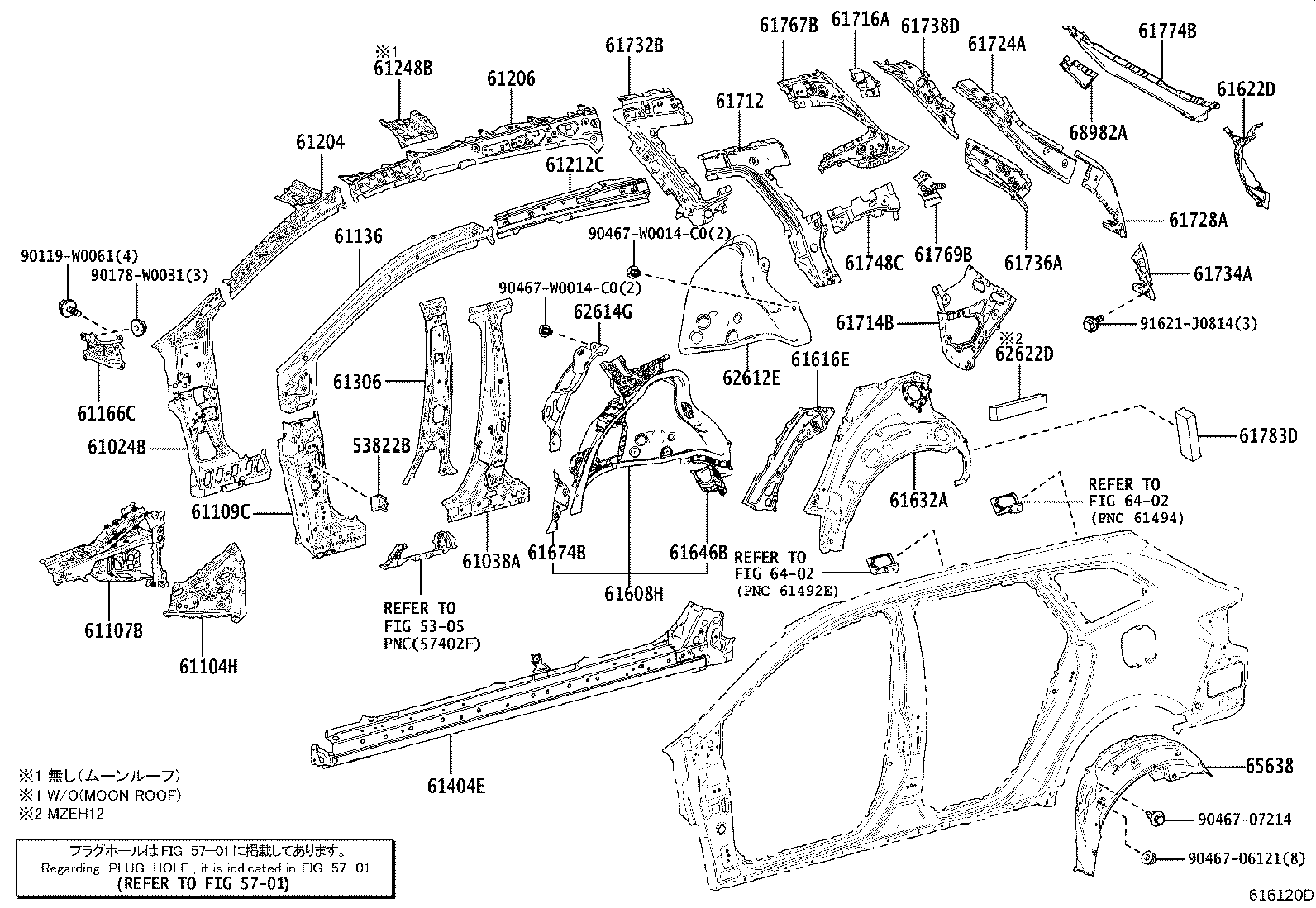

ILLUST NO. 2 OF 2(1902- )WG

Click highlighted areas on diagram

INNER PANEL,LH

Part #	Description	Period	Qty
53822B - BRACKET, FRONT FENDER, REAR LH
53879-02120	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-02340	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-02330	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61104H - PANEL SUB-ASSY, SIDE, NO.2 LH
61114-02020	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61107-02030	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61109-02330	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61136-02270	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61166C - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61166-02010	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-02210	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH
61206-02040	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61212C - RAIL, ROOF SIDE, LH
61212-02220	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH
61248-02080	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61306-02200	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-02905	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH
61608-02720	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61616E - REINFORCEMENT, QUARTER PANEL, OUTER LH
61616-02220	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61622D - TROUGH, BACK DOOR OPENING, LH
61622-02290	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-02290	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-02110	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61674B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
61674-02150	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-02180	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61714B - REINFORCE, ROOF SIDE, OUTER LH
61714-02080	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61716A - EXTENSION, ROOF SIDE, INNER UPPER LH
61716-02100	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61724A - REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1
61724-02020	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61728A - EXTENSION, QUARTER PANEL REINFORCEMENT, LH
61728-02020	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61732B - PANEL, ROOF SIDE, INNER LH
61732-02360	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-02050	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-02260	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61738D - REINFORCEMENT, ROOF SIDE, INNER LH
61738-02120	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-02080	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61767-02070	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61769-02040	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH
61774-02040	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
61783D - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-02010	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
62612E - INSULATOR, QUARTER WHEEL HOUSE, LH
62612-02020	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
62614G - INSURATOR, QUARTER WHEEL HOUSE, NO.2 LH
62614-02010	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
62622D - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62622-02010	MZEH12..WG	02/2019 - 12/2999	1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-02180	MZEH12..WG;ZWE211..WG..G	02/2019 - 12/2999	1
68982A - RETAINER, BACK DOOR STAY, LH
68982-02080	MZEH12,NRE210,ZWE211..WG	02/2019 - 12/2999	1
Common parts
90119-W0061
90178-W0031
90467-06121
90467-07214
90467-W0014C0
91621-J0814
Linked diagrams
5305
5701
6402
