MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)
(1902- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023A - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-02091 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57023-02090 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57024A - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-02101 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57024-02100 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-02100 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-02110 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57035 - PANEL SUB-ASSY, FRONT STEP, RH | ||||
| 57035-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57036 - PANEL SUB-ASSY, FRONT STEP, LH | ||||
| 57036-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57077 - BOX SUB-ASSY, TORQUE, FRONT RH | ||||
| 57077-02030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57078A - BOX SUB-ASSY, TORQUE, FRONT LH | ||||
| 57078-02040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-02927 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-02944 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH | ||||
| 57107-02100 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH | ||||
| 57108-02100 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57111D - MEMBER, FRONT SIDE, INNER RH | ||||
| 57111-02210 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57112E - MEMBER, FRONT SIDE, INNER LH | ||||
| 57112-02180 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57123 - SUPPORT, FRONT SIDE MEMBER, RH | ||||
| 57123-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57124 - SUPPORT, FRONT SIDE MEMBER, LH | ||||
| 57124-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57203A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57203-02030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57204A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57204-02030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-02360 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-02370 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-02941 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-02943 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-02210 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-02110 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-02310 |
MZEH12,ZWE211 |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-02020 |
MZEH12,ZWE211 |
1 | ||
| 57617E - PLATE, REAR FLOOR SIDE MEMBER SUB | ||||
| 57617-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57617F - PLATE, REAR FLOOR SIDE MEMBER SUB | ||||
| 57617-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57633A - EXTENSION, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57633-02060 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57633B - EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57633-02100 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57633-02060 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57653A - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-02190 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90105-W0043 | ||||
| 91552-81030 | ||||

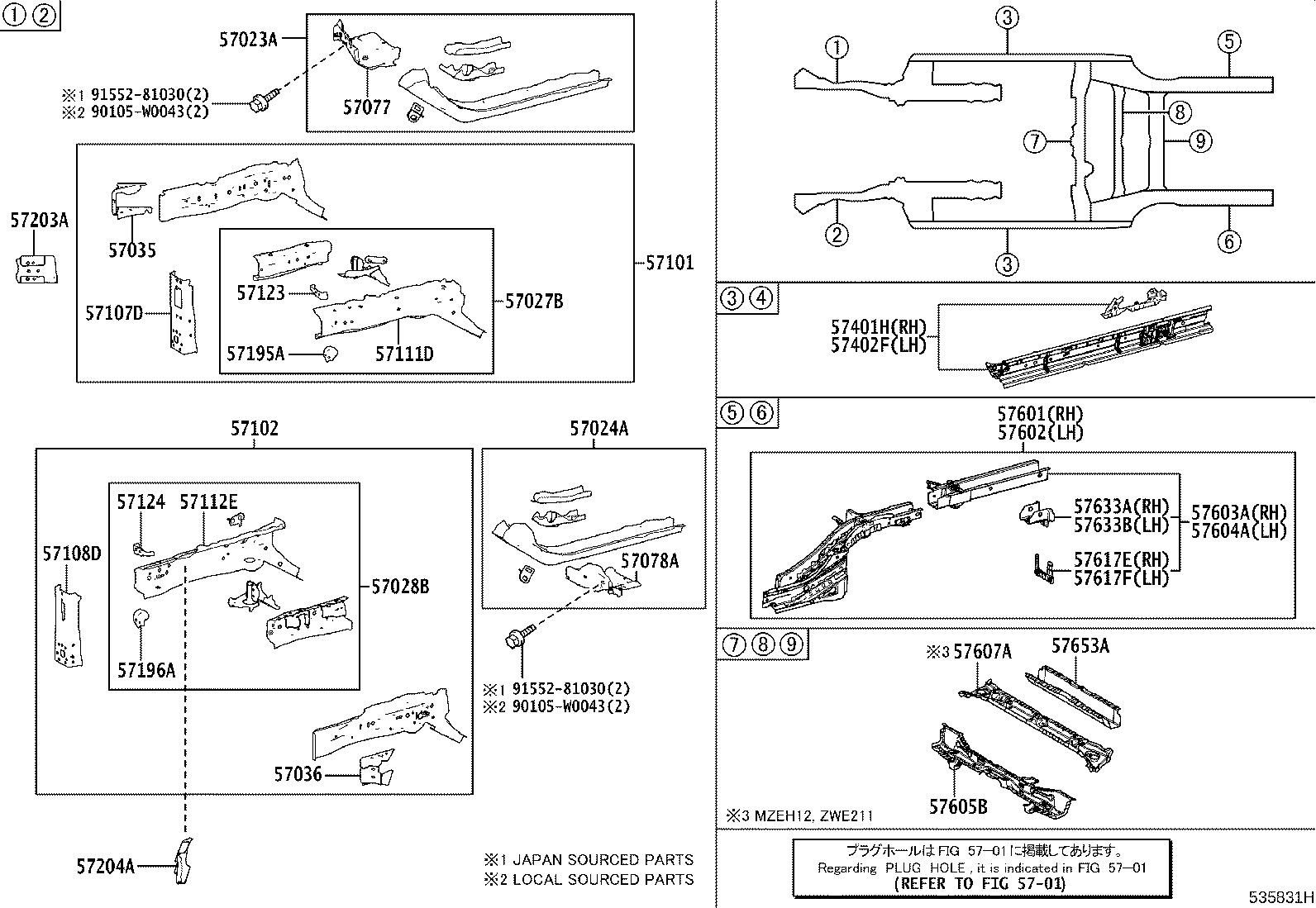

| Linked diagrams | ||||
| 5701 | ||||
