Toyota Corolla (ukp) MZEH12 HOOD LOCK & HINGE

MZEH12R-DWXNBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999

Engine M20AFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

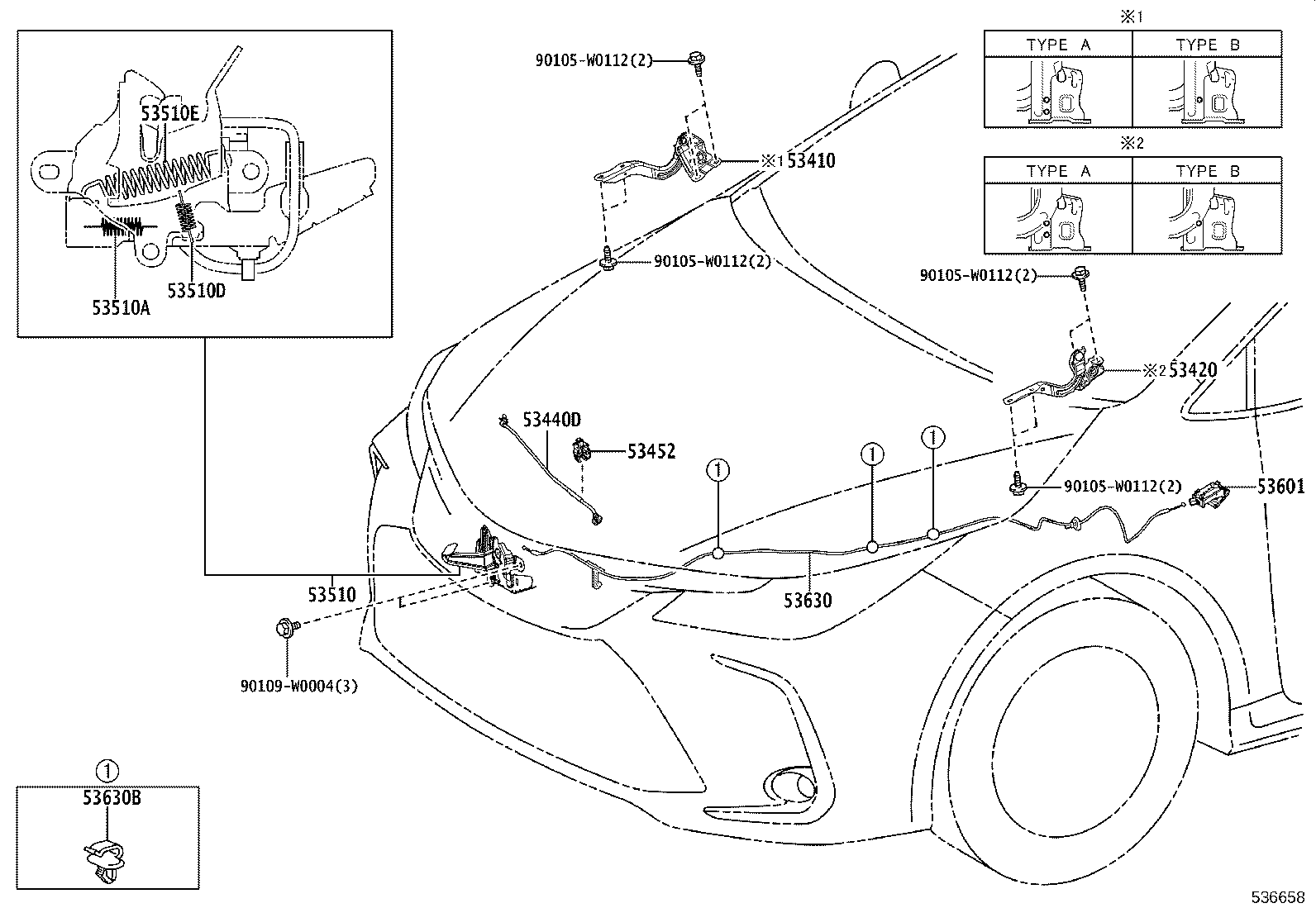

Click highlighted areas on diagram

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-02540	MZEH12,NRE210,ZWE211 TYPE A:REFER ILLUST.	01/2019 - 12/2999	1
53410-02550	MZEH12,NRE210,ZWE211 TYPE B:REFER ILLUST.	01/2019 - 12/2999	1
53420 - HINGE ASSY, HOOD, LH
53420-02550	MZEH12,NRE210,ZWE211 TYPE B:REFER ILLUST.	01/2019 - 12/2999	1
53420-02540	MZEH12,NRE210,ZWE211 TYPE A:REFER ILLUST.	01/2019 - 12/2999	1
53440D - SUPPORT ASSY, HOOD
53440-02280	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
53452 - HOLDER, HOOD STAY
53452-02330	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	1
53510 - LOCK ASSY, HOOD
53510-02820	MZEH12,NRE210,ZWE211..RHD	01/2019 - 12/2999	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-W0010	MZEH12,NRE210,ZWE211 WD=0.9,CW=20.75	01/2019 - 12/2999	1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-W0009	MZEH12,NRE210,ZWE211 WD=1.2,CW=8.5	01/2019 - 12/2999	1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-W0008	MZEH12,NRE210,ZWE211 WD=1.6,CW=12	01/2019 - 12/2999	1
53577 - BOLT, HOOD LOCK
53577-33010	MZEH12,NRE210,ZWE211	01/2019 - 03/2020	1
53579 - CAP, HOOD LOCK NUT
53579-50010	MZEH12,NRE210,ZWE211	01/2019 - 03/2020	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-F4020C0	MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2#	01/2019 - 12/2999	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-02450	MZEH12,NRE210,ZWE211..RHD	01/2019 - 12/2999	1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005	MZEH12,NRE210,ZWE211	01/2019 - 12/2999	3
Common parts
90105-W0112
90109-W0004
