MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)

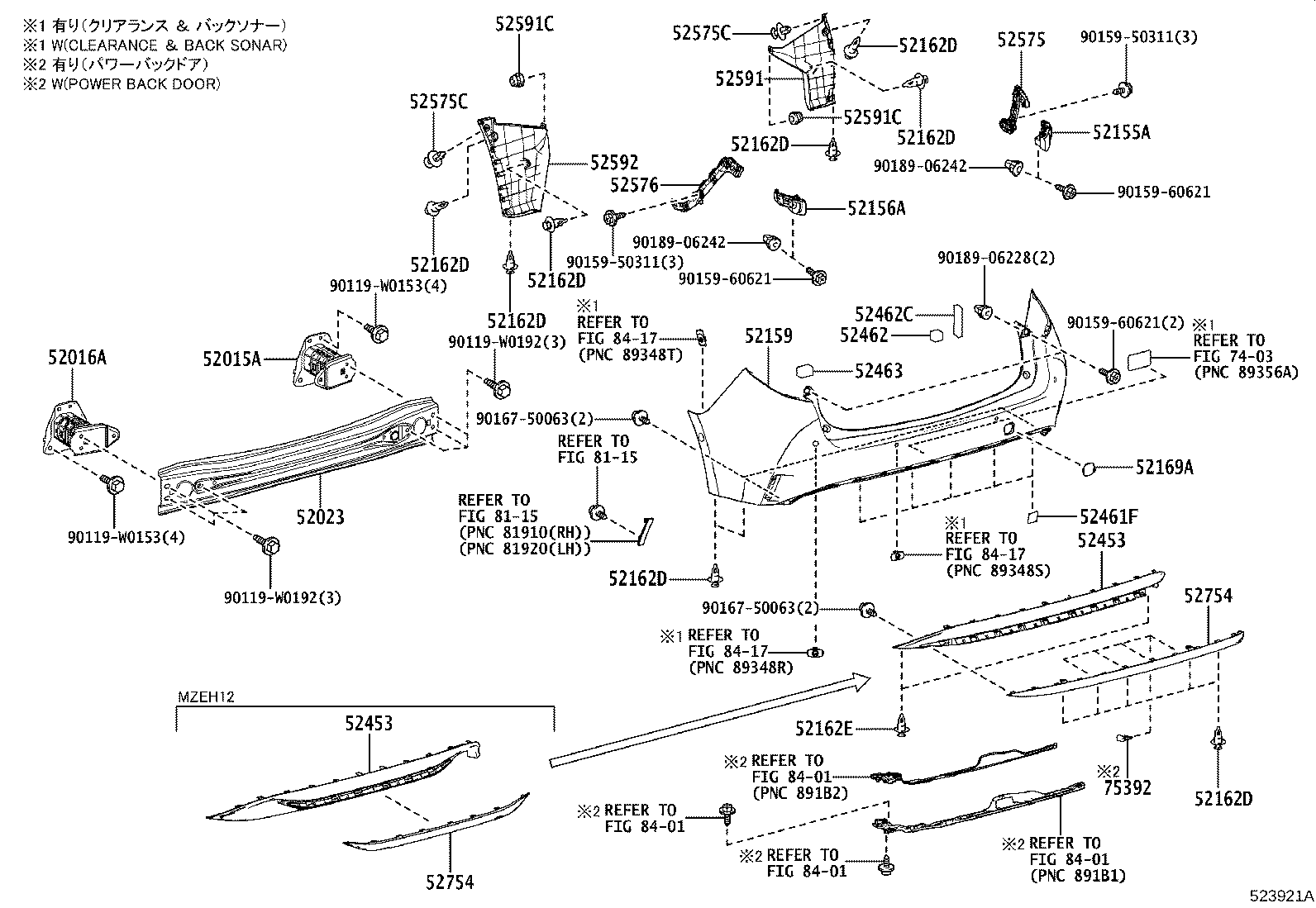

(1902- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-02170 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52015-02171 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-02151 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52016-02150 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-02280 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-02150 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-02140 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0Z947 |
MZEH12,ZWE211..WG..N PAINT REQ.,GRS PACKAGE&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52159-0Z948 |
MZEH12,ZWE211..WG..G PAINT REQ.,GRS PACKAGE&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-0Z947 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52159-0Z947 |
MZEH12,ZWE211..WG..N PAINT REQ.,GRS PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..G PAINT REQ.,LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..G PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-0Z948 |
MZEH12,ZWE211..WG..G PAINT REQ.,GRS PACKAGE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-0Z956 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CROSS PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..(D,N) PAINT REQ. |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 52159-0Z947 |
MZEH12,NRE210,ZWE211..WG..G PAINT REQ. |
1 | ||
| 52159-0Z947 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52159-0Z956 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CROSS PACKAGE&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| 52169A - SUPPORT, REAR BUMPER SIDE, NO.3 | ||||
| 52169-02900 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-02210 |
MZEH12..WG |
1 | ||
| 52453-02902 |
MZEH12..WG |
1 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-02210 |
MZEH12..WG |
1 | ||
| 52453-02902 |
MZEH12..WG |
1 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-02190 |
MZEH12,NRE210,ZWE211..WG |
5 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-02250 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52462C - PAD, REAR BUMPER, RH | ||||
| 52462-02300 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-02370 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-02200 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52575-02201 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-05170 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-05170 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-02200 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52576-02201 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-02400 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-06206C0 |
MZEH12,NRE210,ZWE211..WG BLACK |
2 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-06206C0 |
MZEH12,NRE210,ZWE211..WG BLACK |
2 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-02370 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52754 - MOULDING, REAR BUMPER, NO.2 | ||||
| 52754-02901 |
MZEH12..WG |
1 | ||
| 52754 - MOULDING, REAR BUMPER, NO.2 | ||||
| 52754-02901 |
MZEH12..WG |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZEH12,NRE210,ZWE211..WG..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
4 | ||
| 75392-35220 |
MZEH12,NRE210,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
4 | ||
| Common parts | ||||
| 90119-W0153 | ||||
| 90119-W0192 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90189-06228 | ||||
| 90189-06242 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8115 | ||||
| 8401 | ||||
| 8417 | ||||

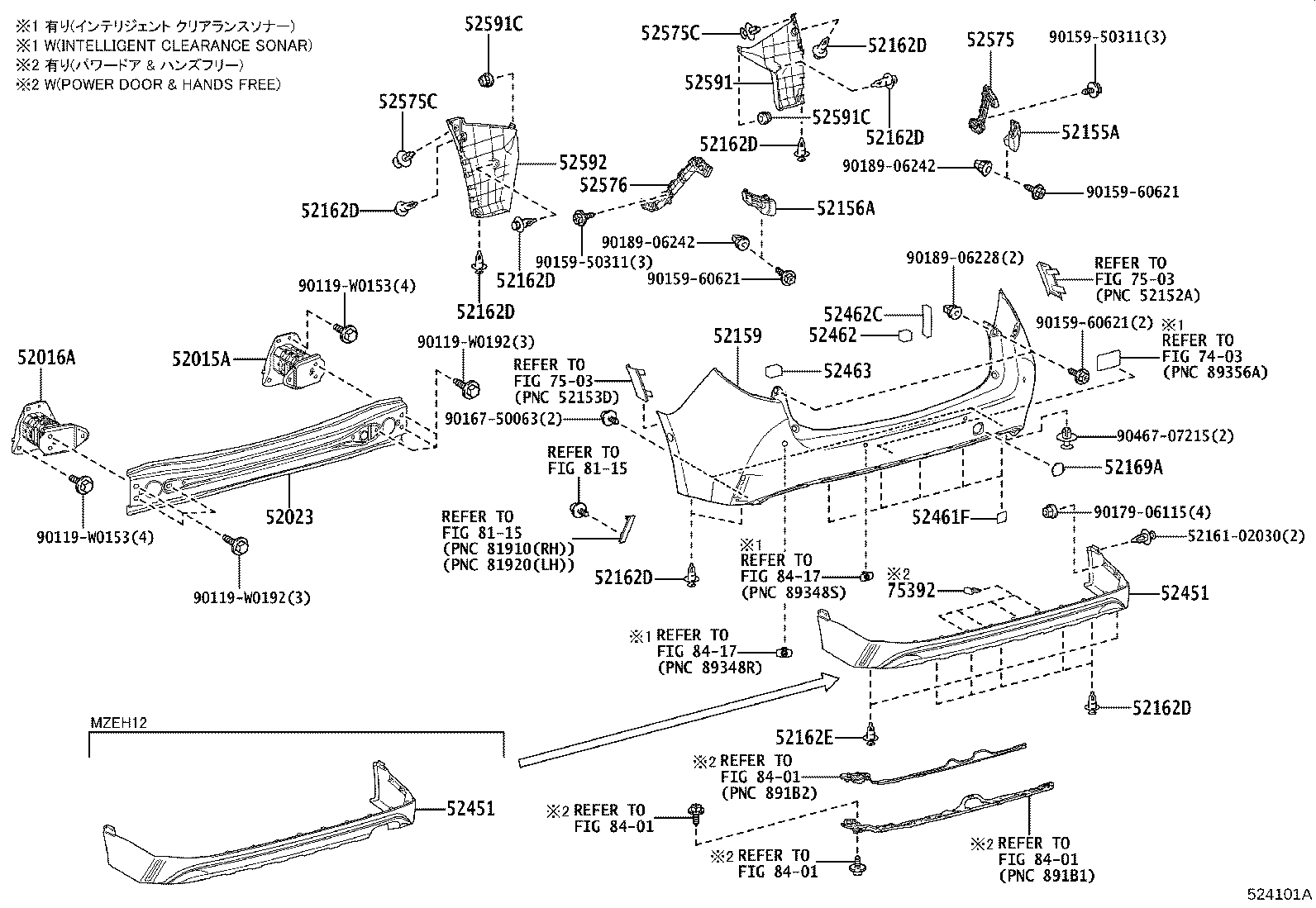

(1907- )WG..N
CROSS PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-02170 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52015-02171 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-02151 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52016-02150 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-02280 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-02150 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-02140 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0Z947 |
MZEH12,ZWE211..WG..N PAINT REQ.,GRS PACKAGE&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52159-0Z948 |
MZEH12,ZWE211..WG..G PAINT REQ.,GRS PACKAGE&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-0Z947 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52159-0Z947 |
MZEH12,ZWE211..WG..N PAINT REQ.,GRS PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..G PAINT REQ.,LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..G PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-0Z948 |
MZEH12,ZWE211..WG..G PAINT REQ.,GRS PACKAGE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-0Z956 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CROSS PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..(D,N) PAINT REQ. |
1 | ||
| 52159-0Z948 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
1 | ||
| 52159-0Z947 |
MZEH12,NRE210,ZWE211..WG..G PAINT REQ. |
1 | ||
| 52159-0Z947 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52159-0Z956 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CROSS PACKAGE&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
13 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| 52169A - SUPPORT, REAR BUMPER SIDE, NO.3 | ||||
| 52169-02900 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52451 - GUARD, REAR BUMPER | ||||
| 52451-YY020 |
MZEH12..WG..N CROSS PACKAGE |
1 | ||
| 52451 - GUARD, REAR BUMPER | ||||
| 52451-YY020 |
MZEH12..WG..N CROSS PACKAGE |
1 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-02190 |
MZEH12,NRE210,ZWE211..WG |
5 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-02250 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52462C - PAD, REAR BUMPER, RH | ||||
| 52462-02300 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-02370 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-02200 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52575-02201 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-05170 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-05170 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-02200 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52576-02201 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-02400 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-06206C0 |
MZEH12,NRE210,ZWE211..WG BLACK |
2 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-06206C0 |
MZEH12,NRE210,ZWE211..WG BLACK |
2 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-02370 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZEH12,NRE210,ZWE211..WG..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
4 | ||
| 75392-35220 |
MZEH12,NRE210,ZWE211..WG..G LUGGAGE & BACK DOOR RELEASE-POWER DOOR & HANDS FREE |
4 | ||
| Common parts | ||||
| 52161-02030 | ||||
| 90119-W0153 | ||||
| 90119-W0192 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90179-06115 | ||||
| 90189-06228 | ||||
| 90189-06242 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 7503 | ||||
| 8115 | ||||
| 8401 | ||||
| 8417 | ||||
