MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)

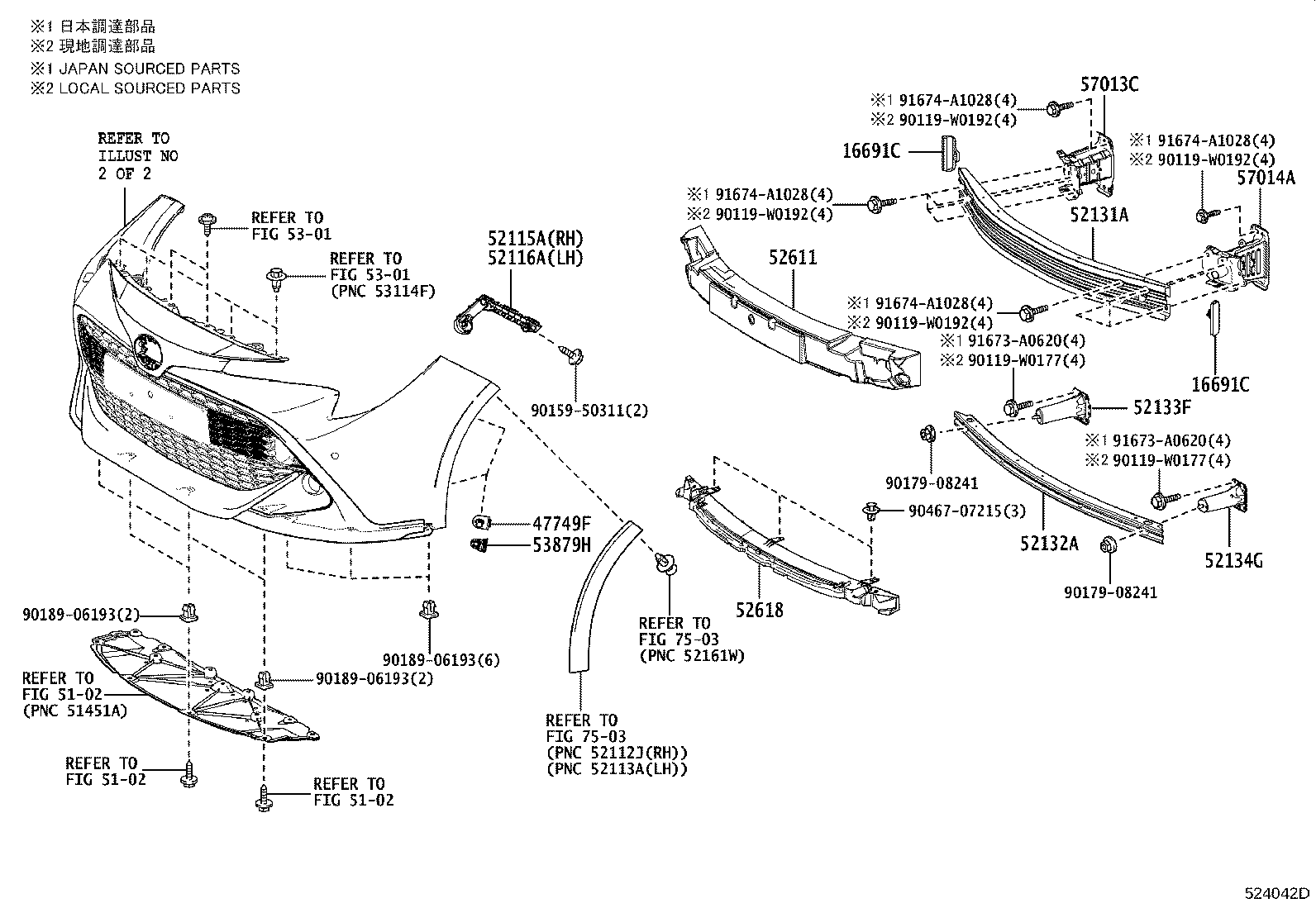

ILLUST NO. 1 OF 2(1907- )WG..N
CROSS PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-0T030 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211 |
2 | ||
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-0T030 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211 |
2 | ||
| 47749F - CLIP, PIN HOLD | ||||
| 47749-02040 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02330 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02470 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-02290 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-02070 |
MZEH12,NRE210,ZWE211..D,N FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 52132-02070 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 52132-02140 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 52132-02070 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 52132-02140 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 52133F - BRACKET, FRONT BUMPER, RH | ||||
| 52133-02110 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52134G - BRACKET, FRONT BUMPER, LH | ||||
| 52133-02110 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02520 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02180 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-02160 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-02190 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-02190 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-W0177 | ||||
| 90119-W0192 | ||||
| 90159-50311 | ||||
| 90179-08241 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| 91673-A0620 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 7503 | ||||

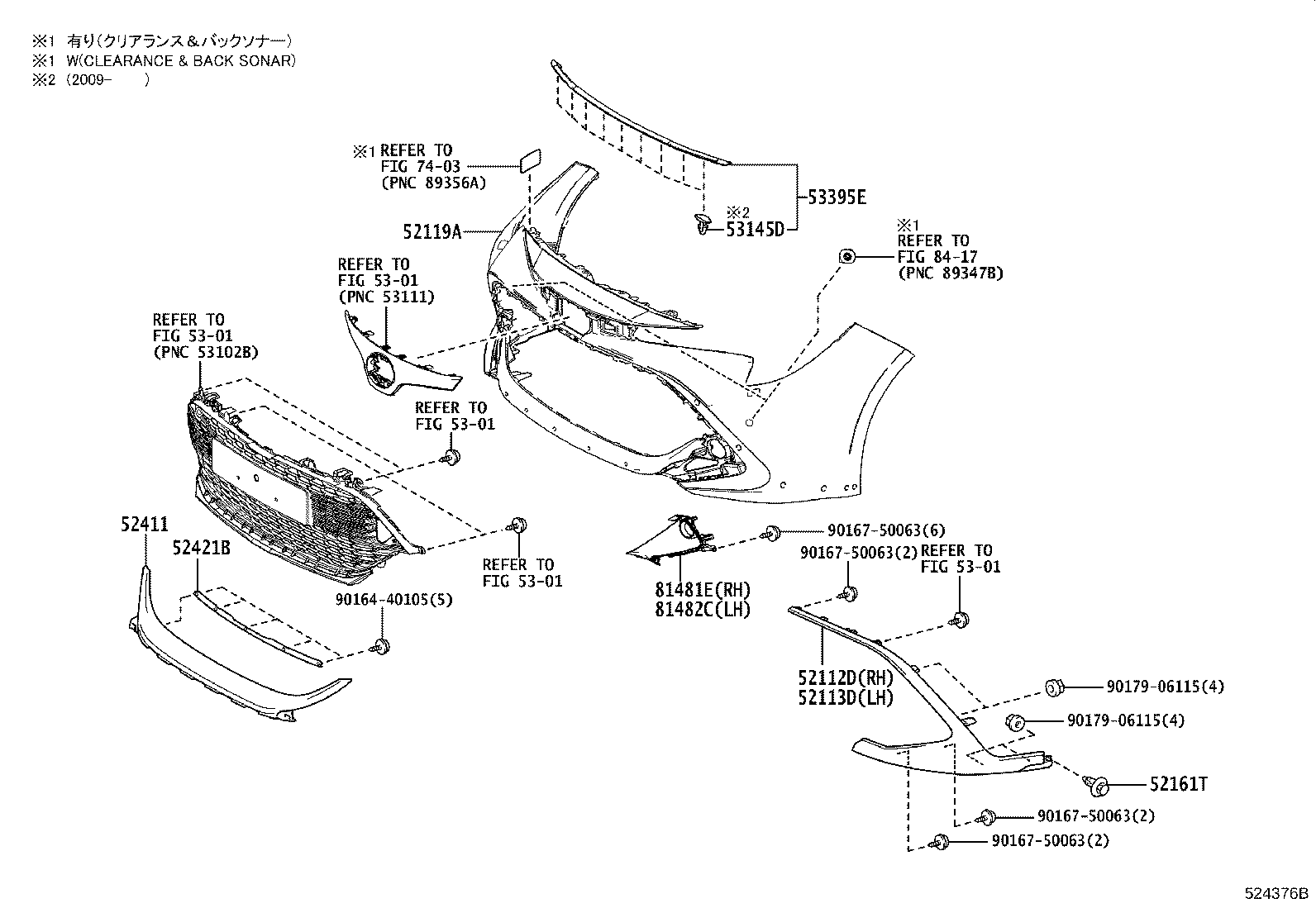

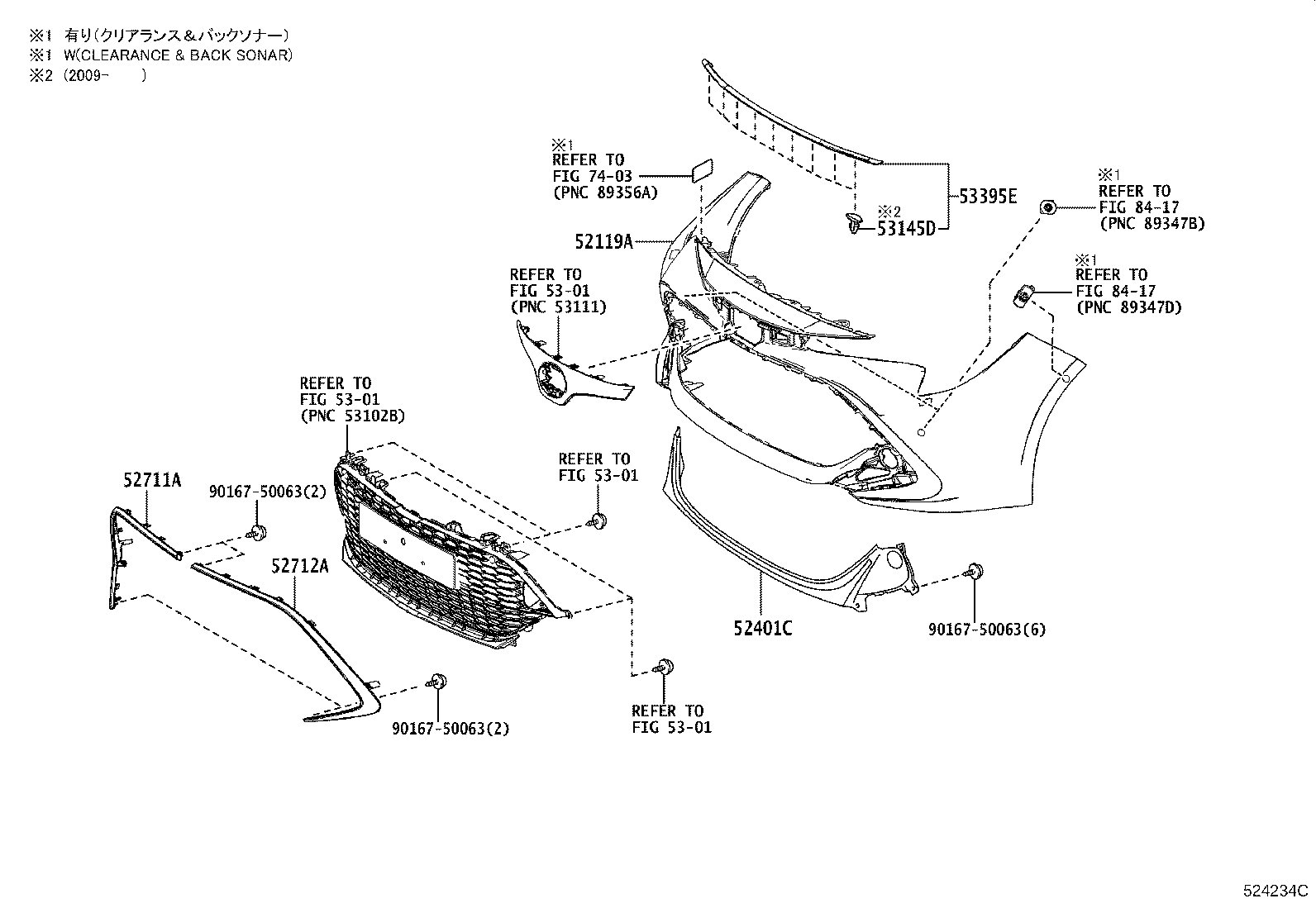

ILLUST NO. 2 OF 2(1911- )G,N
GRS PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F2907 |
MZEH12,NRE210,ZWE211..G PAINT REQ.,FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52119-F2907 |
MZEH12,ZWE211..RHD..G PAINT REQ.,GRS PACKAGE&FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52119-F2907 |
MZEH12,NRE210,ZWE211..D,N PAINT REQ. |
1 | ||
| 52119-F2909 |
MZEH12,NRE210,ZWE211..G PAINT REQ. |
1 | ||
| 52119-F2909 |
MZEH12,NRE210,ZWE211..CVT..N PAINT REQ.,RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2907 |
MZEH12,NRE210,ZWE211..G PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52119-F2909 |
MZEH12,NRE210,ZWE211..CVT..N PAINT REQ.,RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&CLEARANCE& BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2909 |
MZEH12,NRE210,ZWE211..CVT..N PAINT REQ.,RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2909 |
MZEH12,ZWE211..N PAINT REQ.,RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG& DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE),## |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&FRONT FOG & DRIVING LAMP-WITH,## |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE,## |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH,## |
1 | ||
| 52119-F2918 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH,## |
1 | ||
| 52119-F2918 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52119-F2918 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE),## |
1 | ||
| 52119-F2918 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52119-F2907 |
MZEH12,ZWE211..RHD..G PAINT REQ.,GRS PACKAGE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52119-F2907 |
MZEH12,ZWE211..RHD..N PAINT REQ.,GRS PACKAGE&RADIATOR LOWER GRILLE-GRS&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 52119-F2909 |
MZEH12,ZWE211..RHD..N PAINT REQ.,GRS PACKAGE&RADIATOR LOWER GRILLE-GRS&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2909 |
MZEH12,ZWE211..RHD..G PAINT REQ.,GRS PACKAGE |
1 | ||
| 52401C - GUARD SUB-ASSY, FRONT BUMPER | ||||
| 52401-YY010 |
MZEH12,ZWE211..N GRS PACKAGE&RADIATOR LOWER GRILLE-GRS&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52401-YY010 |
MZEH12,ZWE211..G GRS PACKAGE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52401-YY010 |
MZEH12,ZWE211..G GRS PACKAGE |
1 | ||
| 52401-YY010 |
MZEH12,ZWE211..N GRS PACKAGE&RADIATOR LOWER GRILLE-GRS |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-02320 |
MZEH12,ZWE211..RHD..G GRS PACKAGE&FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 52711-02320 |
MZEH12,ZWE211..RHD..G GRS PACKAGE&FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52711-02240 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE) |
1 | ||
| 52711-02240 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52711-02240 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 52711-02240 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 52711-02240 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52711-02320 |
MZEH12,ZWE211..RHD..G GRS PACKAGE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52711-02230 |
MZEH12,NRE210,ZWE211..N |
1 | ||
| 52711-02320 |
MZEH12,ZWE211..RHD..G GRS PACKAGE |
1 | ||
| 52711-02320 |
MZEH12,ZWE211..RHD..N GRS PACKAGE&RADIATOR LOWER GRILLE-GRS&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52711-02320 |
MZEH12,ZWE211..RHD..N GRS PACKAGE&RADIATOR LOWER GRILLE-GRS&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 52712A - GARNISH, FRONT BUMPER, LH | ||||
| 52712-02160 |
MZEH12,ZWE211..RHD..G GRS PACKAGE&FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 52712-02160 |
MZEH12,ZWE211..RHD..G GRS PACKAGE&FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52712-02040 |
MZEH12,NRE210,ZWE211..N |
1 | ||
| 52712-02050 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52712-02050 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE) |
1 | ||
| 52712-02050 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52712-02160 |
MZEH12,ZWE211..RHD..G GRS PACKAGE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52712-02050 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 52712-02050 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 52712-02160 |
MZEH12,ZWE211..RHD..G GRS PACKAGE |
1 | ||
| 52712-02160 |
MZEH12,ZWE211..RHD..N GRS PACKAGE&RADIATOR LOWER GRILLE-GRS&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 52712-02160 |
MZEH12,ZWE211..RHD..N GRS PACKAGE&RADIATOR LOWER GRILLE-GRS&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 53145D - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
MZEH12,NRE210,ZWE211 |
9 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-02260 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7403 | ||||
| 8417 | ||||

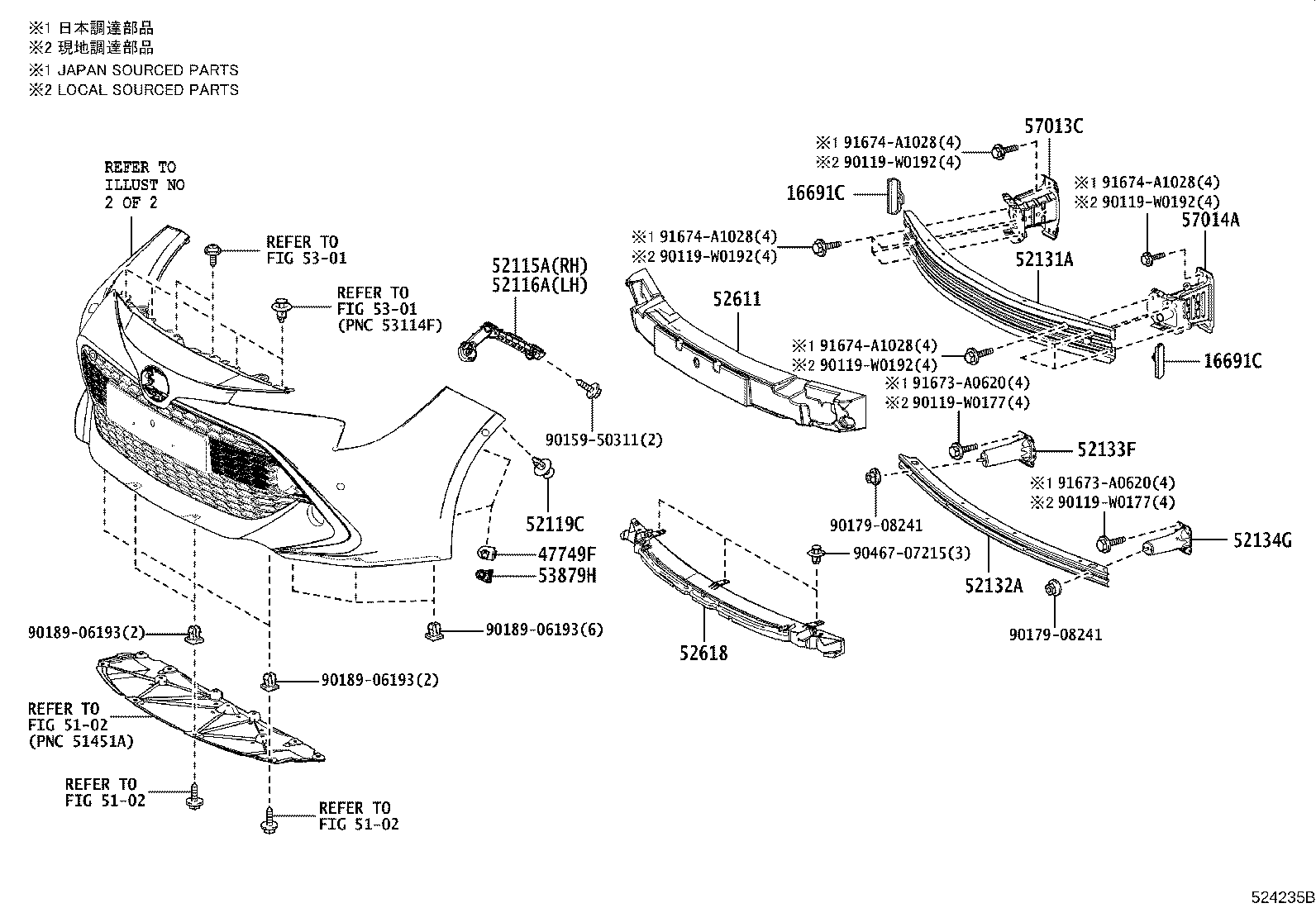

ILLUST NO. 1 OF 2(1911- )G,N
GRS PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-0T030 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211 |
2 | ||
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-0T030 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211 |
2 | ||
| 47749F - CLIP, PIN HOLD | ||||
| 47749-02040 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02330 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02470 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05170 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-02290 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-02070 |
MZEH12,NRE210,ZWE211..D,N FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 52132-02070 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 52132-02140 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 52132-02070 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 52132-02140 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 52133F - BRACKET, FRONT BUMPER, RH | ||||
| 52133-02110 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52134G - BRACKET, FRONT BUMPER, LH | ||||
| 52133-02110 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02520 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02180 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-02160 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-02190 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-02190 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-W0177 | ||||
| 90119-W0192 | ||||
| 90159-50311 | ||||
| 90179-08241 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| 91673-A0620 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
ILLUST NO. 2 OF 2(1907- )WG..N
CROSS PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-YY030 |
MZEH12,NRE210..WG..N CROSS PACKAGE |
1 | ||
| 52112-YY030 |
MZEH12,NRE210..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE) |
1 | ||
| 52112-YY030 |
MZEH12,NRE210..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE) |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-YY030 |
MZEH12,NRE210..WG..N CROSS PACKAGE |
1 | ||
| 52113-YY030 |
MZEH12,NRE210..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE) |
1 | ||
| 52113-YY030 |
MZEH12,NRE210..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F2907 |
MZEH12,NRE210,ZWE211..G PAINT REQ.,FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52119-F2907 |
MZEH12,ZWE211..RHD..G PAINT REQ.,GRS PACKAGE&FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52119-F2907 |
MZEH12,NRE210,ZWE211..D,N PAINT REQ. |
1 | ||
| 52119-F2909 |
MZEH12,NRE210,ZWE211..G PAINT REQ. |
1 | ||
| 52119-F2909 |
MZEH12,NRE210,ZWE211..CVT..N PAINT REQ.,RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2907 |
MZEH12,NRE210,ZWE211..G PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52119-F2909 |
MZEH12,NRE210,ZWE211..CVT..N PAINT REQ.,RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&CLEARANCE& BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2909 |
MZEH12,NRE210,ZWE211..CVT..N PAINT REQ.,RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2909 |
MZEH12,ZWE211..N PAINT REQ.,RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG& DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE),## |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&FRONT FOG & DRIVING LAMP-WITH,## |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE,## |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH,## |
1 | ||
| 52119-F2918 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH,## |
1 | ||
| 52119-F2918 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52119-F2918 |
MZEH12,NRE210,ZWE211..WG..CVT..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52119-F2917 |
MZEH12,NRE210,ZWE211..WG..N PAINT REQ.,CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE),## |
1 | ||
| 52119-F2918 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 52119-F2907 |
MZEH12,ZWE211..RHD..G PAINT REQ.,GRS PACKAGE&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52119-F2907 |
MZEH12,ZWE211..RHD..N PAINT REQ.,GRS PACKAGE&RADIATOR LOWER GRILLE-GRS&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 52119-F2909 |
MZEH12,ZWE211..RHD..N PAINT REQ.,GRS PACKAGE&RADIATOR LOWER GRILLE-GRS&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 52119-F2909 |
MZEH12,ZWE211..RHD..G PAINT REQ.,GRS PACKAGE |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
2 | ||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
2 | ||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
2 | ||
| 52161-02030 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
2 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-YY010 |
MZEH12,NRE210..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE) |
1 | ||
| 52411-YY010 |
MZEH12,NRE210..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE) |
1 | ||
| 52411-YY010 |
MZEH12,NRE210..WG..N CROSS PACKAGE |
1 | ||
| 52421B - SPACER, FRONT BUMPER, NO.1 | ||||
| 52421-YY010 |
MZEH12,NRE210..WG..N CROSS PACKAGE |
1 | ||
| 52421-YY010 |
MZEH12,NRE210..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE) |
1 | ||
| 52421-YY010 |
MZEH12,NRE210..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE) |
1 | ||
| 53145D - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
MZEH12,NRE210,ZWE211 |
9 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-02260 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02A10 |
MZEH12,NRE210,ZWE211..N |
1 | ||
| 81481-02A10 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 81481-02A10 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..N FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81481-02A11 |
MZEH12,NRE210,ZWE211..N |
1 | ||
| 81481-02A11 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 81481-02A11 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 81481-02A20 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..N FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81481-02A21 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02A00 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 81482-02A00 |
MZEH12,NRE210,ZWE211..N |
1 | ||
| 81482-02A00 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..N FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A10 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 81482-02A01 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 81482-02A01 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 81482-02A01 |
MZEH12,NRE210,ZWE211..N |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..WG..CVT..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS) |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..N FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PLATED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 81482-02A11 |
MZEH12,NRE210,ZWE211..CVT..N RADIATOR LOWER GRILLE-PAINTED(BUMPER GARNISH = PAINTED TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| Common parts | ||||
| 90164-40105 | ||||
| 90167-50063 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7403 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
