MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)

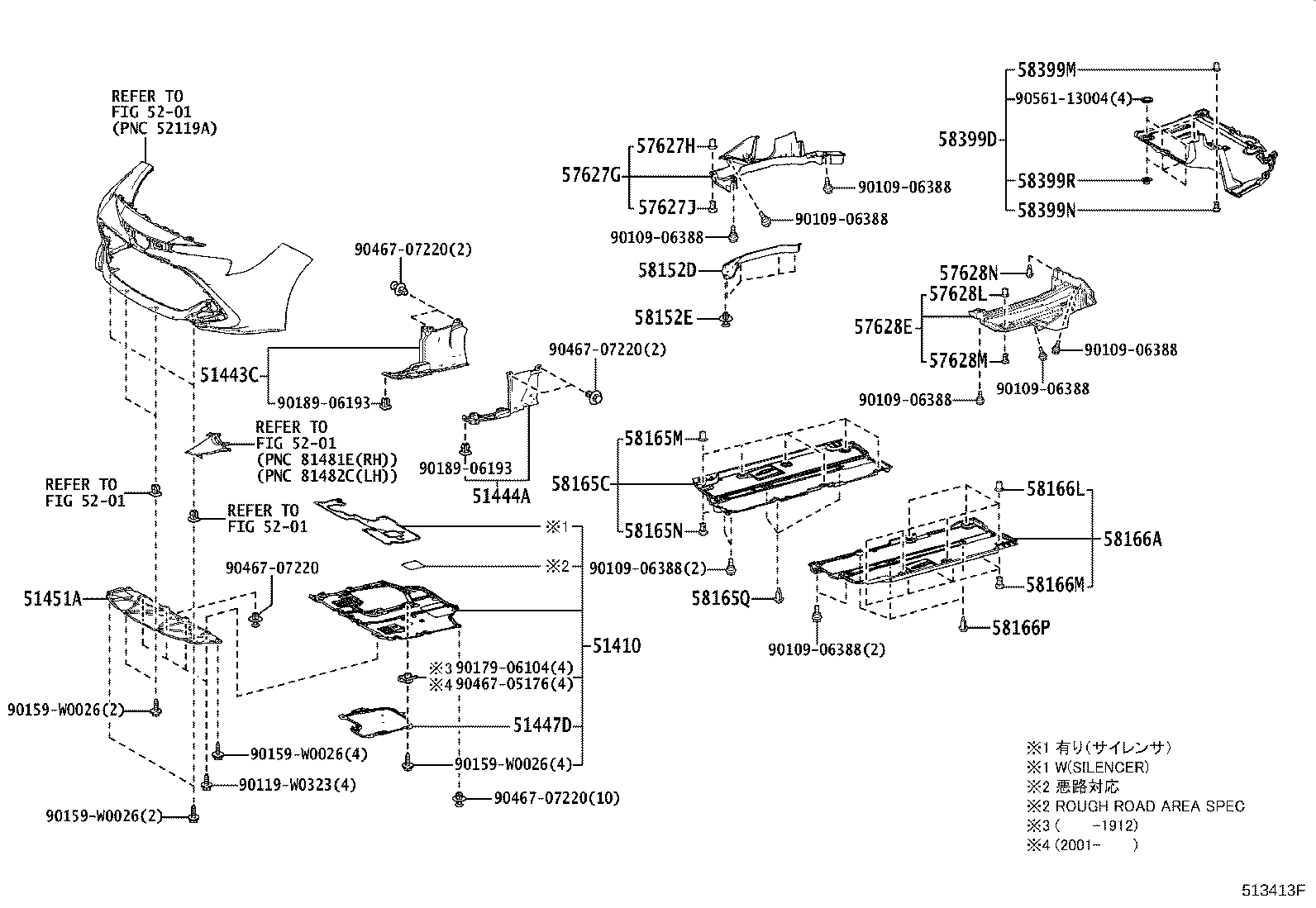

ILLUST NO. 2 OF 2(1902- )MZEH12..WG ; (1902- )ZWE211..WG..G
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51410 - COVER ASSY, ENGINE UNDER, NO.1 | ||||
| 51410-02310 |
MZEH12;ZWE211..G |
1 | ||
| 51410-02430 |
MZEH12 ROUGH ROAD AREA SPEC |
1 | ||
| 51410-02320 |
MZEH12 LIGHT GRADE |
1 | ||
| 51410-02430 |
MZEH12 LIGHT GRADE&ROUGH ROAD AREA SPEC |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-02150 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-02190 |
MZEH12,NRE210,ZWE211..CVT |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-02100 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 51451A - COVER, ENGINE UNDER, CENTER | ||||
| 51451-02170 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57627G - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-02160 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57627-02160 |
MZEH12,NRE210..EUR LIGHT GRADE |
1 | ||
| 57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-17026A0 |
MZEH12,NRE210..EUR LIGHT GRADE,SUPER WHITE 2 |
1 | ||
| 90467-17026A0 |
MZEH12,NRE210,ZWE211 SUPER WHITE 2 |
1 | ||
| 57627J - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2 | ||||
| 90467-17027C0 |
MZEH12,NRE210..EUR LIGHT GRADE,BLACK |
1 | ||
| 90467-17027C0 |
MZEH12,NRE210,ZWE211 BLACK |
1 | ||
| 57628E - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-02160 |
MZEH12,NRE210..EUR LIGHT GRADE |
1 | ||
| 57628-02160 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57628L - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-17026A0 |
MZEH12,NRE210..EUR LIGHT GRADE,SUPER WHITE 2 |
1 | ||
| 90467-17026A0 |
MZEH12,NRE210,ZWE211 SUPER WHITE 2 |
1 | ||
| 57628M - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2 | ||||
| 90467-17027C0 |
MZEH12,NRE210,ZWE211 BLACK |
1 | ||
| 90467-17027C0 |
MZEH12,NRE210..EUR LIGHT GRADE,BLACK |
1 | ||
| 57628N - CLIP, REAR FLOOR SIDE MEMBER COVER | ||||
| 90467-07220 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 90467-07220 |
MZEH12,NRE210..EUR LIGHT GRADE |
1 | ||
| 58152D - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER | ||||
| 58152-02030 |
MZEH12,NRE210..EUR LIGHT GRADE |
1 | ||
| 58152-02030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58152E - CLIP, FRONT FLOOR HEAT INSULATOR | ||||
| 90467-07220 |
MZEH12,NRE210..EUR LIGHT GRADE |
5 | ||
| 90467-07220 |
MZEH12,NRE210,ZWE211 |
5 | ||
| 58165C - COVER, FRONT FLOOR, RH | ||||
| 58165-02220 |
MZEH12..WG LIGHT GRADE |
1 | ||
| 58165-02220 |
MZEH12..WG;ZWE211..WG..G |
1 | ||
| 58165M - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
MZEH12,NRE210,ZWE211 SUPER WHITE 2 |
6 | ||
| 90467-17026A0 |
MZEH12,NRE210..EUR LIGHT GRADE,SUPER WHITE 2 |
6 | ||
| 58165N - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
MZEH12,NRE210,ZWE211 BLACK |
6 | ||
| 90467-17027C0 |
MZEH12,NRE210..EUR LIGHT GRADE,BLACK |
6 | ||
| 58165Q - CLIP, FRONT FLOOR COVER | ||||
| 90467-07220 |
MZEH12,NRE210,ZWE211 |
3 | ||
| 90467-07220 |
MZEH12,NRE210..EUR LIGHT GRADE |
3 | ||
| 58166A - COVER, FRONT FLOOR, LH | ||||
| 58166-02180 |
MZEH12..WG LIGHT GRADE |
1 | ||
| 58166-02180 |
MZEH12..WG;ZWE211..WG..G |
1 | ||
| 58166L - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
MZEH12,NRE210,ZWE211 SUPER WHITE 2 |
6 | ||
| 90467-17026A0 |
MZEH12,NRE210..EUR LIGHT GRADE,SUPER WHITE 2 |
6 | ||
| 58166M - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
MZEH12,NRE210,ZWE211 BLACK |
6 | ||
| 90467-17027C0 |
MZEH12,NRE210..EUR LIGHT GRADE,BLACK |
6 | ||
| 58166P - CLIP, FRONT FLOOR COVER | ||||
| 90467-07220 |
MZEH12,NRE210,ZWE211 |
3 | ||
| 90467-07220 |
MZEH12,NRE210..EUR LIGHT GRADE |
3 | ||
| 58399D - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-02180 |
MZEH12..WG LIGHT GRADE |
1 | ||
| 58399-02180 |
MZEH12..WG;ZWE211..WG..G |
1 | ||
| 58399M - CLIP, FLOOR UNDER COVER, NO.1 | ||||
| 90467-17026A0 |
MZEH12,NRE210,ZWE211 SUPER WHITE 2 |
1 | ||
| 90467-17026A0 |
MZEH12,NRE210..EUR LIGHT GRADE,SUPER WHITE 2 |
1 | ||
| 58399N - CLIP, FLOOR UNDER COVER, NO.2 | ||||
| 90467-17027C0 |
MZEH12,NRE210..EUR LIGHT GRADE,BLACK |
1 | ||
| 90467-17027C0 |
MZEH12,NRE210,ZWE211 BLACK |
1 | ||
| 58399R - CLIP, FLOOR UNDER COVER, NO.3 | ||||
| 90467-14053 |
MZEH12,NRE210,ZWE211..WG |
4 | ||
| 90467-14054 |
MZEH12,NRE210..WG LIGHT GRADE |
4 | ||
| 90467-14053 |
MZEH12,NRE210..WG LIGHT GRADE |
4 | ||
| 90467-14054 |
MZEH12,NRE210,ZWE211..WG |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90119-W0323 | ||||
| 90159-W0026 | ||||
| 90179-06104 | ||||
| 90189-06193 | ||||
| 90467-05176 | ||||
| 90467-07220 | ||||
| 90561-13004 | ||||
| Linked diagrams | ||||
| 5201 | ||||
