MZEH12R-DWXNBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999
Engine M20AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

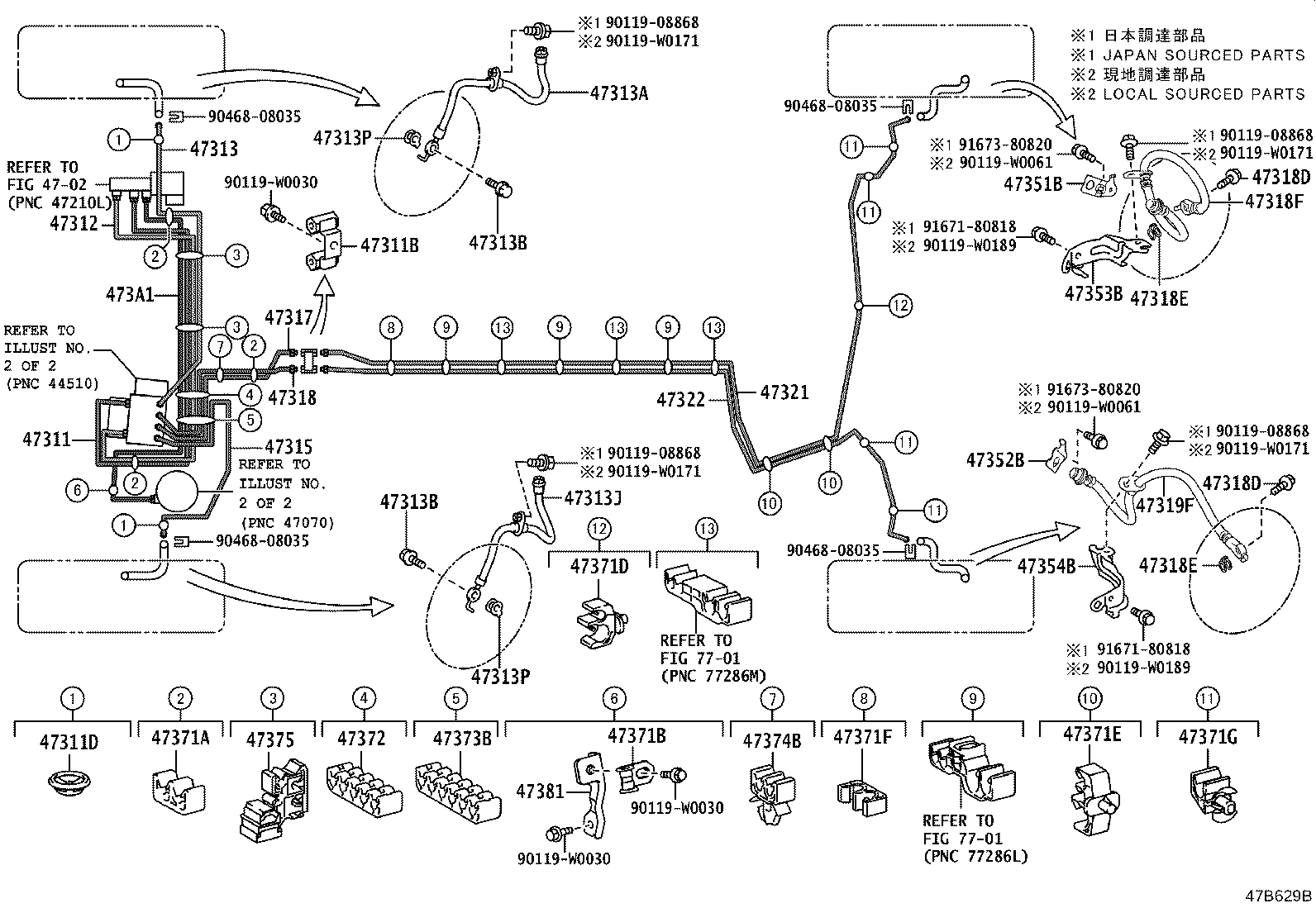

ILLUST NO. 1 OF 2(1901-2001)MZEH12,ZWE211..RHD

Click highlighted areas on diagram

diagram 4702 47311 47311B 47311D 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47352B 47353B 47354B 47371A 47371B 47371D 47371E 47371F 47371G 47372 47373B 47374B 47375 47381 473A1 7701 7701 9011908868 9011908868 9011908868 9011908868 90119W0030 90119W0030 90119W0030 90119W0061 90119W0061 90119W0171 90119W0171 90119W0171 90119W0171 90119W0189 90119W0189 9046808035 9046808035 9046808035 9046808035 9167180818 9167180818 9167380820 9167380820
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-02E40

MZEH12,ZWE211..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

MZEH12,NRE210,ZWE211

 1
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-25037

MZEH12,NRE210,ZWE211

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-02C80

MZEH12,ZWE211..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02F20

MZEH12,ZWE211..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-W2066

MZEH12,NRE210,ZWE211

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

MZEH12,NRE210,ZWE211

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

MZEH12,NRE210,ZWE211

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-W2067

MZEH12,NRE210,ZWE211

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

MZEH12,NRE210,ZWE211

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

MZEH12,NRE210,ZWE211

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-02480

MZEH12,ZWE211..RHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02E10

MZEH12,ZWE211..RHD

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02E30

MZEH12,ZWE211..RHD

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MZEH12,NRE210,ZWE211

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MZEH12,NRE210,ZWE211

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

MZEH12,NRE210,ZWE211

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

MZEH12,NRE210,ZWE211

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-W2052

MZEH12,NRE210,ZWE211

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-W2053

MZEH12,NRE210,ZWE211

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02640

MZEH12,NRE210,ZWE211..WG

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02640

MZEH12,NRE210,ZWE211..WG

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-F4020

MZEH12,NRE210,ZWE211

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-F4020

MZEH12,NRE210,ZWE211

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-02170

MZEH12,NRE210,ZWE211

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-02170

MZEH12,NRE210,ZWE211

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D91

MZEH12,ZWE211..RHD

 3
47371B - CLAMP, BRAKE TUBE, NO.6
90461-10854

MZEH12,ZWE211..RHD

 1
47371D - CLAMP, BRAKE TUBE, NO.8
77285-12170

MZEH12,NRE210,ZWE211

 1
47371E - CLAMP, BRAKE TUBE, NO.9
77286-12230

MZEH12,NRE210,ZWE211

 2
47371F - CLAMP, BRAKE TUBE, NO.10
90464-00904

MZEH12,NRE210,ZWE211

 1
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01E10

MZEH12,NRE210,ZWE211

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01E15

MZEH12,ZWE211..RHD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01E17

MZEH12,ZWE211..RHD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01E34

MZEH12,ZWE211..RHD

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01E49

MZEH12,ZWE211..RHD

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-F4010

MZEH12,ZWE211..RHD

 1
473A1 - TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER
473A1-02030

MZEH12,ZWE211..RHD

 1
Common parts
90119-08868
90119-W0030
90119-W0061
90119-W0171
90119-W0189
90468-08035
91671-80818
91673-80820
Linked diagrams
4702
7701

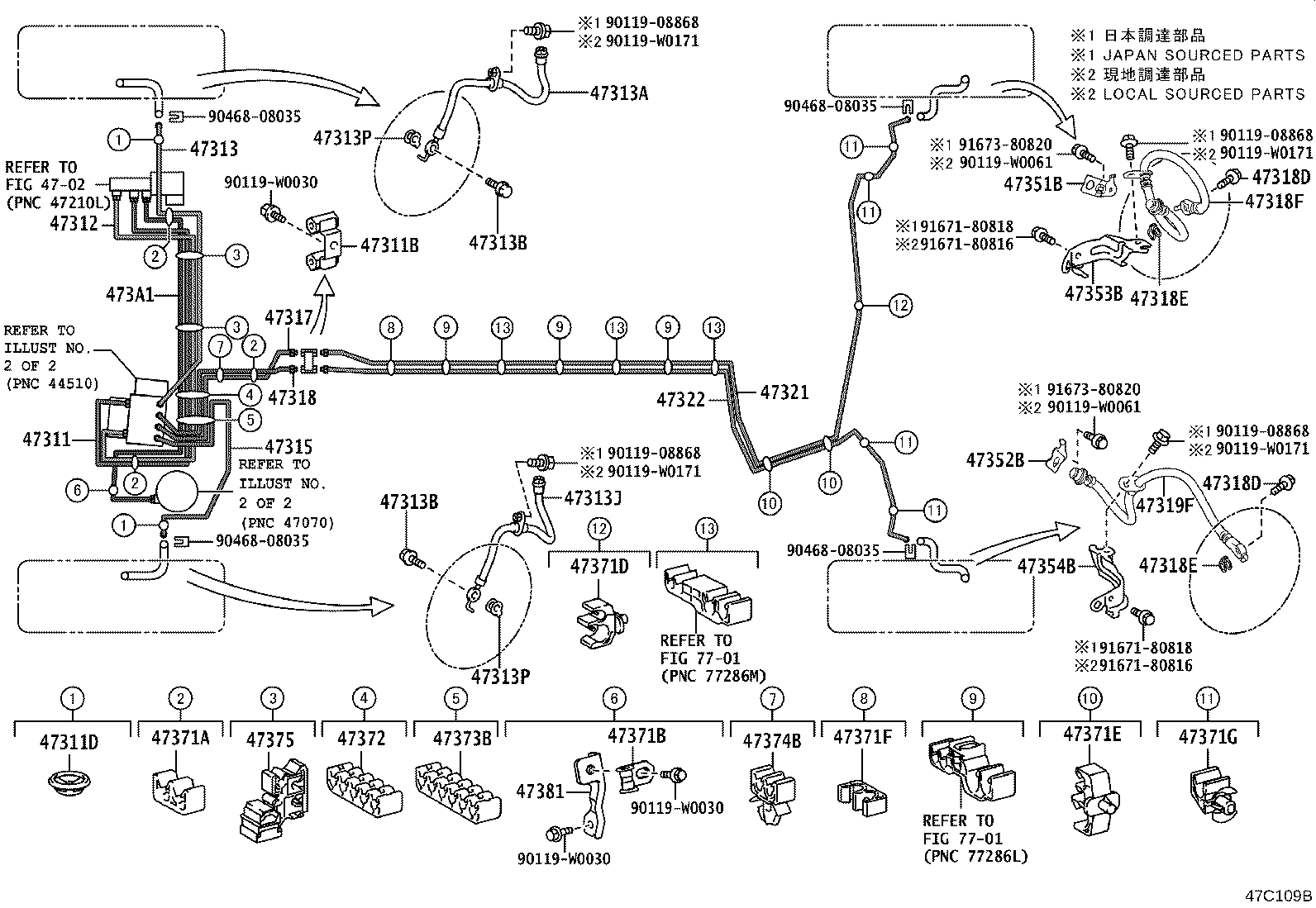

ILLUST NO. 1 OF 2(2002- )MZEH12,ZWE211..RHD

Click highlighted areas on diagram

diagram 4702 47311 47311B 47311D 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47352B 47353B 47354B 47371A 47371B 47371D 47371E 47371F 47371G 47372 47373B 47374B 47375 47381 473A1 7701 7701 9011908868 9011908868 9011908868 9011908868 90119W0030 90119W0030 90119W0030 90119W0061 90119W0061 90119W0171 90119W0171 90119W0171 90119W0171 9046808035 9046808035 9046808035 9046808035 9167180816 9167180816 9167180818 9167180818 9167380820 9167380820
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-02E40

MZEH12,ZWE211..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

MZEH12,NRE210,ZWE211

 1
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-25037

MZEH12,NRE210,ZWE211

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-02C80

MZEH12,ZWE211..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02F20

MZEH12,ZWE211..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-W2066

MZEH12,NRE210,ZWE211

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

MZEH12,NRE210,ZWE211

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

MZEH12,NRE210,ZWE211

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-W2067

MZEH12,NRE210,ZWE211

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

MZEH12,NRE210,ZWE211

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

MZEH12,NRE210,ZWE211

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-02480

MZEH12,ZWE211..RHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02E10

MZEH12,ZWE211..RHD

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02E30

MZEH12,ZWE211..RHD

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MZEH12,NRE210,ZWE211

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MZEH12,NRE210,ZWE211

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

MZEH12,NRE210,ZWE211

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

MZEH12,NRE210,ZWE211

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-W2052

MZEH12,NRE210,ZWE211

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-W2053

MZEH12,NRE210,ZWE211

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02640

MZEH12,NRE210,ZWE211..WG

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02640

MZEH12,NRE210,ZWE211..WG

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-F4020

MZEH12,NRE210,ZWE211

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-F4020

MZEH12,NRE210,ZWE211

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-02170

MZEH12,NRE210,ZWE211

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-02170

MZEH12,NRE210,ZWE211

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D91

MZEH12,ZWE211..RHD

 3
47371B - CLAMP, BRAKE TUBE, NO.6
90461-10854

MZEH12,ZWE211..RHD

 1
47371D - CLAMP, BRAKE TUBE, NO.8
77285-12170

MZEH12,NRE210,ZWE211

 1
47371E - CLAMP, BRAKE TUBE, NO.9
77286-12230

MZEH12,NRE210,ZWE211

 2
47371F - CLAMP, BRAKE TUBE, NO.10
90464-00904

MZEH12,NRE210,ZWE211

 1
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01E10

MZEH12,NRE210,ZWE211

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01E15

MZEH12,ZWE211..RHD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01E17

MZEH12,ZWE211..RHD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01E34

MZEH12,ZWE211..RHD

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01E49

MZEH12,ZWE211..RHD

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-F4010

MZEH12,ZWE211..RHD

 1
473A1 - TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER
473A1-02030

MZEH12,ZWE211..RHD

 1
Common parts
90119-08868
90119-W0030
90119-W0061
90119-W0171
90468-08035
91671-80816
91671-80818
91673-80820
Linked diagrams
4702
7701
