MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)
Production
Feb 2019
-
Sep 9999
Engine
M20AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1902- )MZEH12

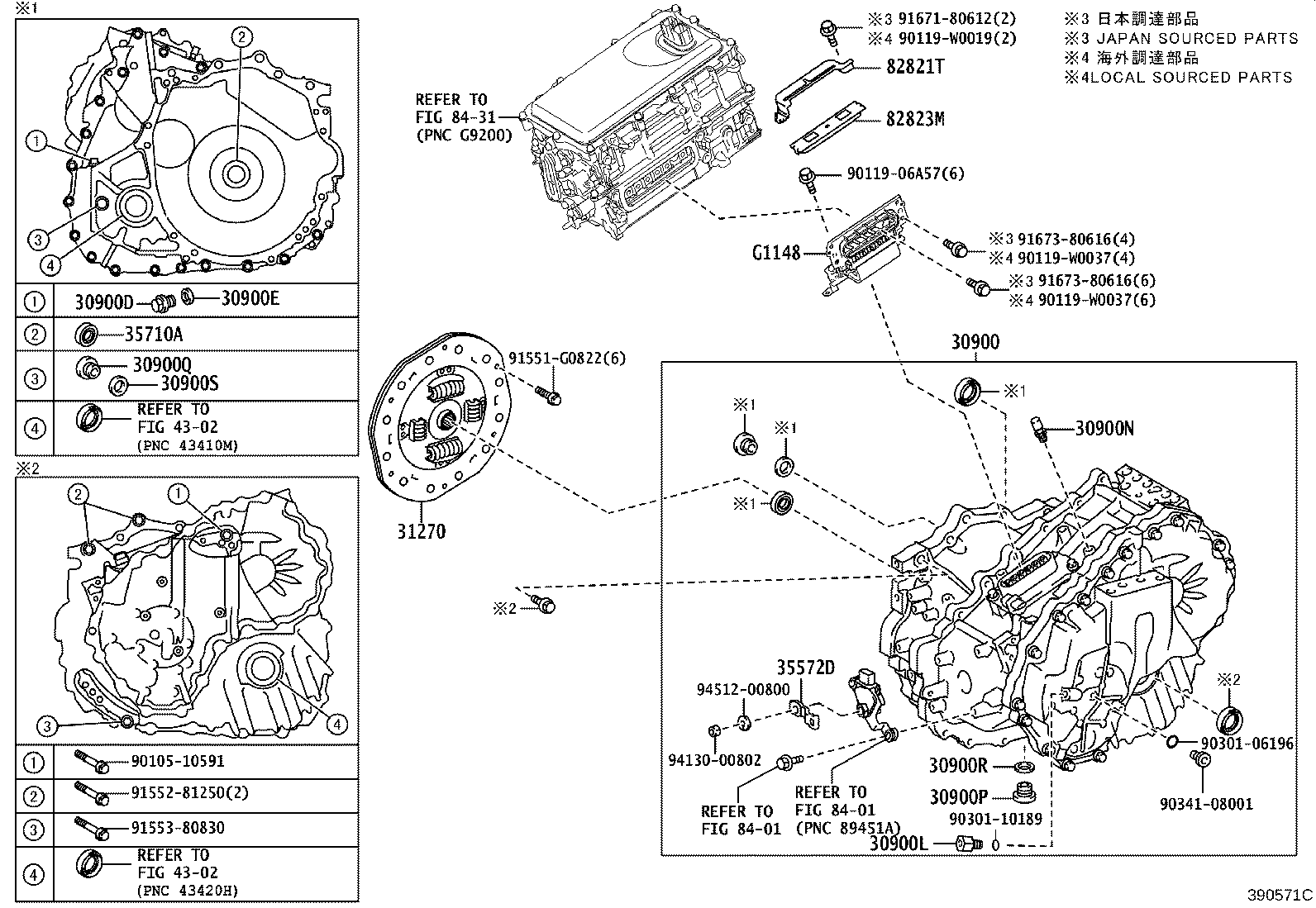

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900 - TRANSAXLE ASSY, HYBRID VEHICLE | ||||
| 30900-12010 |
MZEH12 |
1 | ||
| 30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CAS | ||||
| 90341-18060 |
MZEH12,ZWE211 |
1 | ||
| 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
MZEH12,ZWE211 |
1 | ||
| 30900L - UNION(FOR TRANSAXLE HOUSING) | ||||
| 90404-16031 |
MZEH12,ZWE211 |
1 | ||
| 30900N - PLUG, BREATHER(FOR TRANSAXLE) | ||||
| 90930-03201 |
MZEH12,ZWE211 |
1 | ||
| 30900P - PLUG, DRAIN(HV) | ||||
| 90341-18016 |
MZEH12,ZWE211 |
1 | ||
| 30900Q - PLUG, FILLER(HV) | ||||
| 90341-18016 |
MZEH12,ZWE211 |
1 | ||
| 30900R - GASKET, DRAIN PLUG(HV) | ||||
| 90430-18008 |
MZEH12,ZWE211 |
1 | ||
| 30900S - GASKET, FILLER PLUG(HV) | ||||
| 90430-18008 |
MZEH12,ZWE211 |
1 | ||
| 31270 - DAMPER ASSY, TRANSMISSION INPUT | ||||
| 31270-12010 |
MZEH12 |
1 | ||
| 35572D - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-33070 |
MZEH12 |
1 | ||
| 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) | ||||
| 90311-27011 |
MZEH12 |
1 | ||
| 82821T - COVER, CONNECTOR | ||||
| 82821-47240 |
MZEH12,ZWE211 |
1 | ||
| 82823M - CAP, TERMINAL | ||||
| 82823-47040 |
MZEH12,ZWE211 |
1 | ||
| G1148 - CABLE, MOTOR | ||||
| G1148-33050 |
MZEH12 |
1 | ||
| Common parts | ||||
| 90105-10591 | ||||
| 90119-06A57 | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90301-06196 | ||||
| 90301-10189 | ||||
| 90341-08001 | ||||
| 91551-G0822 | ||||
| 91552-81250 | ||||
| 91553-80830 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 4302 | ||||
| 8401 | ||||
| 8431 | ||||
