MZEH12R-DWXNBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999
Engine M20AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )MZEH12..RHD

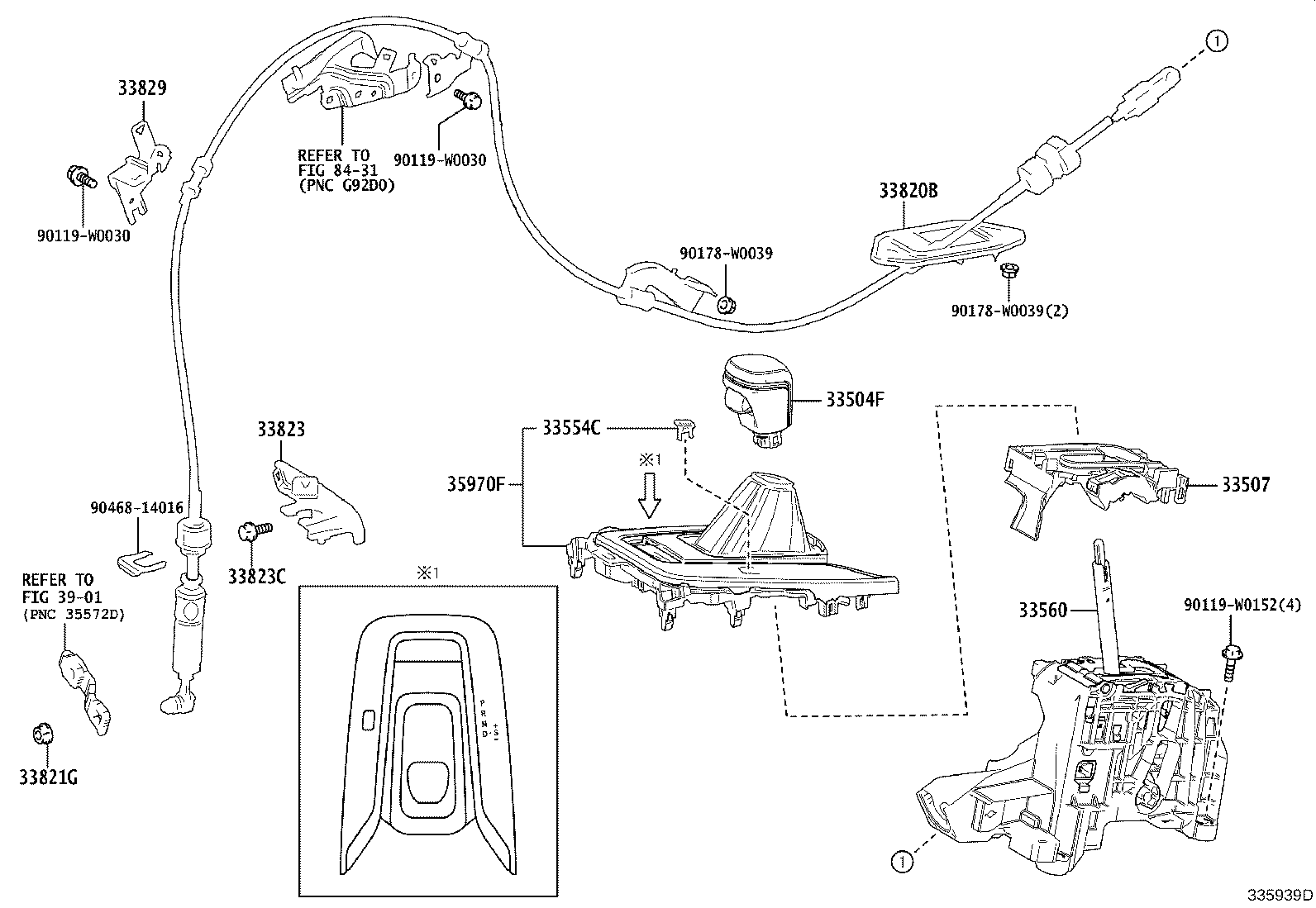

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33820B 33821G 33823 33823C 33829 35970F 3901 8431 90119W0030 90119W0030 90119W0152 90178W0039 90178W0039 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12810C0

MZEH12,NRE210,ZWE211..CVT..(G,N)

BLACK,TRIM1#,2#

 1
33504-12800C0

MZEH12,NRE210,ZWE211..CVT..(G,N)

BLACK,TRIM1#,2#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-02030

MZEH12,NRE210,ZWE211..RHD..CVT

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02200

MZEH12,NRE210,ZWE211..RHD..CVT

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-F4040

MZEH12..RHD;NRE210..RHD..CVT..G

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02B00

MZEH12

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-W0031

MZEH12,NRE210,ZWE211..CVT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12350

MZEH12

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-W0016

MZEH12,NRE210,ZWE211..CVT

 2
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-12180

MZEH12

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-02100C0

MZEH12..RHD

BLACK,TRIM1#,2#

 1
35970-02470C0

MZEH12..RHD

GRS PACKAGE,BLACK/RED,TRIM2#

 1
Common parts
90119-W0030
90119-W0152
90178-W0039
90468-14016
Linked diagrams
3901
8431
