MZEH12R-DWXNBW (2019)
Toyota Corolla (Ukp)

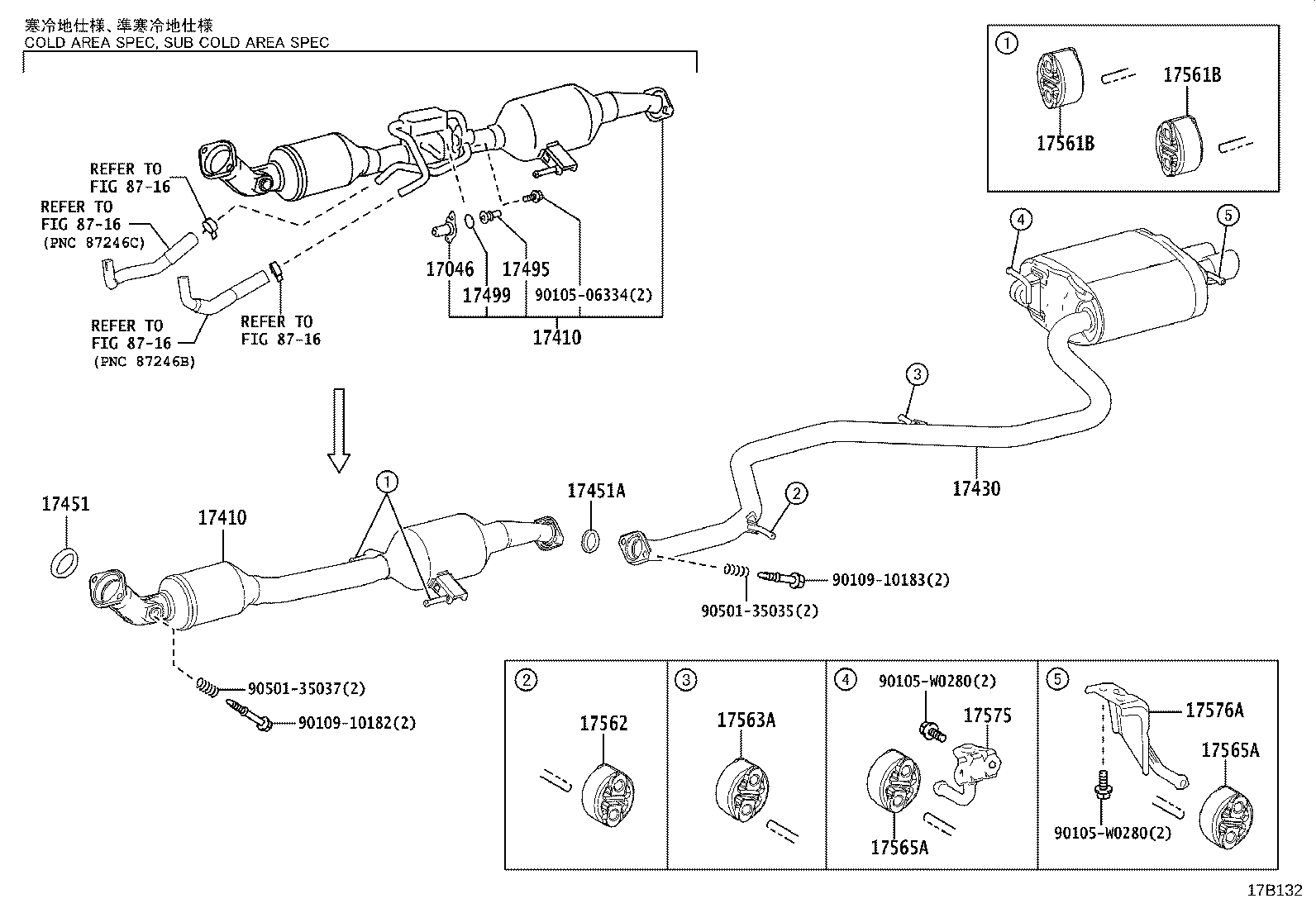

(1902-2010)M20AFXS..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL | ||||
| 17046-24010 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17046-37100 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-F2040 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y,SUB COLD AREA SPEC |
1 | ||
| 17410-F2030 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y |
1 | ||
| 17410-F2160 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y,SUB COLD AREA SPEC |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-F2040 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y,SUB COLD AREA SPEC |
1 | ||
| 17410-F2030 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y |
1 | ||
| 17410-F2160 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y,SUB COLD AREA SPEC |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-F2040 |
M20AFXS..MZEH12..WG |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-0R010 |
M20AFXS,8NRFTS..MZEH12,NRE210 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-0J022 |
M20AFXS,8NRFTS..MZEH12,NRE210 |
1 | ||
| 17495 - ACTUATOR, EXHAUST PIPE GAS CONTROL | ||||
| 17495-24010 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17495-37010 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-24010 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17499-37020 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17565-0T040 |
M20AFXS,8NRFTS..MZEH12,NRE210..EUR |
2 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17565-0T040 |
M20AFXS,8NRFTS..MZEH12,NRE210..EUR |
2 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17565-0J031 |
M20AFXS..MZEH12;8NRFTS,2ZRFXE..NRE210,ZWE211..HB |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0J031 |
M20AFXS..MZEH12 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0T040 |
M20AFXS..MZEH12 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0T040 |
M20AFXS..MZEH12 |
2 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-F2050 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211..WG |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-0T050 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211..WG |
1 | ||
| Common parts | ||||
| 90105-06334 | ||||
| 90105-W0280 | ||||
| 90109-10182 | ||||
| 90109-10183 | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| Linked diagrams | ||||
| 8716 | ||||

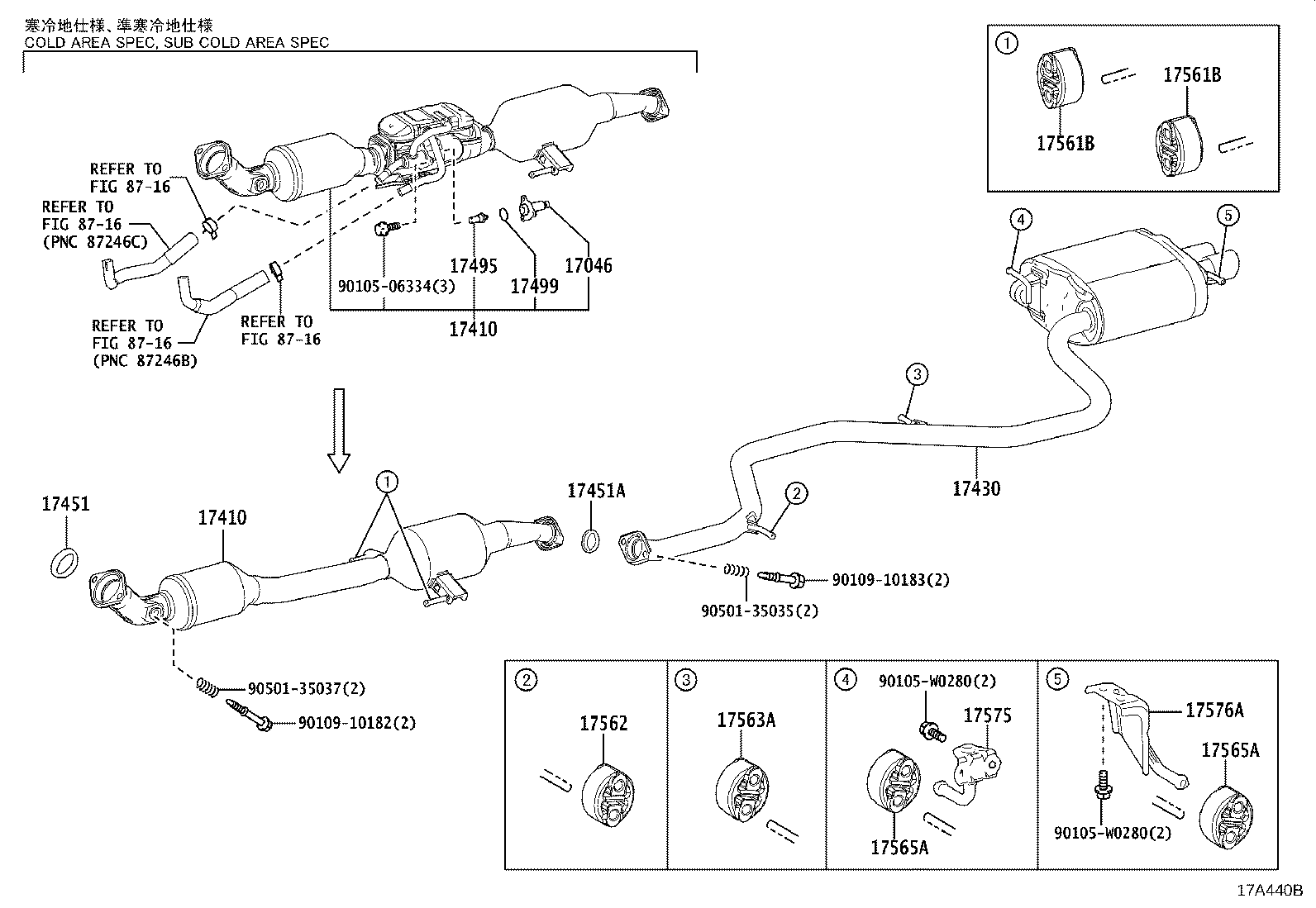

(2010- )M20AFXS..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL | ||||
| 17046-24010 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17046-37100 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-F2040 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y,SUB COLD AREA SPEC |
1 | ||
| 17410-F2030 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y |
1 | ||
| 17410-F2160 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y,SUB COLD AREA SPEC |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-F2040 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y,SUB COLD AREA SPEC |
1 | ||
| 17410-F2030 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y |
1 | ||
| 17410-F2160 |
M20AFXS..MZEH12 *114=TOYOTA/L52/Y,SUB COLD AREA SPEC |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-F2040 |
M20AFXS..MZEH12..WG |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-0R010 |
M20AFXS,8NRFTS..MZEH12,NRE210 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-0J022 |
M20AFXS,8NRFTS..MZEH12,NRE210 |
1 | ||
| 17495 - ACTUATOR, EXHAUST PIPE GAS CONTROL | ||||
| 17495-24010 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17495-37010 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-24010 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17499-37020 |
M20AFXS..MZEH12 SUB COLD AREA SPEC |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17565-0T040 |
M20AFXS,8NRFTS..MZEH12,NRE210..EUR |
2 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17565-0T040 |
M20AFXS,8NRFTS..MZEH12,NRE210..EUR |
2 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17565-0J031 |
M20AFXS..MZEH12;8NRFTS,2ZRFXE..NRE210,ZWE211..HB |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0J031 |
M20AFXS..MZEH12 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0T040 |
M20AFXS..MZEH12 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0T040 |
M20AFXS..MZEH12 |
2 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-F2050 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211..WG |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-0T050 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211..WG |
1 | ||
| Common parts | ||||
| 90105-06334 | ||||
| 90105-W0280 | ||||
| 90109-10182 | ||||
| 90109-10183 | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| Linked diagrams | ||||
| 8716 | ||||
