MZEH12L-DHXNBW (2019)
Toyota Corolla (Ukp)

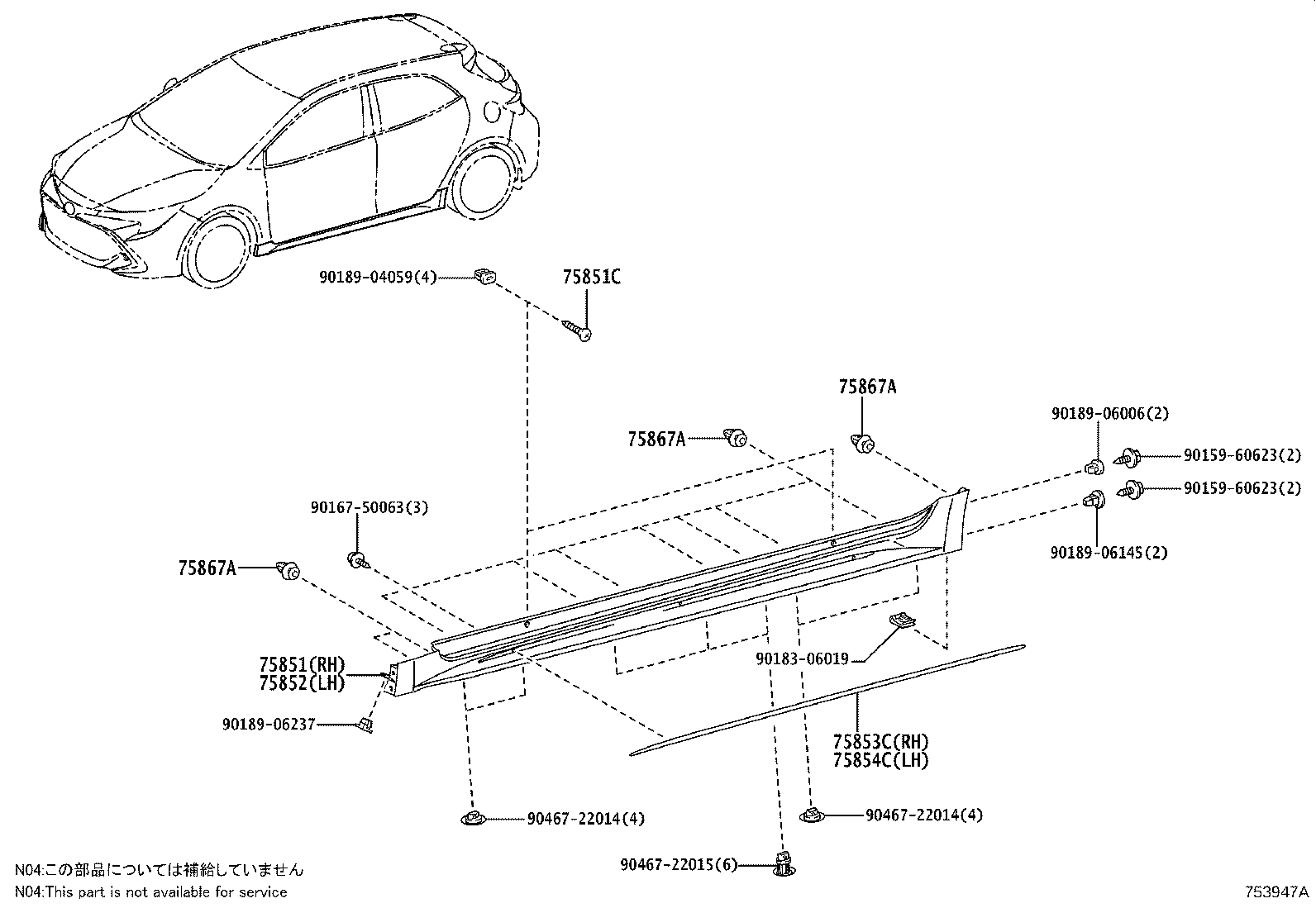

ILLUST NO. 2 OF 2(1911- )MZEH12,ZWE211..HB..G,N
GRS PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75851-02902 |
MZEH12,ZWE211..HB..(G,N) GRS PACKAGE |
1 | ||
| 75851-YY902 |
MZEH12,ZWE211..HB..(G,N) GRS PACKAGE |
1 | ||
| 75851-02902 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 75851C - SCREW(FOR BODY ROCKER PANEL MOULDING) | ||||
| 90162-40035 |
MZEH12,NRE210,ZWE211 W/O COATING |
4 | ||
| 90162-40034 |
MZEH12,NRE210,ZWE211 W(COATING) |
4 | ||
| 90162-40035 |
MZEH12,ZWE211..G,N GRS PACKAGE,W/O COATING |
4 | ||
| 90162-40034 |
MZEH12,ZWE211..G,N GRS PACKAGE,W/COATING |
4 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75852-02901 |
MZEH12,ZWE211..HB..(G,N) GRS PACKAGE |
1 | ||
| 75852-02901 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 75852-YY900 |
MZEH12,ZWE211..HB..(G,N) GRS PACKAGE |
1 | ||
| 75853C - MOULDING, ROCKER PANEL, LOWER RH | ||||
| 75853-YY020 |
MZEH12,ZWE211..HB..(G,N) GRS PACKAGE |
1 | ||
| 75854C - MOULDING, ROCKER PANEL, LOWER LH | ||||
| 75854-YY020 |
MZEH12,ZWE211..HB..(G,N) GRS PACKAGE |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-52020 |
MZEH12,ZWE211..G,N GRS PACKAGE |
20 | ||
| 75867-52020 |
MZEH12,NRE210,ZWE211 |
20 | ||
| 75867-33040 |
MZEH12,NRE210,ZWE211 |
20 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-52020 |
MZEH12,ZWE211..G,N GRS PACKAGE |
20 | ||
| 75867-52020 |
MZEH12,NRE210,ZWE211 |
20 | ||
| 75867-33040 |
MZEH12,NRE210,ZWE211 |
20 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-52020 |
MZEH12,ZWE211..G,N GRS PACKAGE |
20 | ||
| 75867-52020 |
MZEH12,NRE210,ZWE211 |
20 | ||
| 75867-33040 |
MZEH12,NRE210,ZWE211 |
20 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90167-50063 | ||||
| 90183-06019 | ||||
| 90189-04059 | ||||
| 90189-06006 | ||||
| 90189-06145 | ||||
| 90189-06237 | ||||
| 90467-22014 | ||||
| 90467-22015 | ||||
